Two models of generic USB-C right-angle connectors/extenders/port-savers that can be used in rough Boolean operations for 3D-modeling.
USB-C Receptacles are: 8.5mm x 2.5mm x 8mm
USB-C Plugs are: 8.5mm x 2.5mm x 7mm
Type 1 model:purchase link for type-1
exterior plug/receptacle housing dimensions are: 12.75mm x 6.5mm
Type 2 model:purchase link for type-2

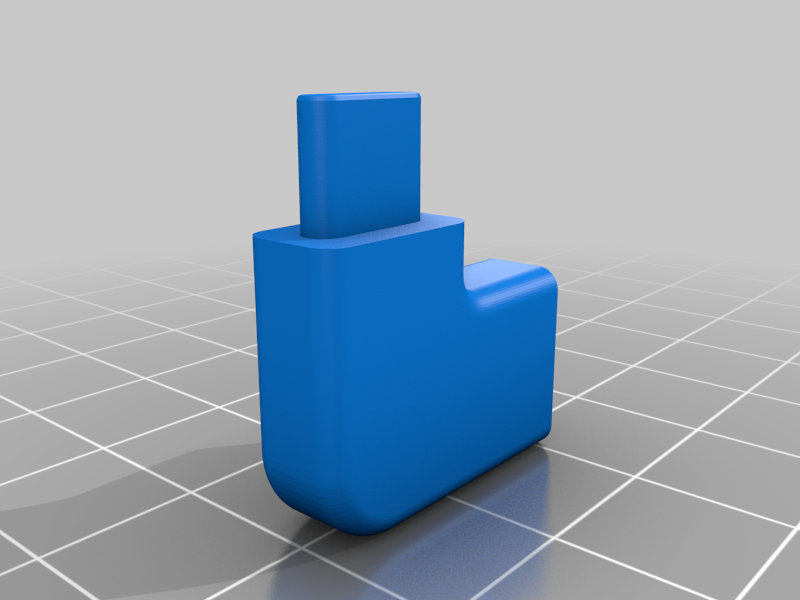

exterior housing dimensions are: 12.5mm x 6.5mm (receptacle) and 11.5mm x 6.5mm (plug)
Note: generic connectors may not meet USB-IF specifications. Low quality specimens may not be appropriate for 100W (20V @ 5A) power delivery (no identifier chip) and insertion losses may reduce effective bandwidth for SS-10 / SS-20 connections.
