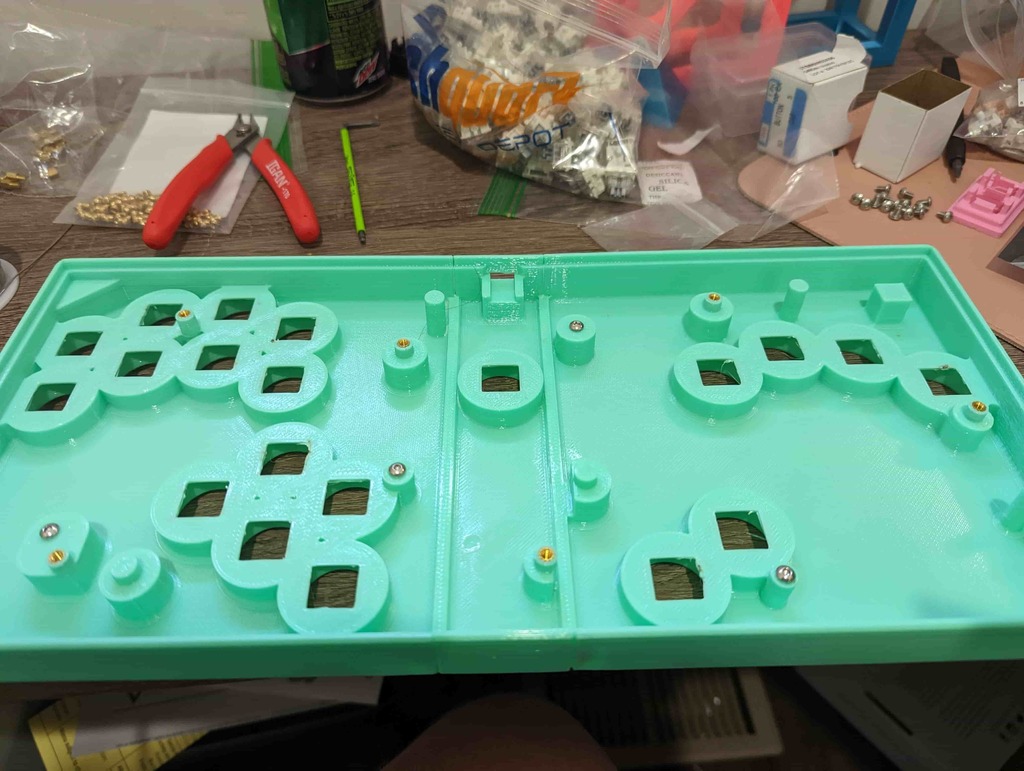

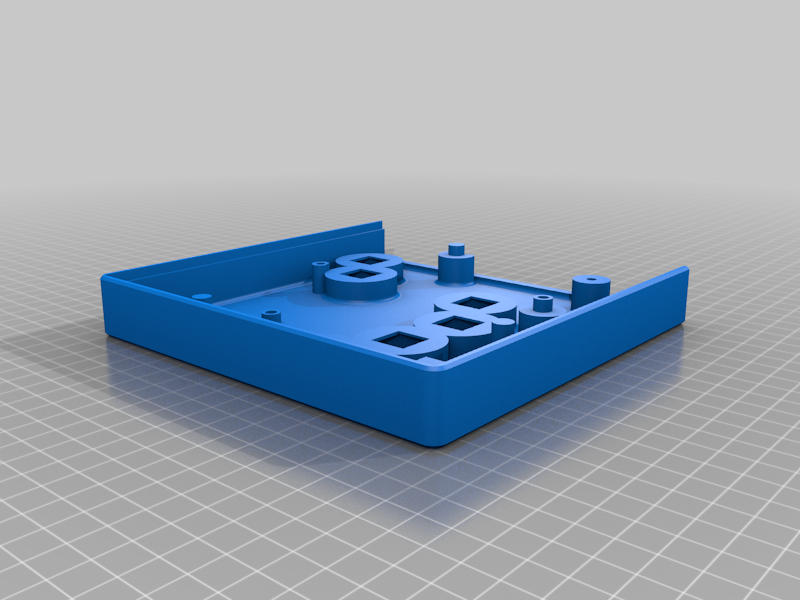

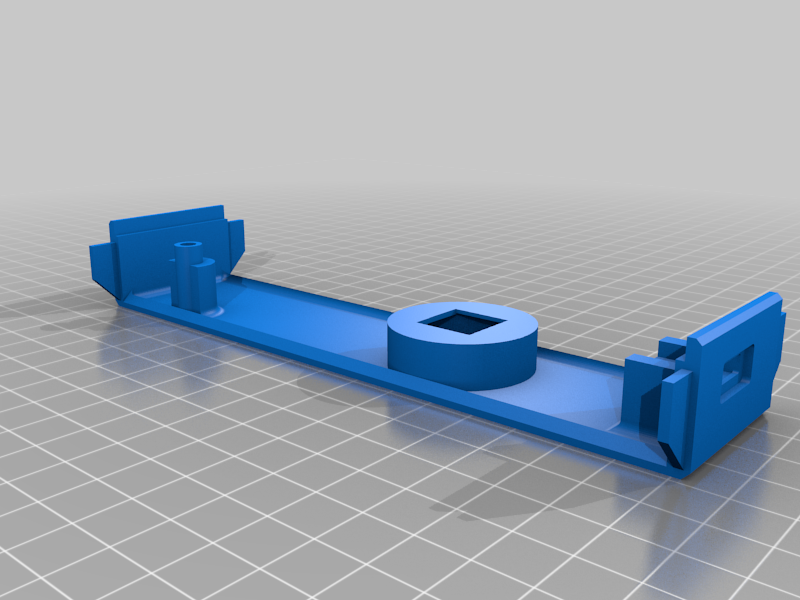

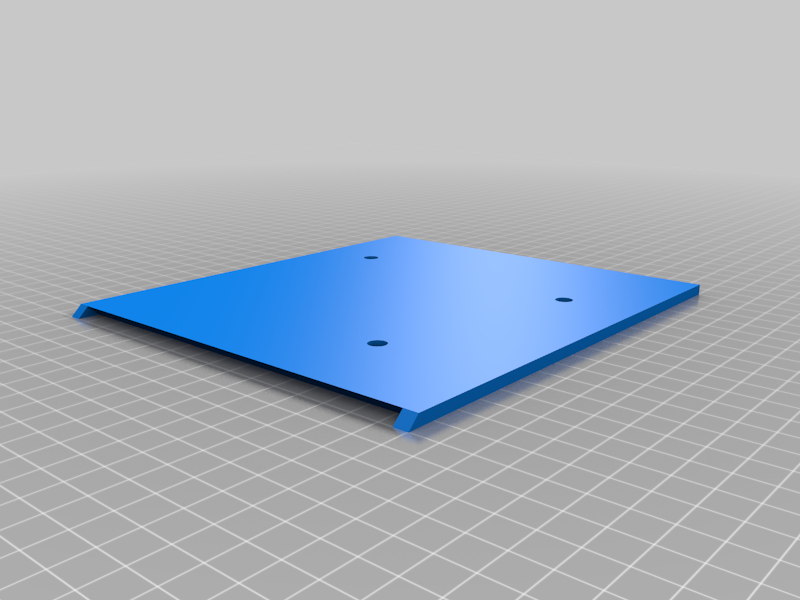

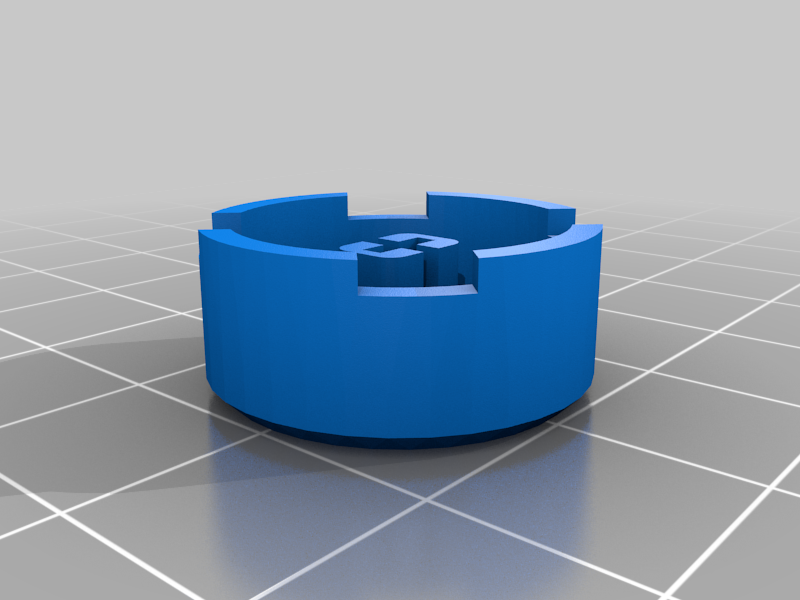

Remix of my Openframe1 case with parts that can be glued together. I use ABS for my prints and I think acetone gluing is neat. There are chamfers and slots so that everything can fit together nicely. I then used some m3 heated inserts [1] for the threads so they don't get stripped. I've also included the keycap I use since I print with a .6mm nozzle
This is also designed to be printed without supports.
[1] Heated Inserts: https://www.amazon.com/dp/B09TNK8GD6?ref_=cm_sw_r_apan_dp_YSFETGMWNCHJE1GR02BS&language=en-US
[2] M3 Screws: https://www.mcmaster.com/94500A262/
DISCORD LINKS: https://discord.gg/wfwsqqj54h
https://discord.gg/URbcxEeck6
Print Settings
Printer Brand:
Prusa
Printer:
I3 MK3S
Supports:
No
Resolution:
.3
Infill:
15%
Filament:
Notes:
.6mm Nozzle
