The Puzzles
The TriHex grid consists of a hexagon and regular triangle. The puzzle pieces each consist of one hexagon and 0 to 6 triangles.
There are 2 different puzzles available:

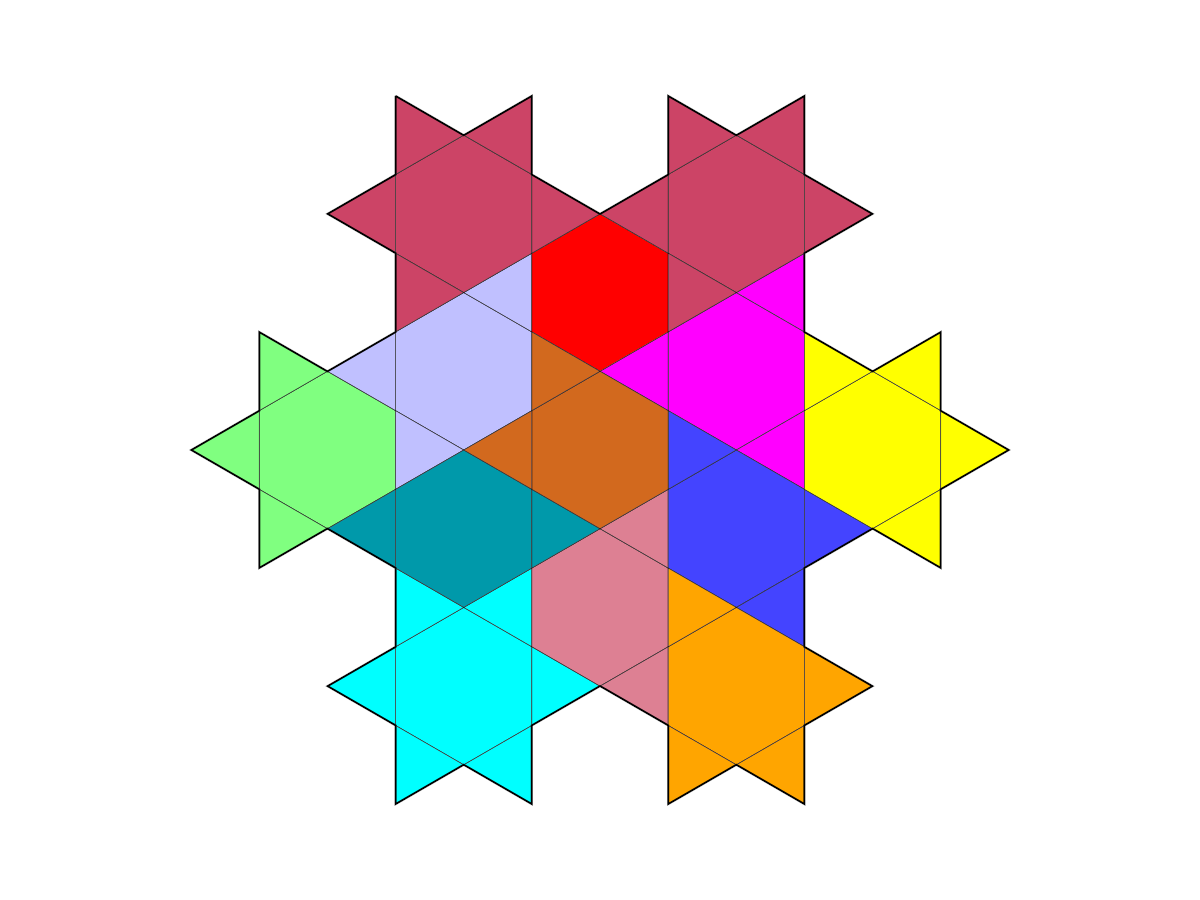

Puzzle 1 contains all 14 TriHexes.

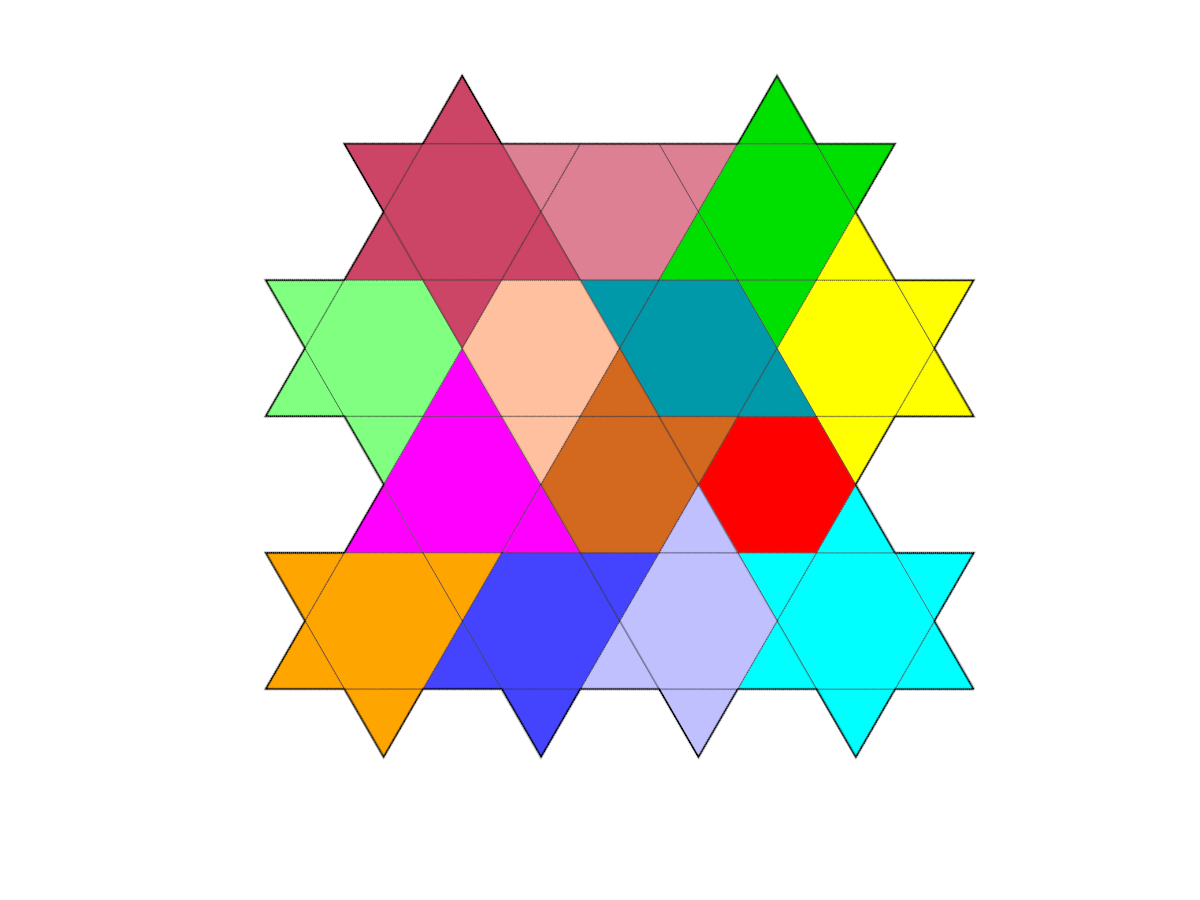

Puzzle 2 uses all the puzzle pieces except for part no. 01 and no. 07. Part no. 09 must be printed twice.

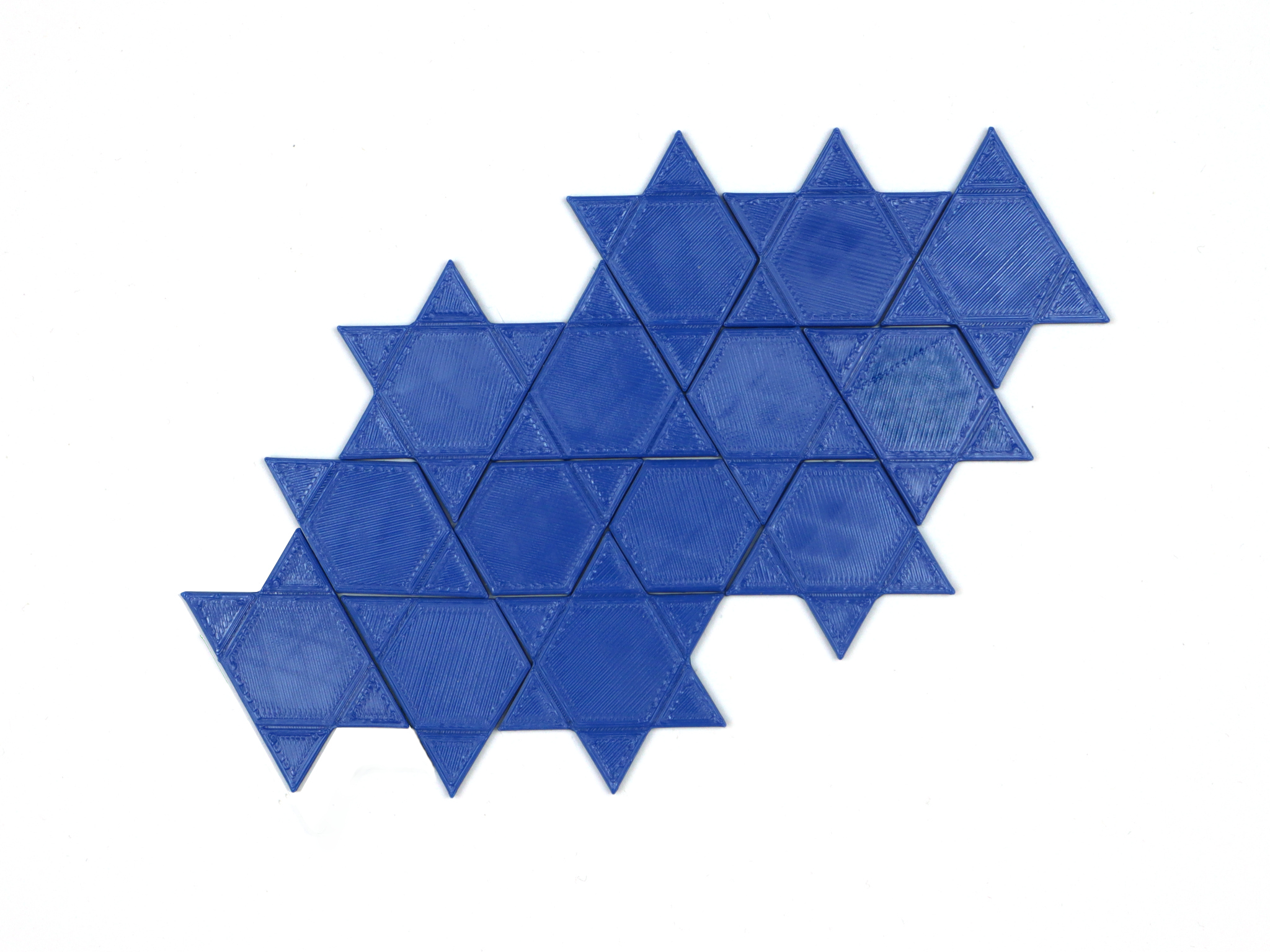

Besides the shapes shown above, there are a few other shapes you can build with the TriHexes. Both puzzles are not very difficult to solve.
3D Printing Tips
The size of the sliding top is crucial. If it's too narrow, the bumps on the top won't snap into place. If it's too wide, the top can usually still be inserted, but it becomes difficult to open.
If the top doesn't fit, it is advisable to adjust its dimensions in the slicer and reprint it. Recommended adjustments are only small increments ranging between approximately 0.2mm and 0.3mm in width (only in width).
Here is a short video explaining this
I printed the puzzle with the following settings:
Material: PLA
Resolution: 0.2mm
Infill: 20%
no supports
no raft, no brim
Other
Further polyform puzzles and background
Liked this model? Check out my other polyform puzzles on Printables
