Fidget Cube Parts: Better mechanic Better optics Assmbly required
- Rating
- 5 / 5
- Likes
- 4
- Downloads
- 32
- Makes
- 2
- Views
- 302
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Other Toys & Games
- License
- GNU General Public License v3.0
8 x Link
4 x CubeA
4 x CubeB
16 x ~17mm filament(1.75mm) pieces
Note: I reccomend using the big hole links and the cubes with the normal sized holes
(CubeB is mirrored version of CubeA)
1. print the parts
4 x CubeA, 4 CubeB, 16 x Link
With the rigth rotations it can be printed without supports
2. put the parts together and insert the filament pieces
(either cut them before or put them in and cut off the rest)
The cubes are mirrored on 2 Axis.
It is always a CubeA next to a CubeB there are no CubeBs next to each other (same for CubeBs).

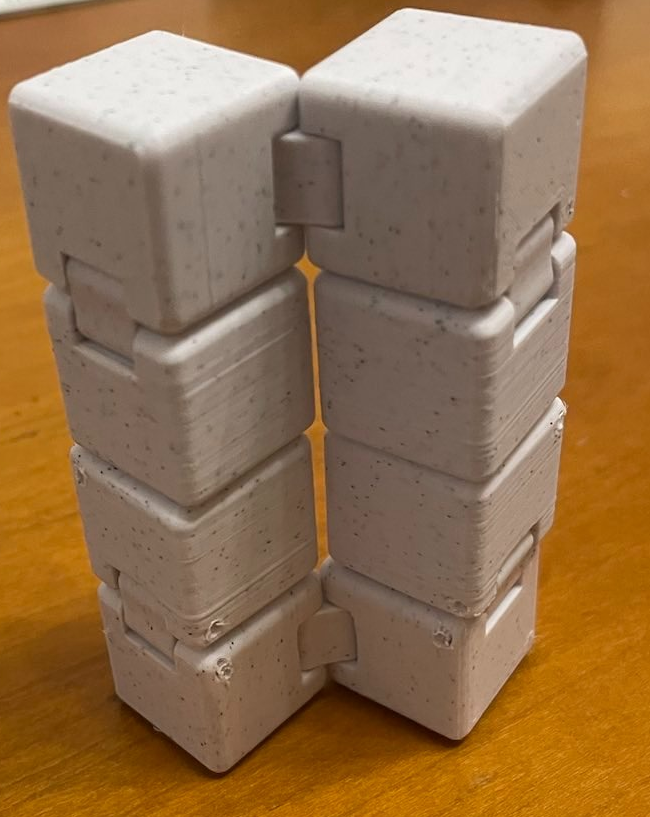

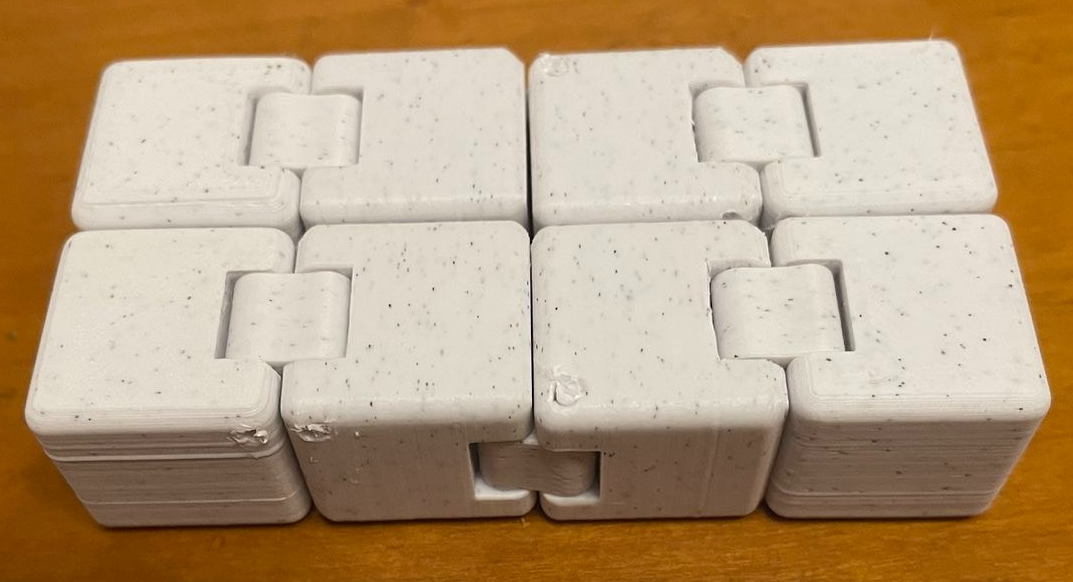

Look at the picture to get a better idea of how to put them together.
3. to make it permanent I pressed the end of the filament piece against the hot nozzle.
I advice to fully assemble and check if everything is in order before melting the ends.
I cleand up the melted spotts with a sharp blade
