Pop Out Baskets
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Home Decor
- License
- Creative Commons — Attribution

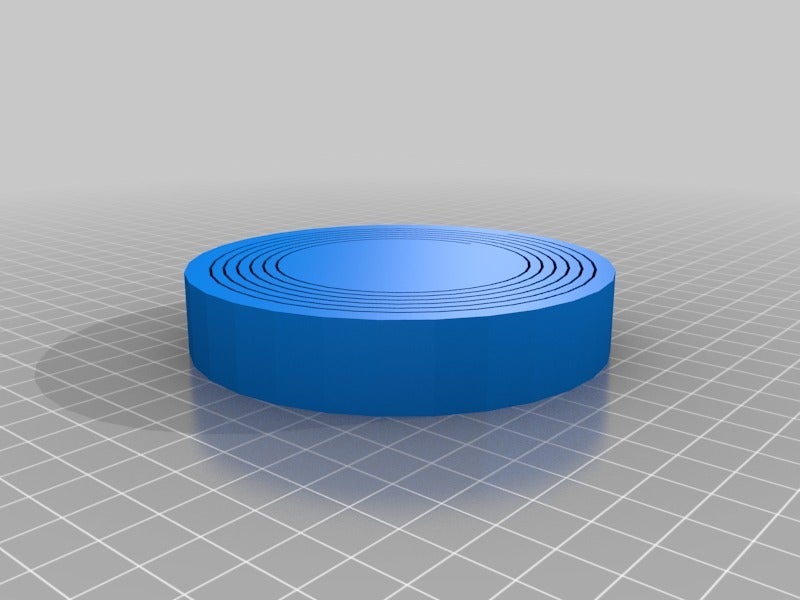

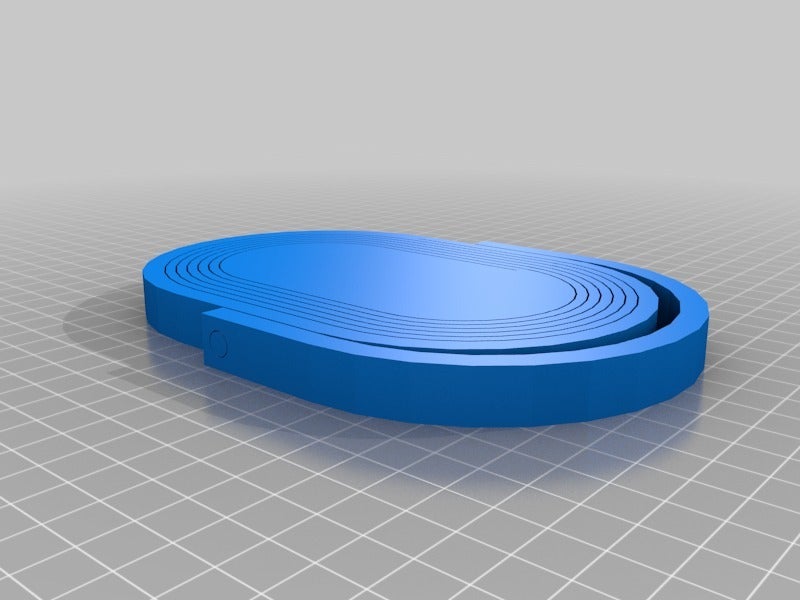

These print flat on the build plate, but once removed pop out into a basket shape.
Many options to make your own with the customizer.
Print instructions
Category: Containers Summary
These print flat on the build plate, but once removed pop out into a basket shape.
Many options to make your own with the customizer.
Print Settings
Printer Brand:
MakerBot
Printer:
MakerBot Replicator 2
</div>Rafts:Doesn't Matter
Supports:
No
</div>Resolution:Not critical, thick layers are OK
Infill:
20-40
</div>Notes:
There may be some trial and error to get the correct settings for your printer. I tried to document the file with enough information to get anyone started. Feel free to ask questions in the comments.
Post-Printing

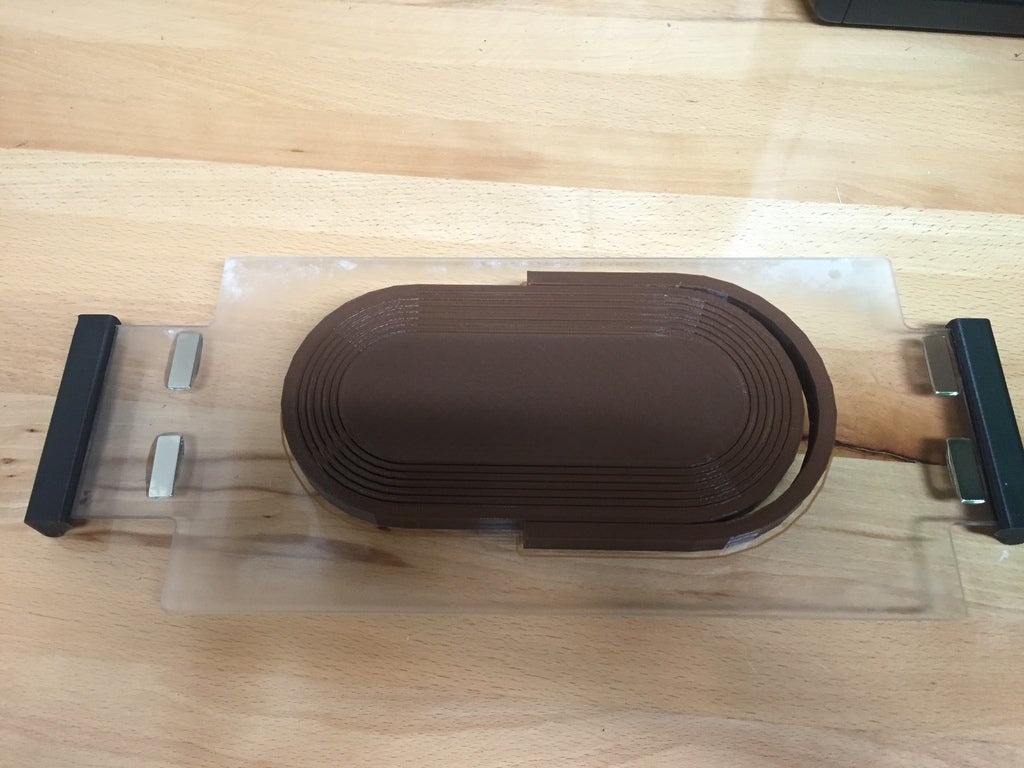

After it is done printing check the bottom to see if any rings merged together, if so push them up to try to separate them. If they are too merged you will need to change the customizer settings and try again. Push the floor down first until it is mostly pushed out and then work your way up each layer until the basket is fully pushed out.
How I Designed This
The idea is from scroll saw patterns that create similar baskets. On the scroll saw you do a spiral cut with the blade at an angle, usually around 4 degrees. I used openscad to virtually cut the blank to create the same effect.
