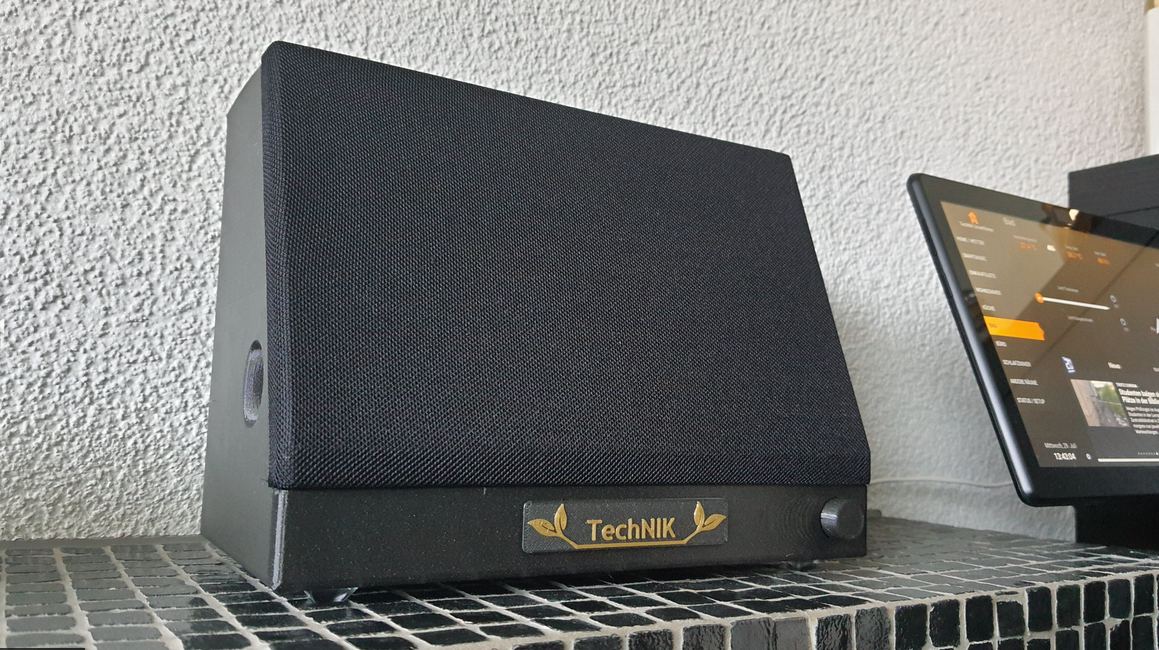

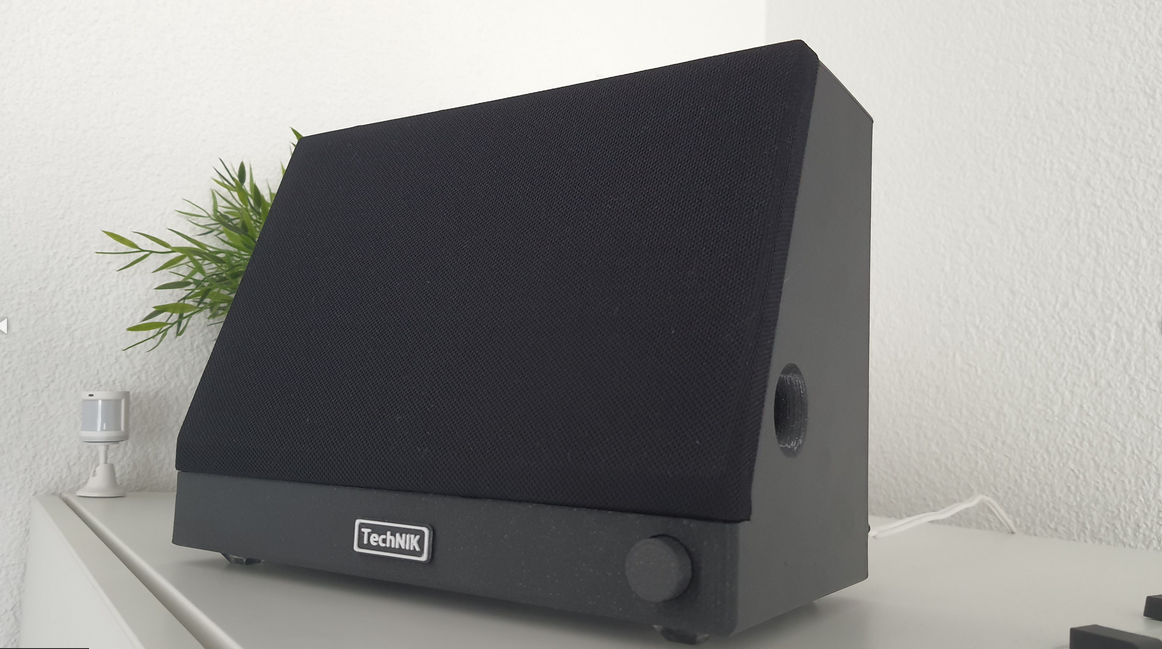

SmartSpeaker
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Audio
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
The advantage of picore is that the whole OS runs in RAM. This also solves the problem of the unstable microSD card (this is only needed for booting)
OS: PiCore -> https://www.picoreplayer.org/
Software: LogitechMediaServer
Server: -> on a Virtual machine
Speaker cabinet calc:
Resonanzfrequenz fs
130 Hz
Mechanischer Q-Faktor Qms
4,30
Elektrischer Q-Faktor Qes
1,74
Gesamt-Q-Faktor Qts
1,24
Äquivalentes Luftnachgiebigkeitsvolumen Vas
0,84 l

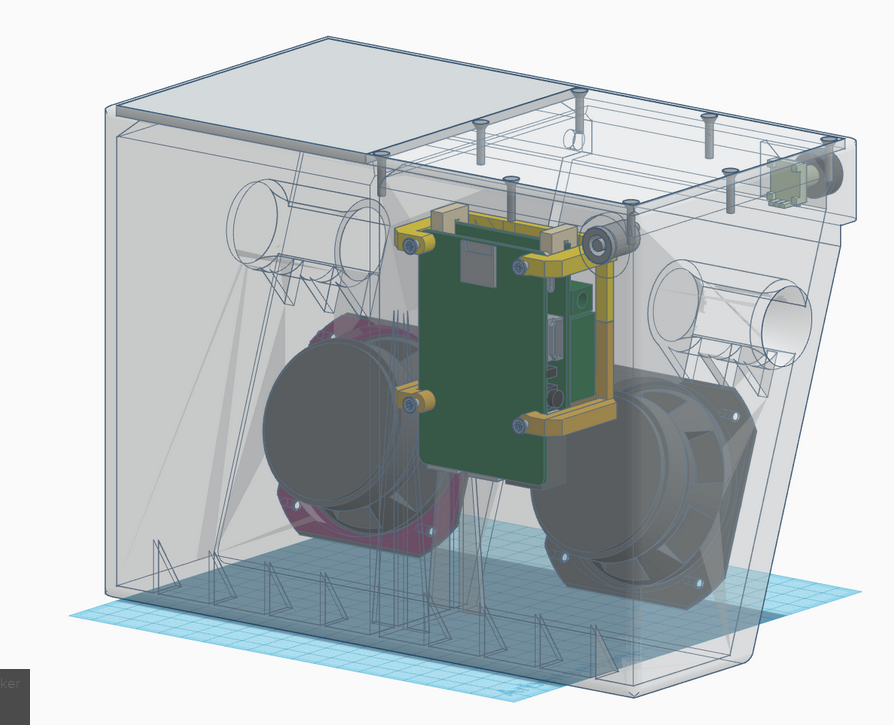

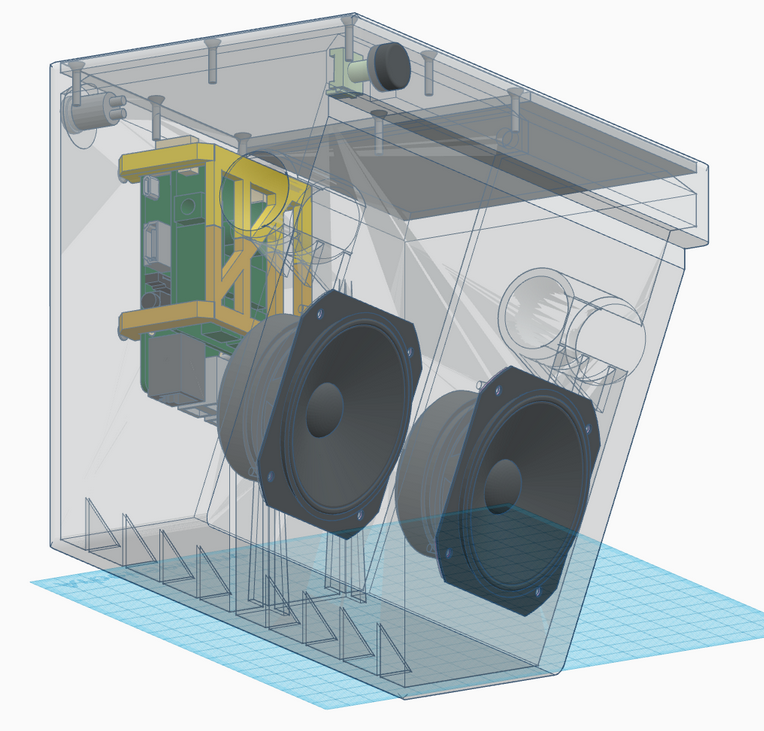

Gehäuse
Volumen pro Speaker: (nur gehäuse, elektronik noch nicht dazugerechnet)110mm x 90mm x 180mm
1.782 l
Volumen Elektronik:
0,198 l
reflexrohr:
20mm durchmesser und 50mm lang
