Avionics Bay Lid
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

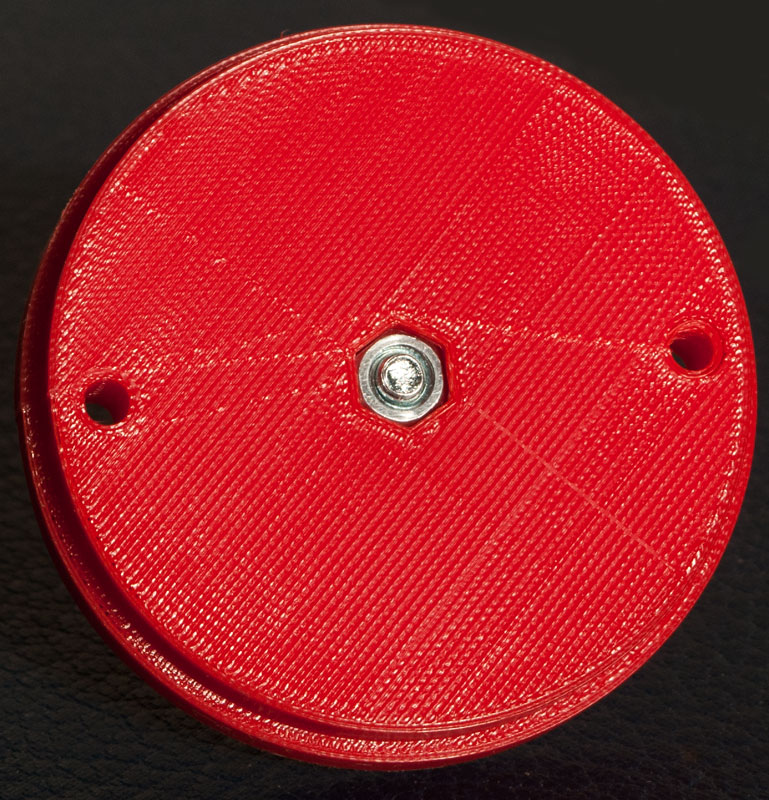

By default, this SCAD file creates a stepped lid for a BT80 coupler, using a 3/16" eyebolt and #6-32 rods with a 2" center-to-center spacing. The comments show the design specs, but the parameter values reflect what I needed to use on my Dremel 3D20 to meet the design values.
Simply change the parameters to create a lid of any size, for the eyebolts and threaded rods that you use. Also create bulkheads or centering rings by commenting-out the code you don't need (make a backup copy first).
