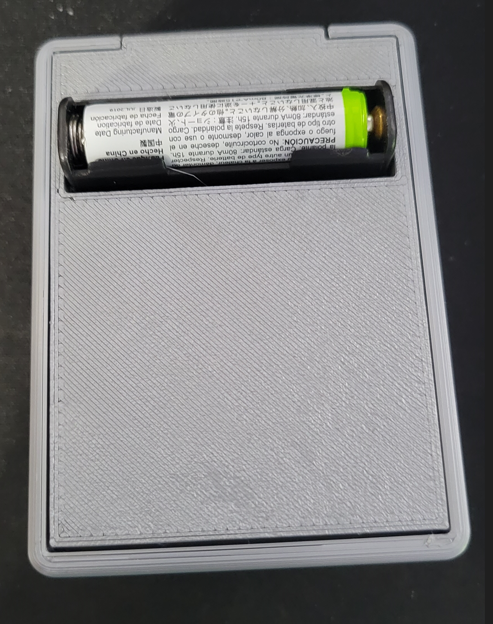

Case for the DIY pikocore.
I doubt it works with the SMD assembled one.
https://www.instagram.com/reel/Cvfd3Bkt9is/?utm_source=ig_web_copy_link&igshid=MzRlODBiNWFlZA==

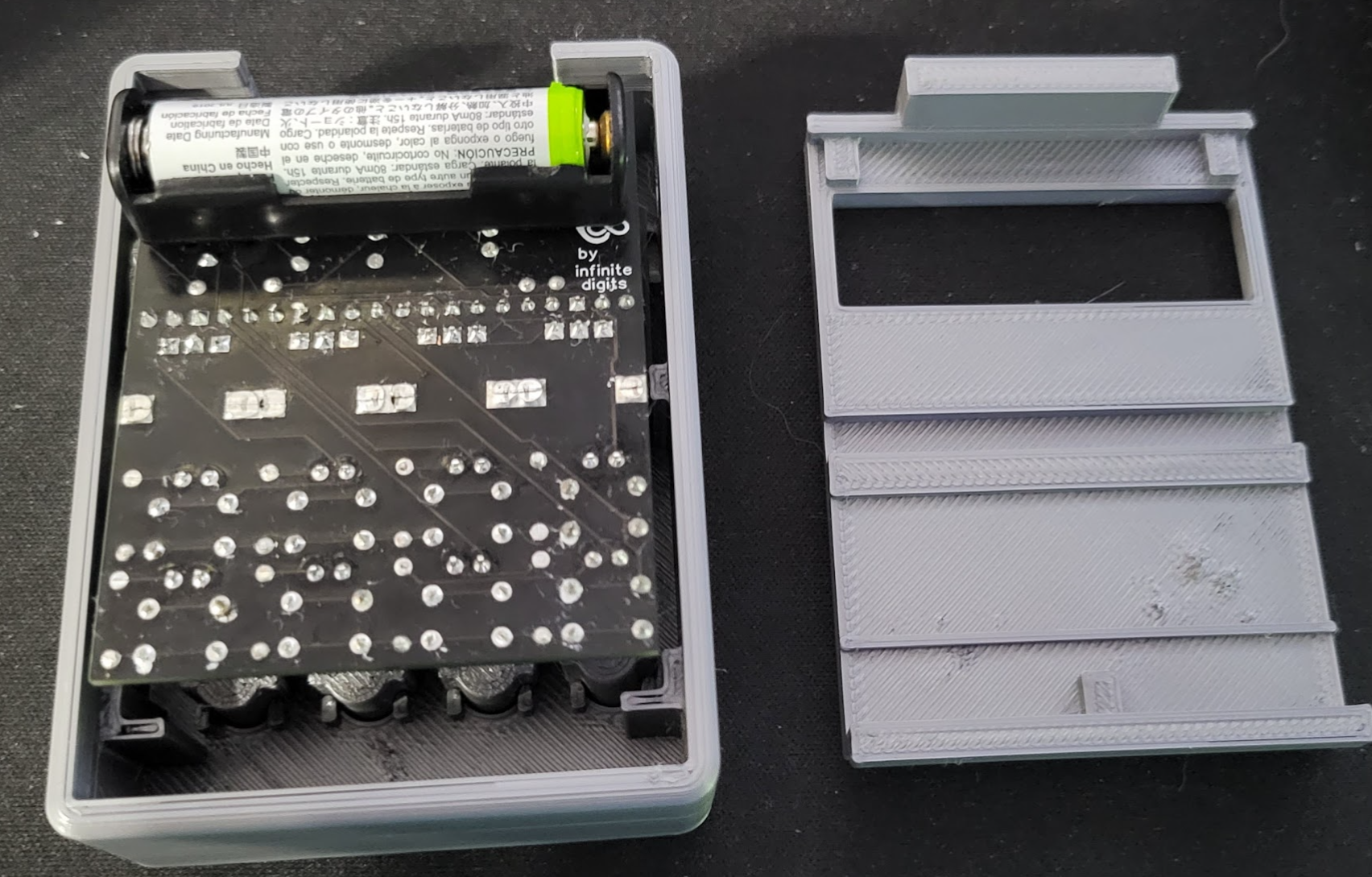

careful assembling the case the power switch is fragile and my switch design is meh.
3.5mm cable for upload button and reset.
my case is opaque, there is a cutout for the main LED. Most materials let the light through fine, but its still visible through the reset holes. It is very bright.
0.2mm layer height
no support, but that can vary.
print bed photos show best print orientation.

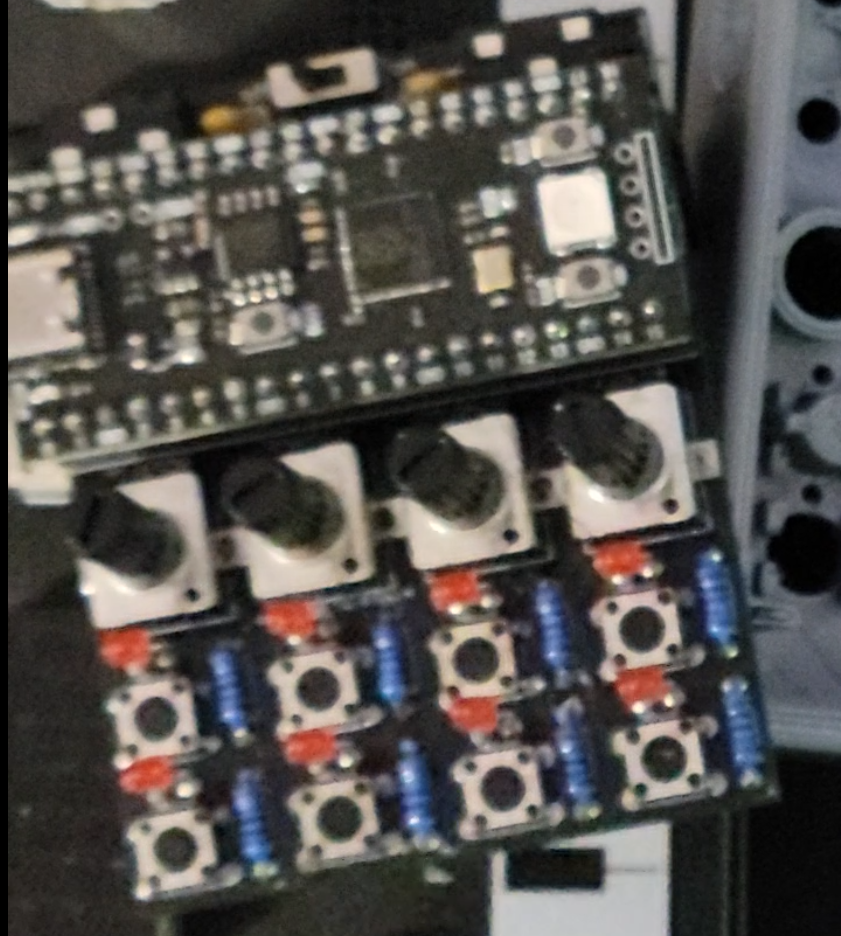

I trimmed the pot tabs, and the top row of the pico headers after soldering(the bottom of the pcb.) I also raised the leds. None of these mods should be necessary for this case.
knobs are Cap Black 10x14mm Rotary
My first case design. LMK how it goes!
happy glitch drumming!
update- v2 case slight alignment change for sync out jack
i added an enclosure stl with the led hole cutout completely.
