Toggle Clamp - Multi-Position Clamp
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

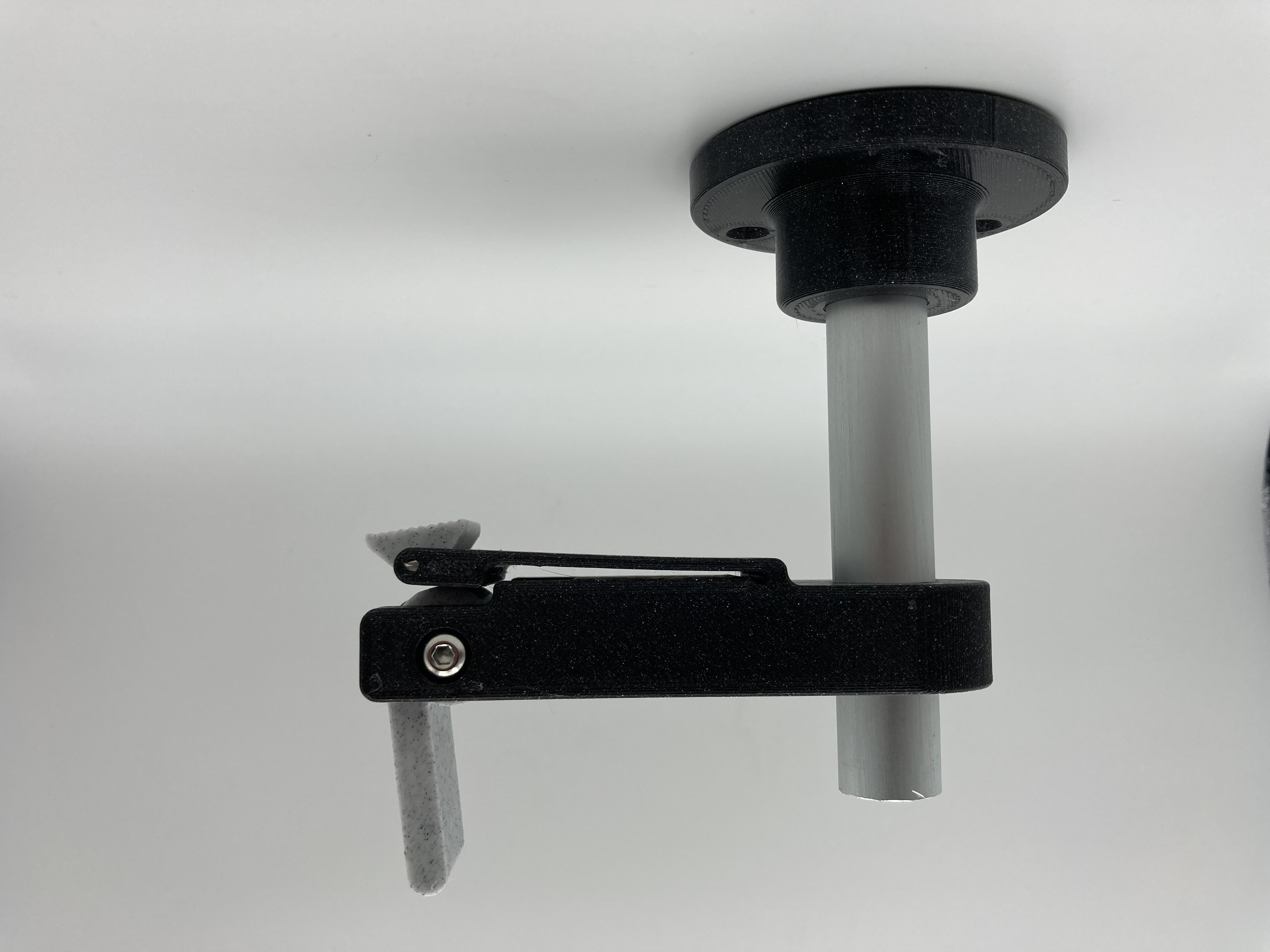

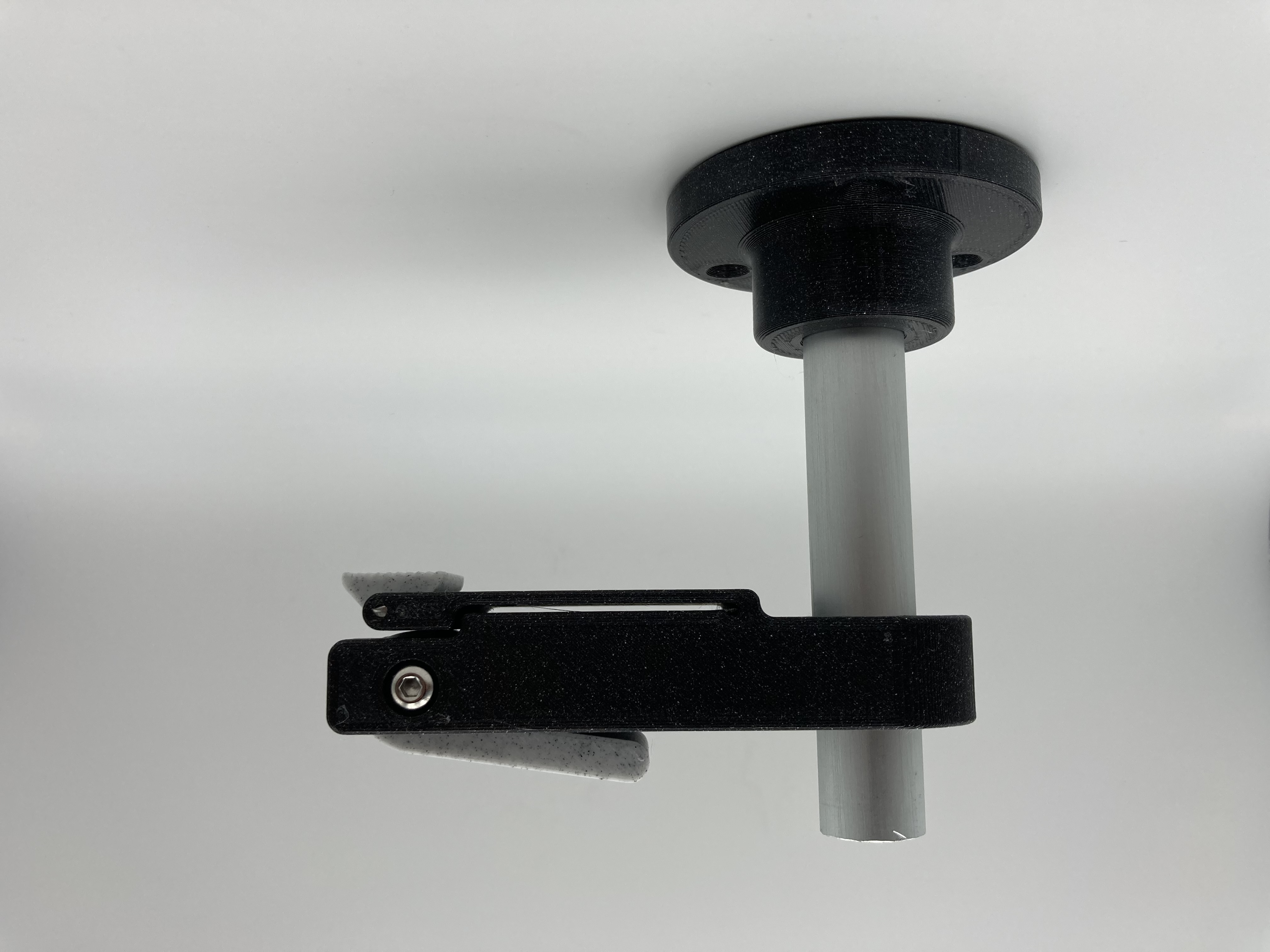

Multi-position toggle clamp.
Can clamp from 18mm to 80mm material. It all depends on the D16mm aluminium you will use.
They offer 360° off freedom, and can be easily screwed on you working aera with 3,5mm screws.
Great for woodworking, molding…
I'm used to printing these to clamp on molds for concrete casting, and I'm looking forward to see how you'll use them.
To assemble you will need :
- 1x M4 x 30mm screw; to assemble the lever (it self screws on the part)
- 1x D2mm x 33mm pin; to assemble the rotating grip (this pin can be easily hammered or pressed fit in the plastic part)
- 1x D16mm x 100mm aluminium tube; this tube will be press fitted in the base, you can choose your desired length depending on your application.
To mount on your surface, use 3,5mm wood screws (length should be adapted depending on your support).
Share and have fun making !
