Spice Rack Pullout Connector
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Kitchen
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
This is a snap connector and pin to connect the parts of the spice rack (https://www.thingiverse.com/thing:4356449) together. They replace the need for a screws, washers, and/or book binders as mentioned in the original design.

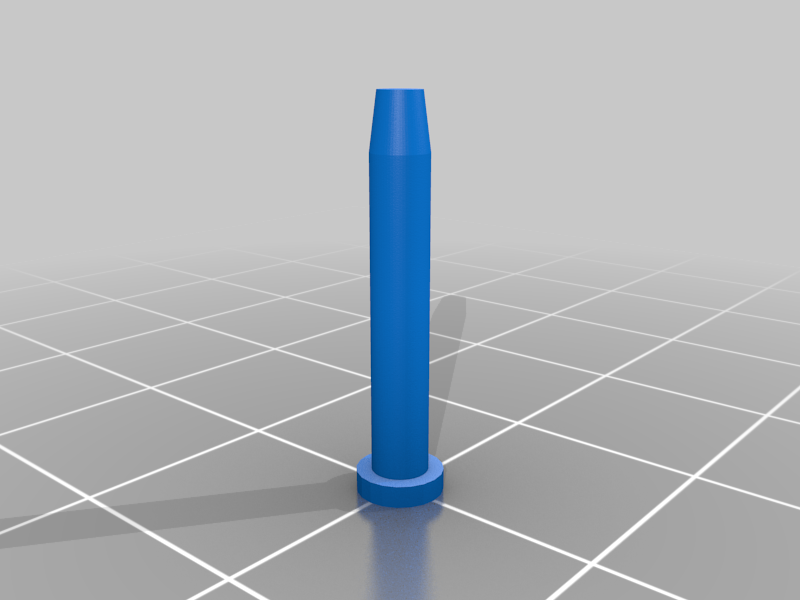

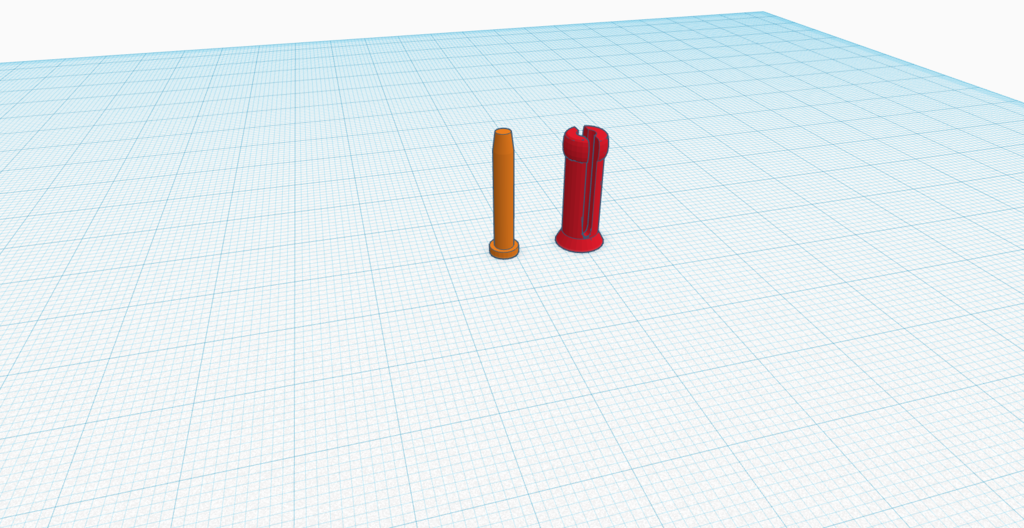

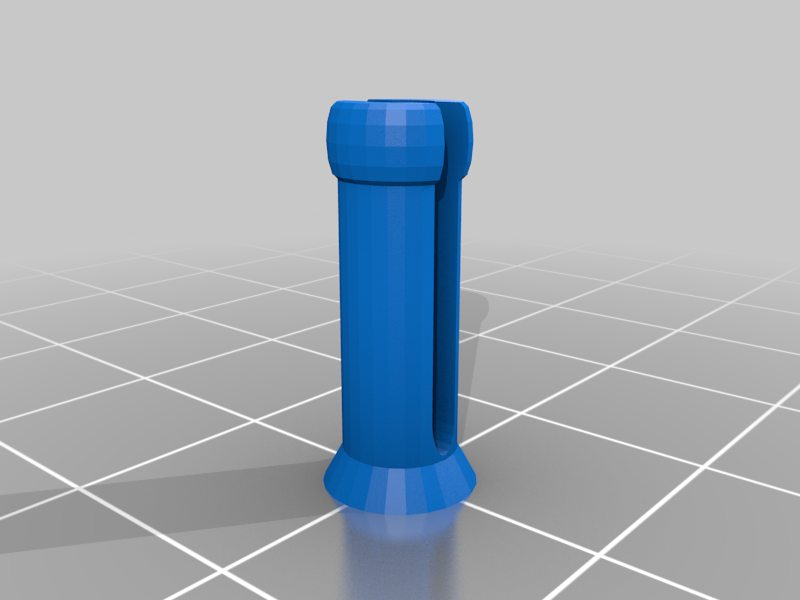

I have only included the stl's for the pin & snap connector (1 for each and 1 combined). They should be oriented ready to print.
Print Settings
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
No
Resolution:
.12
Notes:

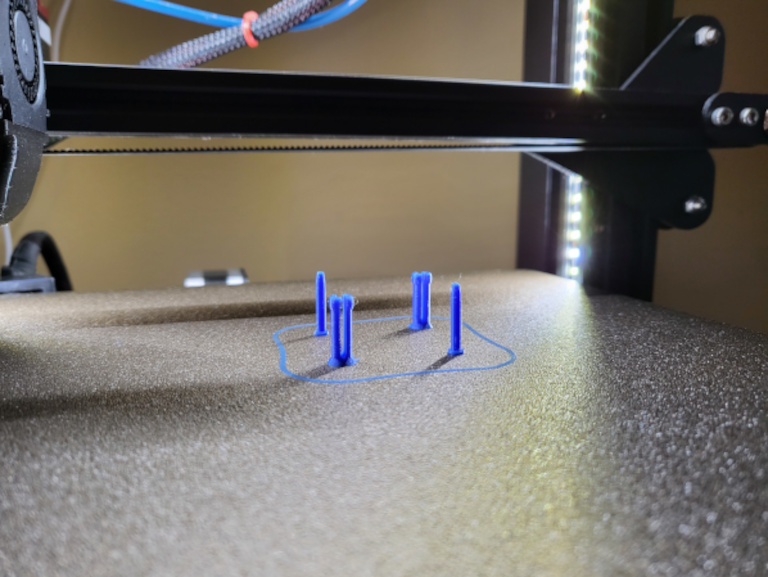

Due to the small size, you may need to adjust your normal settings for this to print. I found it best to do cooling fan at 75% and print two of each with the spread out (as seen in the picture) to give each part enough time to cool before additional layers.
Post-Printing =============

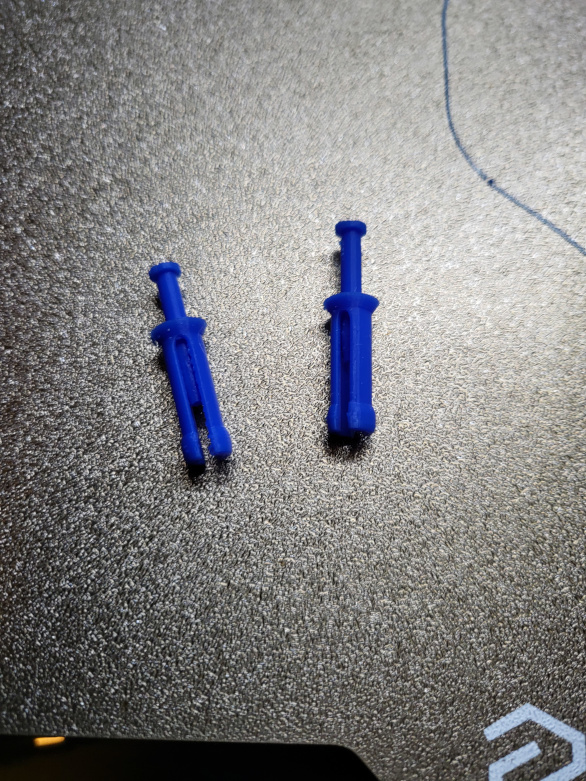

Once you have both the snap connector and the pin printed, insert the snap connector through the holes in spice rack and then insert the pin into the snap connector. If you put the pin into the snap connector before putting the connector into the spice rack, you may not be able to get the connector to go through the holes.
