Modular beam system
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- Creative Commons — Attribution — Share Alike

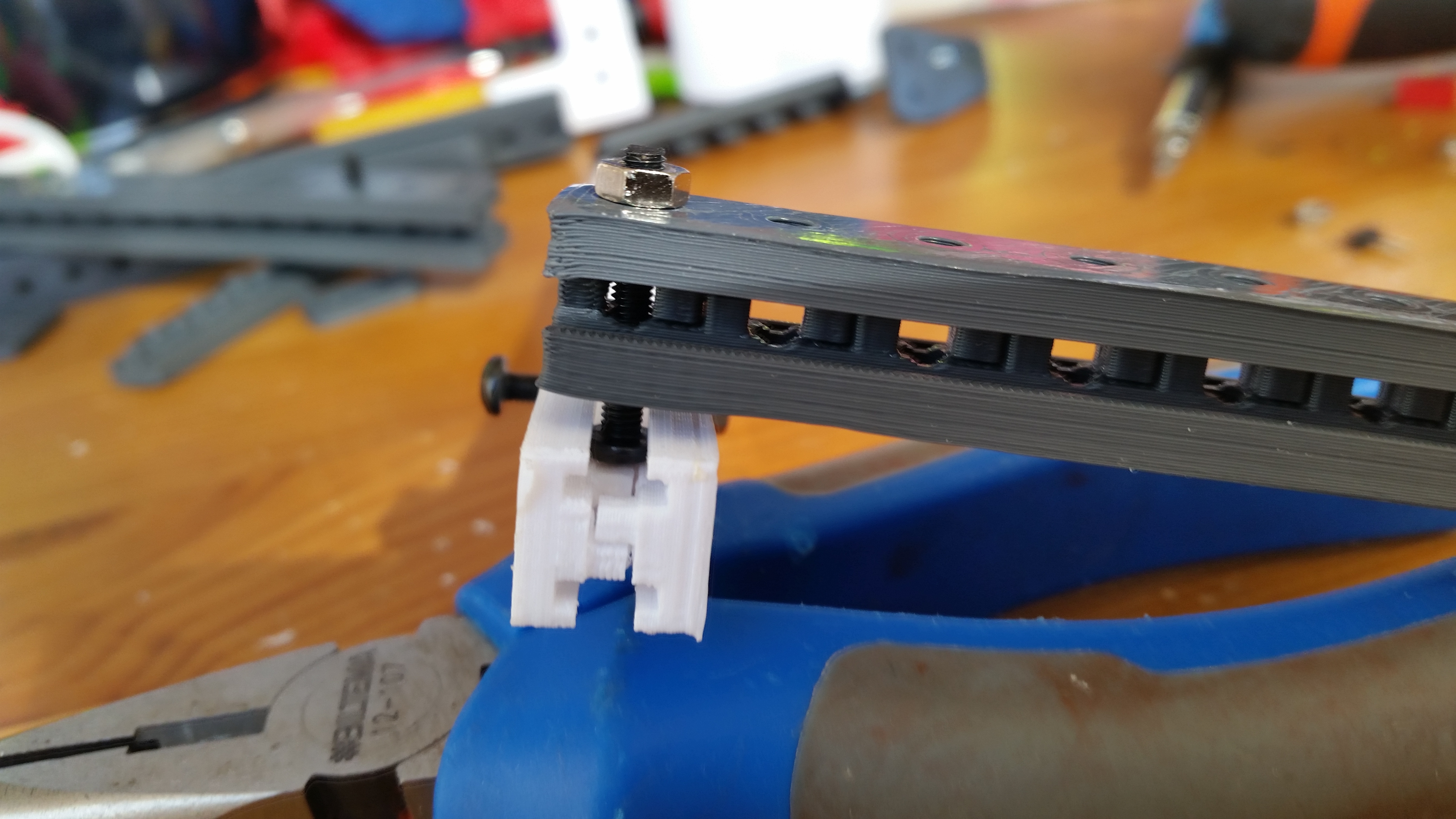

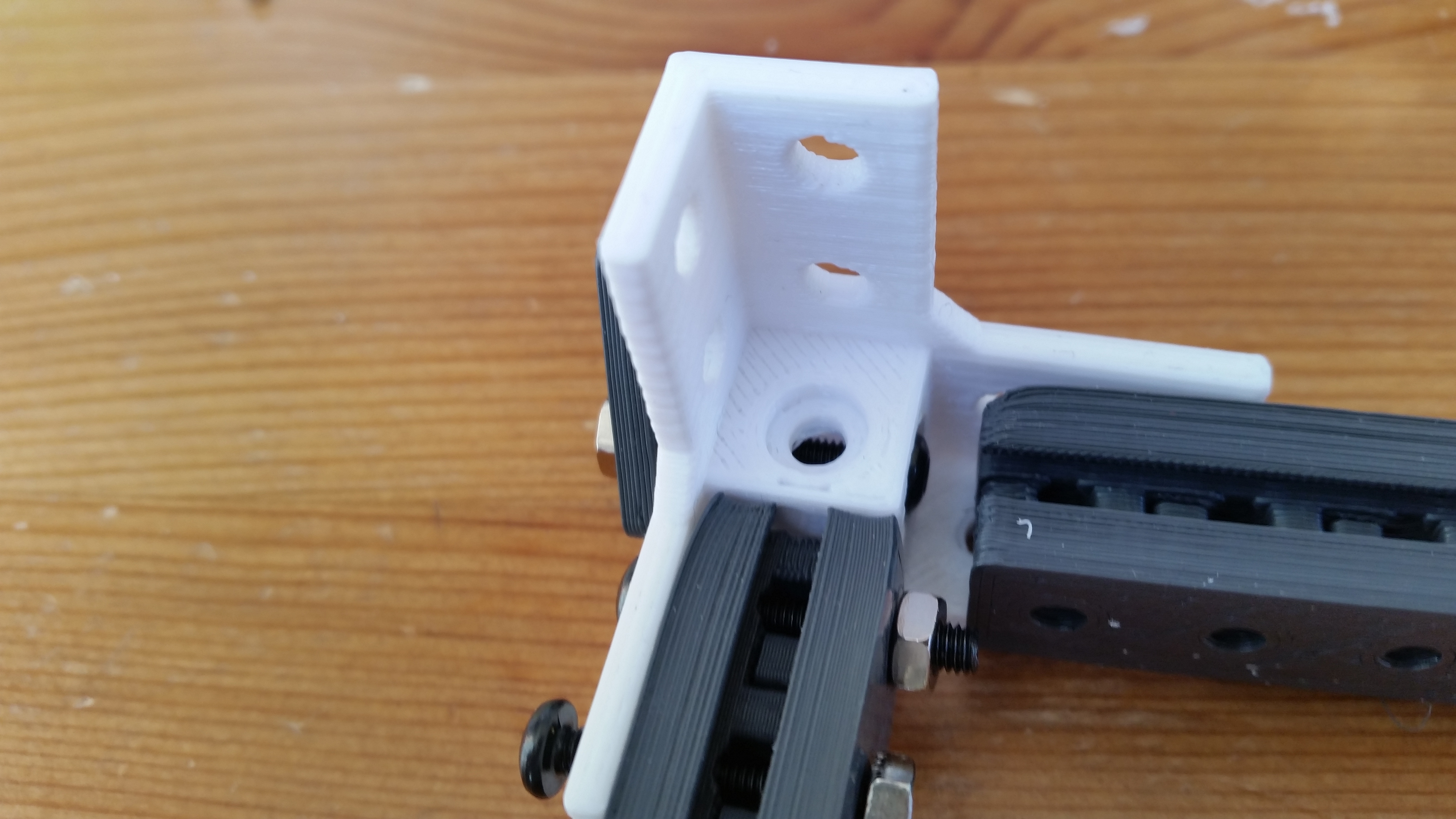

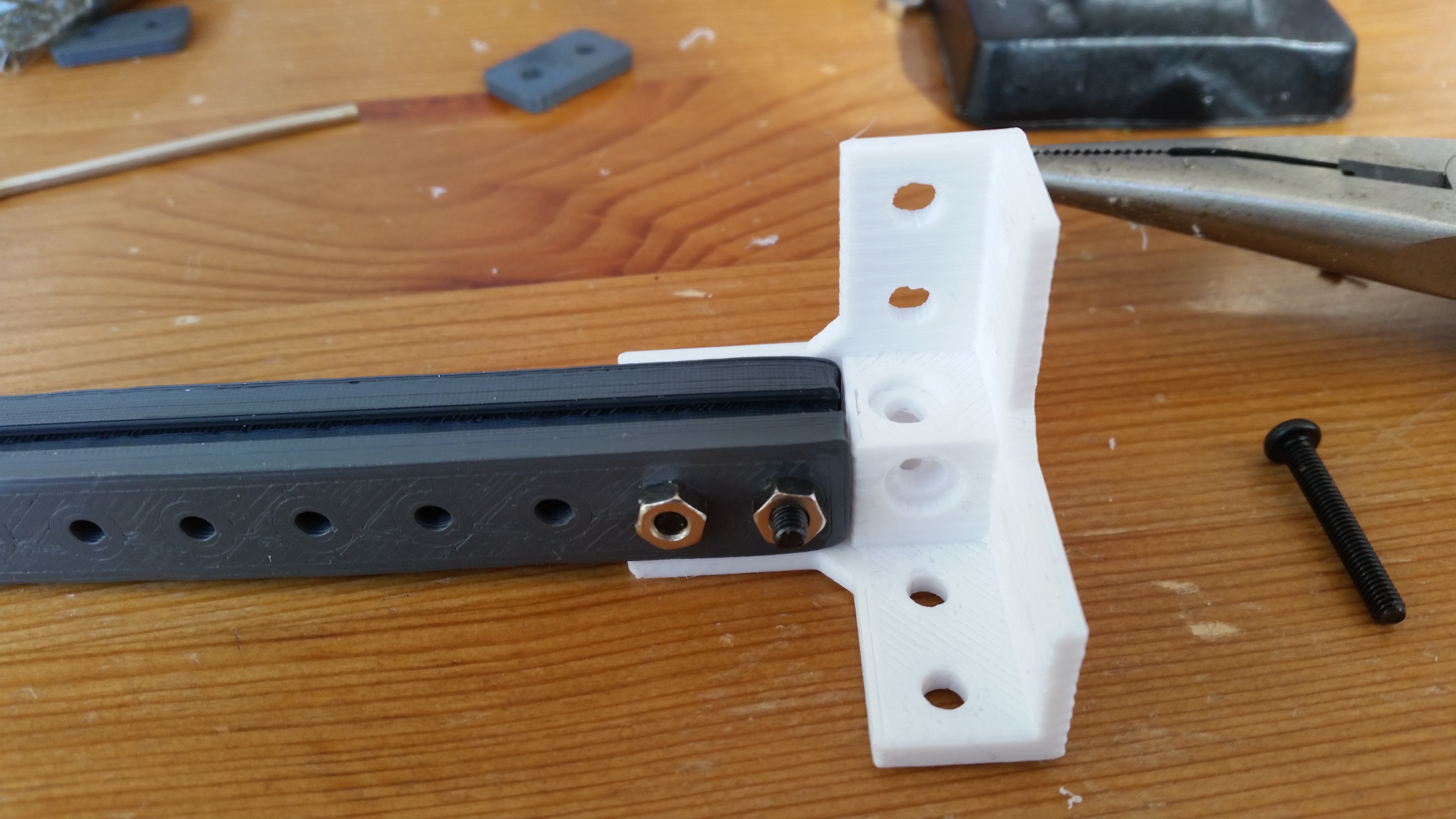

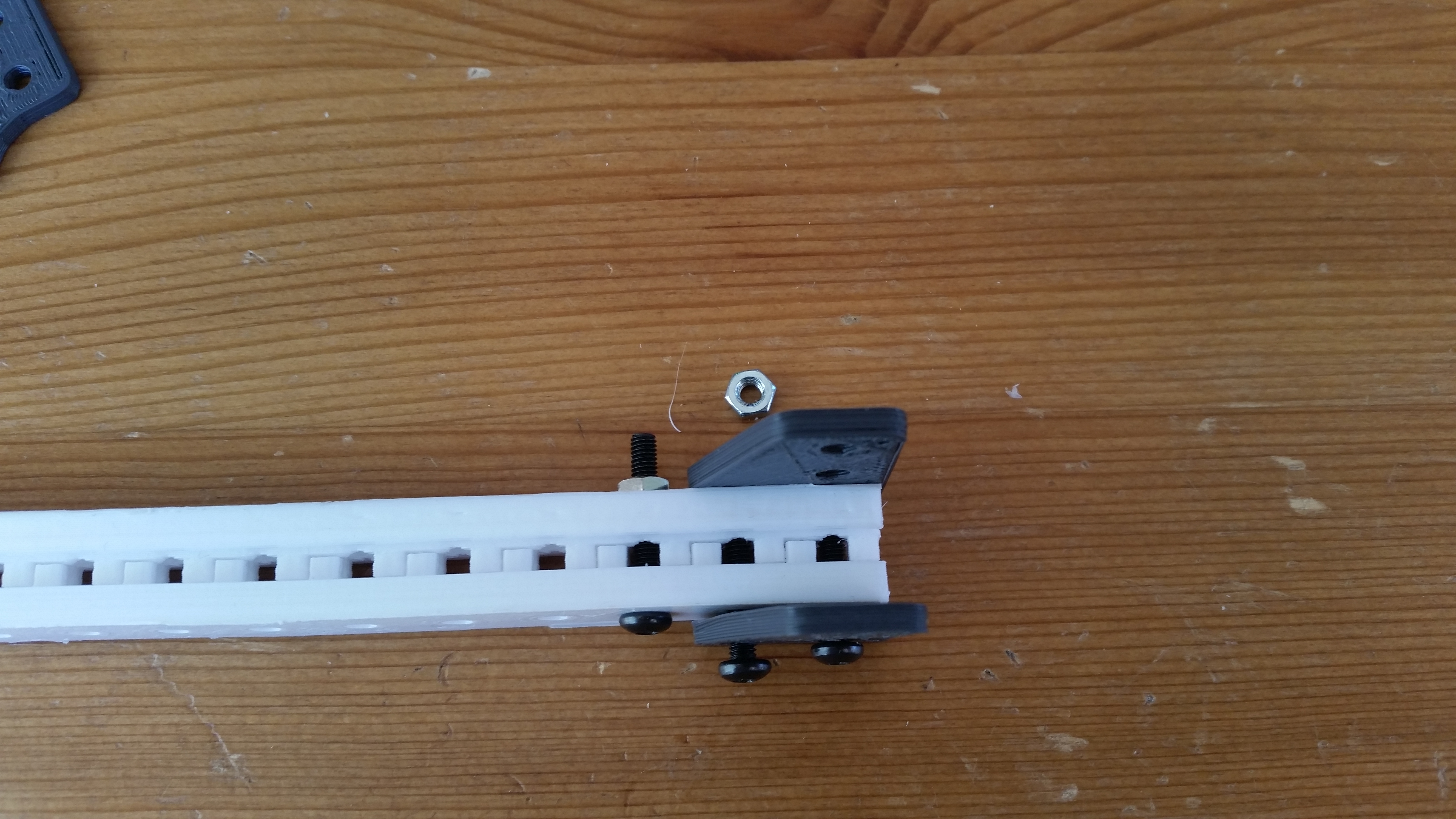

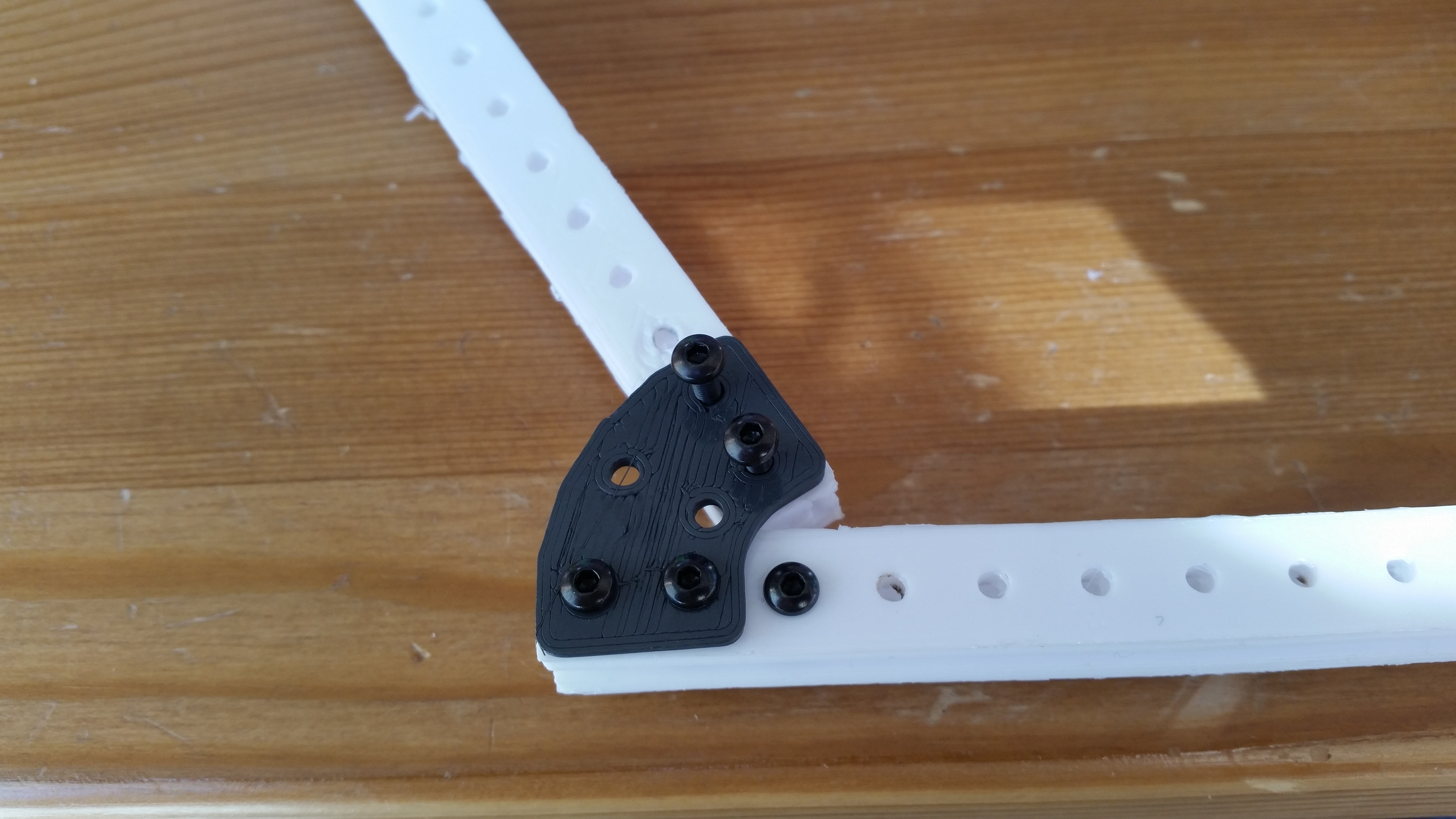

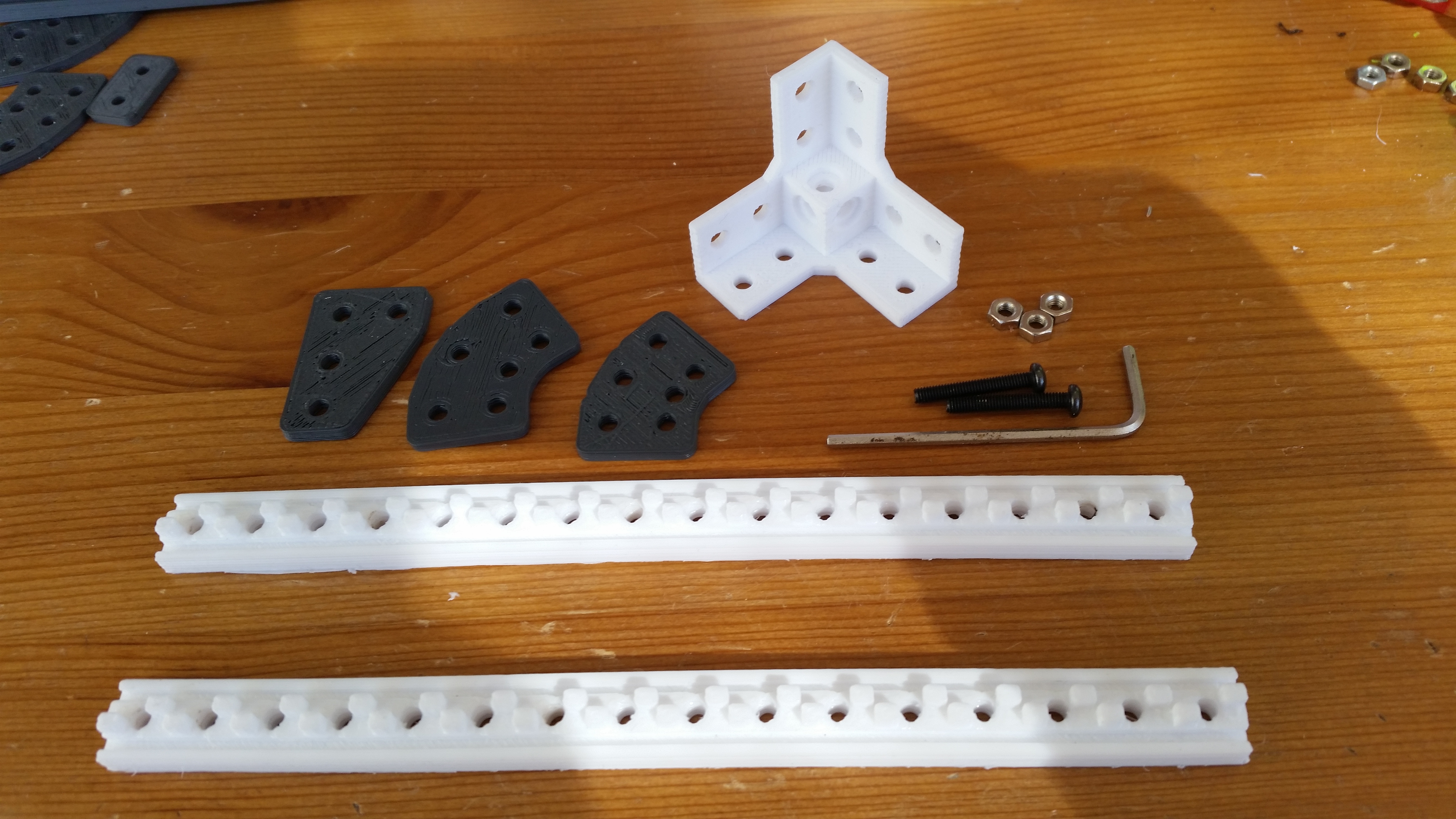

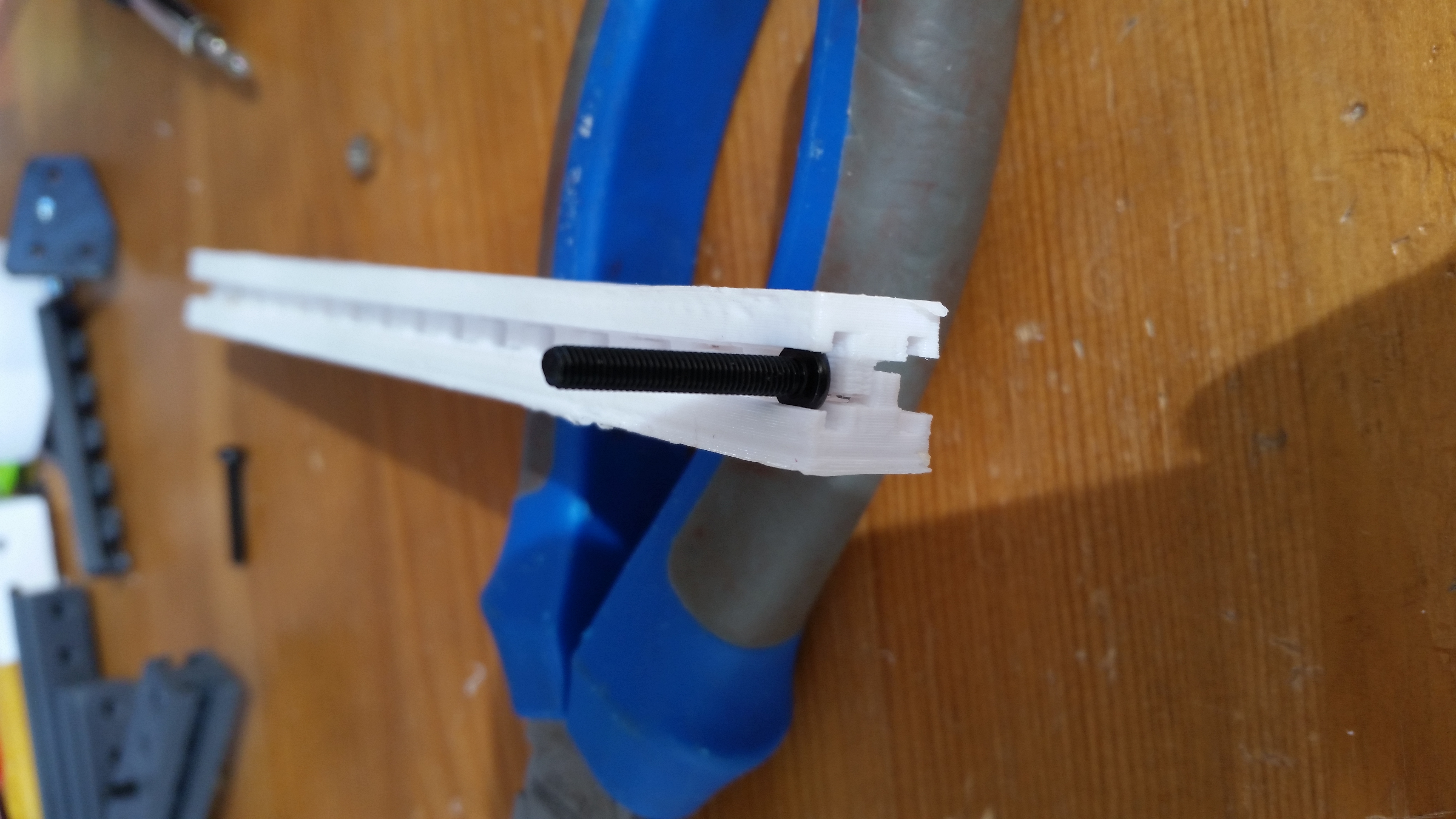

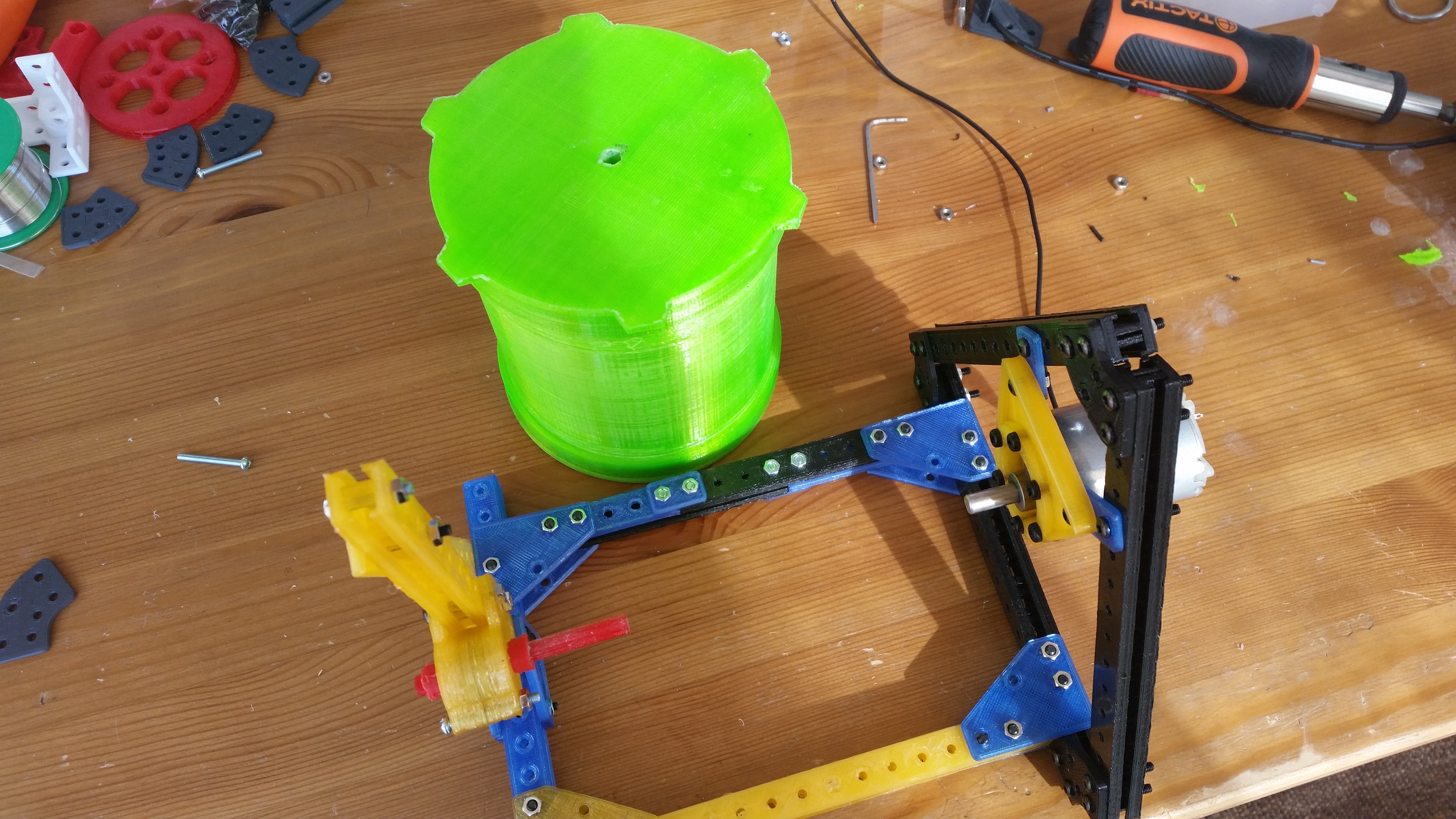

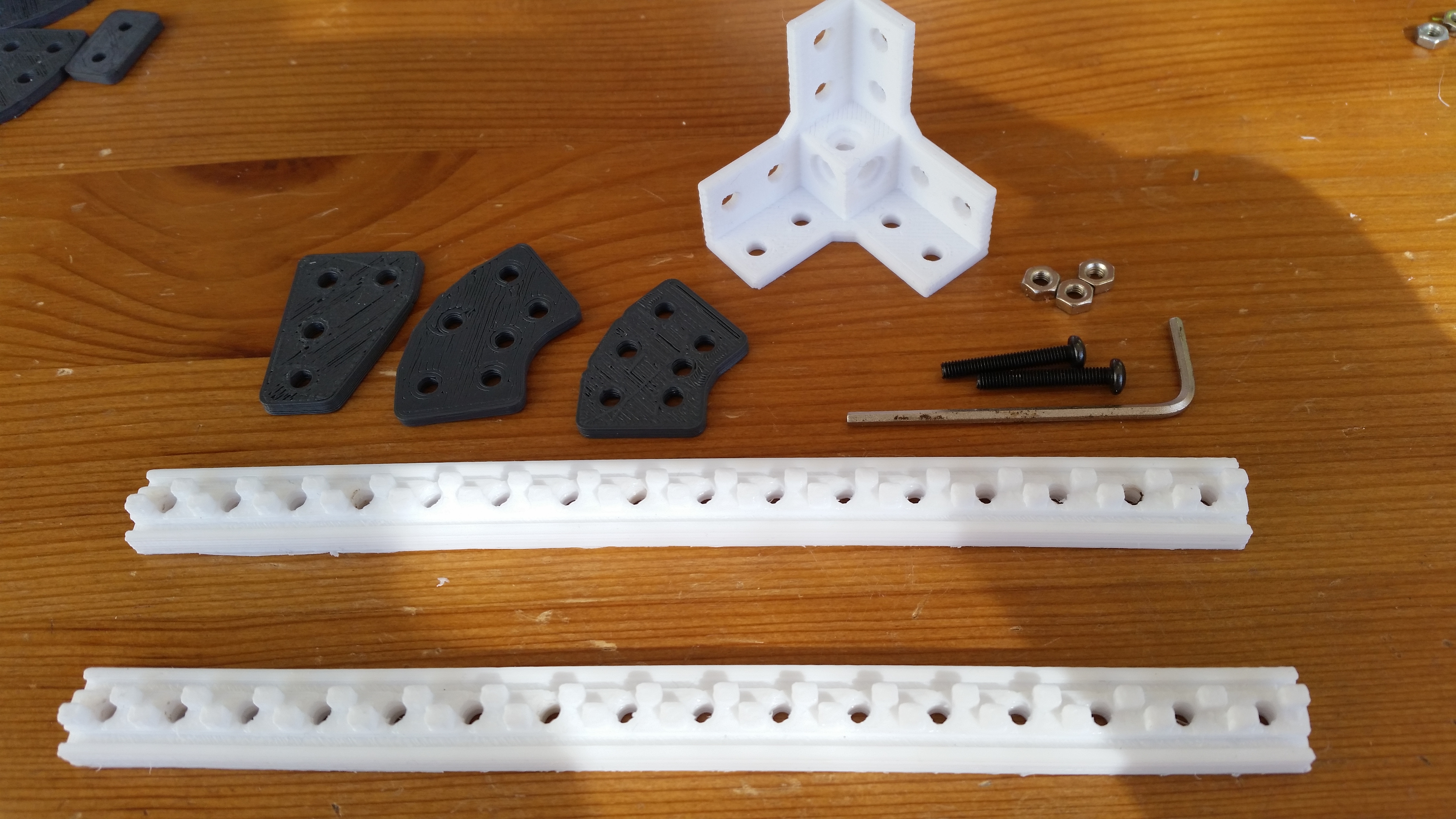

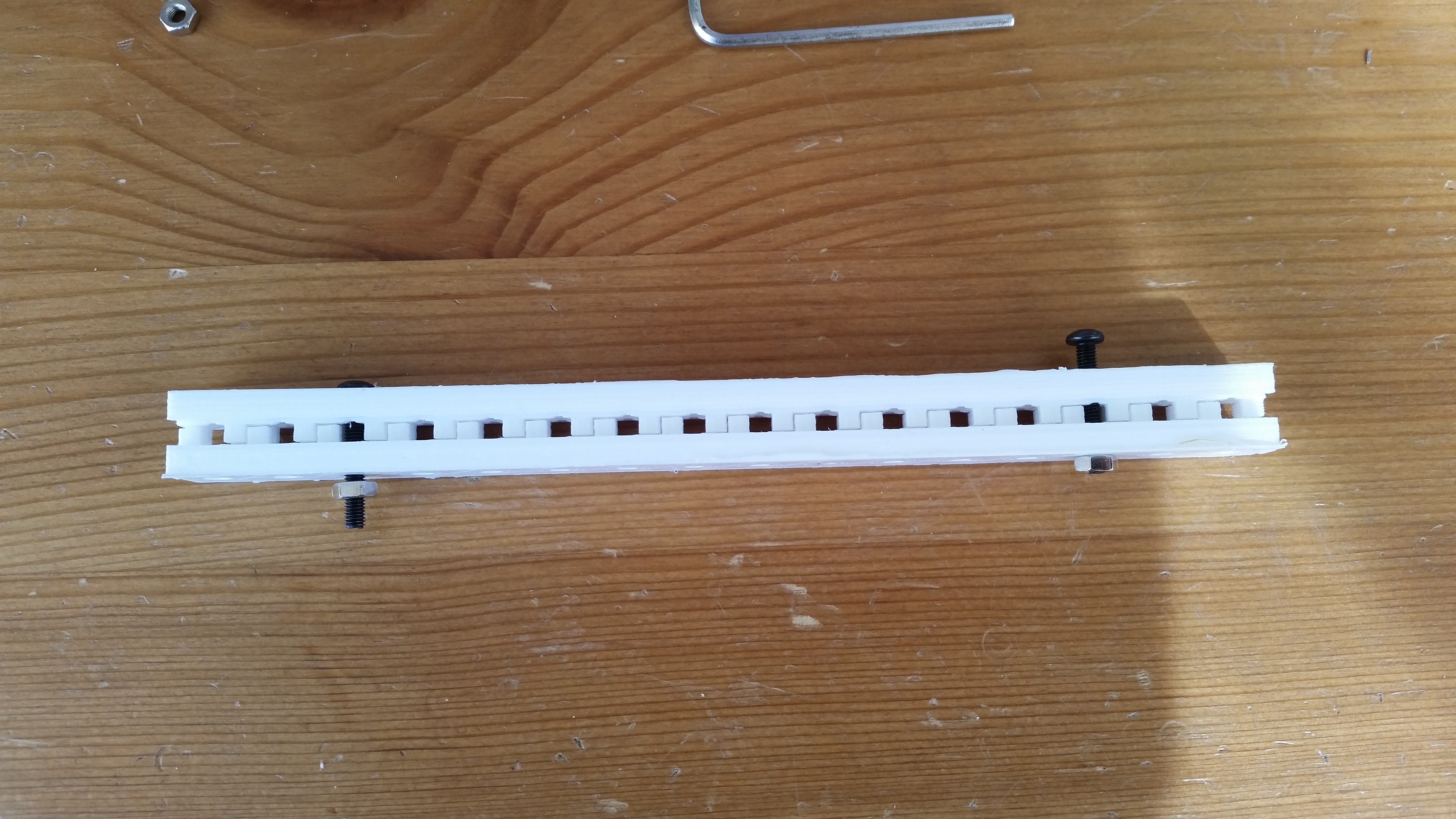

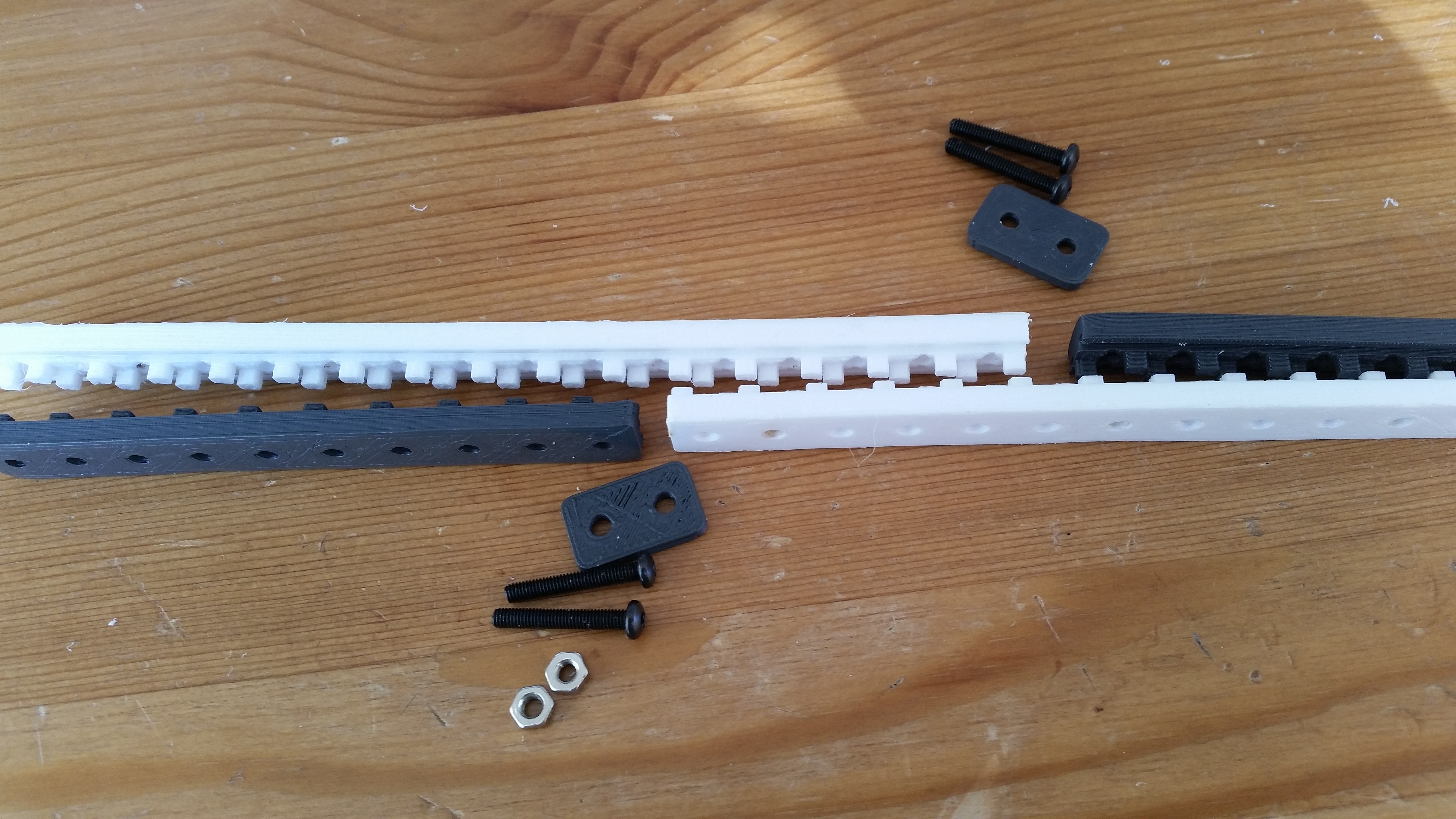

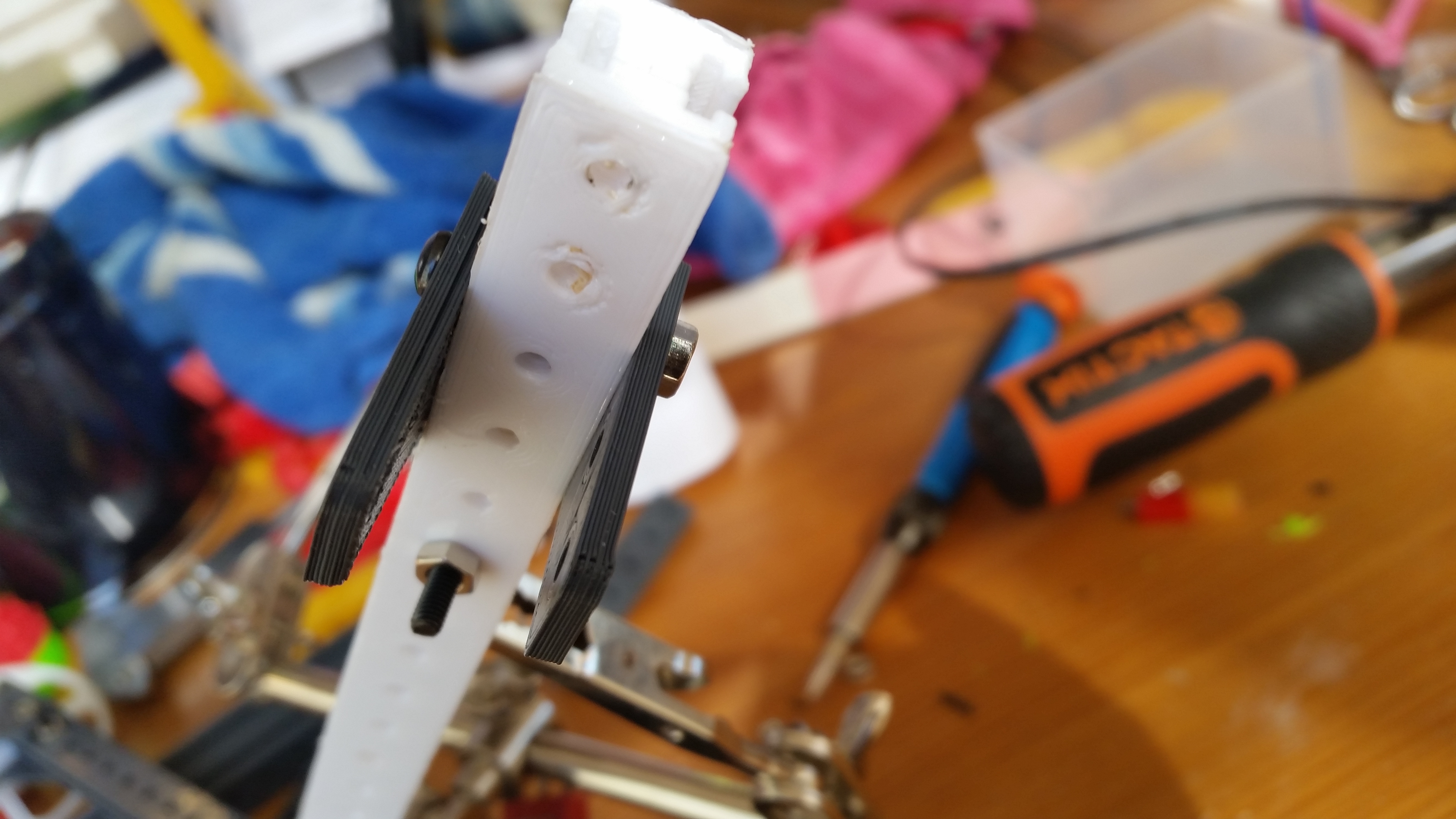

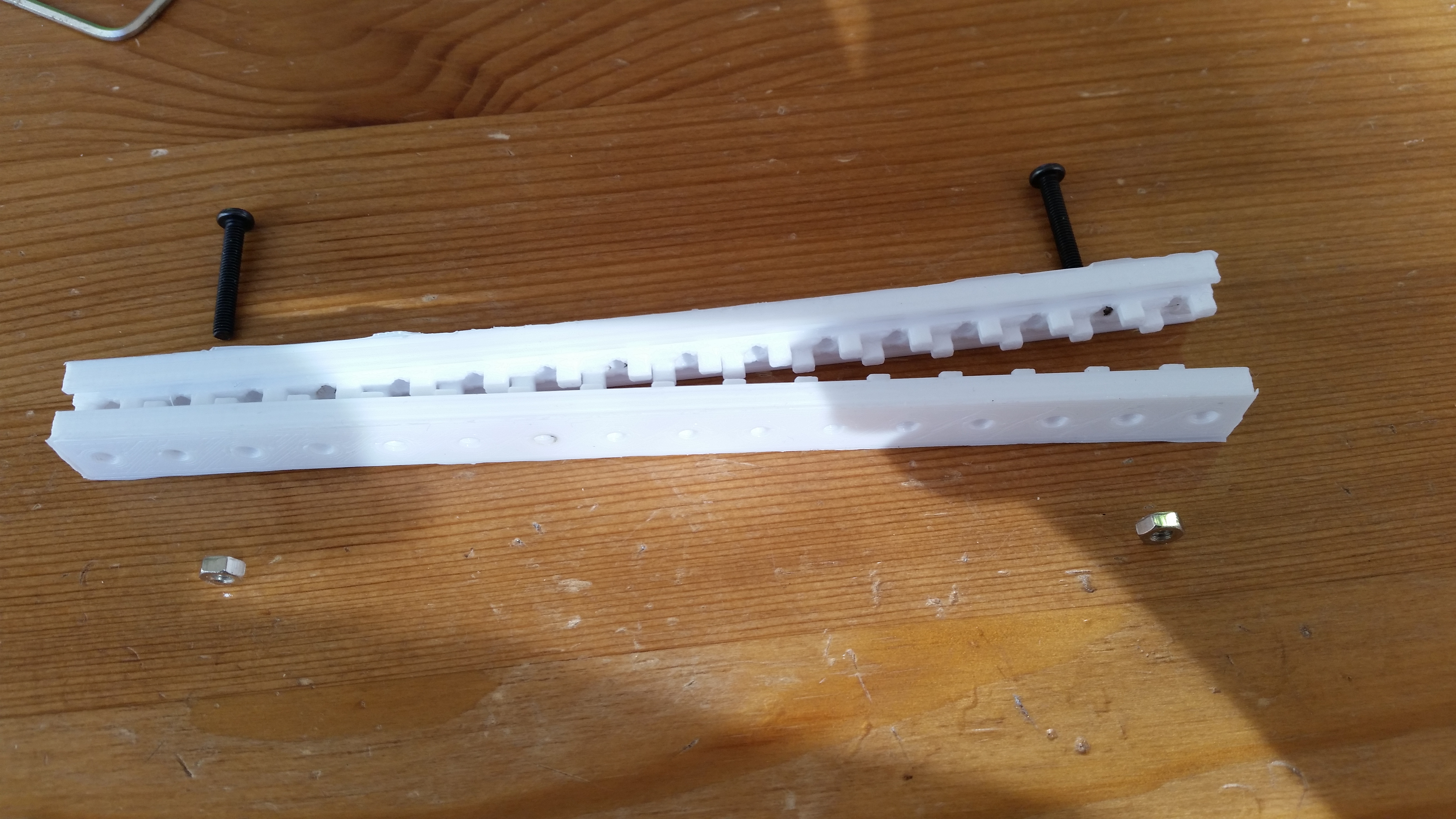

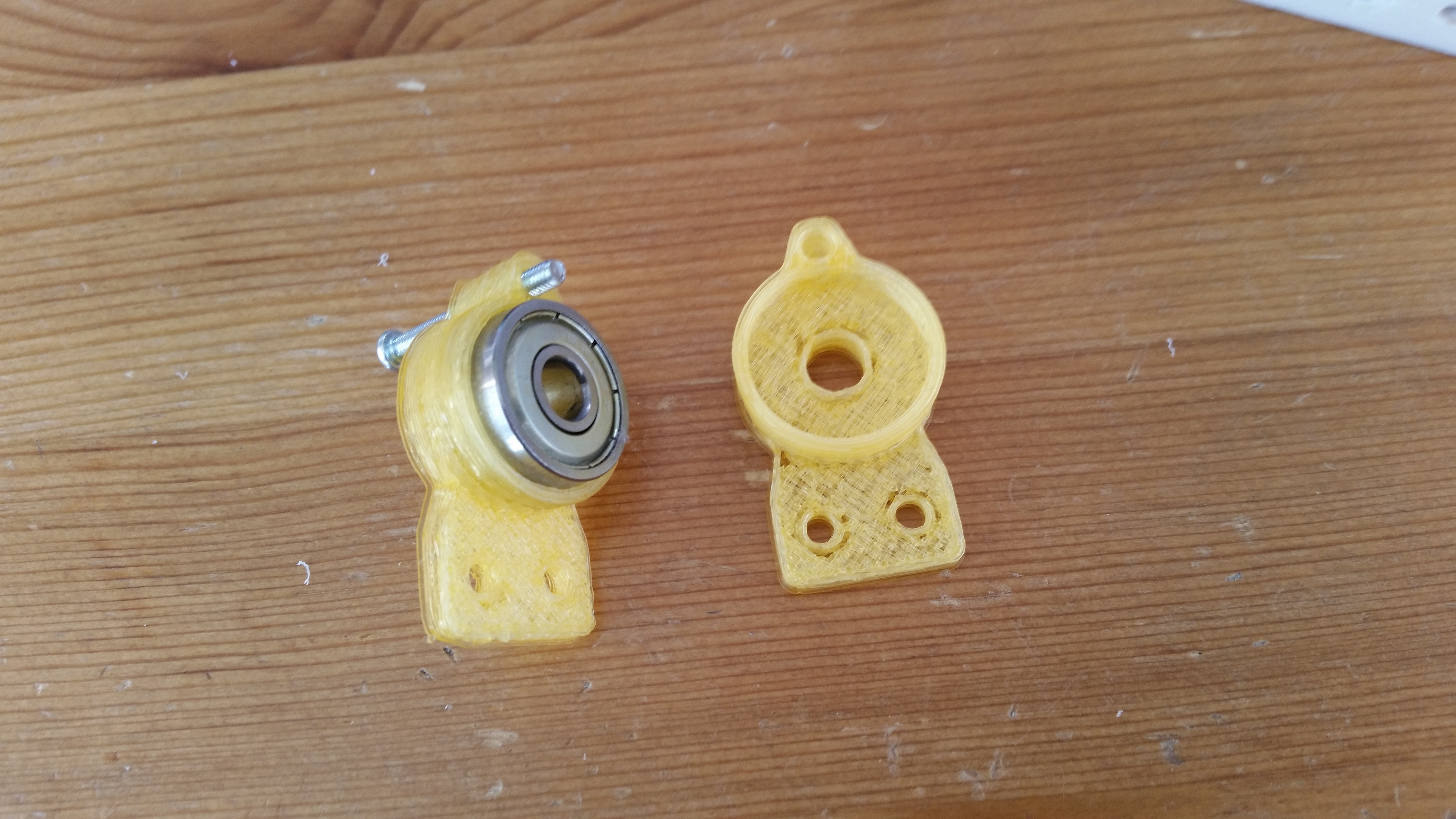

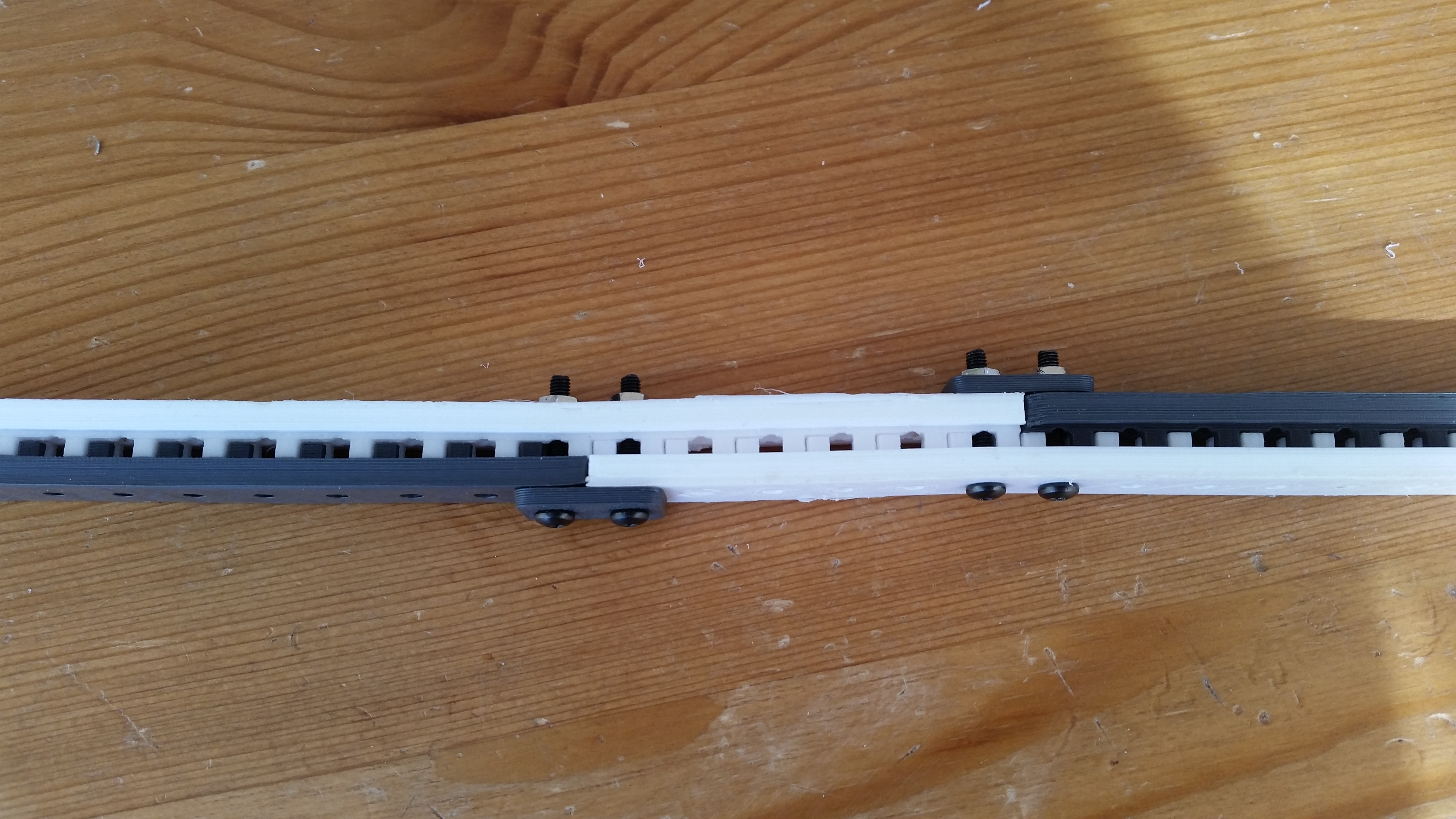

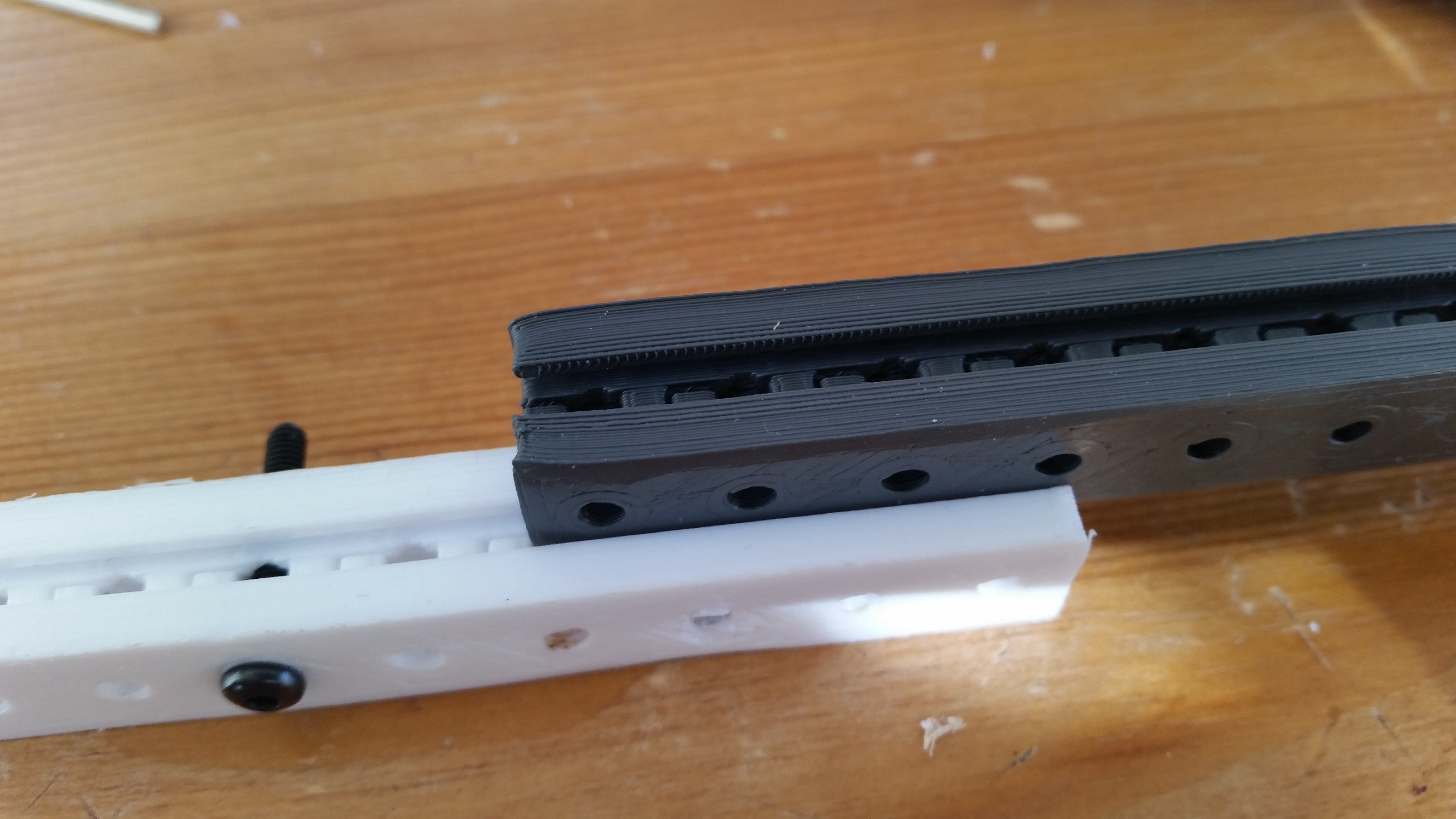

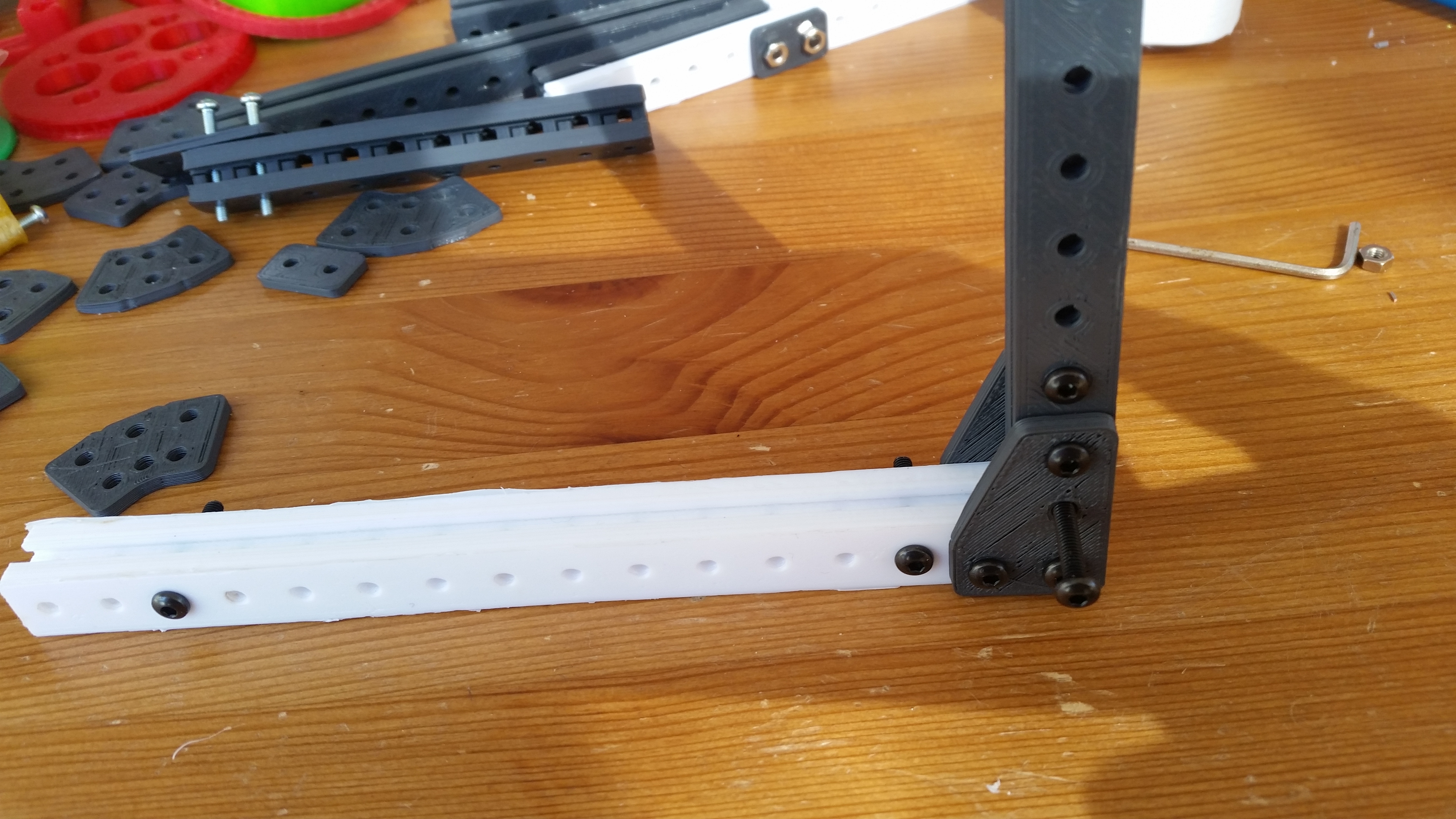

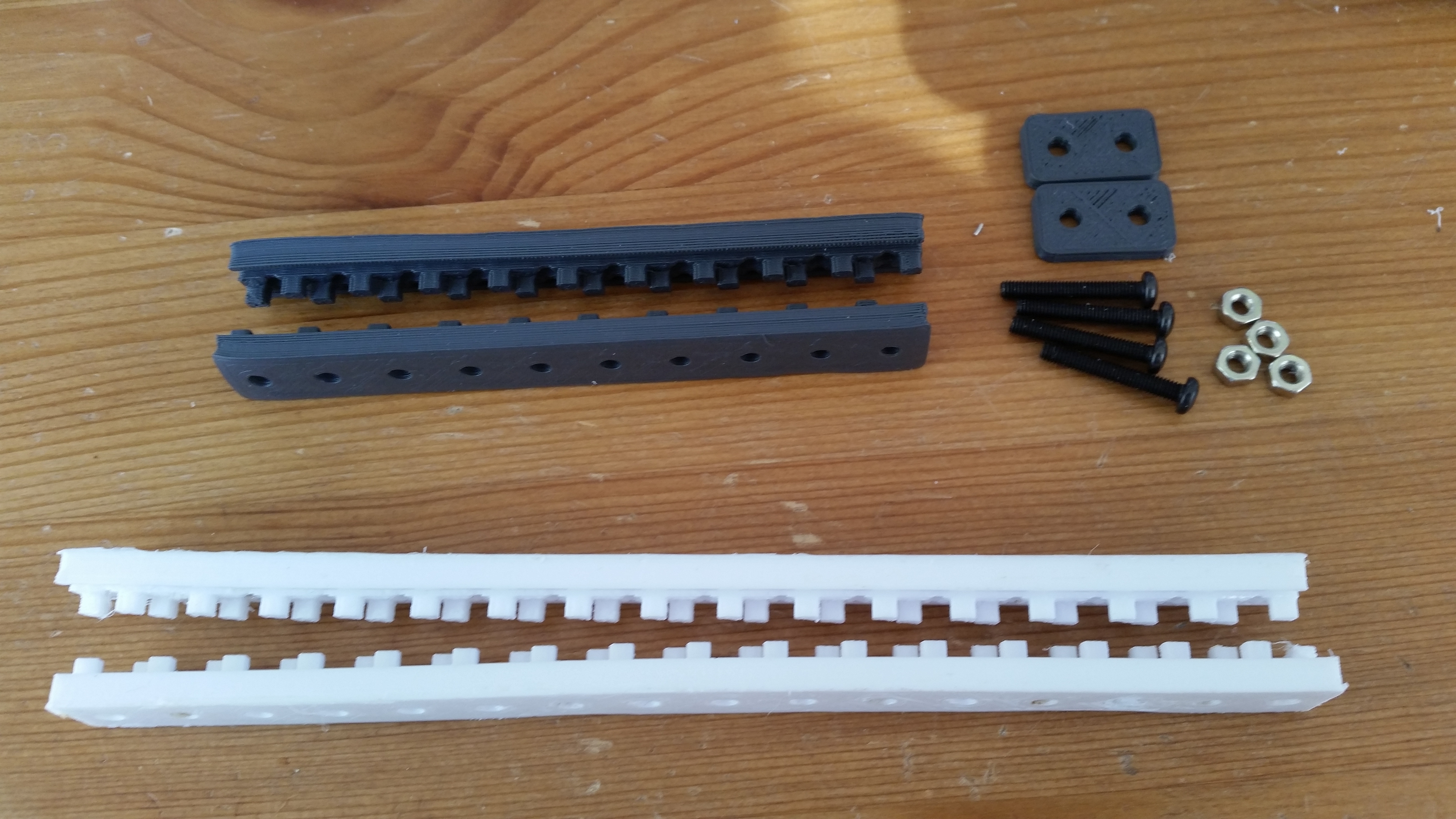

System of beams, brackets and servo fittings to build stuff using standard M3 screws. Print beams laying down in two parts that snap together, can be assembled into longer pieces. Brackets for corners and angles and adapters for servos and standard 130 (small/toy) electrical engines. Requires M3 screws to assemble everything.
Has a generic setttings.scad file where you can tune tolerances. Also has some options for larger beams using M4 screws.
Most of these files are very old (ca. 2016) and the source code is a bit messy. Uploading by request, so apologies if things are not clear.
