UPGRADE YOUR STORAGE WITH THIS ELEGANT SHELF

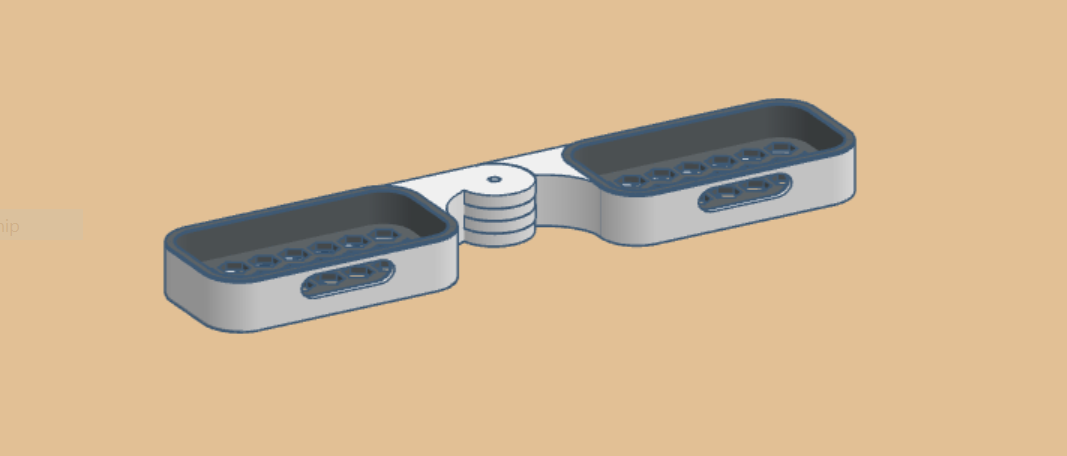

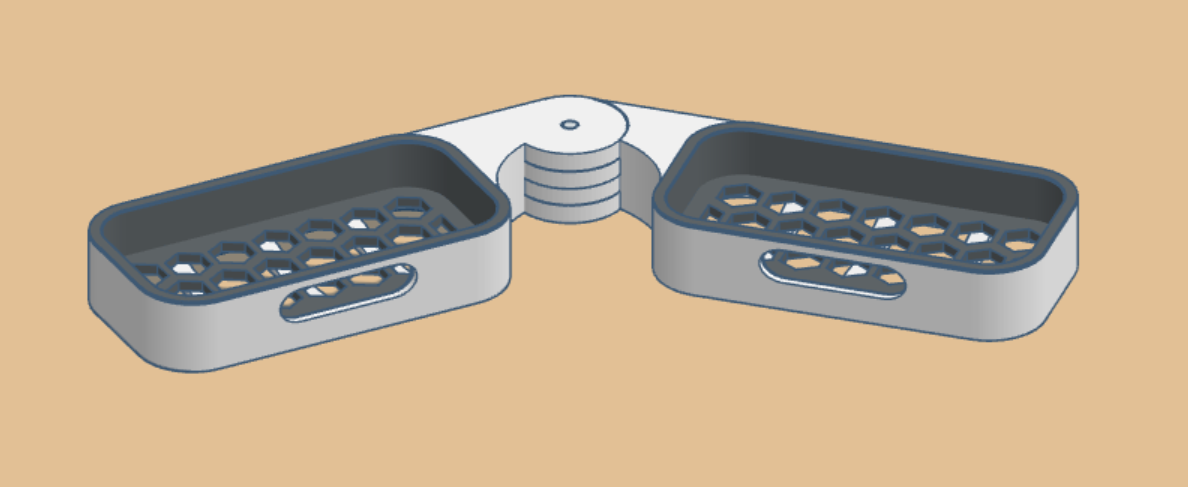

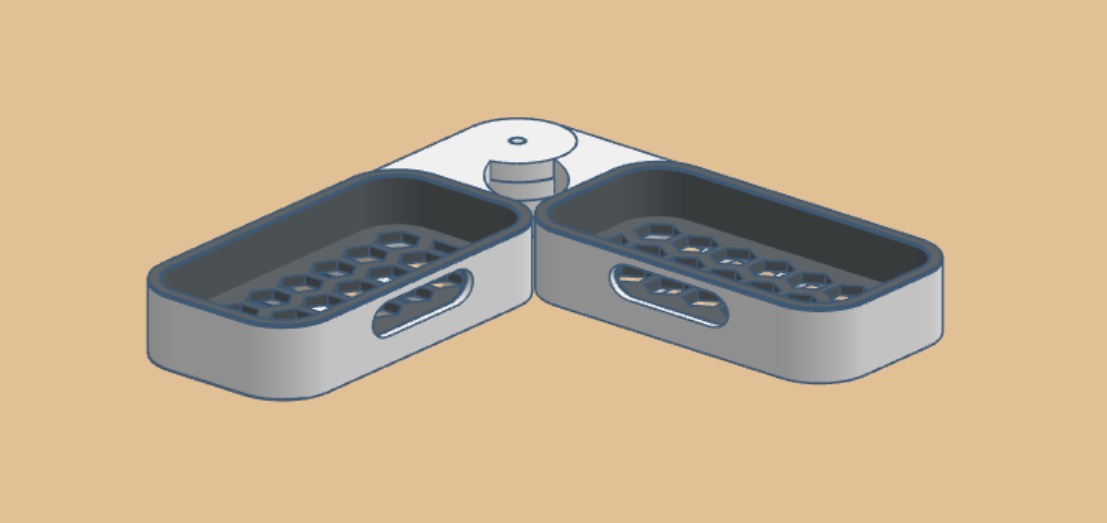

This is a stylish shelf rack. It can rotate from 0-180º to achieve your desired angle or just to put it on a corner.



EDIT:

  1. Added a platen to hide the holes of the inner frame. “Platen.stl”



Examples of Applications:

  1. Garden shelf to hold plants;
  2. Kitchen shelf to hold Spices;
  3. Office shelf to hold papers, pens, etc…

Installation:

  1. Print the Files
  2. Glue the Connector to the Outter Frame
  3. Place the Pin Inside the hold connecting the 2 Frames Together
  4. Clean the Wall
  5. Glue the water-proof double tape on the wall
  6. Glue the shelf
  7. Enjoy

Print Instructions:

  • 2x “Connector.stl” - This needs to be glued on the frame
  • 2x “Outter_Box.stl”
  • 2x “Inner_Box.stl”
  • 1x “Pin.stl"

Note: If you have a bigger printer you can print the file attached “Outter_Box_With_Connector_L.stl” and “Outter_Box_With_Connector_R.stl”. You need a printer with at least 310mm width.

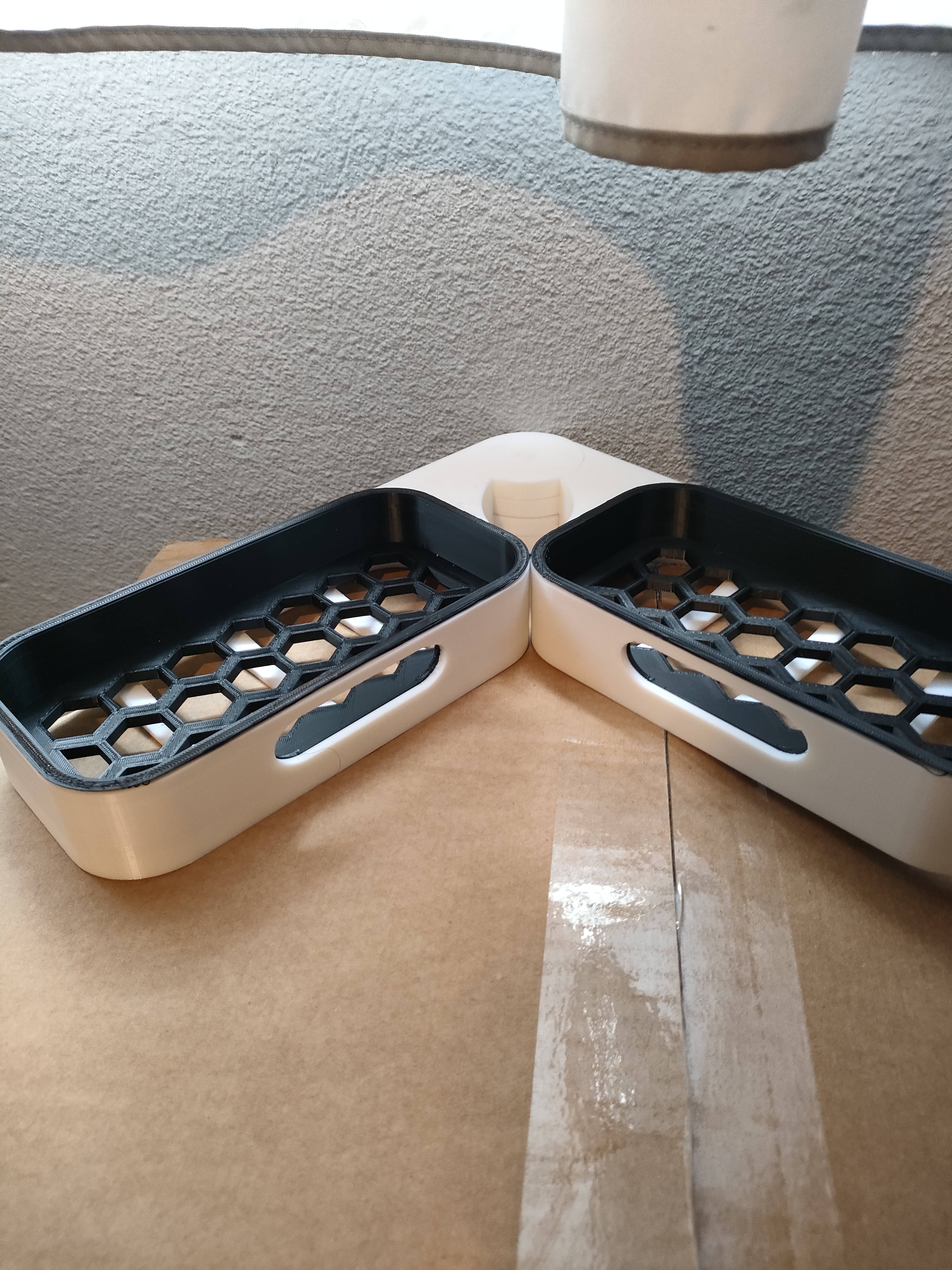

I'll Upload photos of the real print once is done!

This is my first complex design, I'm currently learning 3D design by myself and I know that this design may have some flaws or could be better that it is right now. If you have any suggestions feel free to let me know. Also you can remix this if you wish.

Happy Printing!
