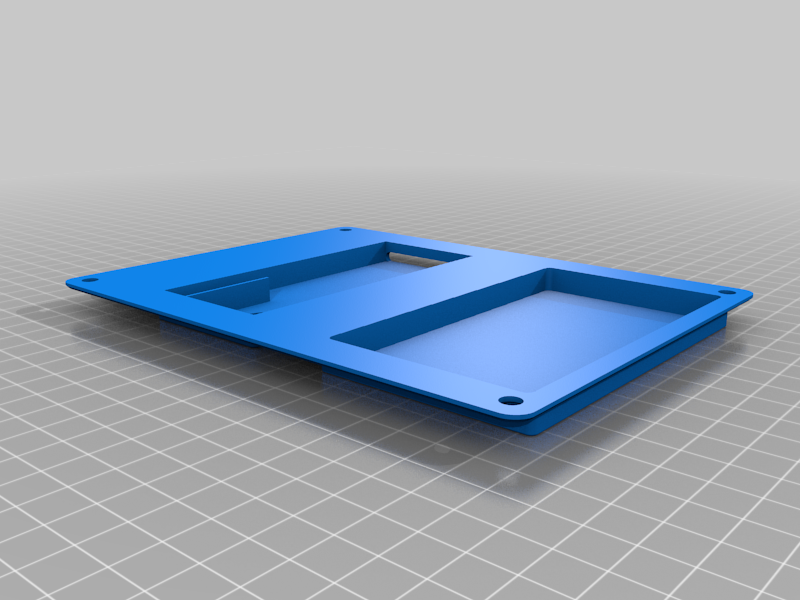

uConsole back Cover
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Portable Devices
- License
- Creative Commons — Attribution — Share Alike
The original metal back cover would affect the wifi signal,

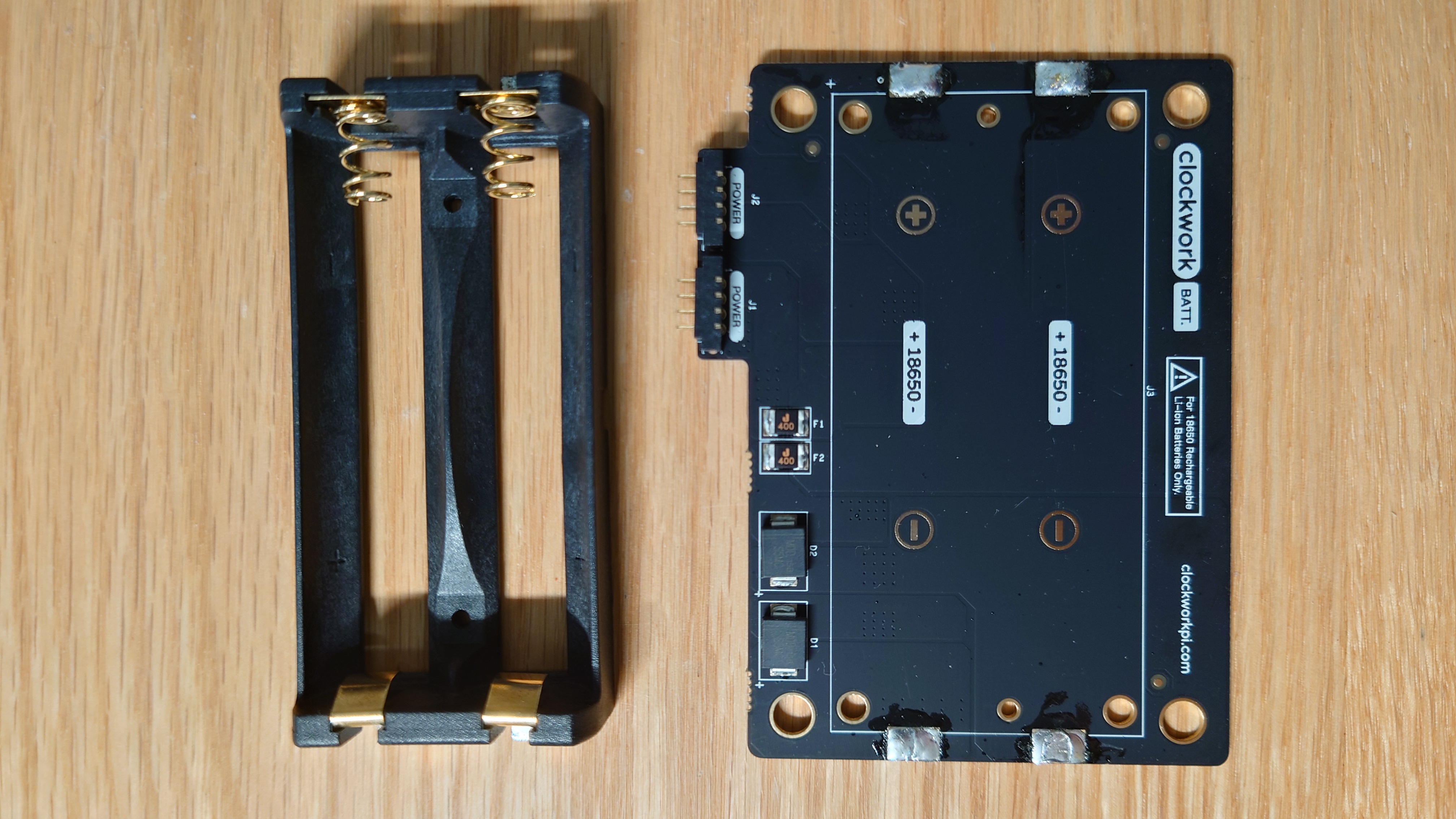

and the battery capacity that could be installed was small,
There is currently no official release of the shell model.
so I came up with the idea of designing a printed back cover myself.
After many printing tests and size adjustments, it was finally installed correctly.

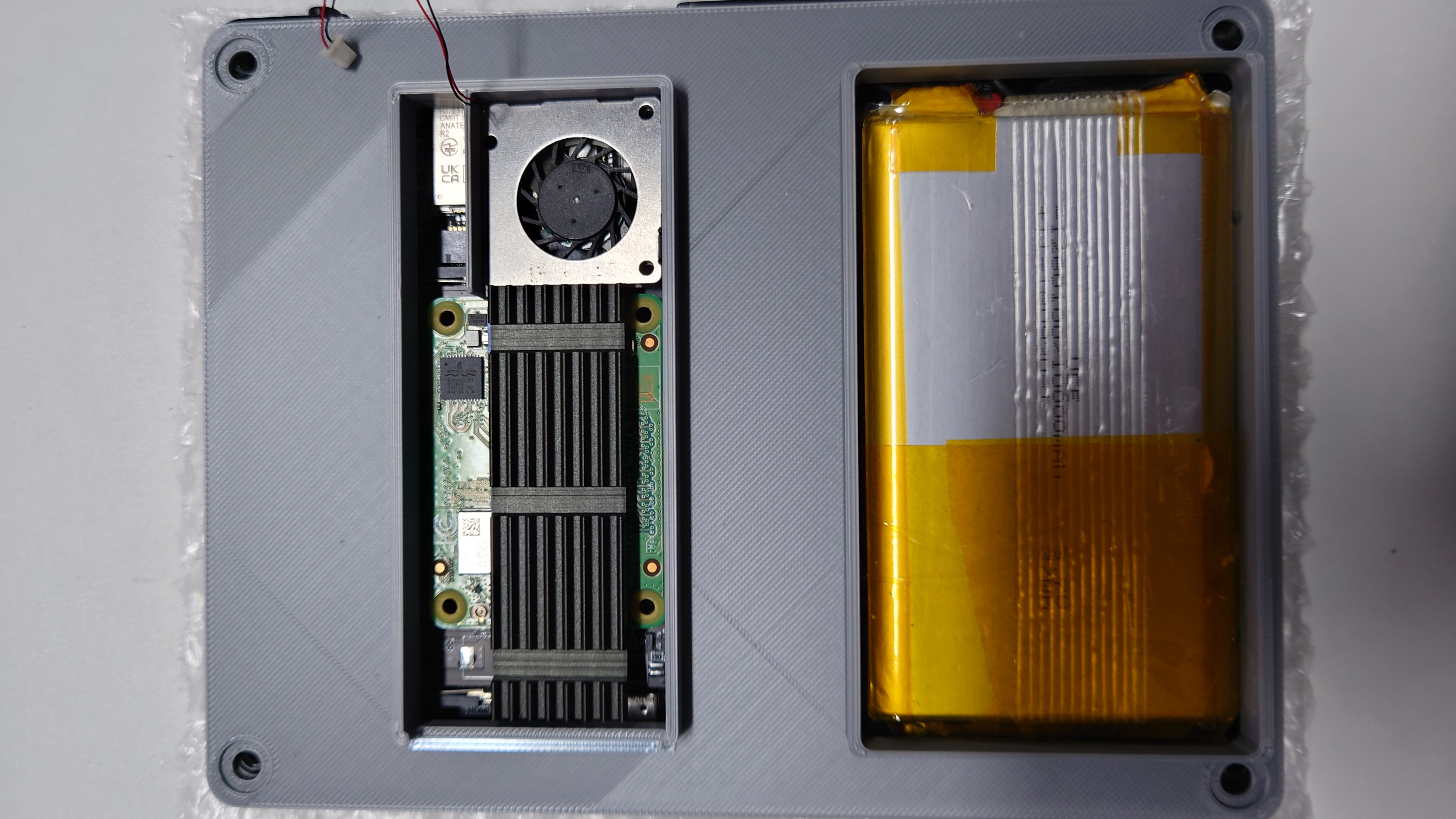

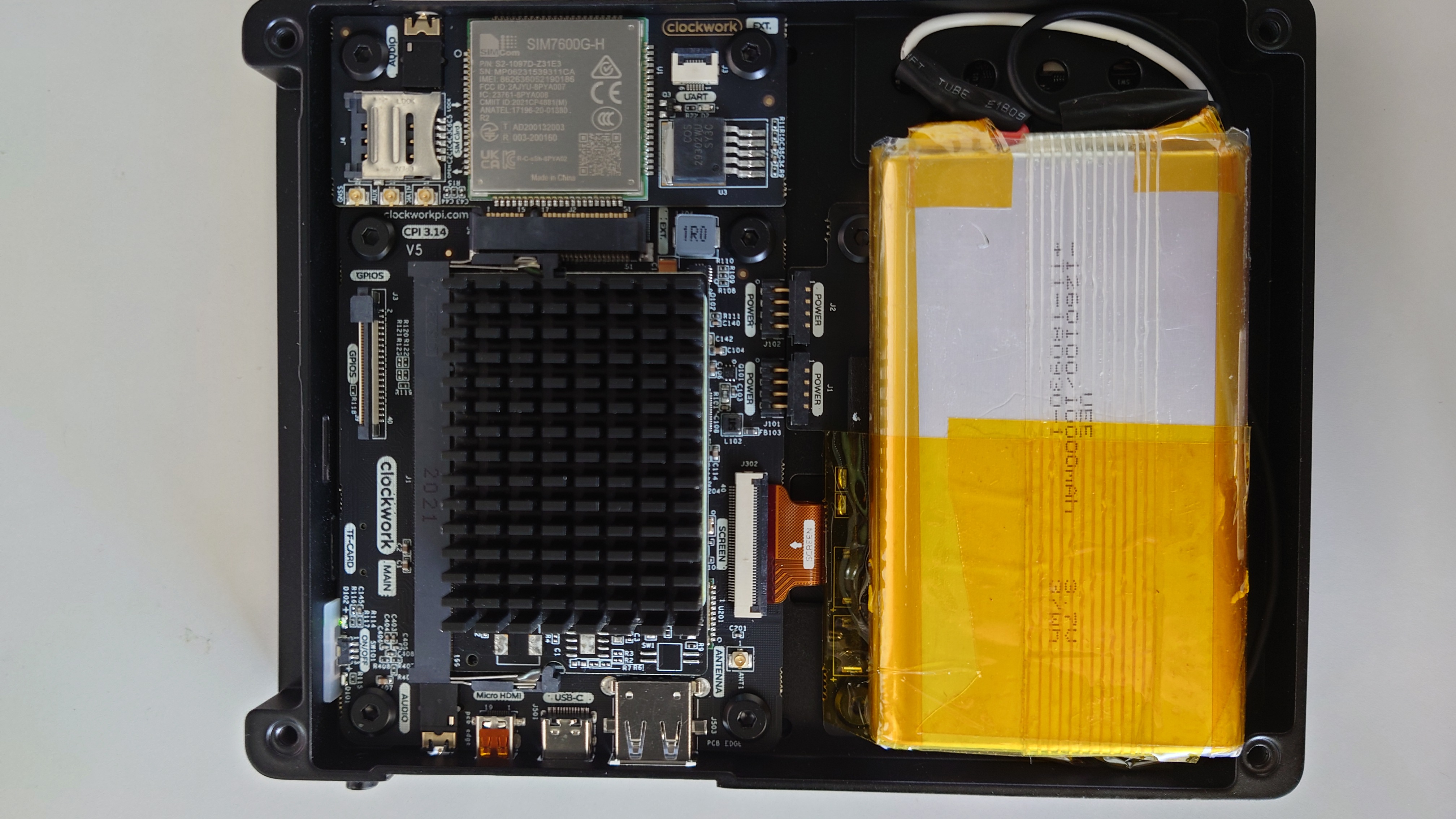

Lithium battery specifications: 12x60x100mm (10000mah)

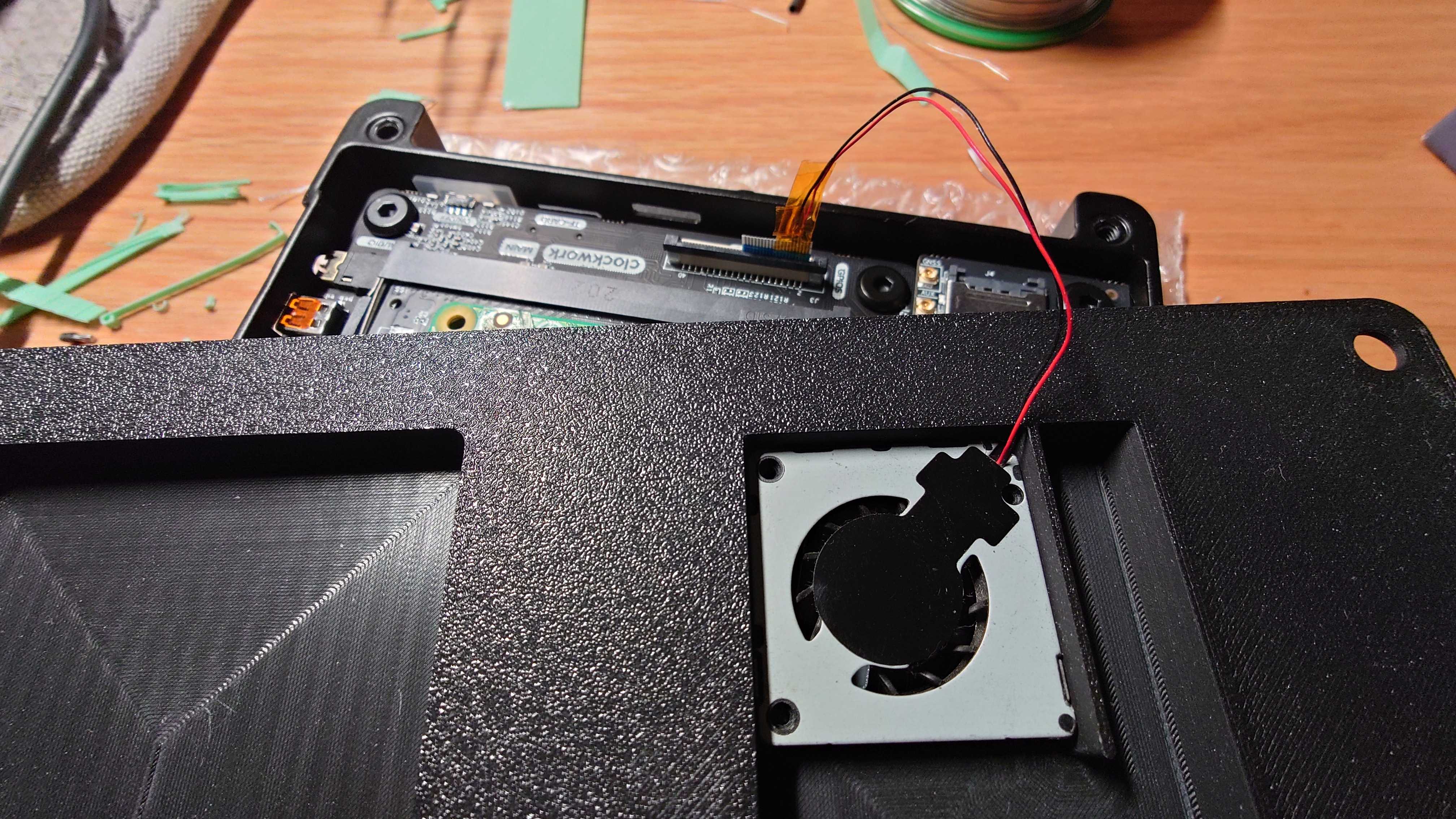

Fan specifications:30x30x4mm
Heat sink specifications:55x40x5mm
More details will be added when I have time.
Print Settings
- Printer brand:
Bambulabs
- Printer:
Bambu P1S
- Rafts:
No
- Supports:
Yes
- Infill:
25%
- Filament brand:
eSun
- Filament material:
PLA
- Notes:
It is recommended to use support material and rotate the Y axis 180 degrees for printing.
