Balisong Trainer (Hardware Optional)

Check out my new Toy Switchblade design here.

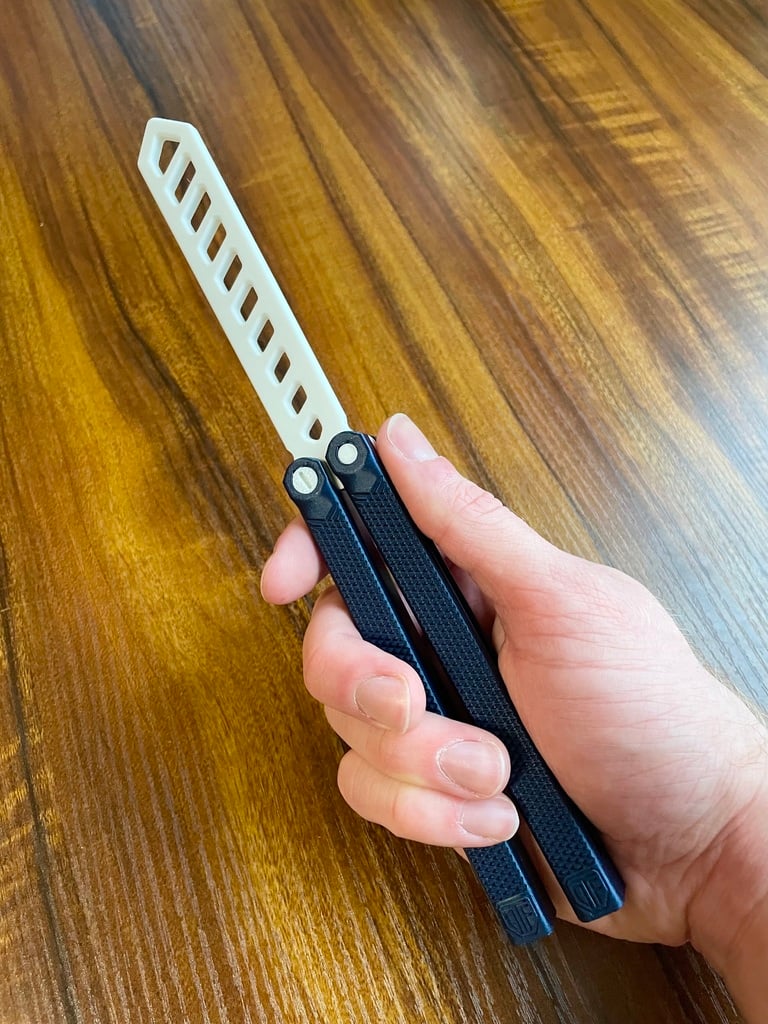

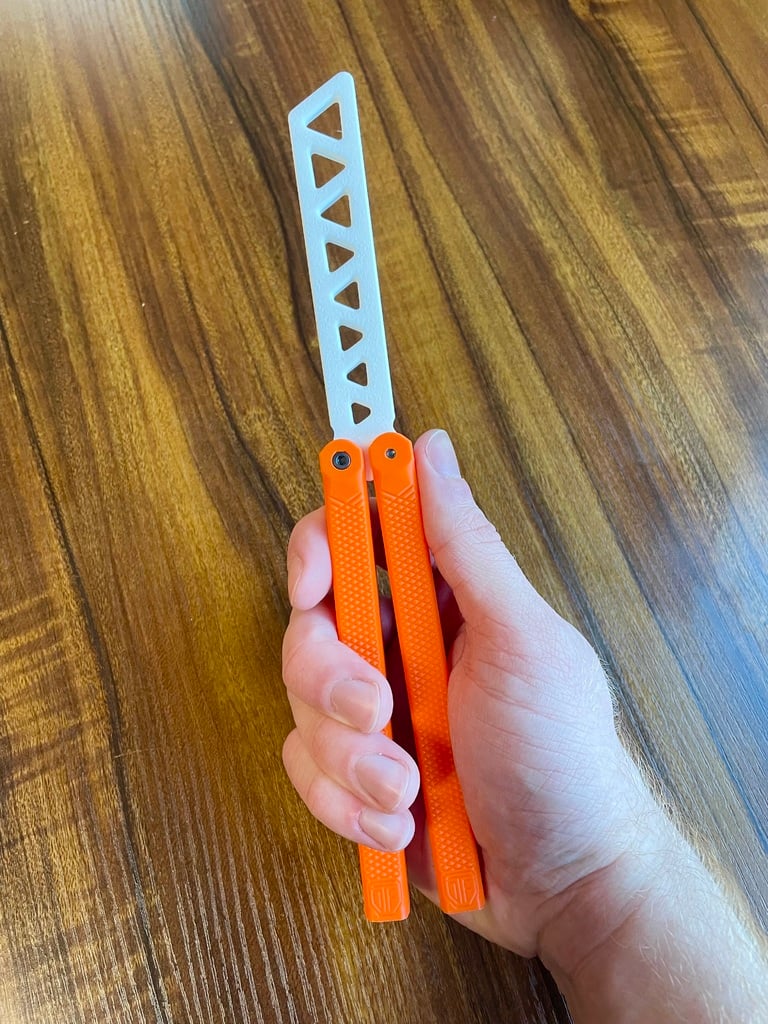

This is a revised version of my first balisong design. This new design is balanced better for flipping, very durable, and easier to print. There are also many options for customization.

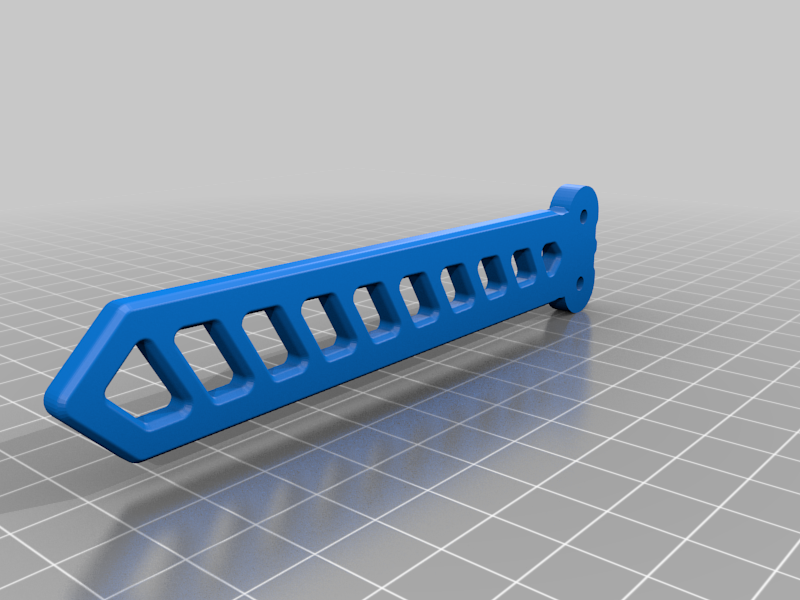

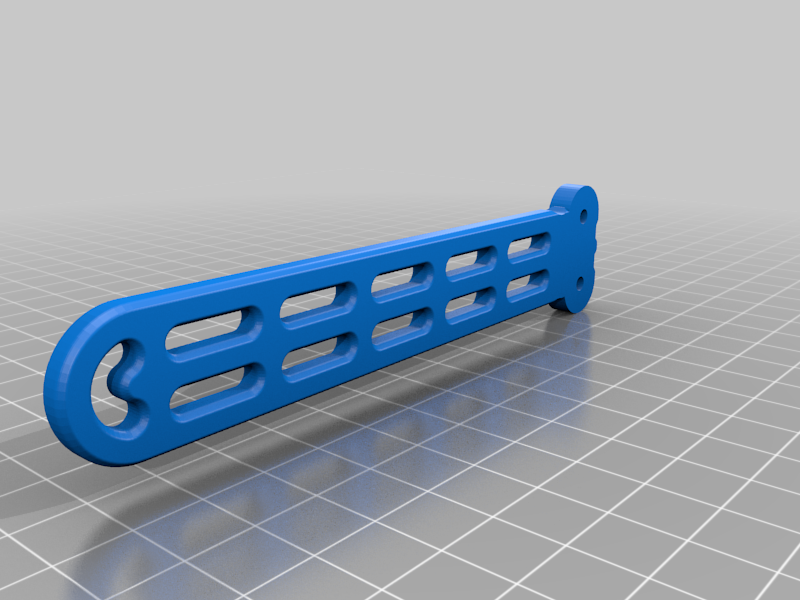

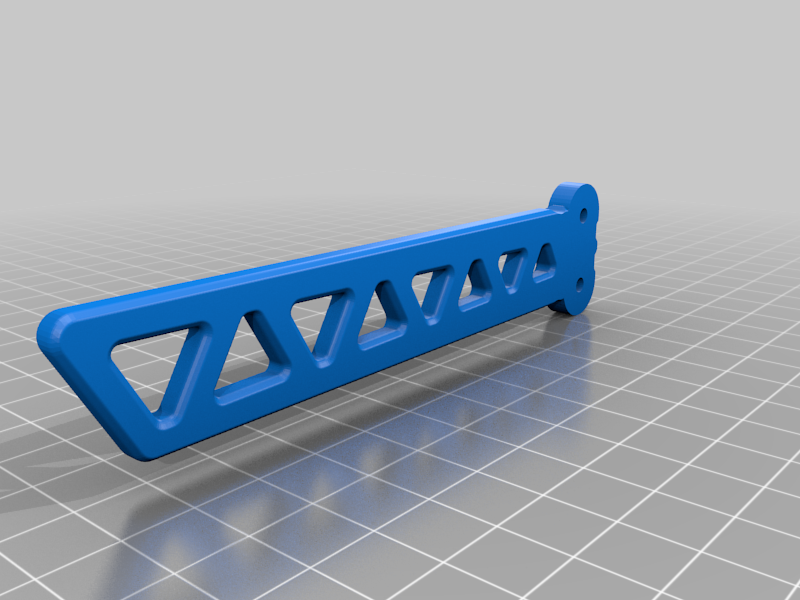

• There are a variety of blade designs to choose from.

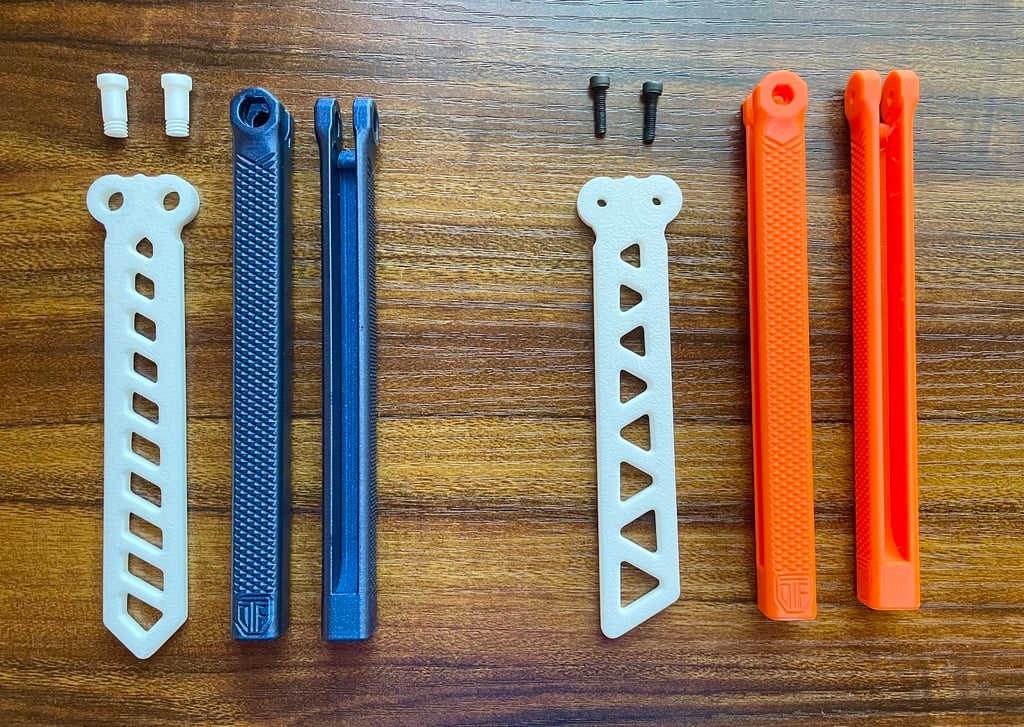

• It can be fully printed or made with M3 screws, specs linked here.

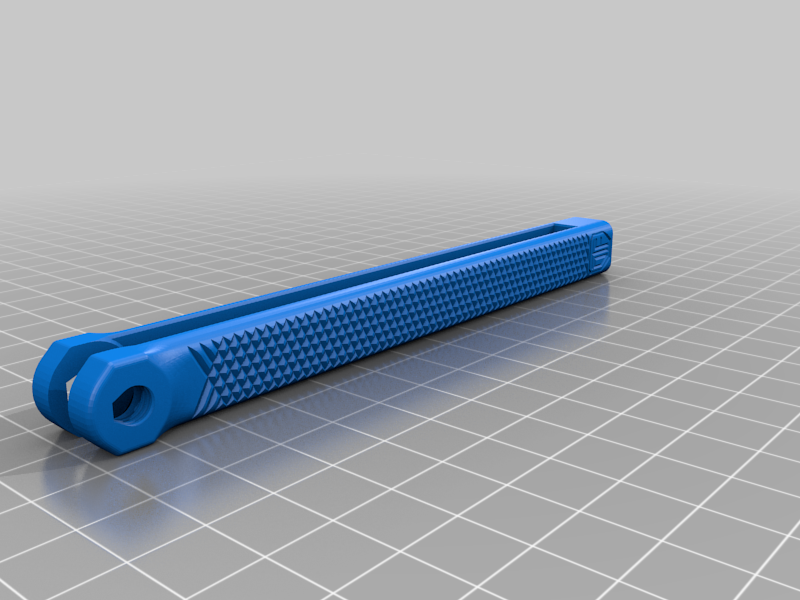

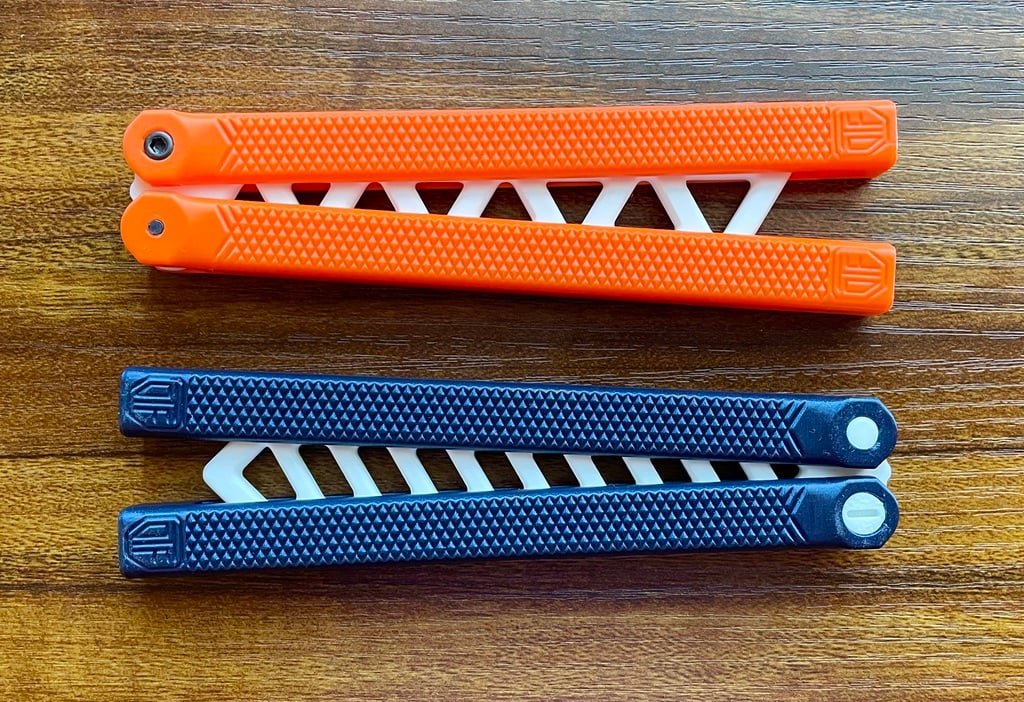

• There is a choice between handles that flair out or close completely. (The balisongs in the thumbnail have flared handles)

I have included a step file of a blank blade so its easier for others to make their own blade designs. If you create your own blade design please post a remix. I would love to see what you make! If you enjoy the design a like or make would be appreciated.

Check out my new fidget spinner and print in place bearing here.

You can find my other toy knife designs here.

You can obtain a commercial license to sell prints of this here. Commercial seller tier club members have permission use this model for commercial purposes during active membership.

Instructions

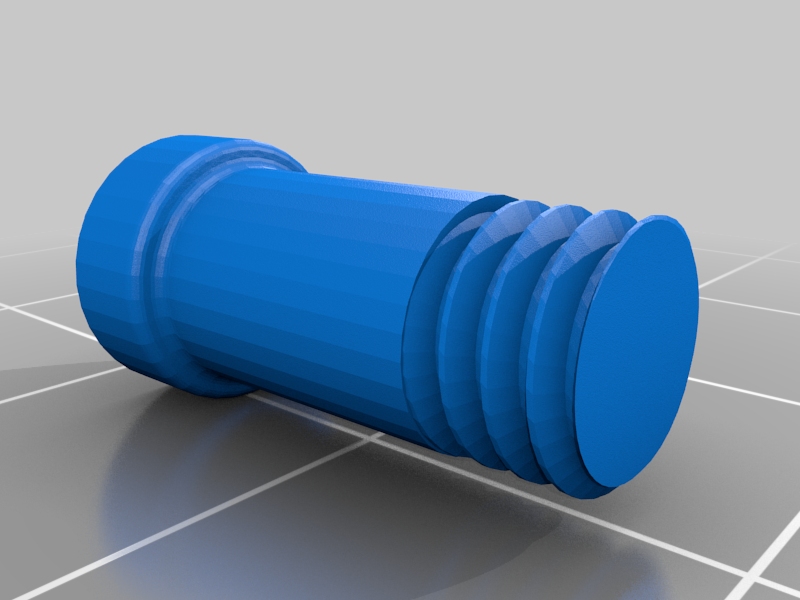

• If the threading on the pins is too tight try scaling them down a little in the x and y direction.
• Printing using filament with enhanced mechanical properties such as a PLA Pro or PLA tough variant significantly increase durability.
• Using a generic plastic lubricant on the pin and handle contact points provides much smoother flipping.
• Printing the handle vertically provides the best surface finish. This can be difficult for low end printers so the design has also been optimized for printing horizontally.
• Tightening the screws too much will stop it from flipping and tightening too little can make it rattle a lot. Try to find the sweet spot between the two.

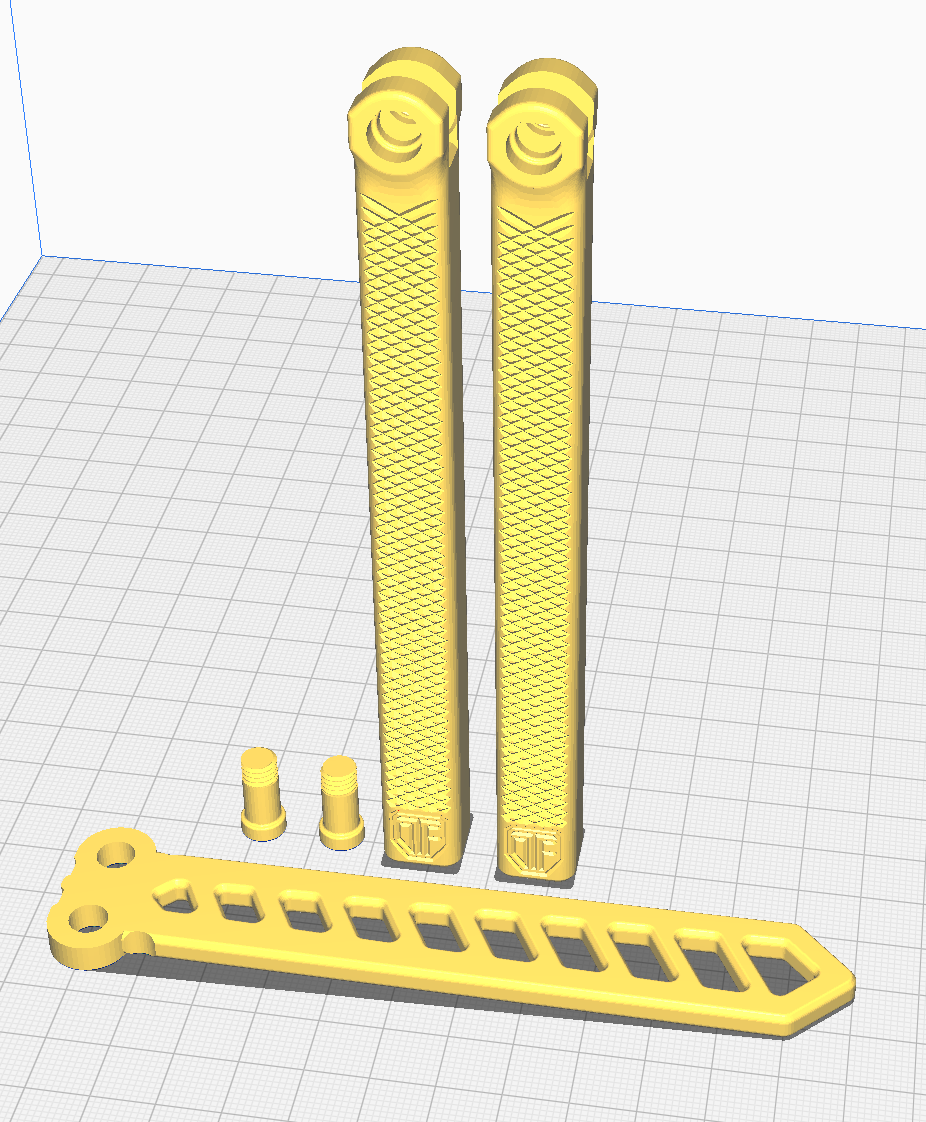

Vertical Printing Orientation

Higher quality finish

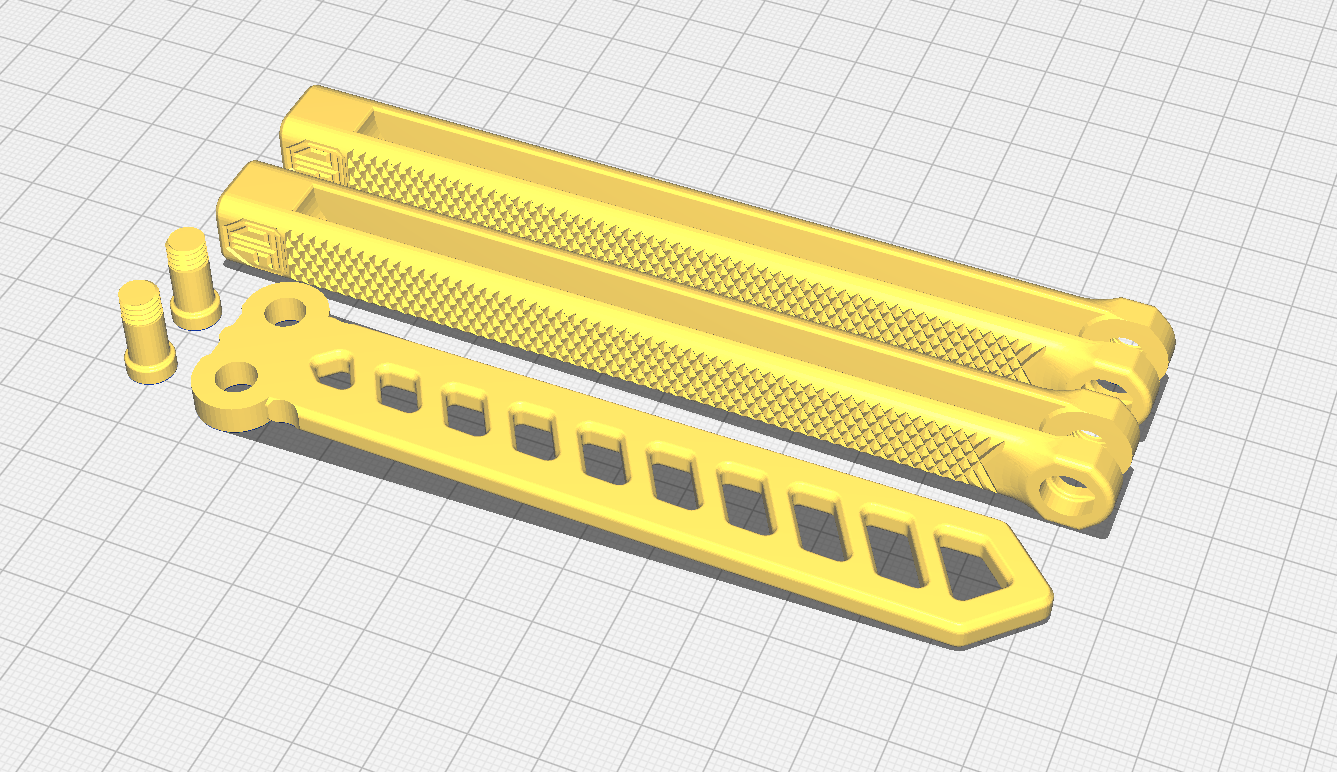

Horizontal Printing Orientation

Faster Print
