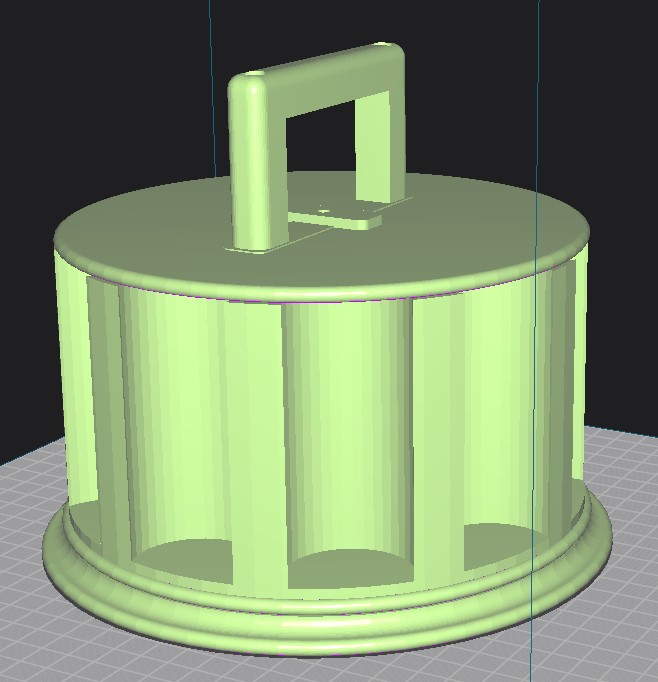

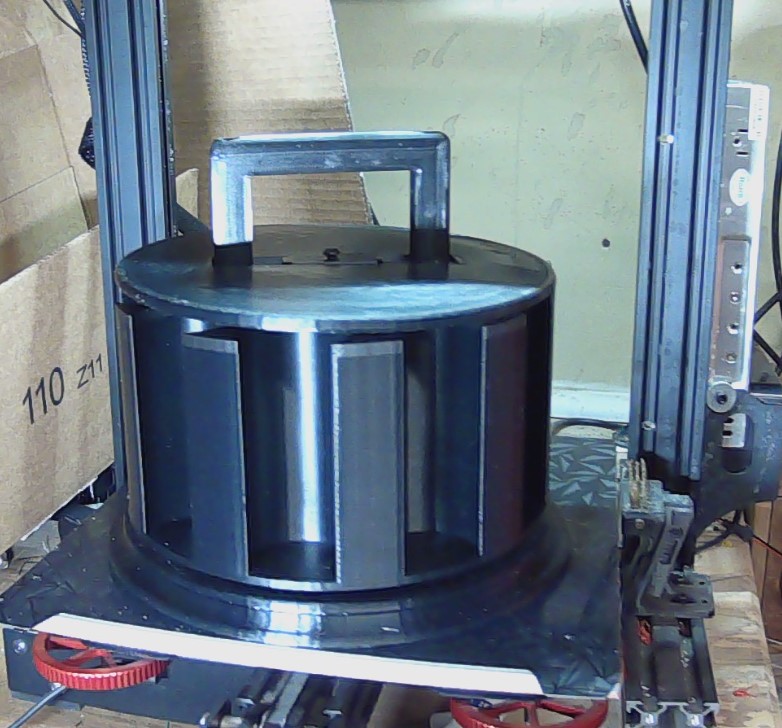

POKER CHIP CADDY
Holds Two Hundred Fifty Poker Chips and two decks of playing cards.
Bill of Materials:
1-Triangle brand 3 inch square lazy susan bearing-Available @ Woodcraft currently $2.99+tx or on Amazon-$10.70+$5.83shp+tx for a 5-pack.
8-4mm x 8mm Button Head Screws - for bearing
1-4mm x 16mm Button Head Screw - for Cover Lock
2-4mm x 20mm Socket Cap Screws - for Handle
8 4mm x 6mm heat set inserts
2 4mm x 8mm heat set inserts
1 4mm x 10mm heat set insert
I used Black PETG for all parts :
HANDLE + LOCK
0.2 Layer Height
3 Walls
5 Top/Bottom Layers
15% Cubic Infill
24grams
COVER
0.2 Layer Height
3 Walls
7 Top/Bottom Layers
15% Cubic Infill
91grams
5% Cubic Infill
85grams
BASE
0.2 Layer Height
3 Walls
7 Top/Bottom Layers
15% Cubic Infill
175grams
CADDY
0.28 Layer Height
3 Walls
6 Top/Bottom Layers
5% Cubic Infill
424grams
