Prusacaster 2077 - Headless

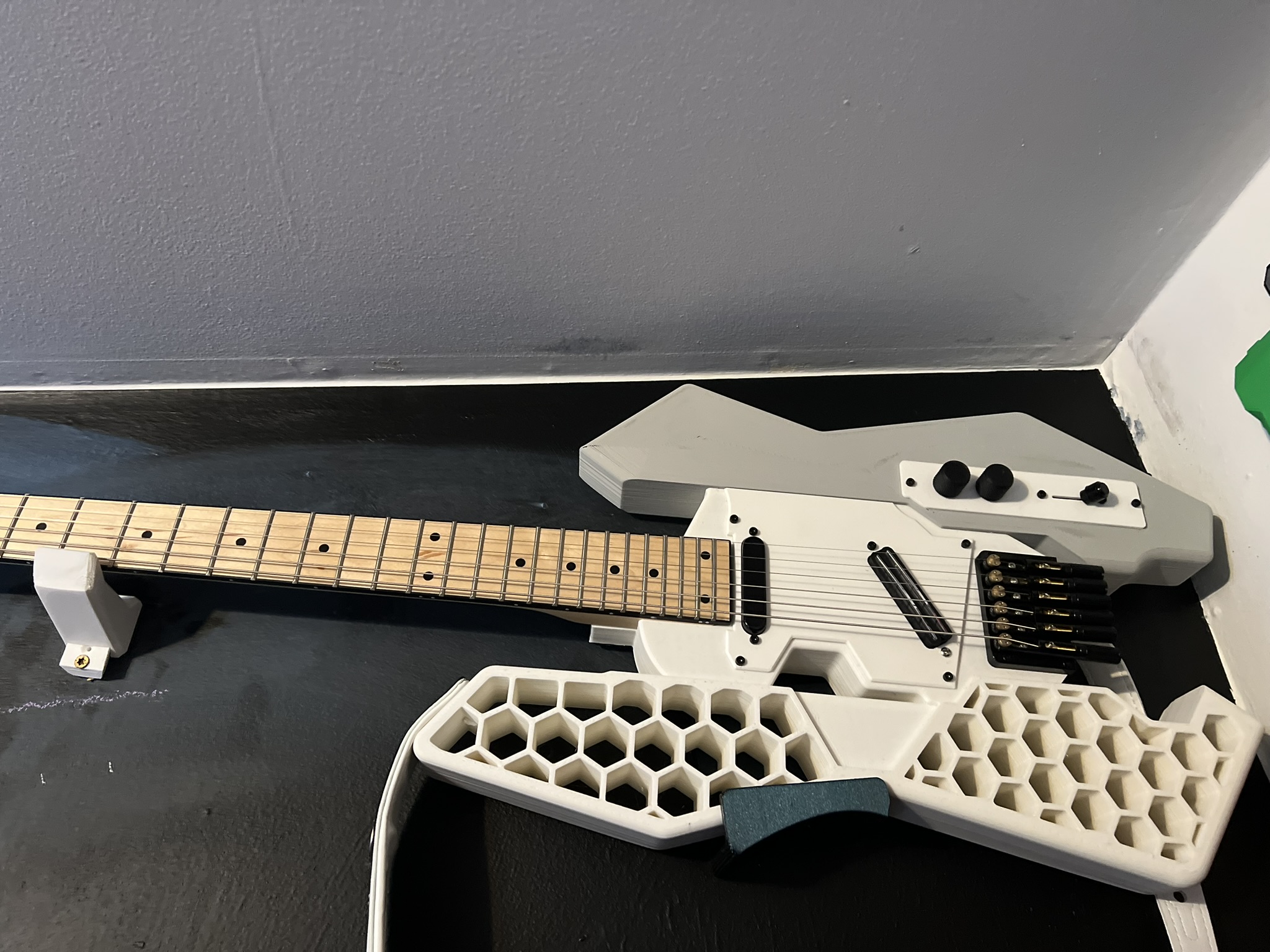

This is the Prusacaster 2077 but now it's headless for that truly Cyberpunk vibe.

This includes the following changes:

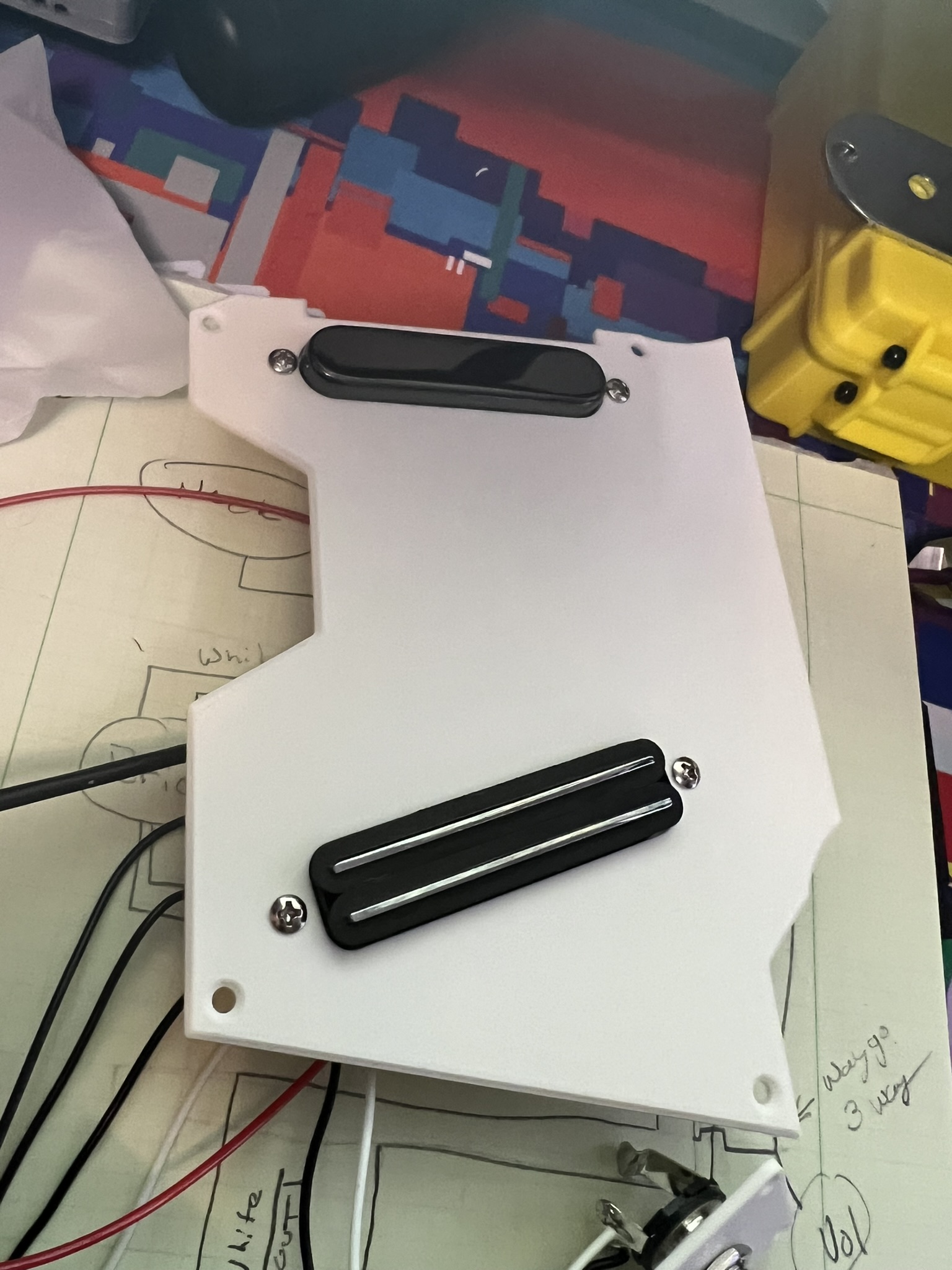

• Larger faceplate that handles 2 pickups
• Increased internal area for wiring

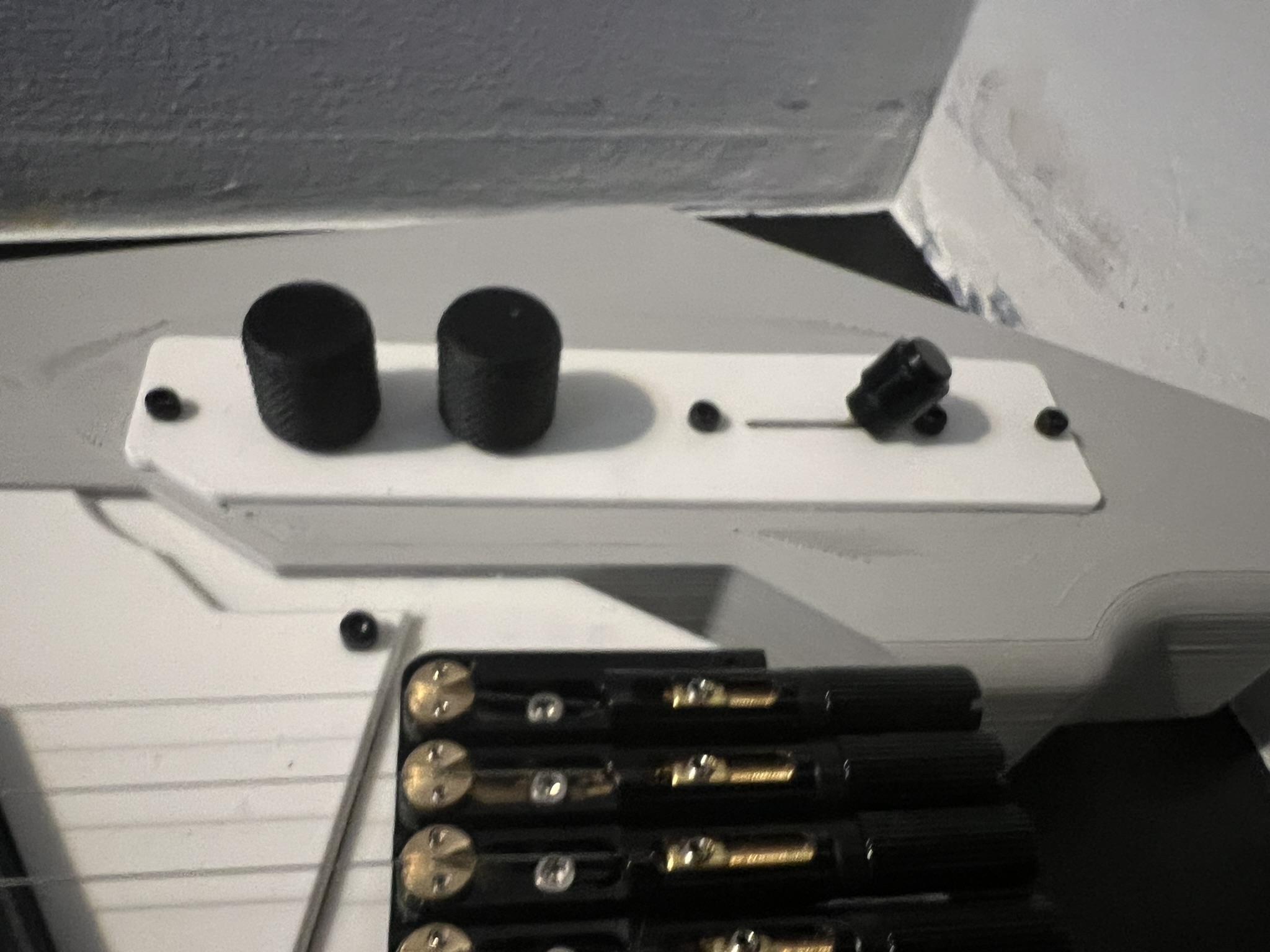

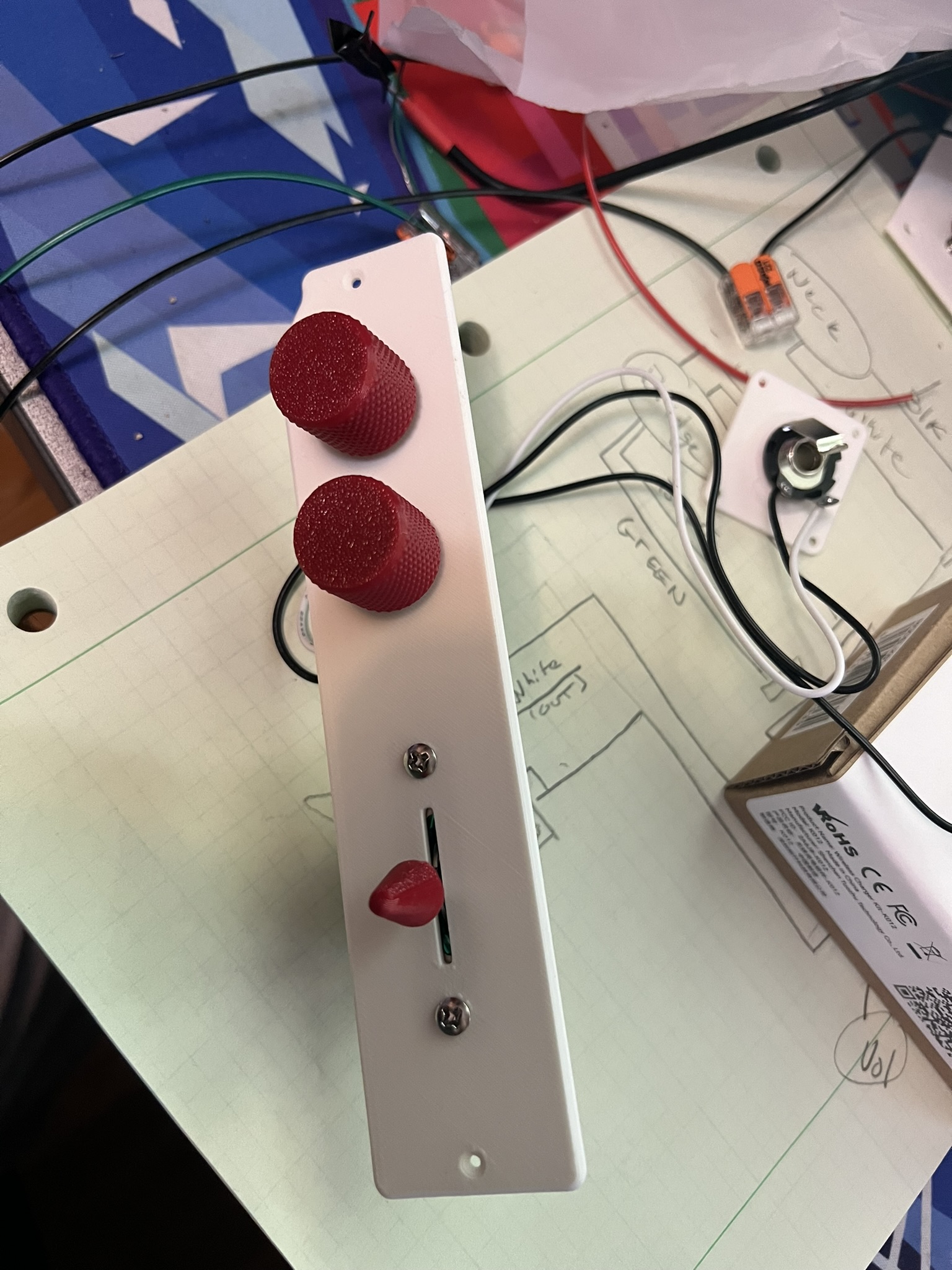

• Added a control board faceplate

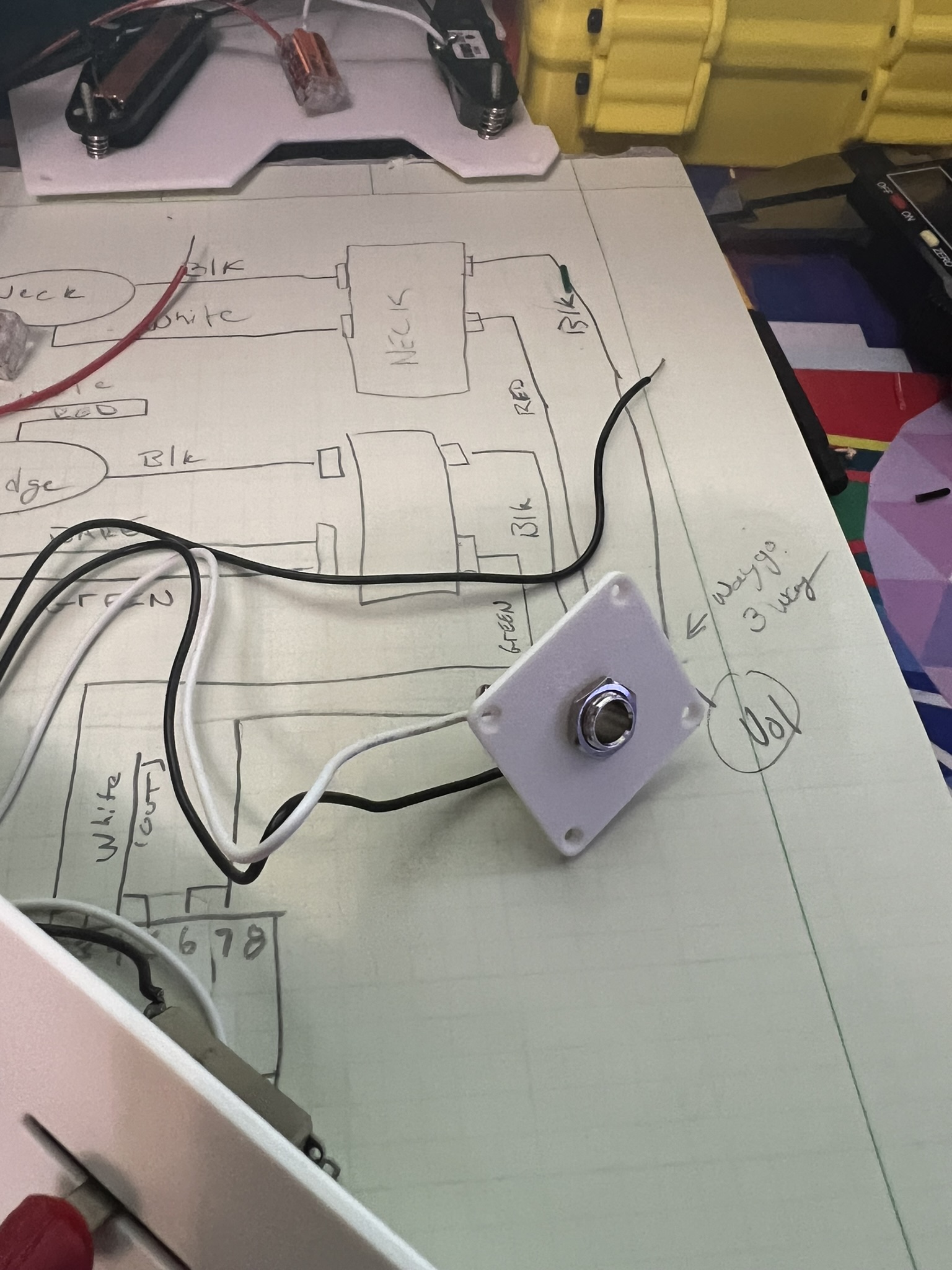

• Added a Jack faceplate
• Added a 3mf file for Large format printers like the Elegoo Neptune 4 Max. \
• Step file so you can modify this to your heart's content

Parts List

Essential

• Neck Pickup: https://amzn.to/4aphXzv
• Bridge Pickup: https://amzn.to/3x6Lsb3
• Strap Connectors: https://amzn.to/3IOWVPa
• Headless Bridge & Nutplate: https://amzn.to/4a6FNQO
• Pre-Wired Control Plate: https://amzn.to/4aKhiZZ
• Neck:
  • Light: https://amzn.to/4apiWAt
  • Dark: https://amzn.to/3TPEIXY
  • If those are sold out: https://s.click.aliexpress.com/e/_DDyKpgh
• Neck Plate: https://amzn.to/3VDn7nk
• Screws: https://amzn.to/4cz7dRe

Optional

• Strap: https://amzn.to/3xb6zJu
• Strings: https://amzn.to/3TxtlCJ

Assembly Notes

Nut-Plate Note

In order to assemble this guitar, I had to chisel the neck away from the nut up so that the nut-plate was in place at the same level as the previous nut.  Basically, I had to turn it from a U to a L, if that makes sense.  Image of closeup of nut-plate is in the gallery.


Screws

Everything on this guitar uses M3 screws.   I really liked the look of the black socket cap screws, which is why some of the screw holes in the designs don't have chamfers.

Soldering

I followed these guides to solder the parts together:

Source: https://guitarelectronics.com/1-humbucker-1-single-coil-3-way-toggle-1-volume-1-tone-00/


Source: https://www.warmanguitars.co.uk/2020/09/08/3-way-lever-switches-with-8-connection-lugs-explained/

Stats

Printables won't allow me to upload the print files, but here's the filament usage and time:

Printer: Elegoo Neptune 4 Max
Nozzle Size: 0.4mm
Total Time: 2d7h44m
Filament Used: 2403.51g

Edit: v2

• Removed 8mm of material below saddle for better string alignment
• Added versions with M3x5x4 heat set inserts for mounting the saddle and the face plates.
• Removed Combined versions of files, and .3mf files for easier management of this project, as I will not be iterating on it often.
