Bastion Extended Frame Electronics Mount
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Printer Parts & Upgrades
- License
- BSD License

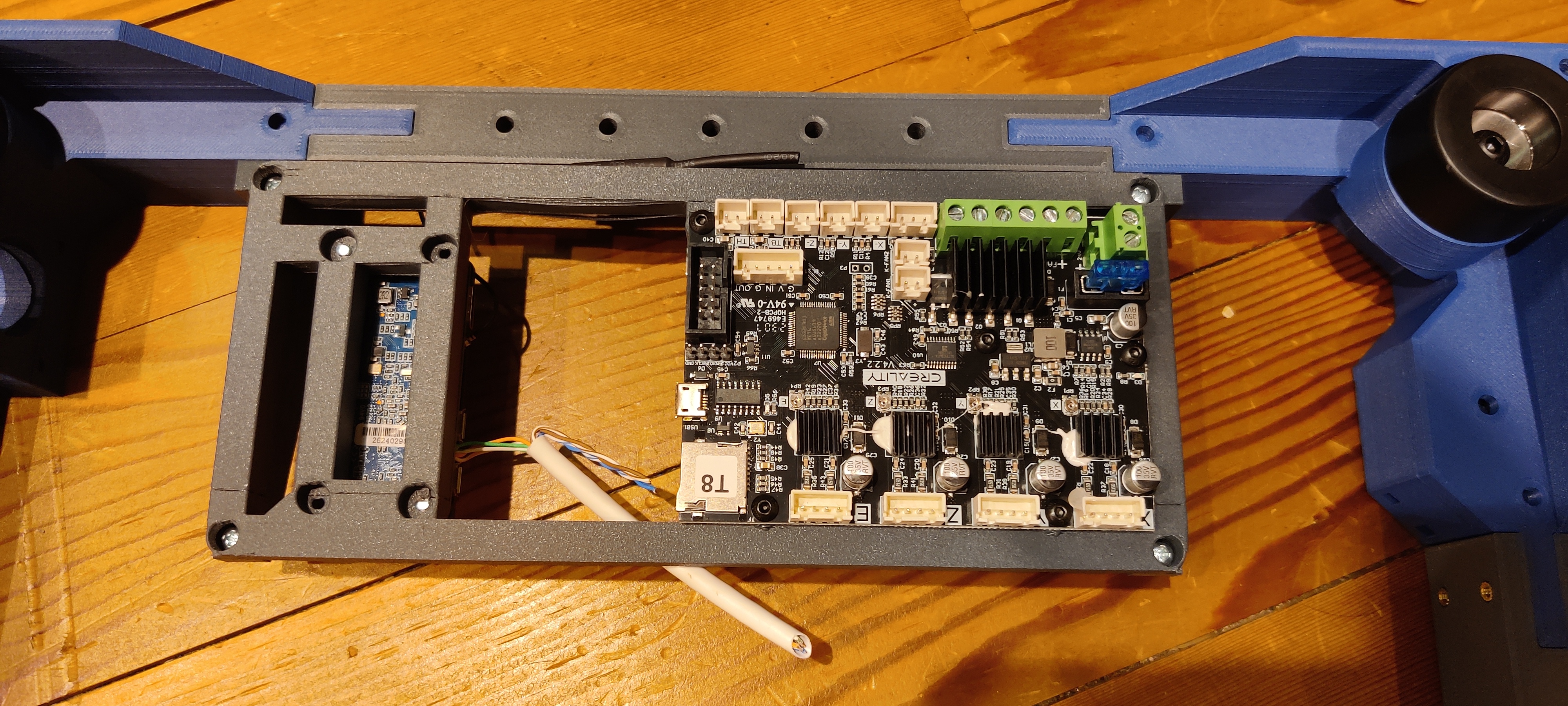

I'm building a Bastion Extended Frame (intended to recycle an Ender 3), so I naturally wanted to put my existing Creality 4.2.2 board to work. I paired it with an SKR Pico and Pi Zero on this bracket. It should have enough clearances around all parts to plug in JST connectors and such.
Printed at 0.2mm layer height, 0.4mm nozzle width with CF-PETG, 4 walls, 4 top, 4 bottom, 30% infill, no supports. Orient the print on one of the long sides. Uses M3xD5xL4 heatsets – the same as those in the Bastion BOM.
