Purpose:
This hook is designed to allow items to be stored/hung in-front of Closetmaid shelving.
Overview:

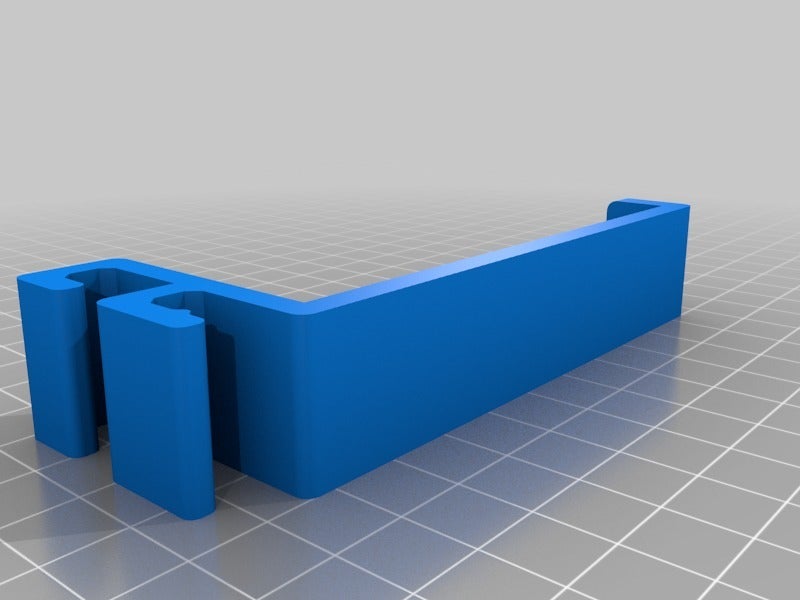

This object is a remixed version of the Shelf hook for boxes by siderits.
The major changes from the original are as follows:
Hook placement compatible with Closetmaid SuperSlide Wire Shelving
- Designed for center to center distance between top and bottom shelf rods of 6.5mm and diameter of 6mm.
Retention feature on bottom hook to avoid knocking the hook off the shelf
Sizes:

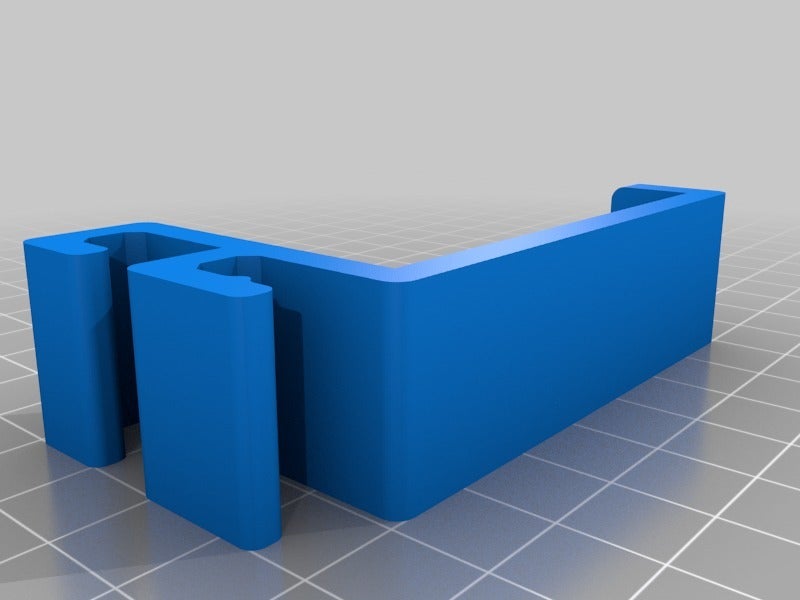

Two sizes are included in this Thing, 60mm and 90mm. The distance is measured where the box will sit. Measure the dimension of the box will tell you if it will fit or not.
- 60 mm should fit most boxes
- 90 mm should fit jumbo-size/value-size boxes
Usage:
- Print two hooks of the same size

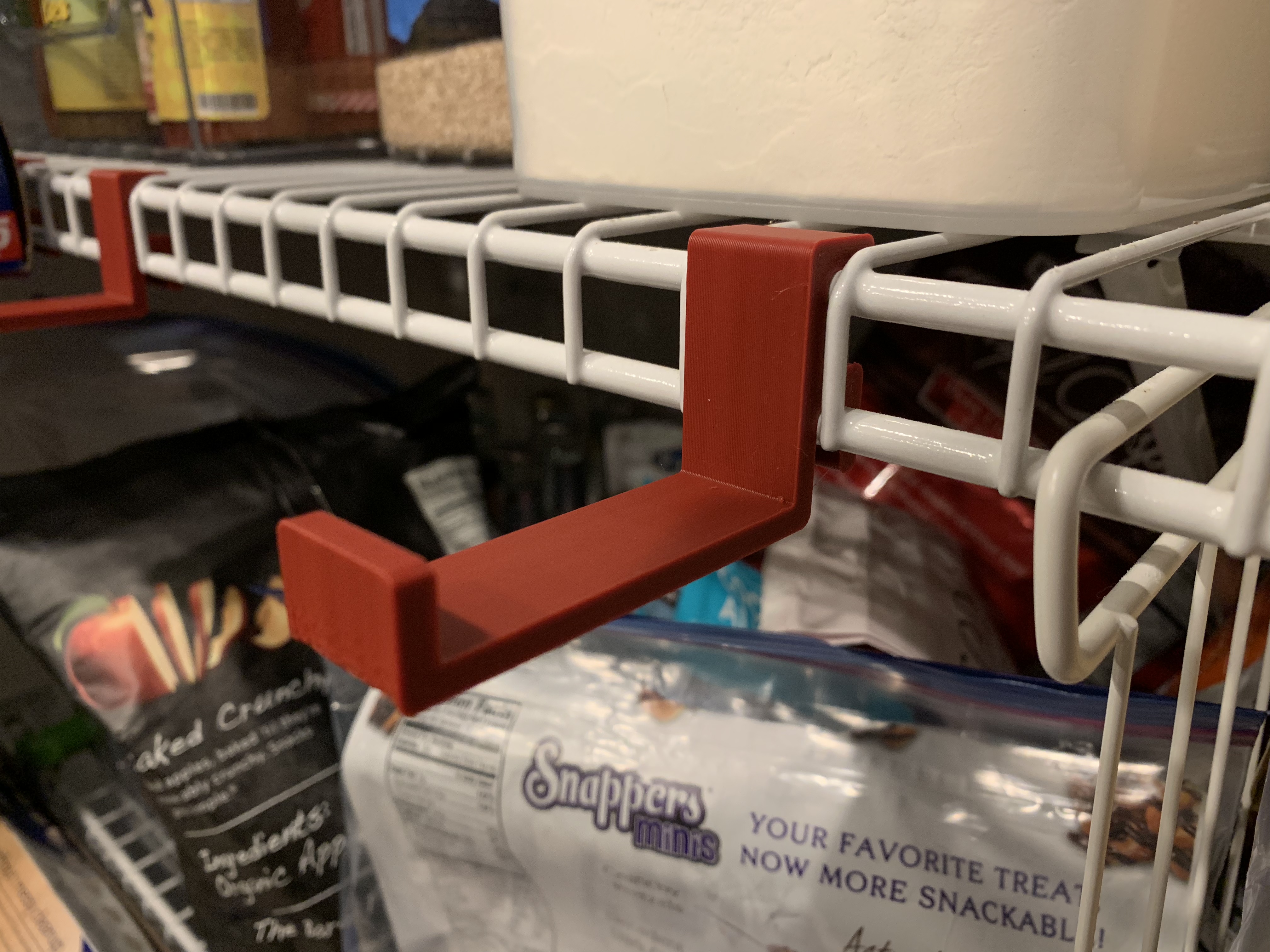

- Hook onto wire shelving at a distance narrower than the box being held
- Store box
Assets/Source:
The original Fusion 360 design file can be found here: https://a360.co/2R9o0j0
