DNA60 Programming Adapter
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Share Alike
This is a programming Adapter with Pogopins for Evolv DNA60 boards.

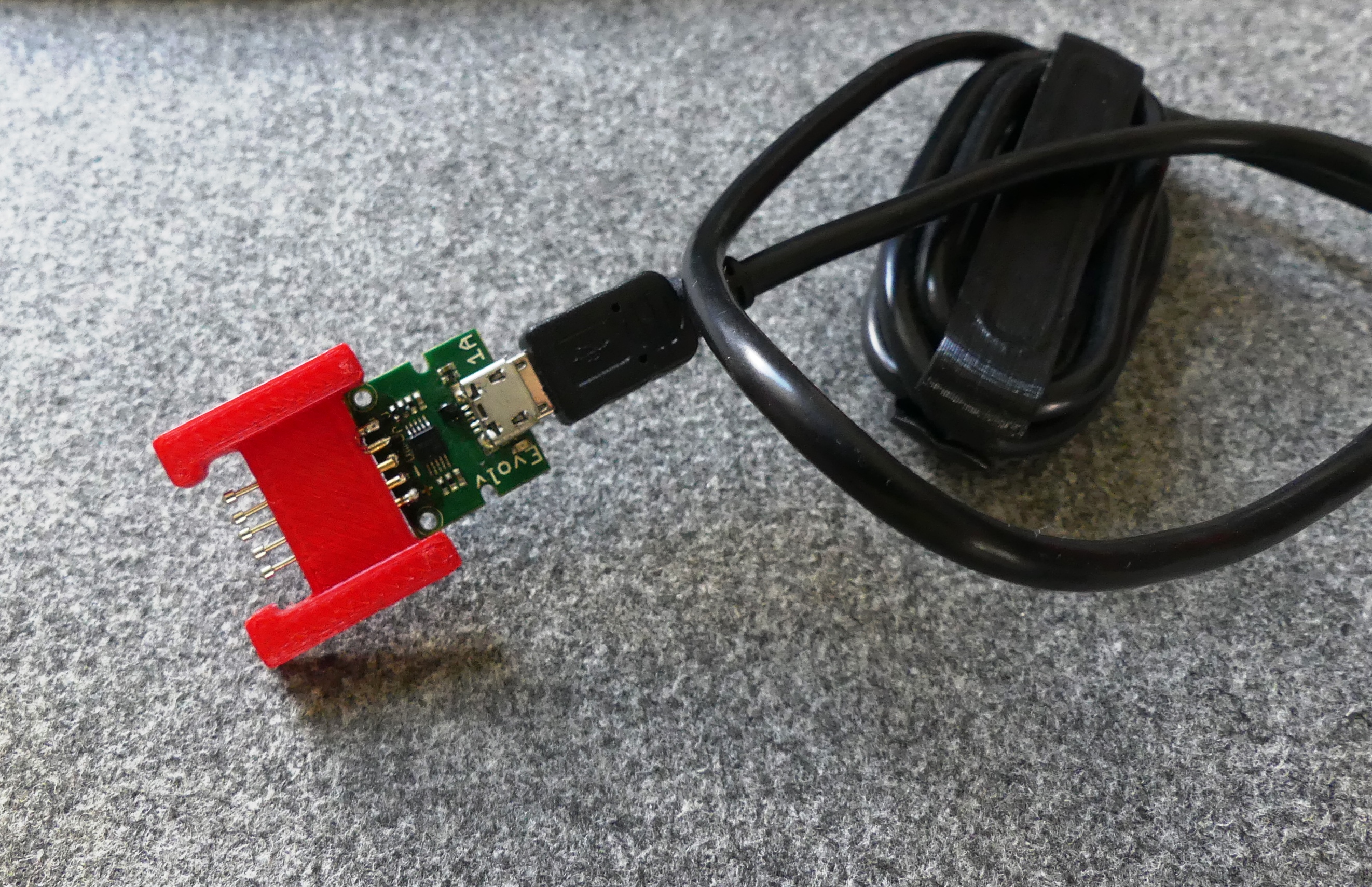

Put the 5 Pogopins (1mm diameter) in the adapter and solder them to the evolv usb-board.
Use:

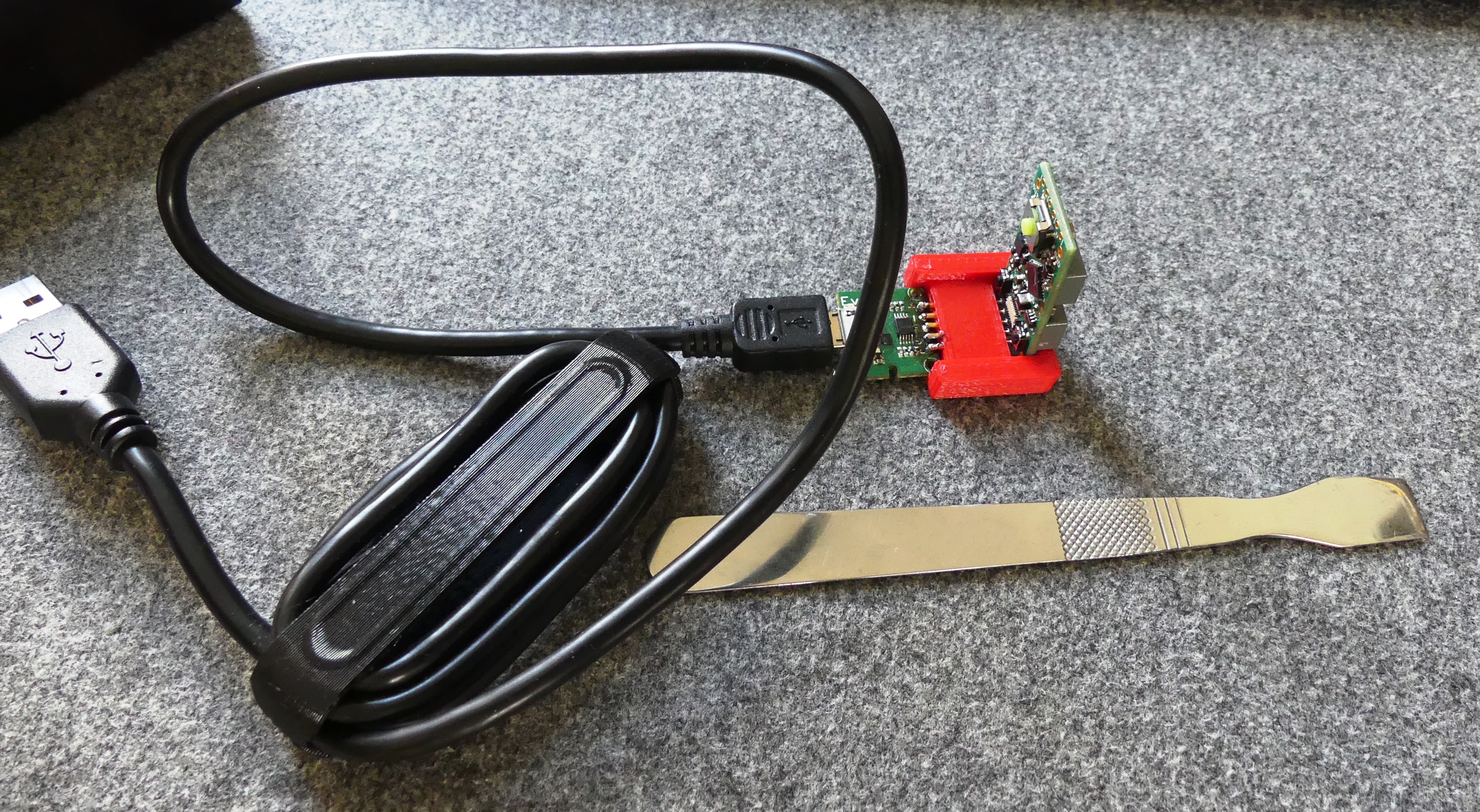

Press the pogopins with something flat (like the tool thats on the photo) and insert the DNA60 board into the adapter. Remove your helpertool and check that all 5 pins have contact AND the polarity is correct (+ on the USB board points to + on the DNA60 board!).
Wth this very solid connection it is easy to program the board with EScribe via USB cable.
