Tiny Junction Box
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial — NoDerivatives
Summary

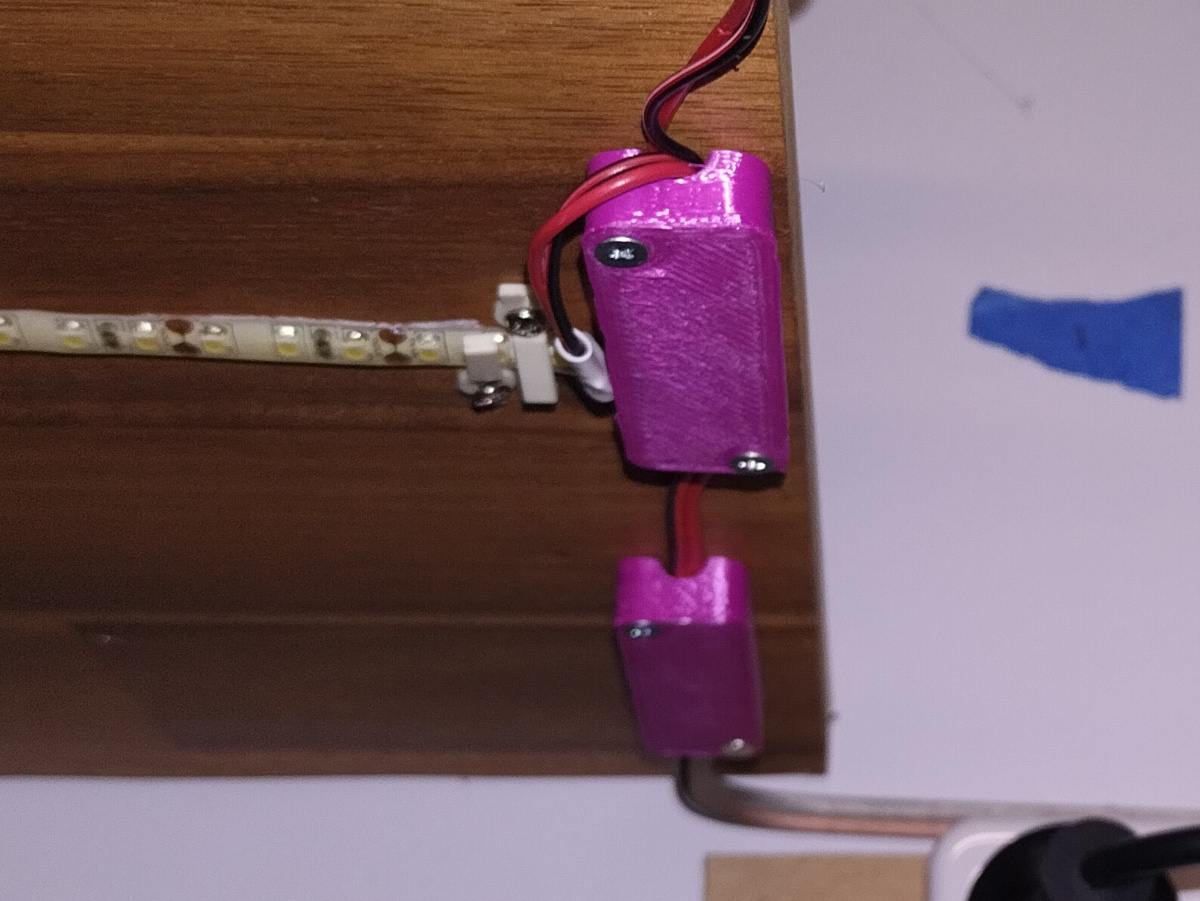

While doing a small wiring job I realized that connections would be exposed, I didn't bother with making some conduit I just made these very small junction boxes. Two patterns are supplied , a 40mm long box, and a 60mm long box made when I realized the first pattern would not accommodate some of the wiring splices.
Print Settings
- No Rafts, No Supports
- 20% Infill
Extra Parts
Holes provided in junction box for countersunk fasteners
used in this instance
2 off 4G x 20mm countersunk wood screw each box
(4G is a thread gauge for wood screws ~ around 3mm diameter)
