rEmotion Robotic Platform

rEmotion is a project aimed at creating a 3D-printed robotic head capable of displaying a wide range of facial expressions. This project is designed to be an accessible and easy-to-develop platform for makers, educators, and hobbyists. By utilizing simple 3D printing models and commercially off-the-shelf (COTS) components, rEmotion ensures that anyone with basic electronics and 3D printing knowledge can build and customize their own robotic head, and then extend it to build a really unique robot.

The project comes with two extensions:

• web camera module
• step motor that can turn the head around

Check the project page and the manual to build your own!

• Project Blog: https://hackaday.io/project/196438
• Build Manual: https://www.hackster.io/an-dr/0e8301
• Repository: https://github.com/an-dr/rEmotion

The source files are available online

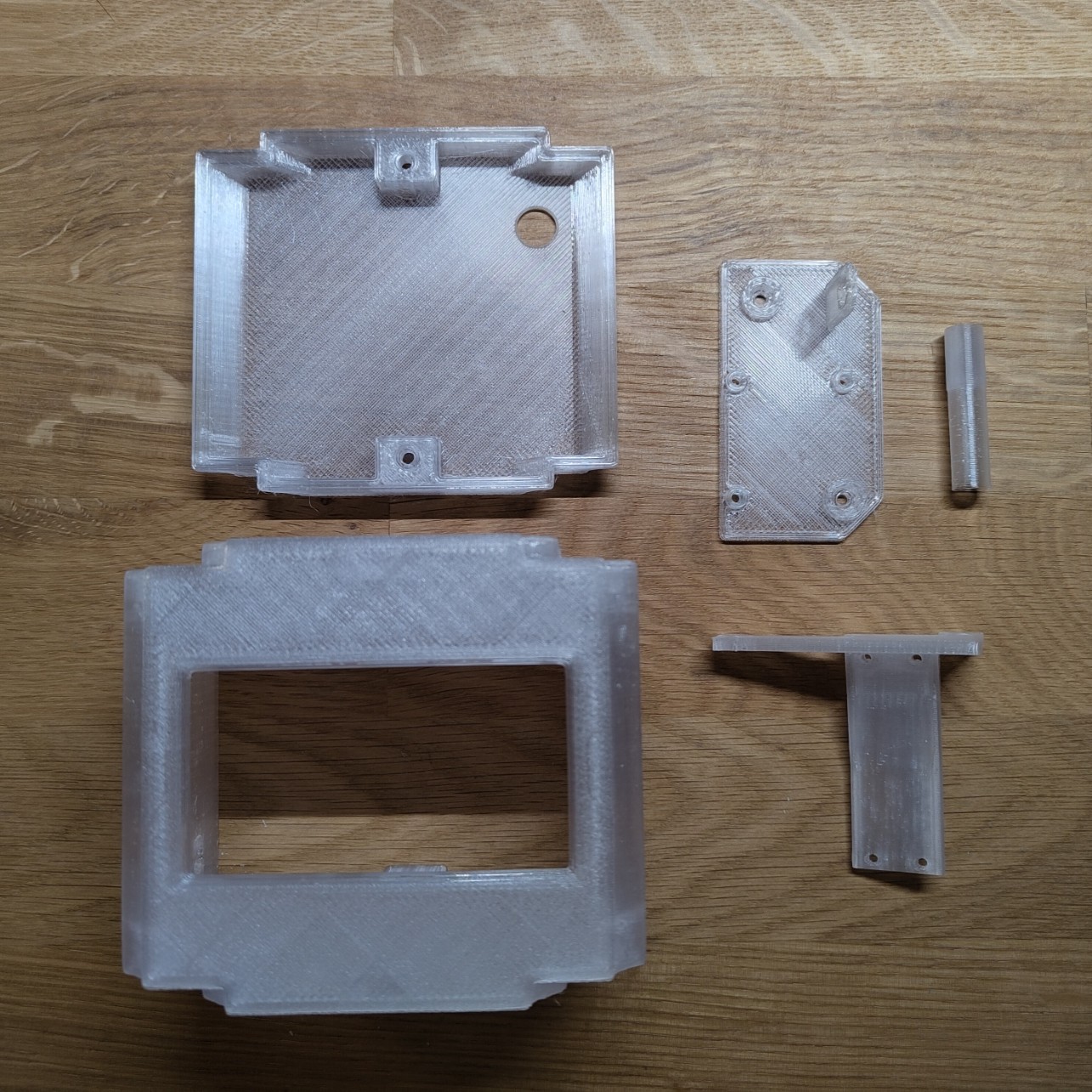

• Body
  • https://cad.onshape.com/documents/627cd2a5f0f47b9aca4efdfa/w/1bedbbcedbc220c15e6b542d/e/cf0237a34aea0ec38848e029
• Internal parts
  • https://cad.onshape.com/documents/b8dea9c2d298a90b70d7ca2e/w/1721d3486727b8571ac0845c/e/98da7963ca777ad22ff97556

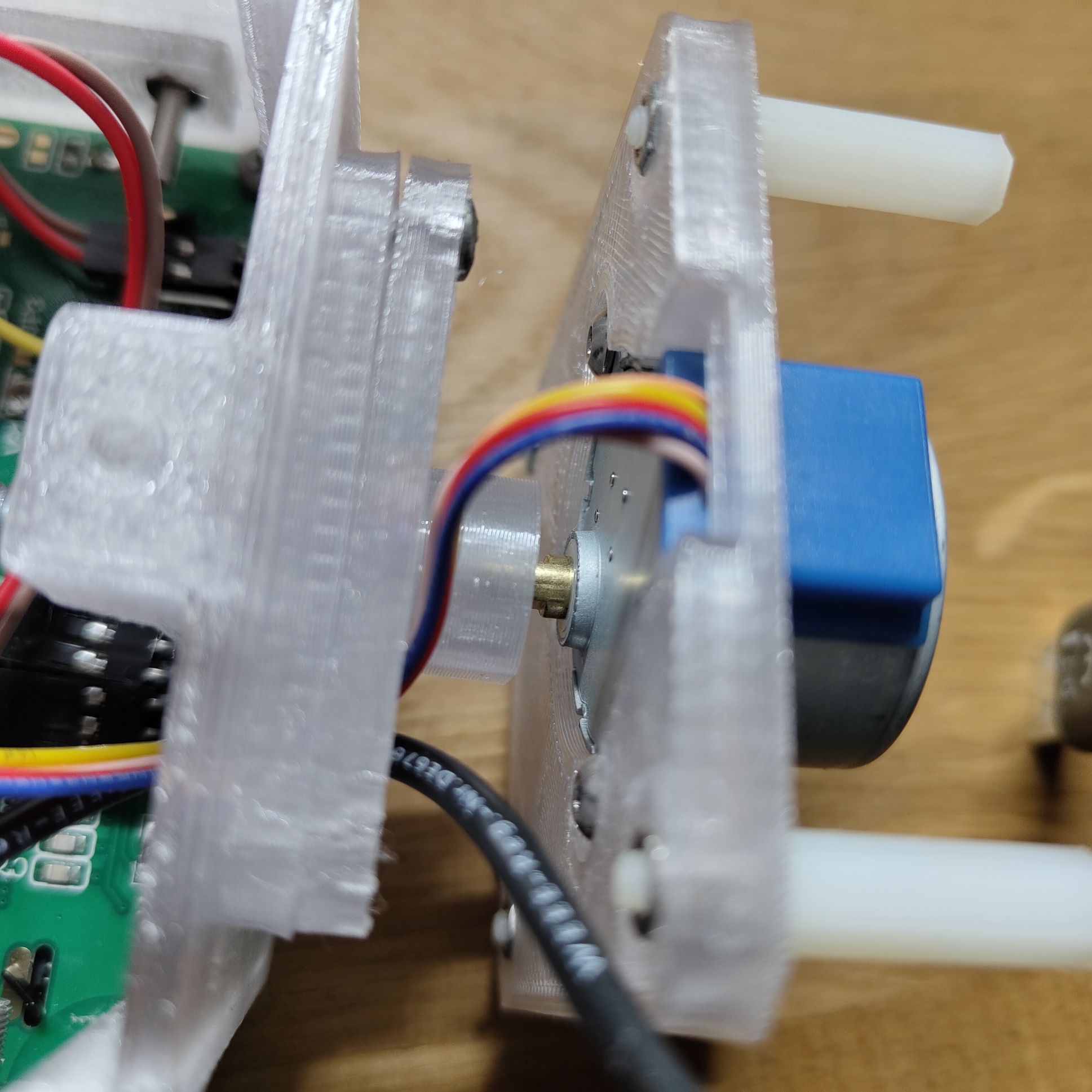

• Motor Module (for 28BYJ-48 motor)

  • https://cad.onshape.com/documents/c4cf7d28562b81c6ef1c741f/w/57c7bf097a2dc1342cdbbe2d/e/65619963d9390a0995524ee5
• Camera Module (for Logitech C270 HD Webcam)
  • https://cad.onshape.com/documents/0e9906fdaeb4148a86973cfa/w/e9d26b42f5596cf815efb639/e/7e8e43de9b4eaac877f9eca7
