It will fit other Server PSUs but not all follow the same dimensions!!!
Originally made for a DELTA Intel DPS-750XB A (specs found here page 40).
Make sure your psu has following dimensions: 39mm x 73.5mm x 185mm

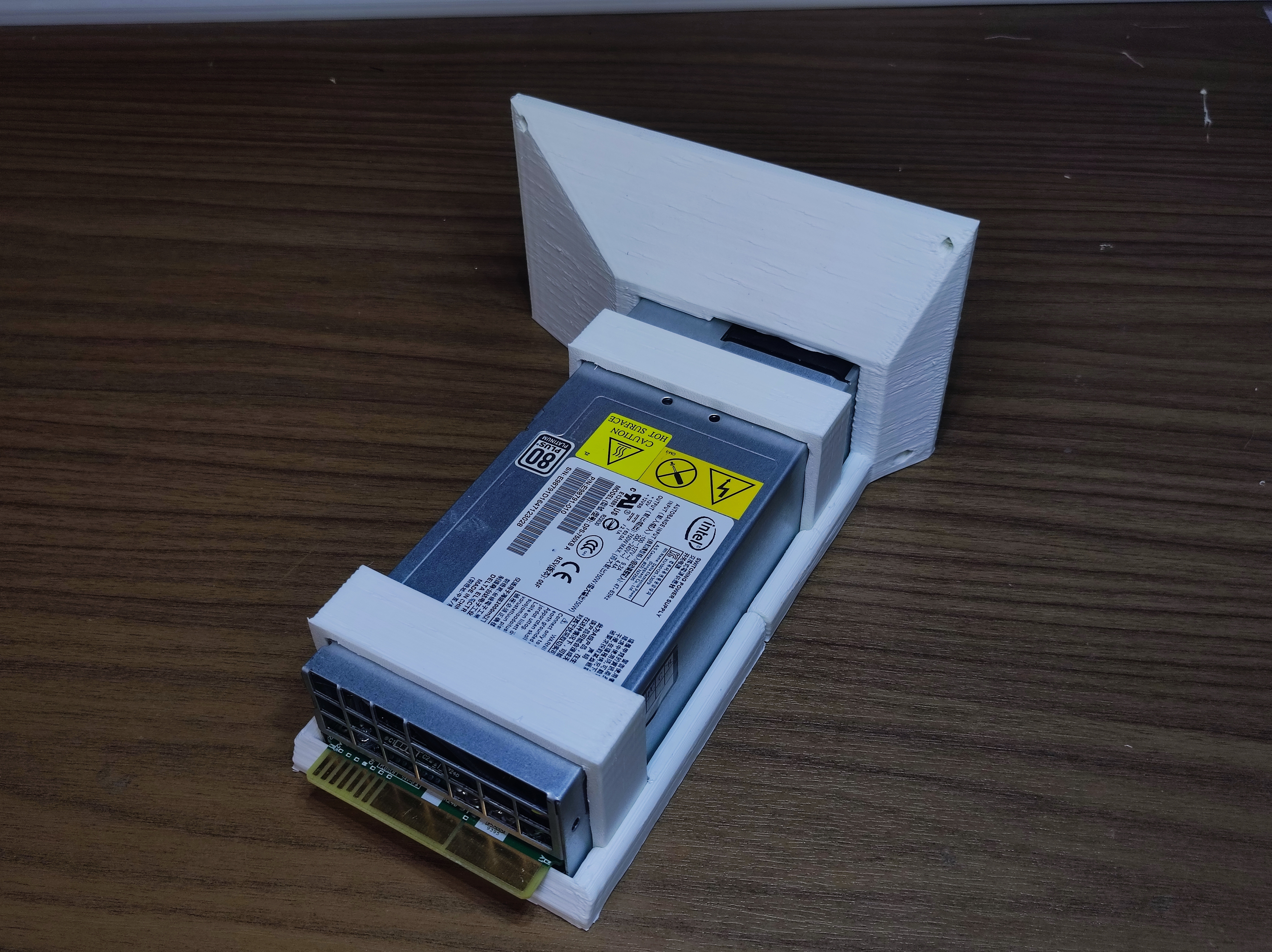

Brackets might seem loose but once the PSU is inserted it locks the brackets in place.
Thats why pushing the PSU through the brackets will feel a bit tight (that's what he said).
Electronics: Server PSUs only output 12V. Mainboards still require 12V, 5V, 3.3V. You'll need to wire a PicoPSU to the PSU.
Or yourself build a KCORES Converter
Cheap chinese PicoPSUs often use underspec'd components like caps that don't suffice for ripple currents - creating voltage peaks that will atleast cause your PC Hardware to age rapidly and fail eventually!
