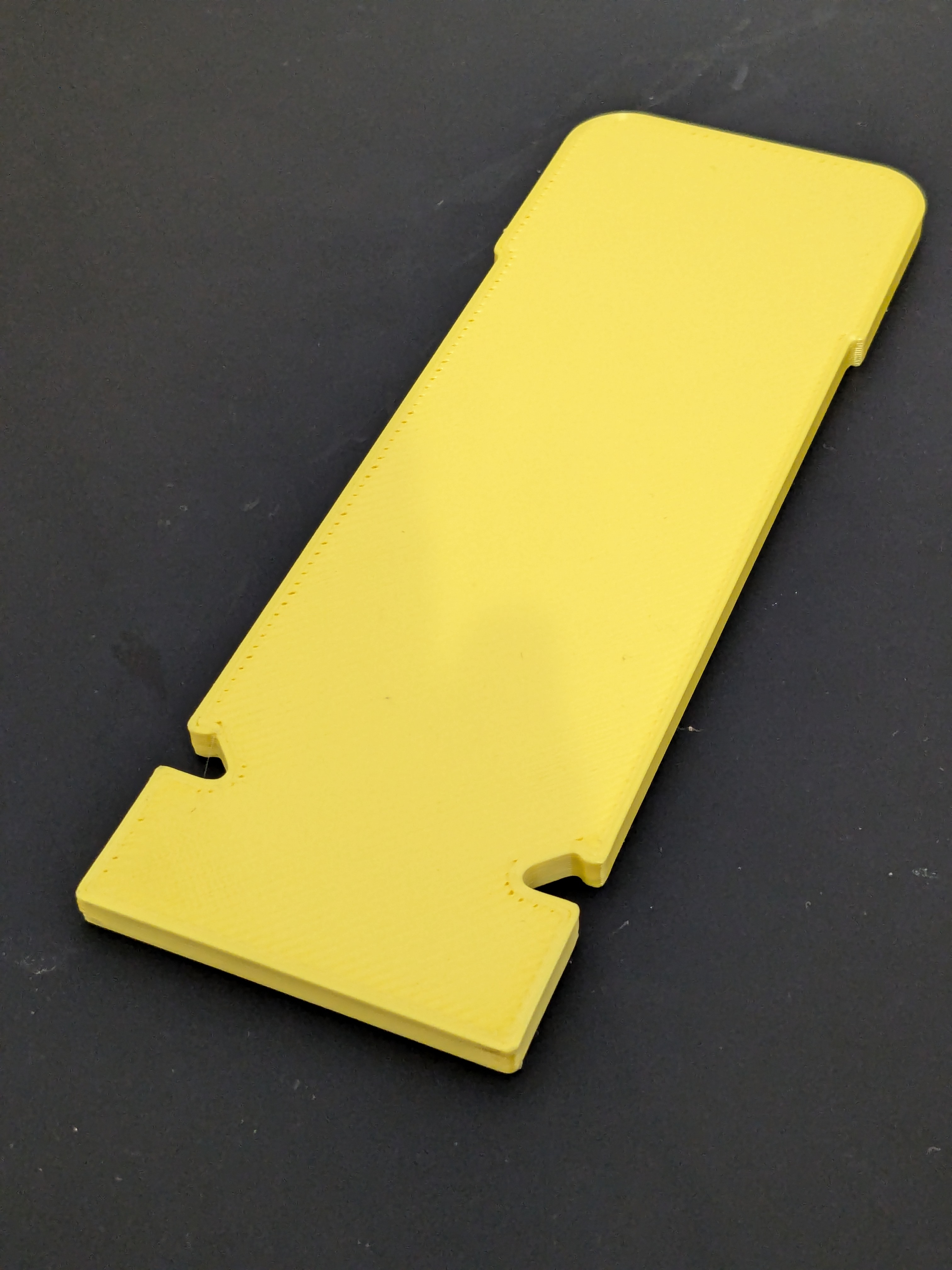

Repair Tool for Secrid Wallets

This specialised tool gently supports the springs while removing them and the ejector mechanism of the wallet, for easier repair or replacement.
It was reverse-engineered from a tool seen in a training video about the “Secrid Repair Kit” - presumably something sent to service centers.

I will admit the fit isn't perfect, but it was good enough for my purposes.
(Removing the broken ejector and old springs from my old wallet, and swapping in a good mechanism from a newer core)

Printing

No supports needed, and just default slicer settings is fine.

Usage - Removing

1. Remove any cards from the wallet, and insert the tool.
2. Push the tool further into the wallet, perhaps tapping gently against a table, until the ejector mechanism is removed and the leaf springs have started to slide out.
3. If a leaf spring is not fully removed, retract the tool a bit and try again, pushing against that side.

Reinstallation

The tool is not needed for reinstallation, but including here for completeness.

1. Insert the leaf springs into the side slots felt-first and felt-facing-inwards, from the end opposite the “SECRID” logo.
   (If re-using them, check that the prongs are straight and undamaged)
2. Push them gently until flush. Be extra-careful towards the end.
3. Place the ejector mechanism into the end opposite the logo, with the handle facing on the opposite edge to the logo. (eg so diagonally opposite)
4. Gently push until you hear a click, and the ejector mechanism is flush.
5. Success! (Hopefully)
