Waveshare ESP32-S3 Enclosure
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial

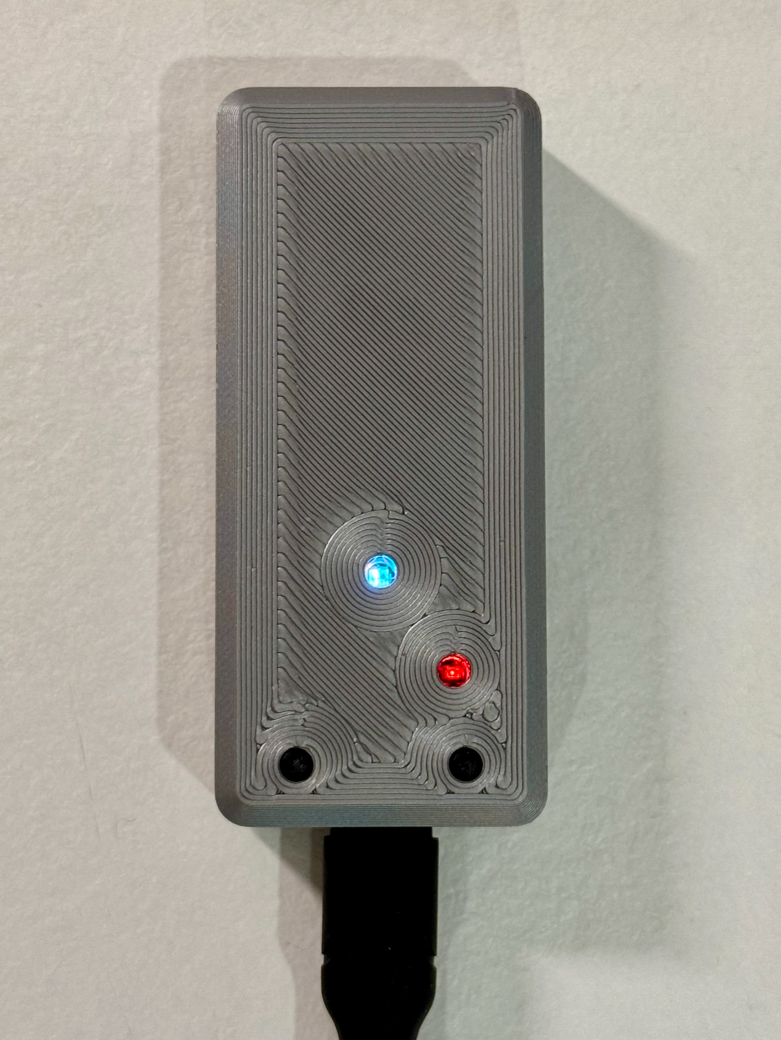

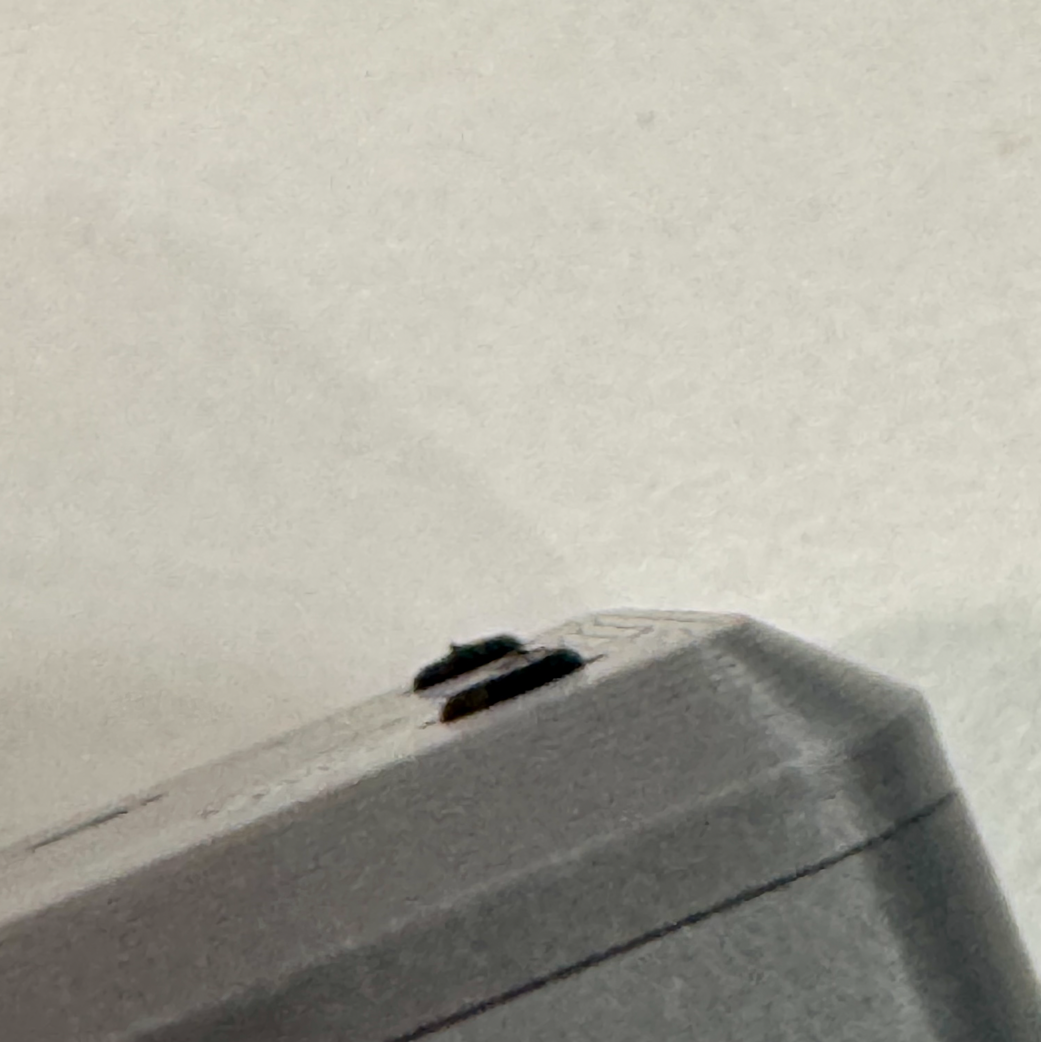

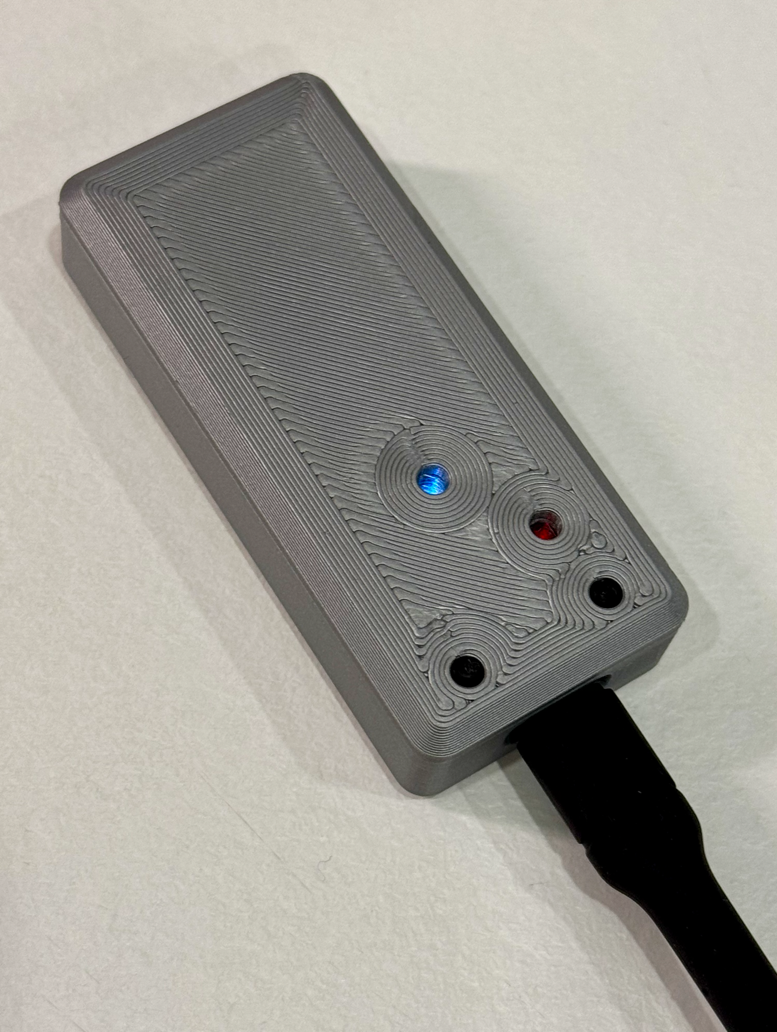

Enclosure for ESP32-S3 made by Waveshare with functional buttons and LED lights.

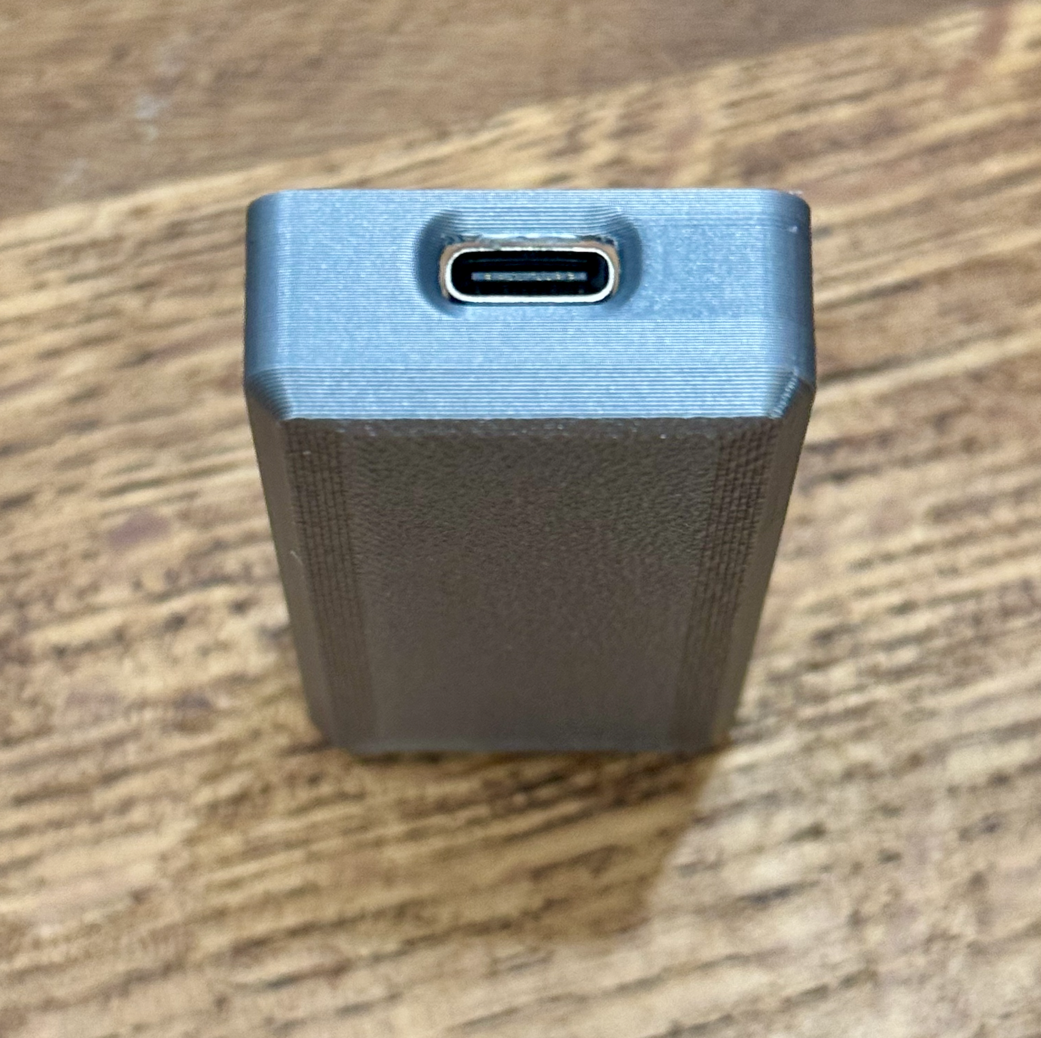

It has been tested with multiple USB-C connectors, so far all fully engage and match well.
Fully 3D Printed, Top Cap closes with friction fit.
Printed Body/Cap with 0.16 layer height, Buttons with 0.08 for better surface using PLA.
Light Pipe / Guide is printed using PETG Translucent (any color will work, not dark, clear preferrable) with 0.08 line.
NOTE (new mounting system): print mounting files standing up with minimal tree supports/
Hardware:
- Board from Waveshare.
- M2x5 flat head screw x4
Optional Hardware:
- M3x5 countersink screws x2 (case mount)
- M5x14 any kind of screws x2 (profile rig mount)
Updates:
- 20/09/2024 - Added Light Pipes / Guides with friction fit
- 25/09/2024 - Added top cap without power indicator
- 23/01/2025 - Added M3 universal mount to body (M3 countersink, 40mm distance)
- 24/01/2025 - Added Dovetail Mount for 4080 Profile Rigs
