Toroidal Windmill - Self adjusting turbine
The smooth spinning Bearing Mod from the popular ‘Toroidal Windmill'.
- The mod uses 608 (6x22x8) Bearings for smooth & fast long time spinning.

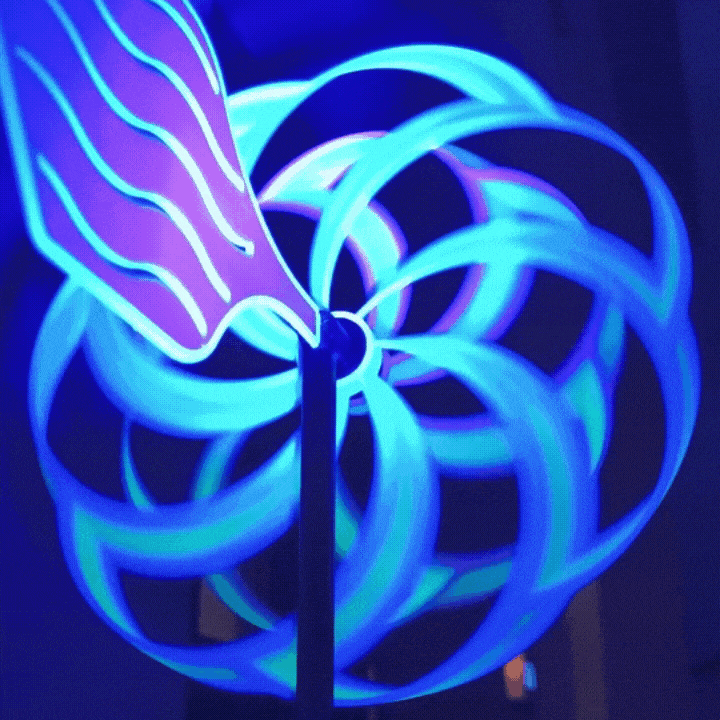

- Beautiful Windmill with Toroidal Propeller Blades use multicolor filament for great effects
- Self adjusting to wind direction through the Tail Blade
- You can use 3 Propellers on long Axle or 2 Propellers with the shorter axle
- Full customizable with different propeller sizes, directions and different tails
- Rods are stack able to your needed height
Printing:
You need to print:
- 3x Propeller
- 3x Cap for Bearing
- 2x Distance
- Other parts one time each
You have the option to print the shorter axle for 2 propellers in this case:
- 2x Propeller
- 2x Cap for Bearing
- 1x Distance
- Other parts one time each
The rod could be a bit difficult to print, i added custom support, but clean your buildplate and apply some glue.
PETG & PLA tested👍 Prefer PETG for rod and axle.
Assembly:
→ In addition you can glue the bearing cap on top on each propeller to protect the bearing.
Thanks to all followers and don't forget the virtual handshake 👍 ….Happy Printing
Info:
More Windmills with 608 Mod you find on my Patreon account.
