Open Desk Grommet - Multiple sizes
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Office
- Licencja
- Creative Commons — Attribution

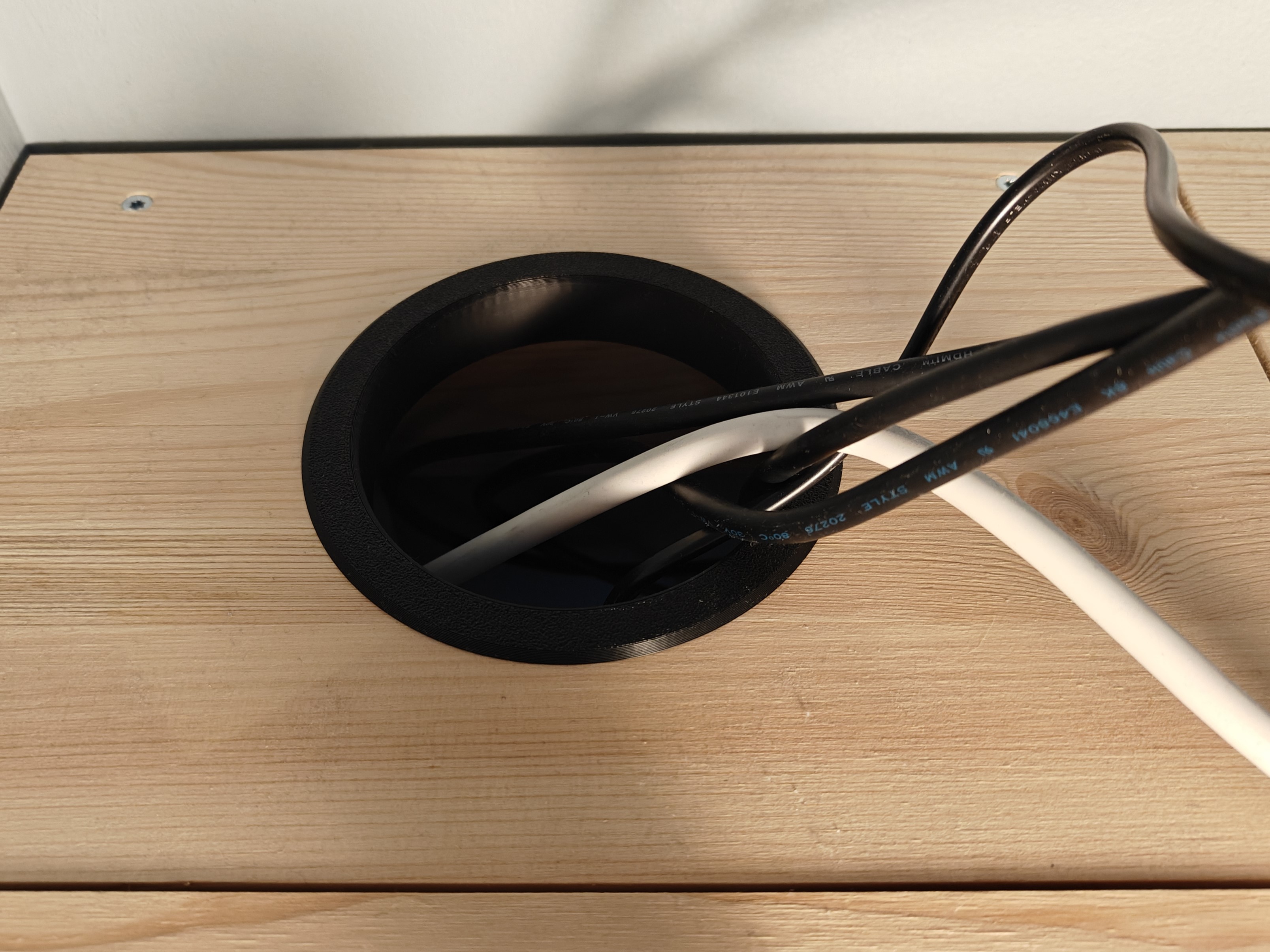

A simple open cable grommet/cable protector for holes in e.g. desks, tables and so on. No lid because my main goal was not to hide the cables/hole, rather just protect them from the sharp wooden edge.

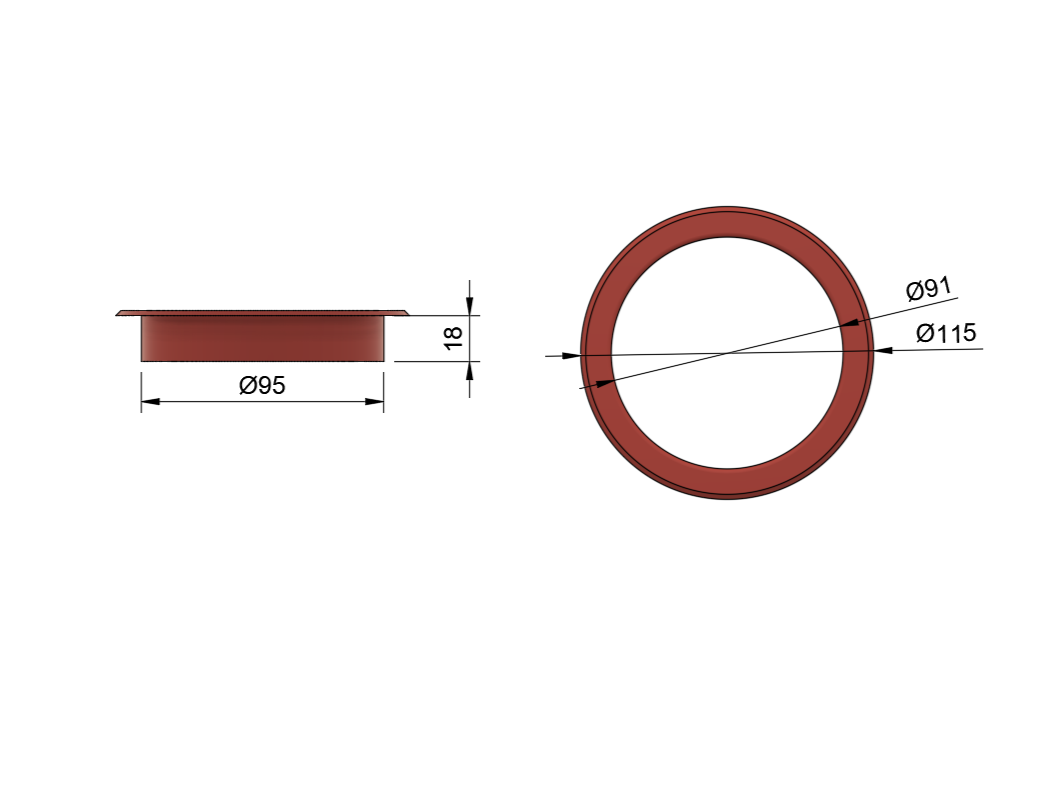

The files are grouped by the height, currently 18 mm and 20 mm. Some info about the size:
- The size is the size of the cut hole.
- The inner diameter of the grommet is diameter - 4 mm
- The outer diameter of the grommet is diameter + 20 mm (10 mm lip all around the hole)
Need other size?
Please let me know if you need a different diameter or height and I can easily add it.
Printing instructions
Print with the top facing the build plate.

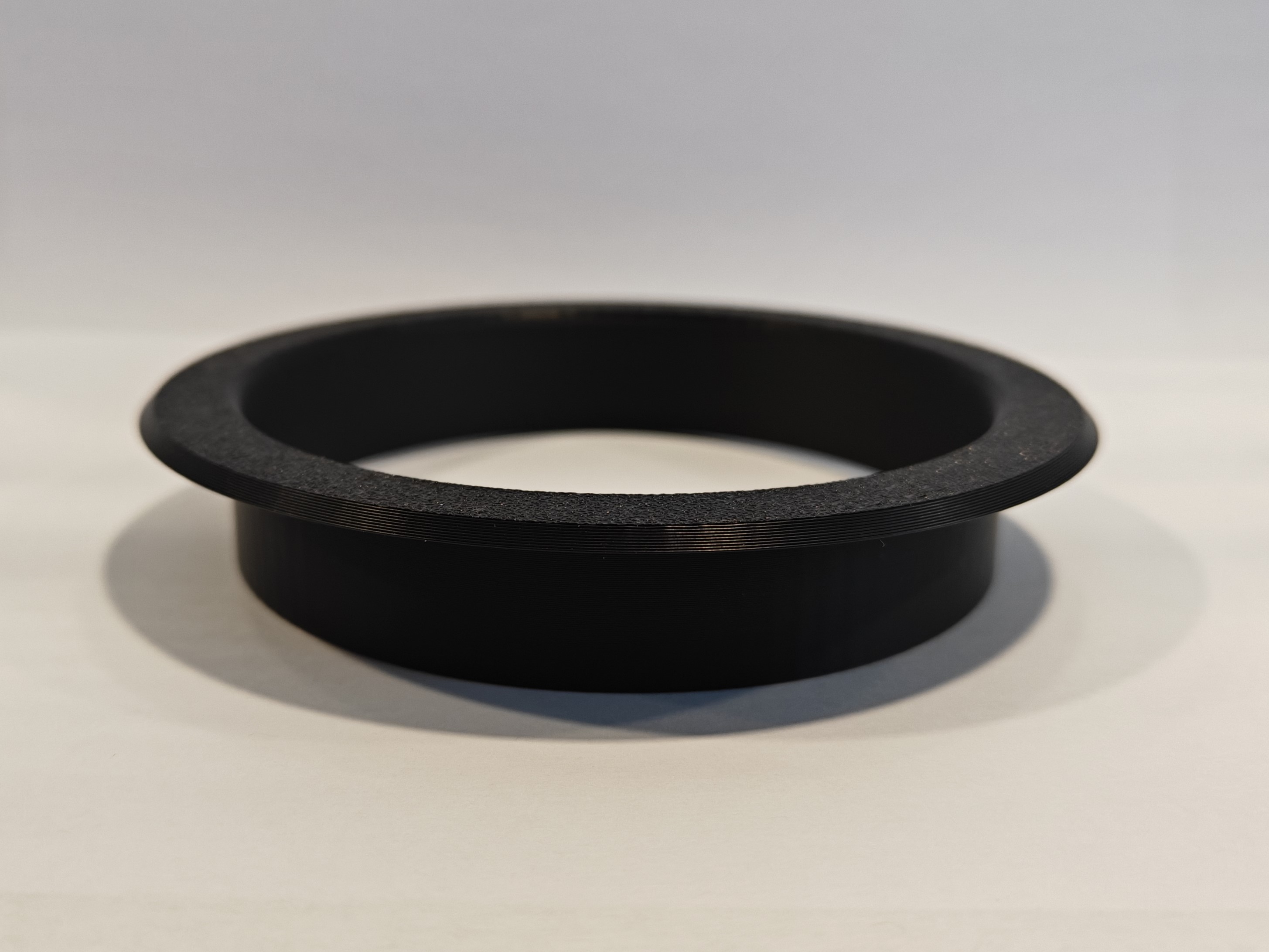

The model in the picture is printed on a Bambu P1S with:
- Filament: Bambu PLA Basic
- Infill: 15%, Gyroid
- Supports: No
- Adhesion: No
Credits: Icons in cover image is provided by Icons8 - 3D Printer - 3D Printing Filament - Stopwatch
