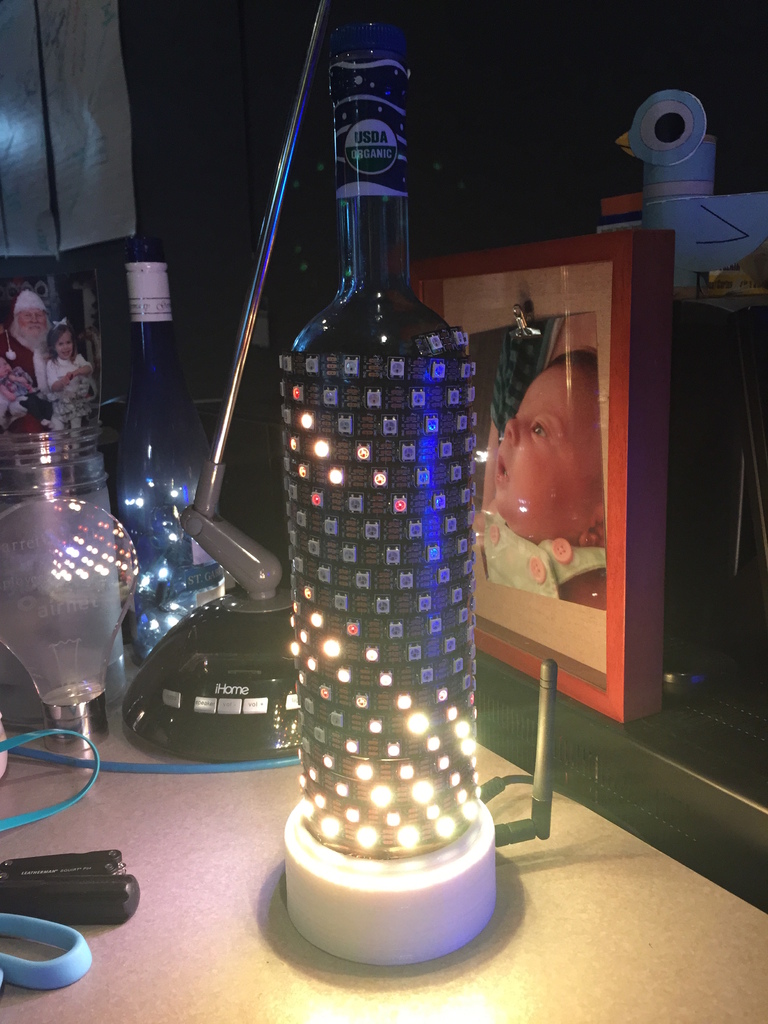

This is a rather specific base for a message torch. It's designed to fit an Ocean Vodka bottle with a Spark Core / Particle Photon beneath. It's a two-piece print and the top should fit snugly into the bottom.
You can find more project information in the original forum thread (note that I am not the original poster--merely a copycat).
Instructions
- Print base-bottom.stl and base-top.stl.

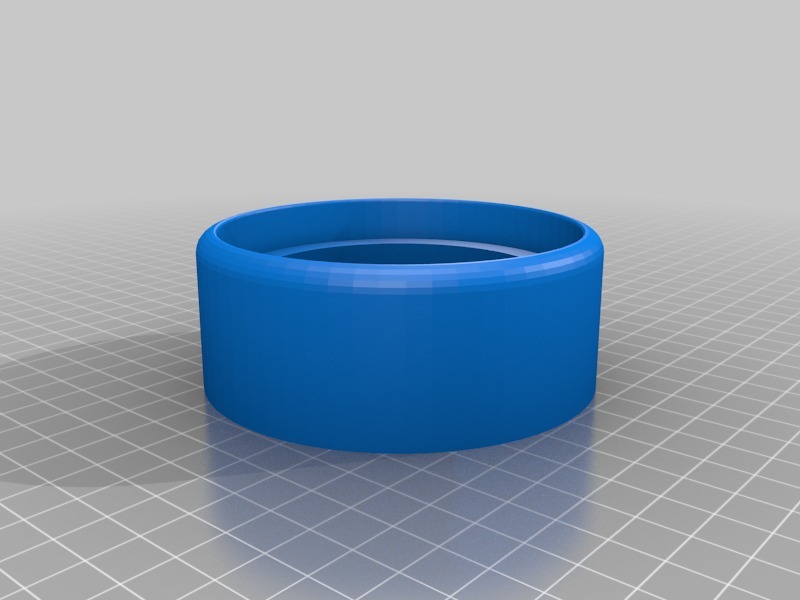

- Put your favorite microcontroller in base-bottom.stl. There is a side hole for power/USB/whatever (I used a DC barrel connector for power).
- Feed necessary power and control wires through the top.
- Connect wires to LED strip.

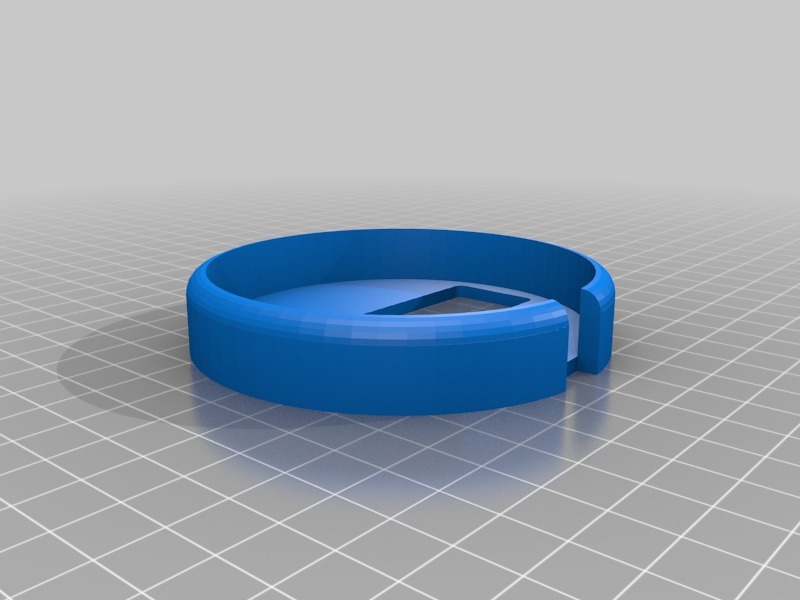

- Place base-top.stl into base-bottom.stl, aligning the cutout in the top to match the bottom so the wires will fit through.
- Plug in and enjoy!
