3D Printer Filament Spool Shelf

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

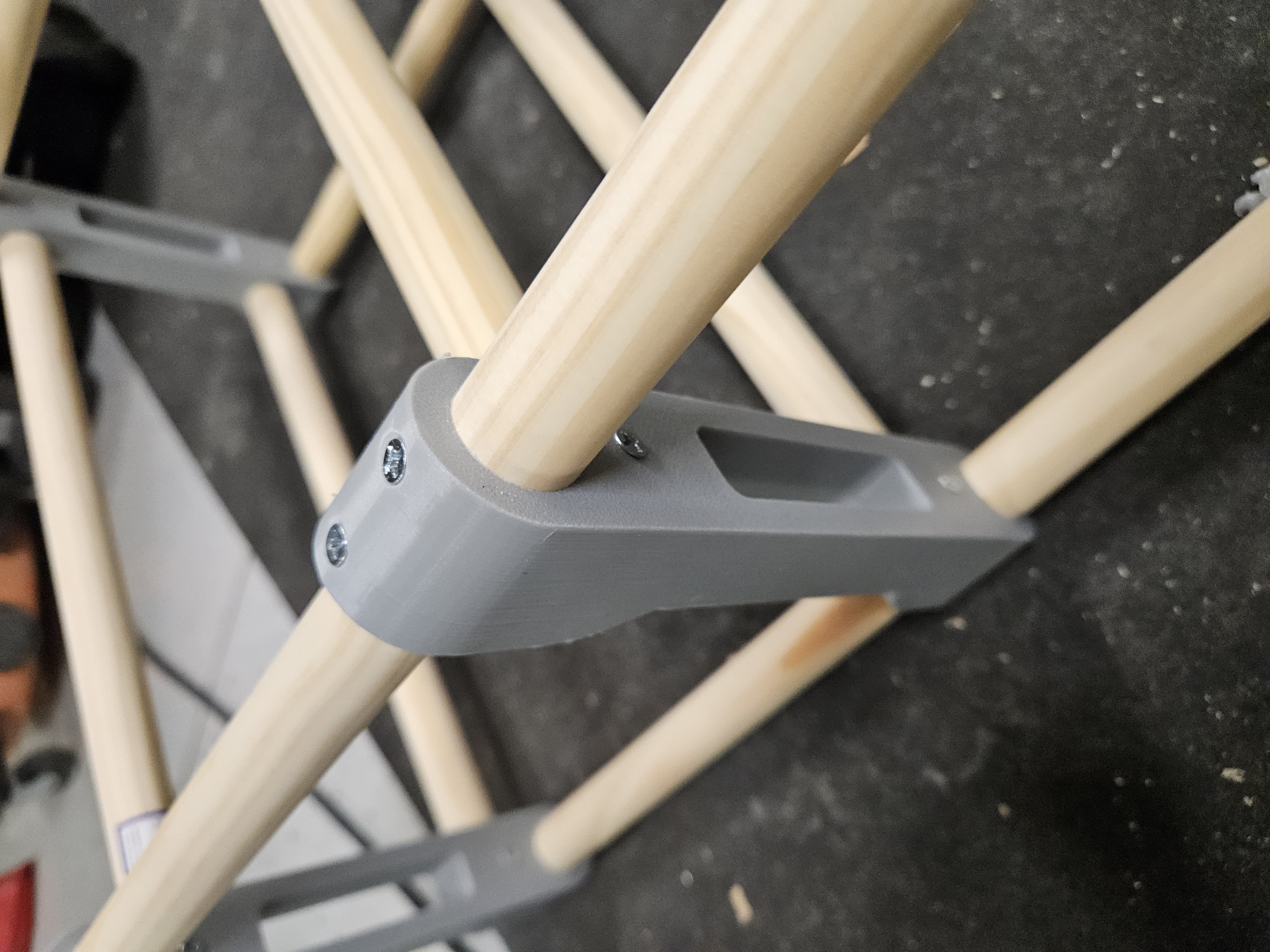

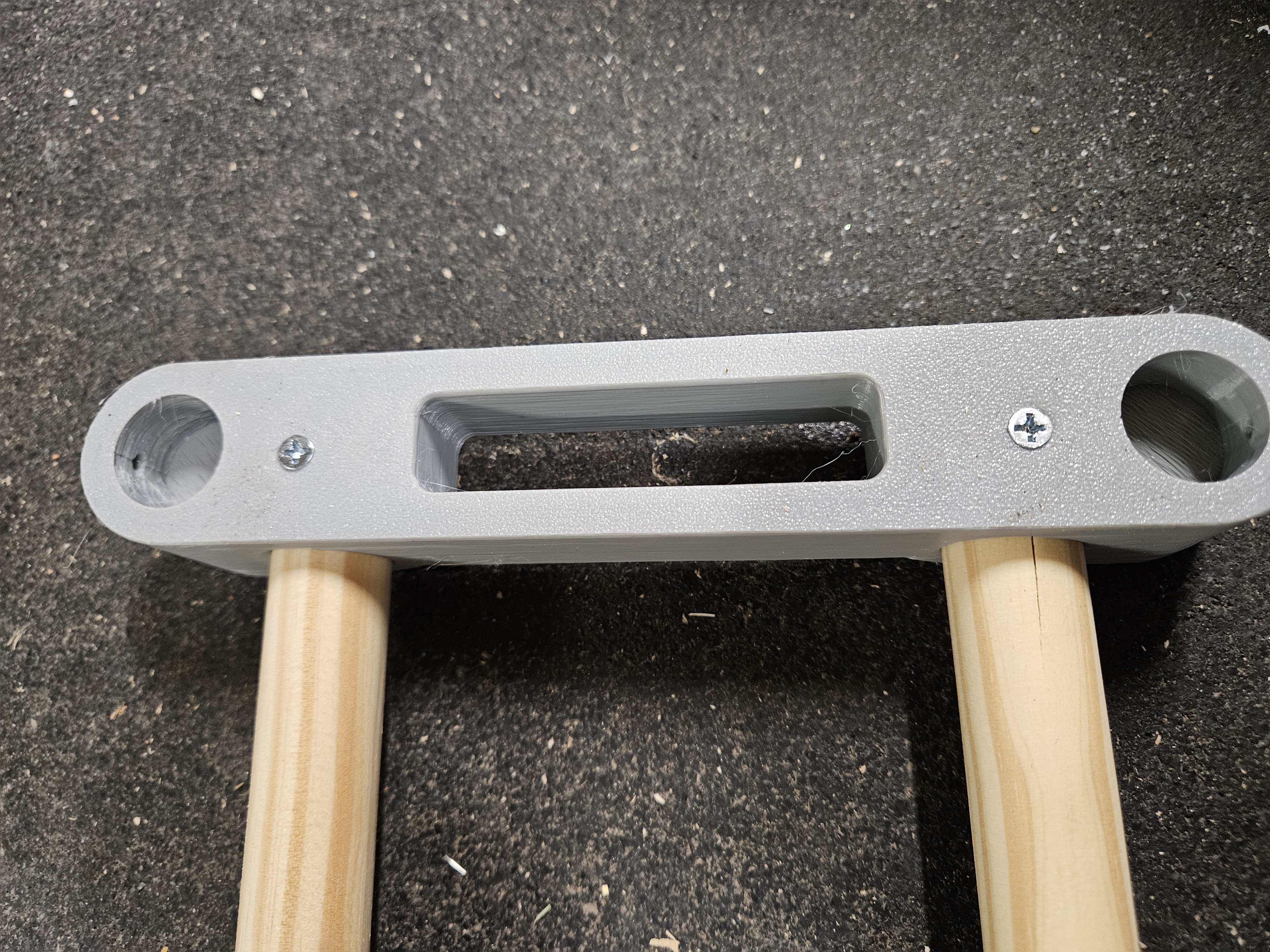

Filament Spool Shelf brackets. I am using 7/8 wood dowels from Home Depot (but can also use 22mm stock as per the original bracket .

I added #6 Flat screws holes to my design to screw everything in place. I used #6 in ¾ in size.

The vertical uprights are cut at 9 in (or 22.5cm). The horizontal pieces are up to you… and your space.

I printed everything in the following:

Layer Height: 0.28mm

Wall counts : 4

Infill: 15% with Cubic Subdivision

Supports: Only on the lower vertical dowel section

I hope this helps
