Design to use TCPoly's Thermally Conductive Material. Engineered in OpenSCAD.
- Ocena
- 0 / 5
- Polubienia
- 0
- Pobrania
- 40
- Wydruki
- 0
- Wyświetlenia
- 770
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Accessories
- Licencja
- Creative Commons — Attribution
Design to use TCPoly's Thermally Conductive Material.

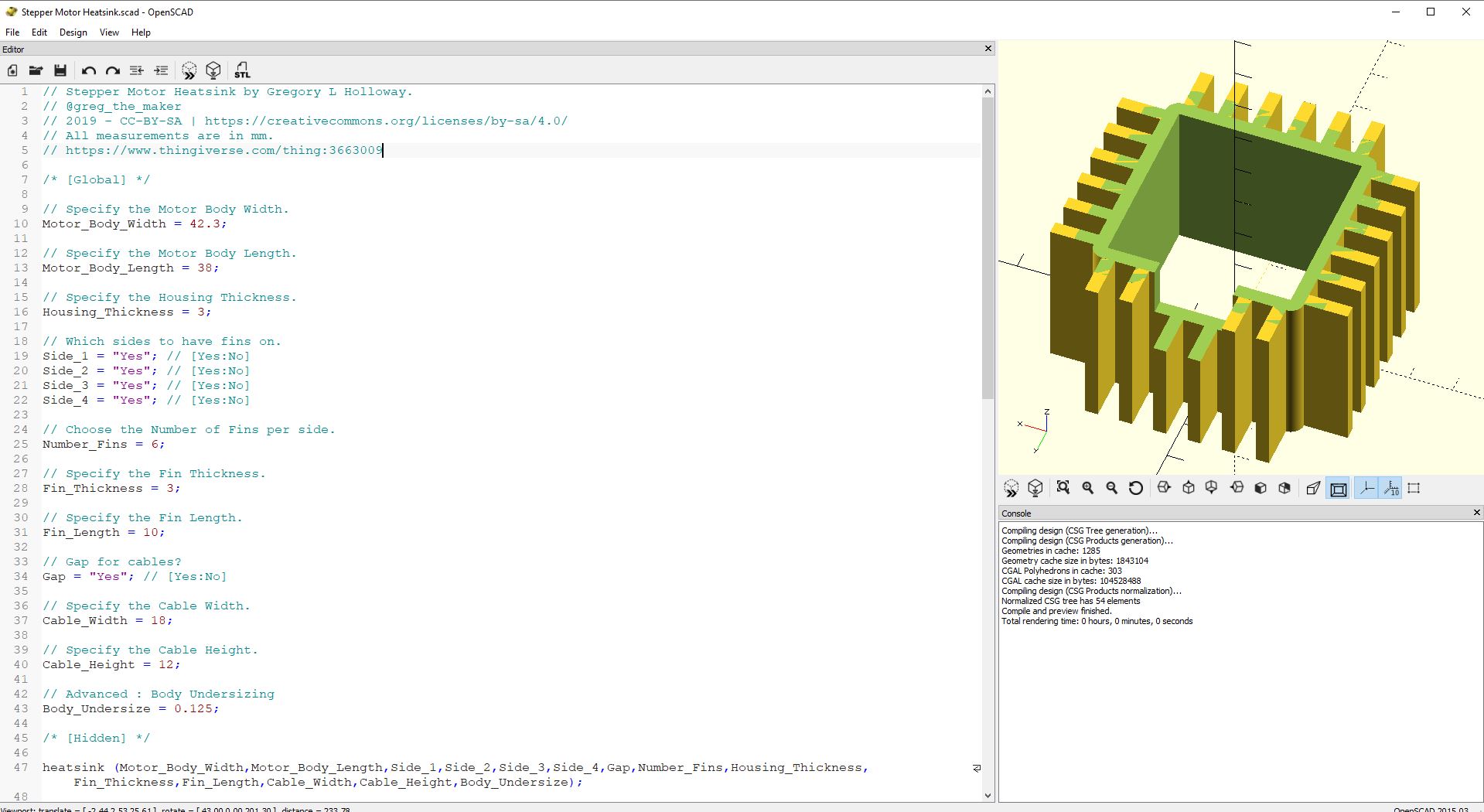

Engineered in OpenSCAD.
This is a filled filament so you will need a hardened nozzle, I recommend a 0.6mm Nozzle X.

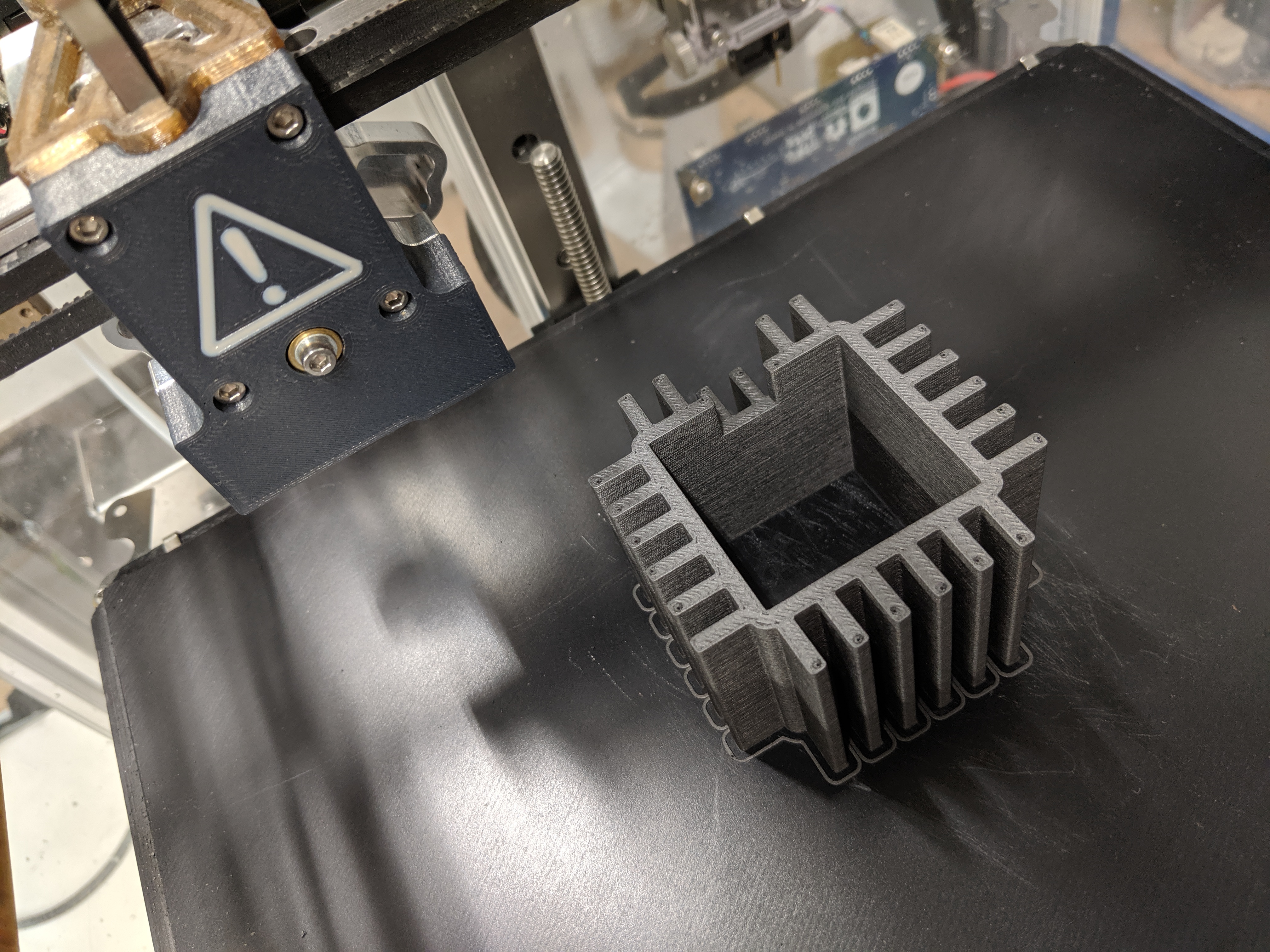

Printer settings.
0.6mm Nozzle.
0.3mm Layer Height.
30mm/s Print Speed.
100% Infill.
250C Nozzle.
80C Bed.
I recommend printing onto masking tape.

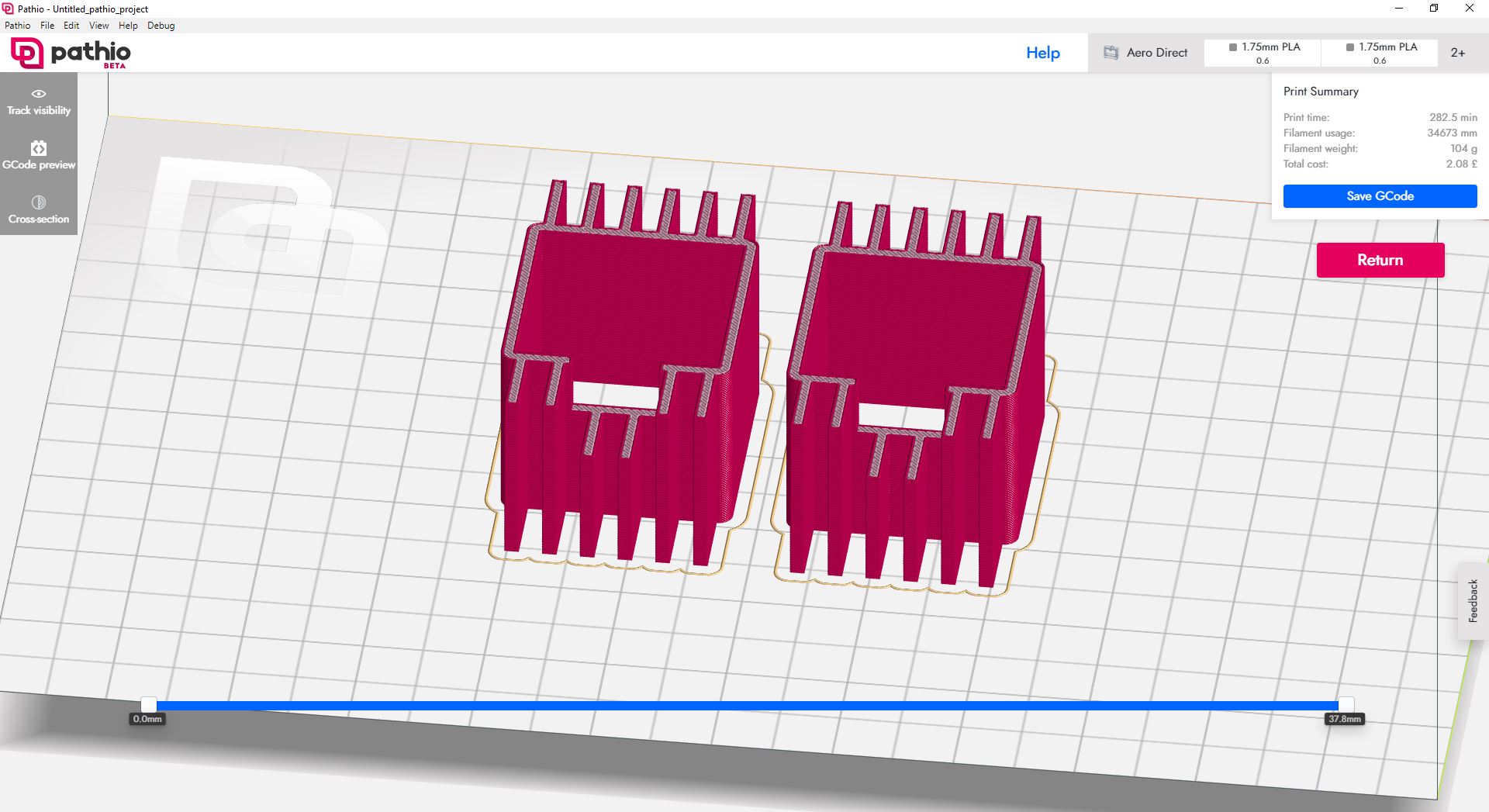

Sliced using pathio.xyz.
Some bedtime reading regarding Thermally Conductive Plastics in LED Lamps.
For loads of other different filaments, 3D printing parts, components and world-leading Hotends visit | https://e3d-online.com
Please help support my work here on Thingiverse and on Instructables by using the affiliate links when making purchases. It doesn't cost you anything extra. Thanks :)
eBay.com | eBay.co.uk | eBay.fr | Amazon.co.uk
