E3D's ToolChanger - Raspberry Pi Zero Camera Add-On

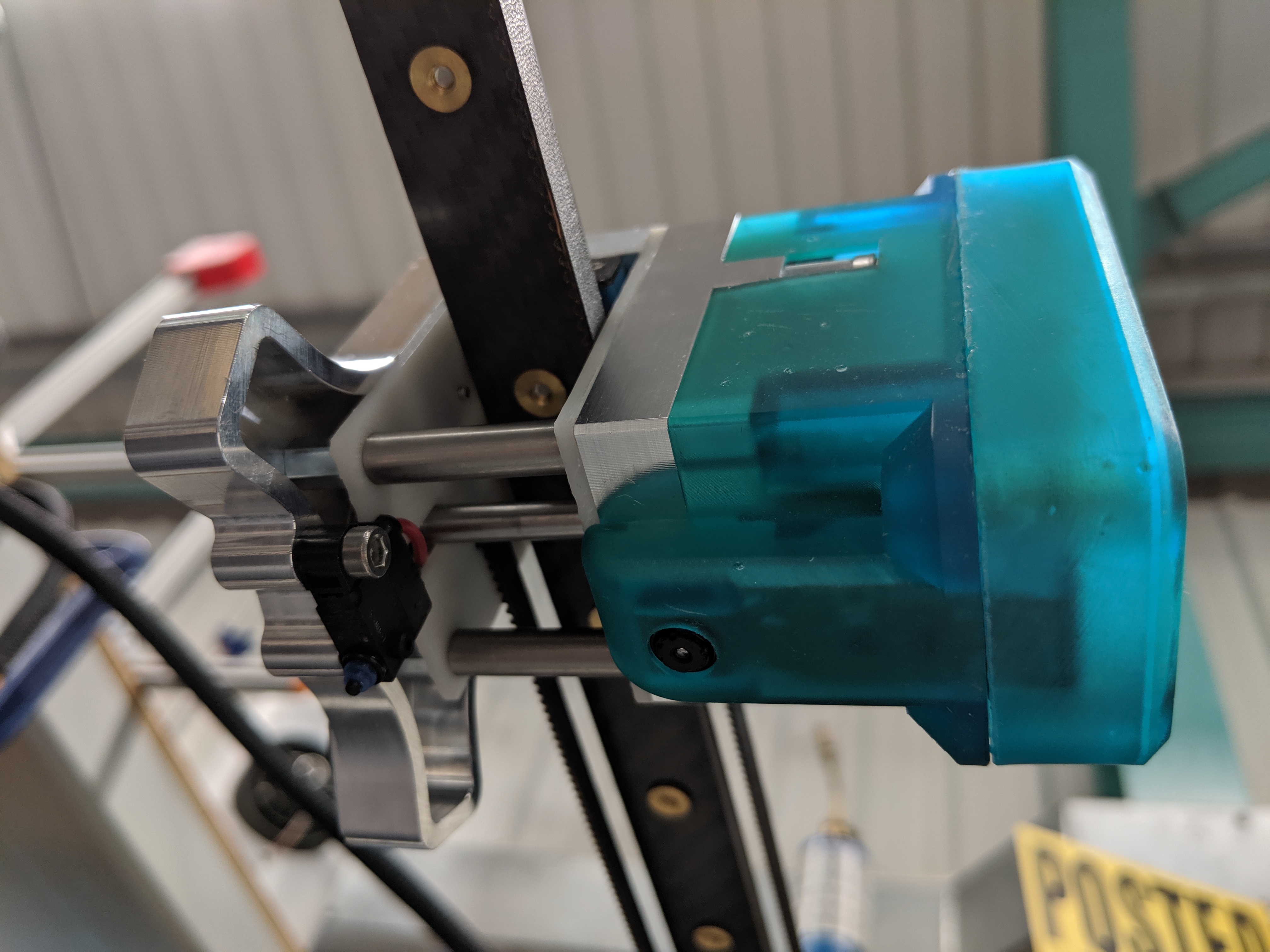

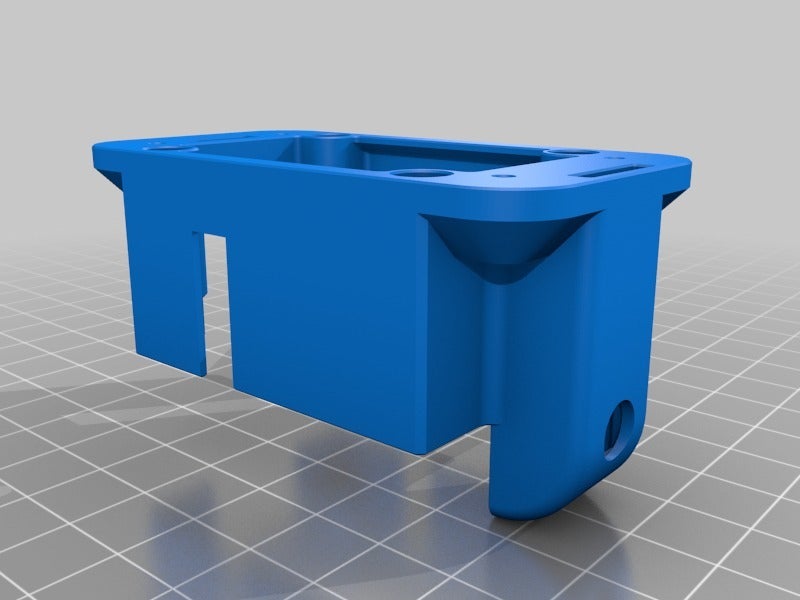

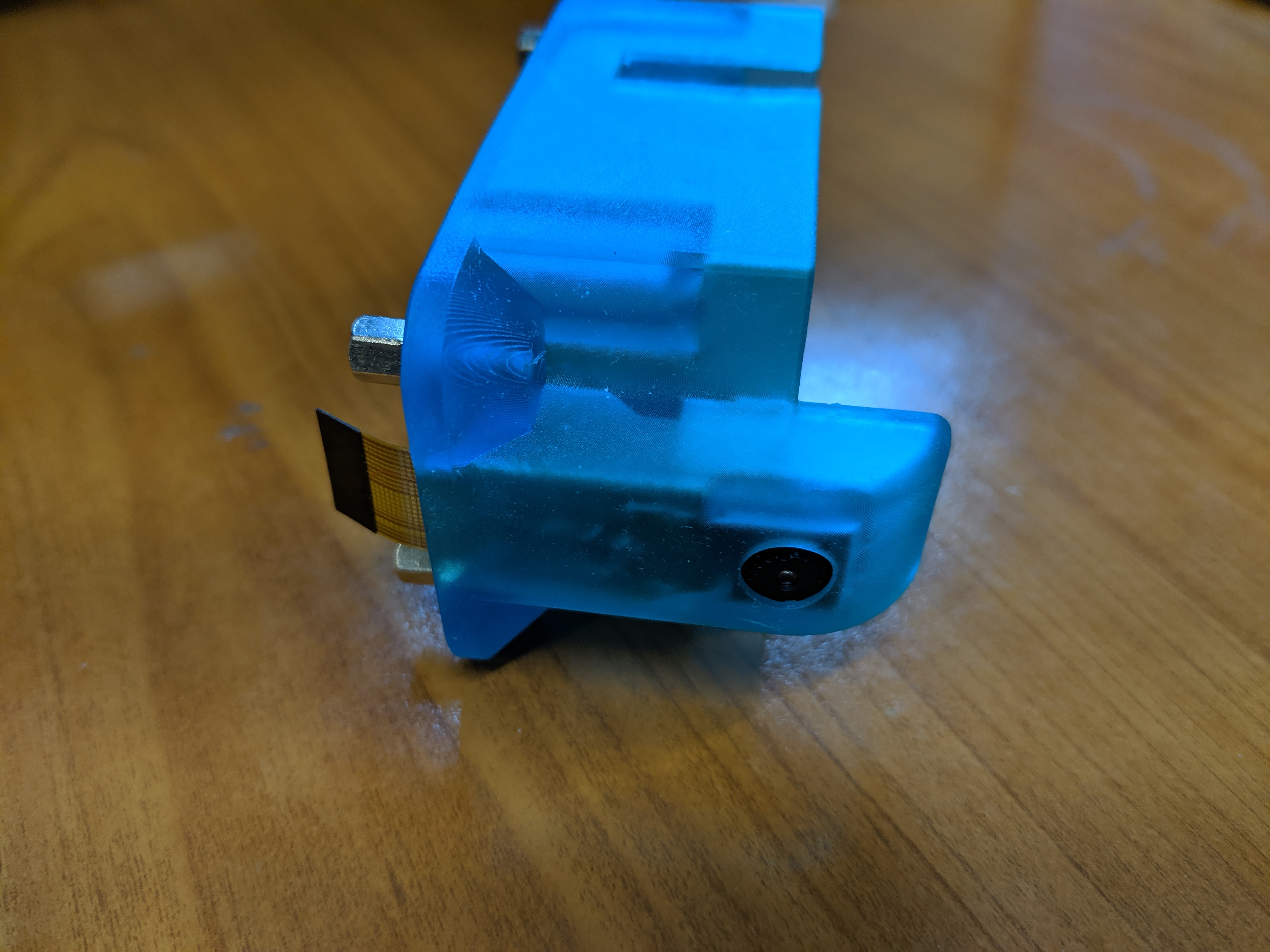

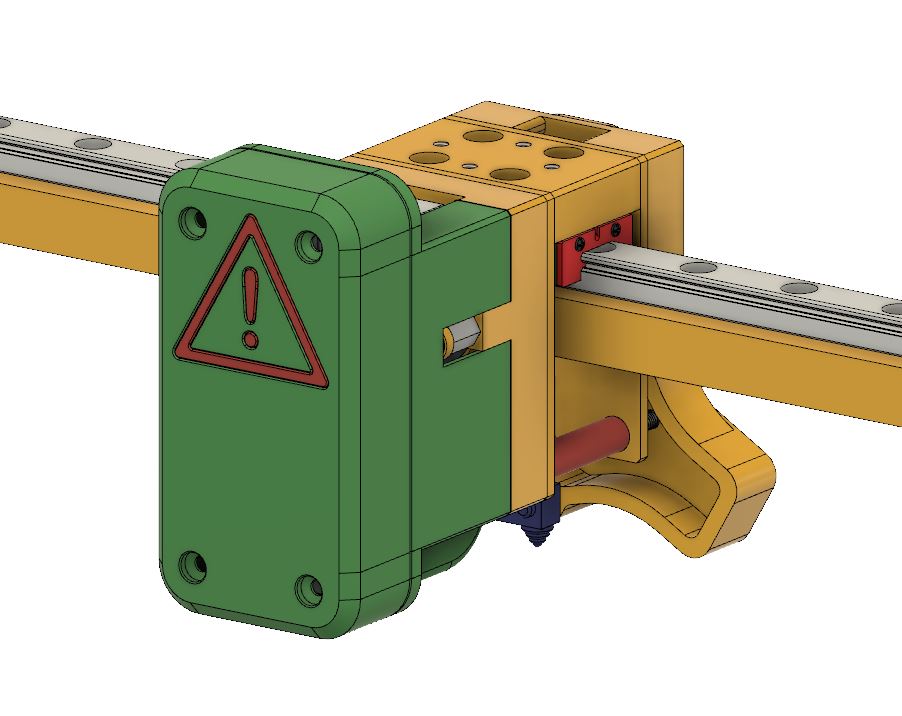

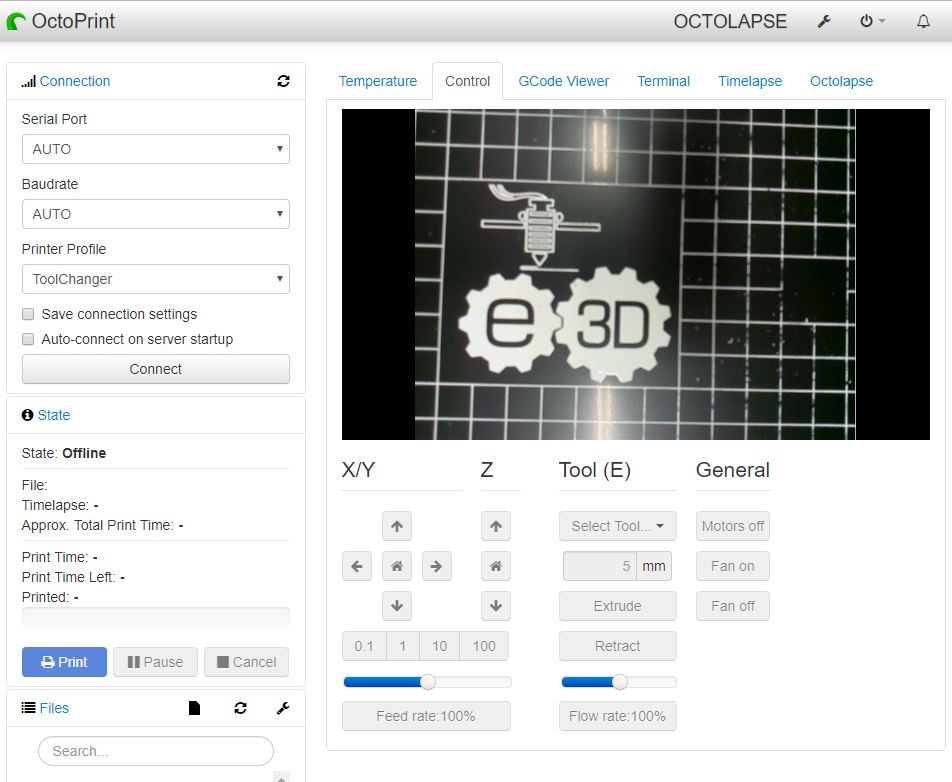

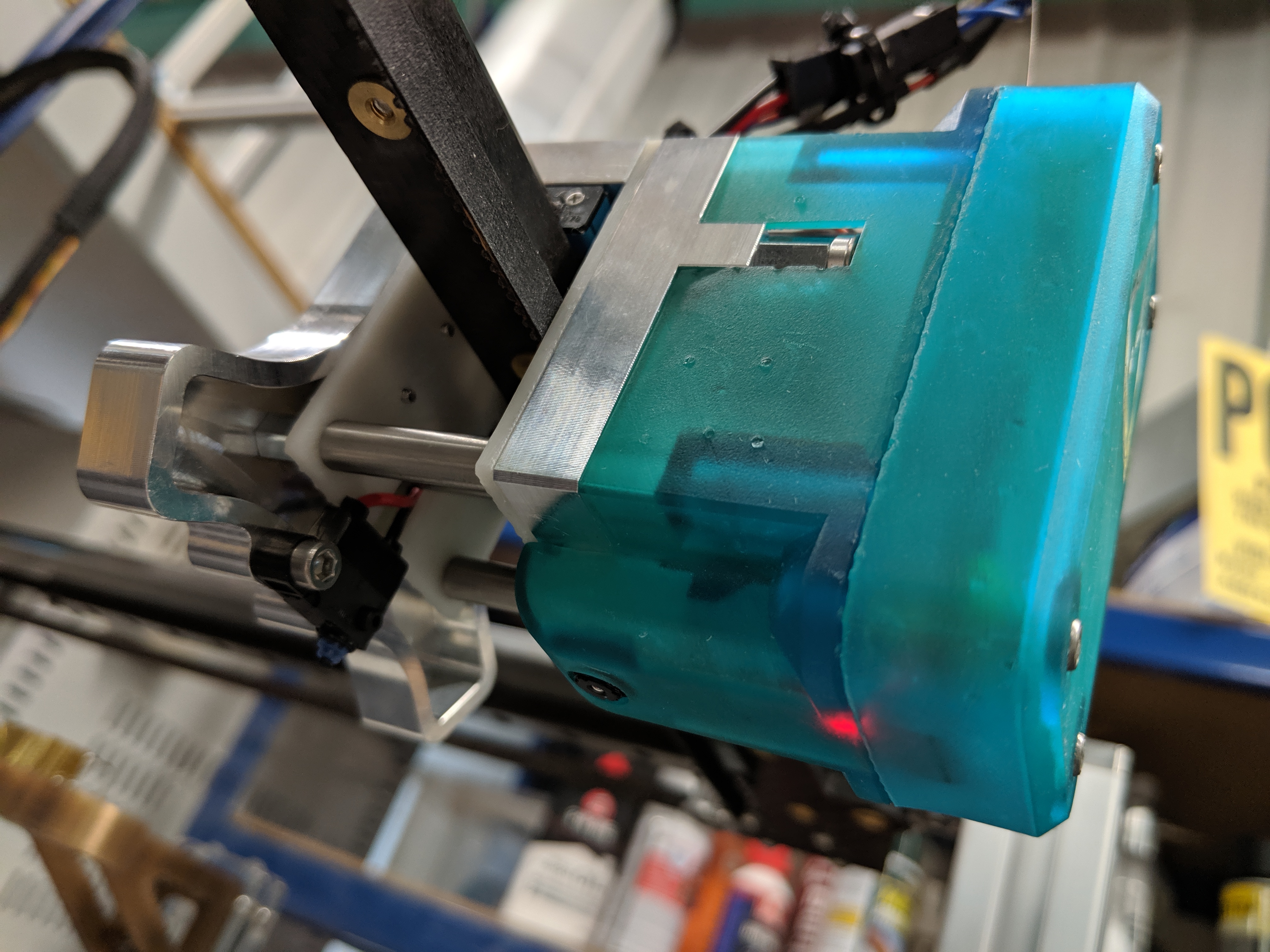

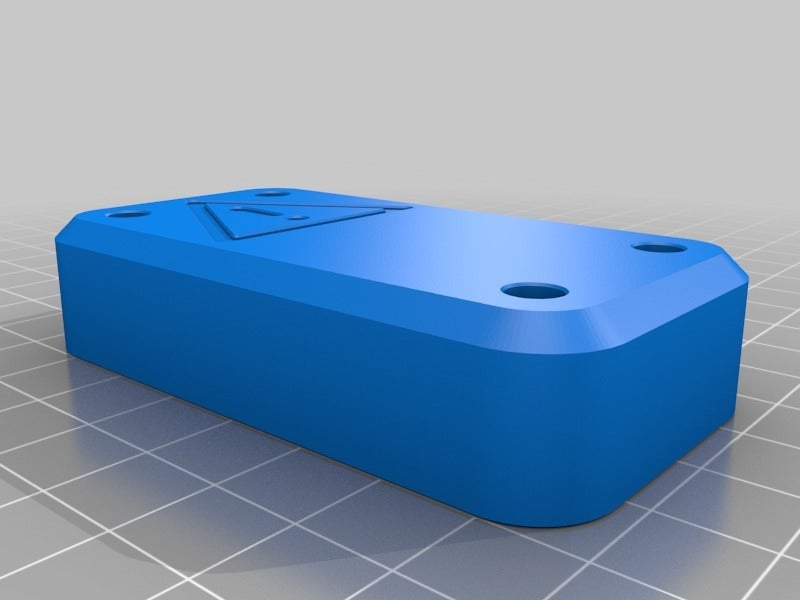

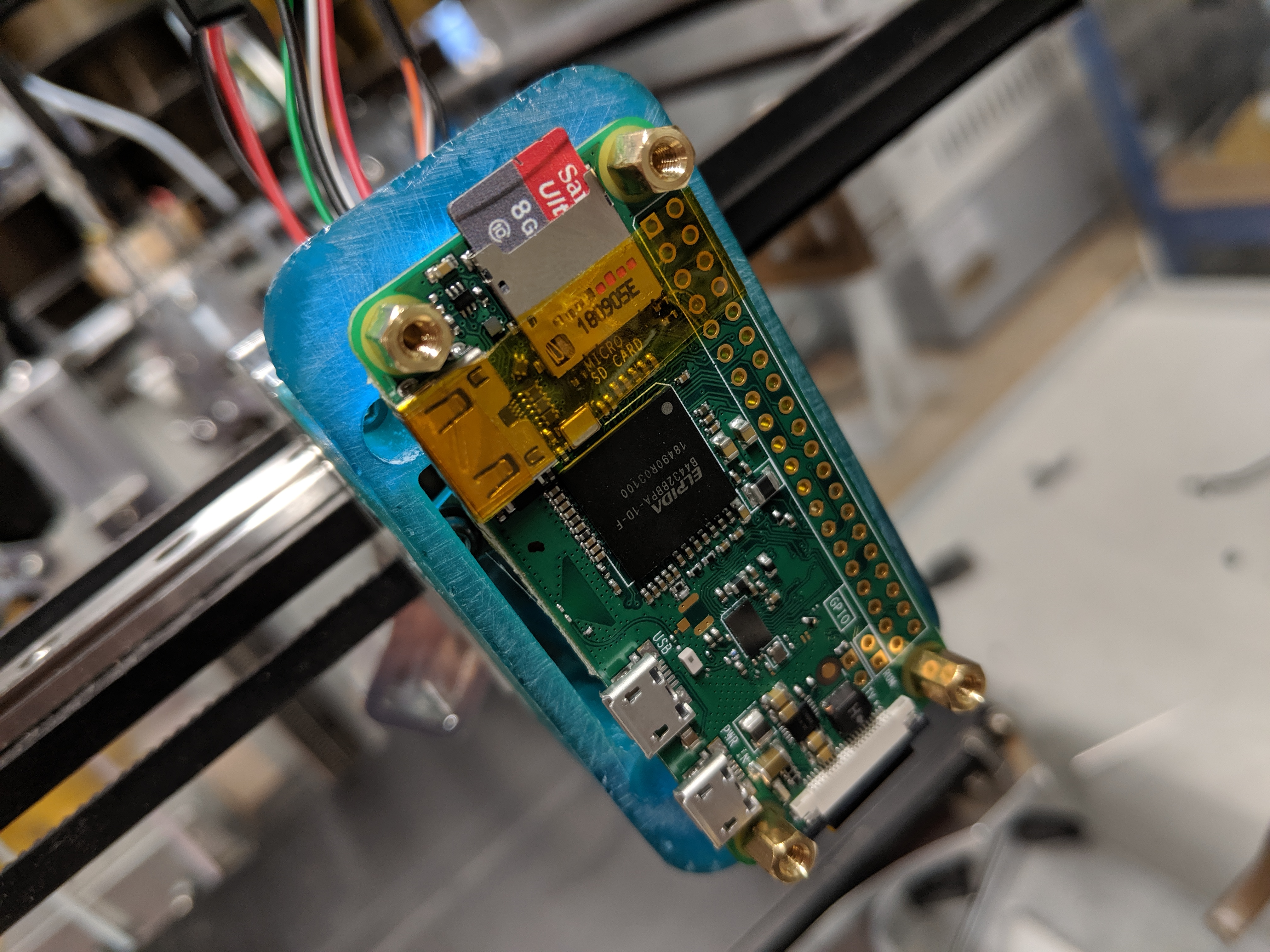

Designed to replace the Standard ToolChanger Cover, this cover takes a Raspberry Pi Zero and Mini Camera and mounts it to the ToolHead. For extra features install OctoPrint on the Zero!

I bought some lenses to try to see if it was possible to get a macro lens to work, which it does, but the FOV is ~5mm x ~5mm and the lens needs to be ~5mm from the subject.Not very practical. The camera as is seemed to give the best results for now.

Connect to the Duet via I2C, UART, USB or GPIO.

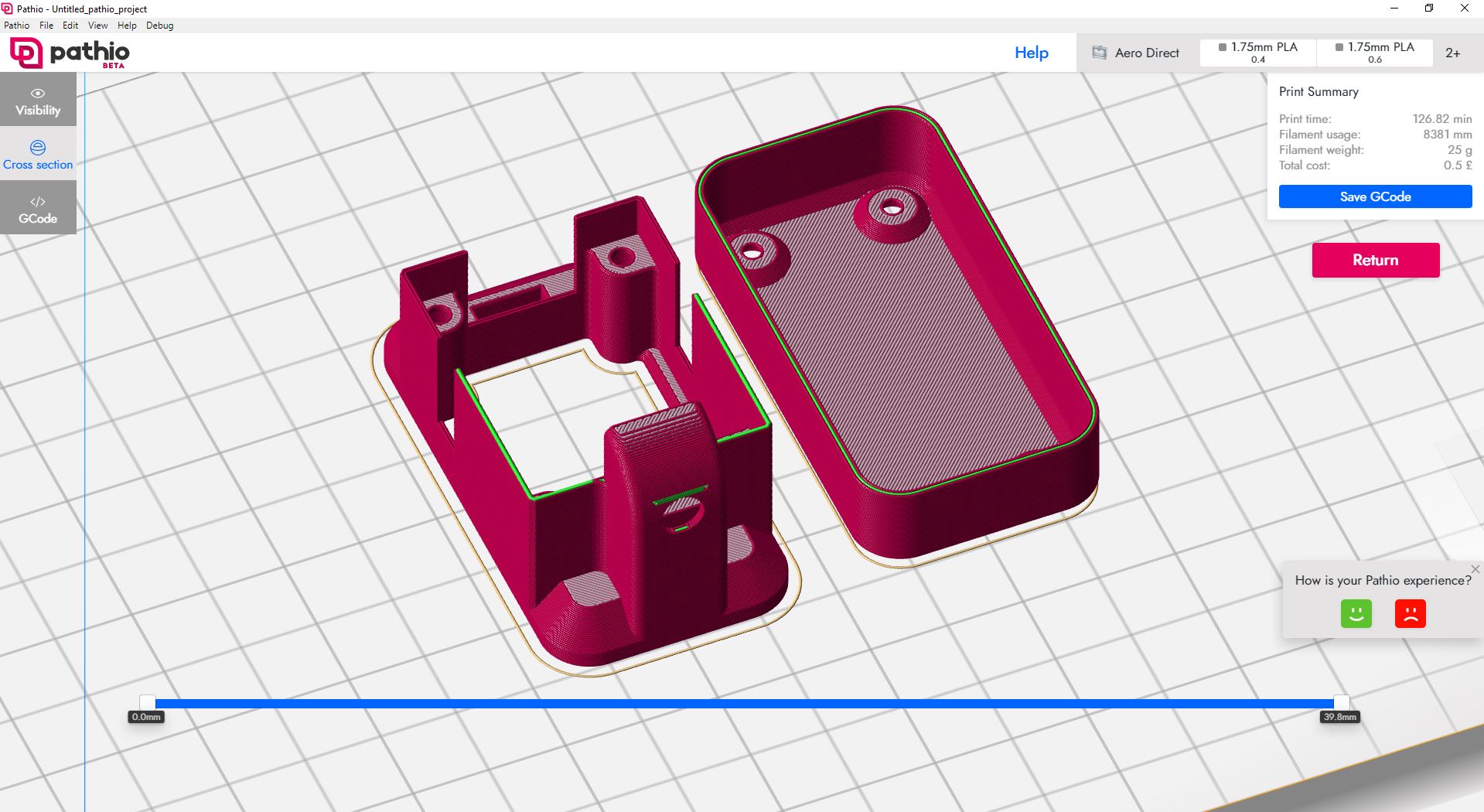

Slice with pathio.xyz

Required Hardware:

1 x Raspberry Pi Zero (afflink).
1 x Raspberry Pi Zero Mini Camera (afflink).
1 x Micro SD Card (afflink).
8 x M2.5 6mm Standoffs (afflink).
4 x M2.5 6mm Socket Cap Screw (afflink).

Yes it's printed in SLA resin, smoke 'em if you got 'em, right?

For loads of other different filaments, 3D printing parts, components and world-leading Hotends visit | https://e3d-online.com

Please help support my work here on Thingiverse and on Instructables by using the affiliate links when making purchases. It doesn't cost you anything extra. Thanks :)

eBay.com | eBay.co.uk | eBay.fr | Amazon.co.uk

Print instructions

Category: 3D Printer Accessories
