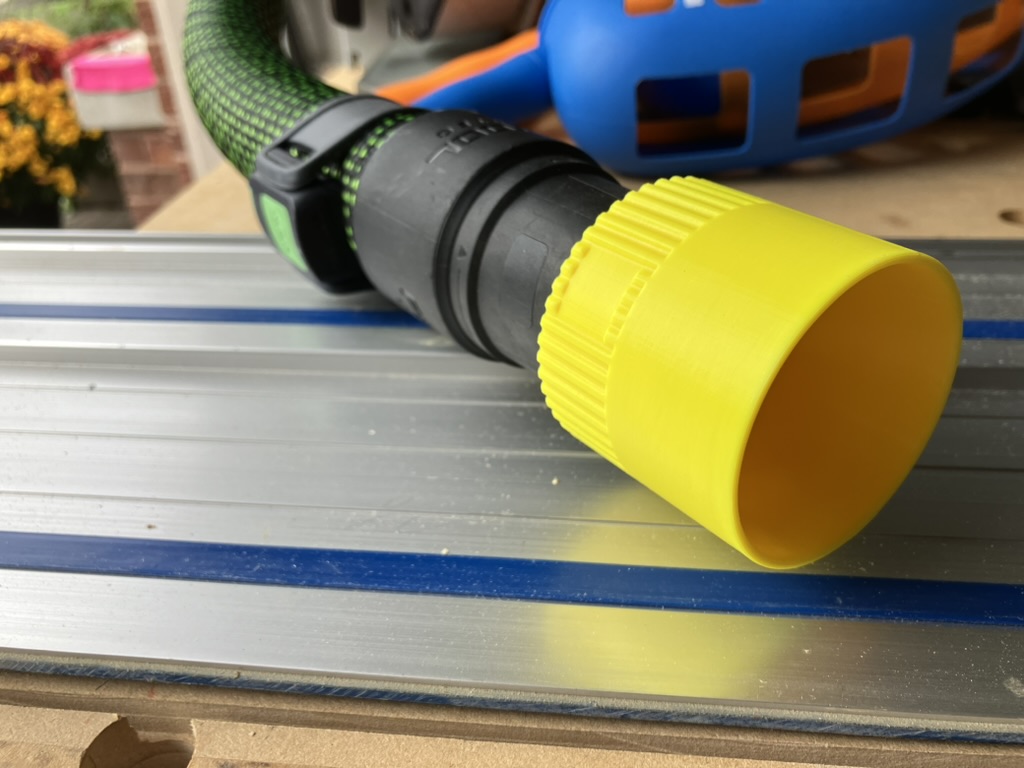

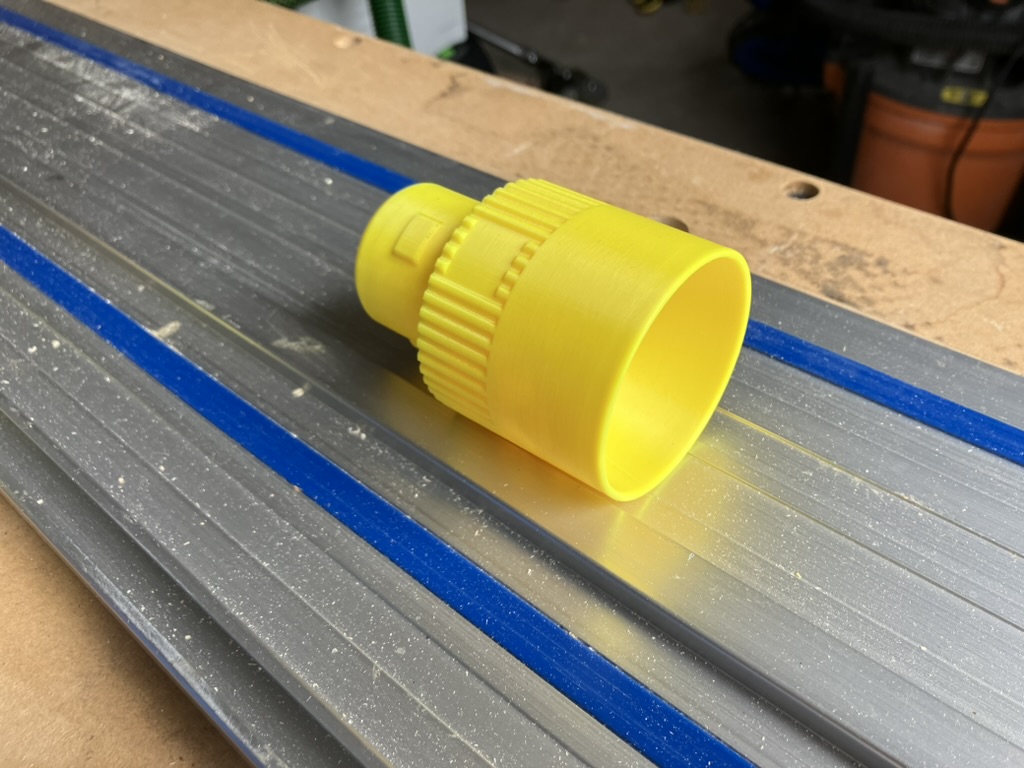

This is an adapter for attaching Festool 36mm hose to a “standard” 2 ½" dust collection port. I designed it for using Festool dust collector with D36 hose with my my table saw, router table, planer, jointer, bandsaw, etc. I was using Festool D50 port on the vacuum as reference and it fits all my tools with 2 ½" port. It is designed for easy attachment to the hose and relies on standard notches for securing. I also include a model without notches that relies only on friction but I personally prefer the former.
Features
locking notch
ribbing for easier insertion/removal
alignment markers on the body of the adapter
Printing instruction
PETG is recommended for some flexibility and to assure dimensions.
at least 3 perimeters are recommended.
15% infill is sufficient (I use “adaptive cubic” but it is not that important).
Happy printing!!!
