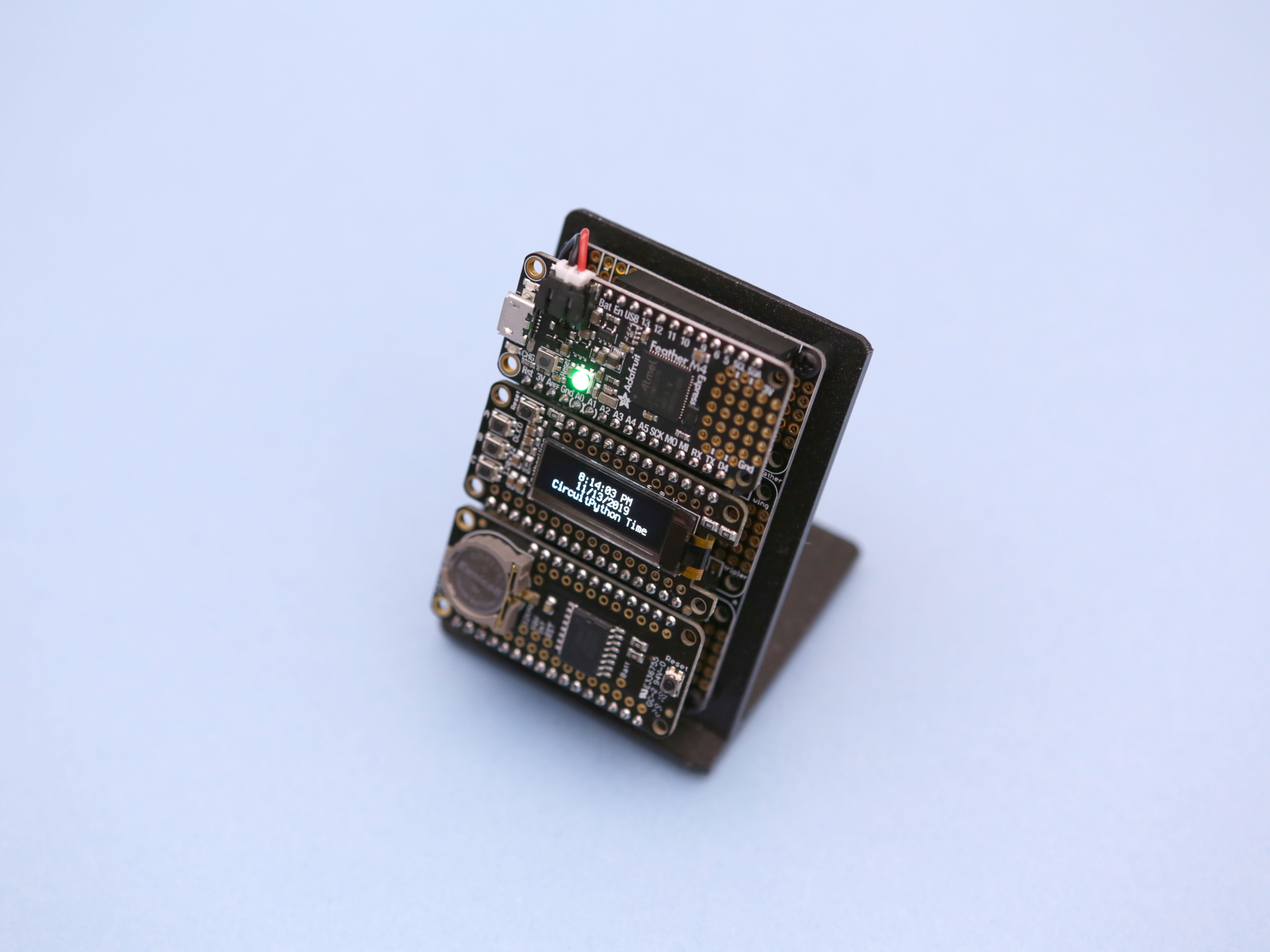

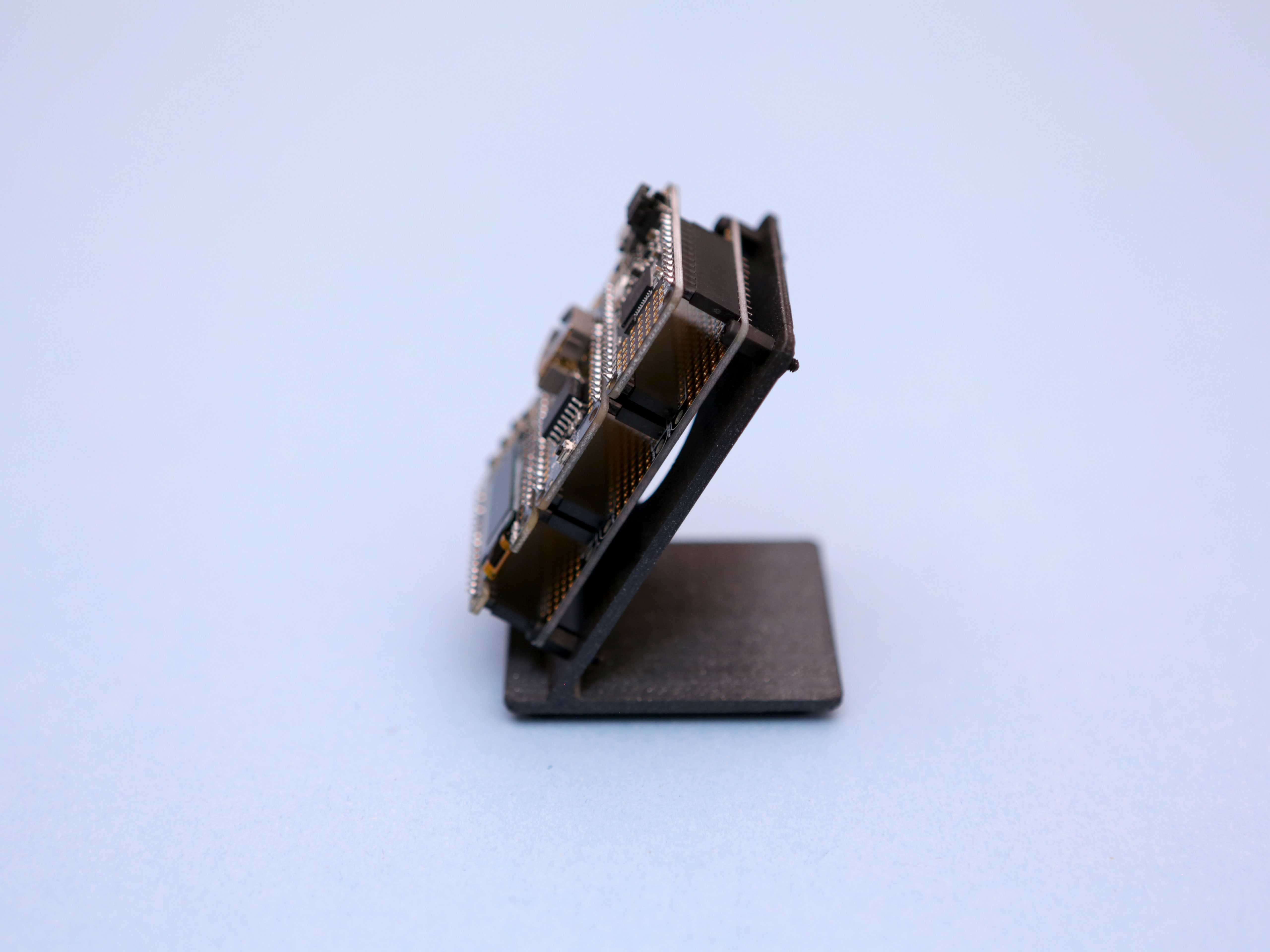

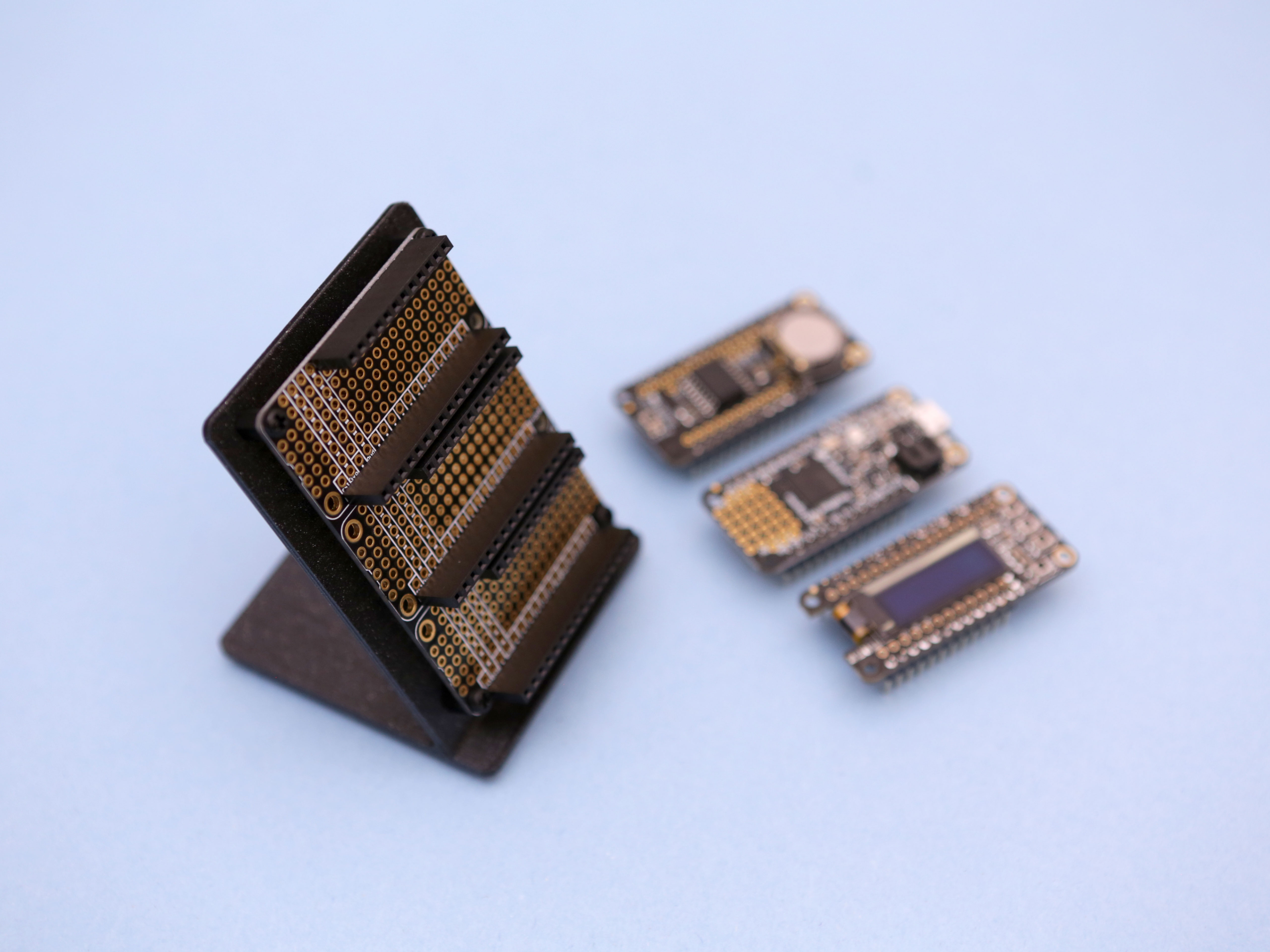

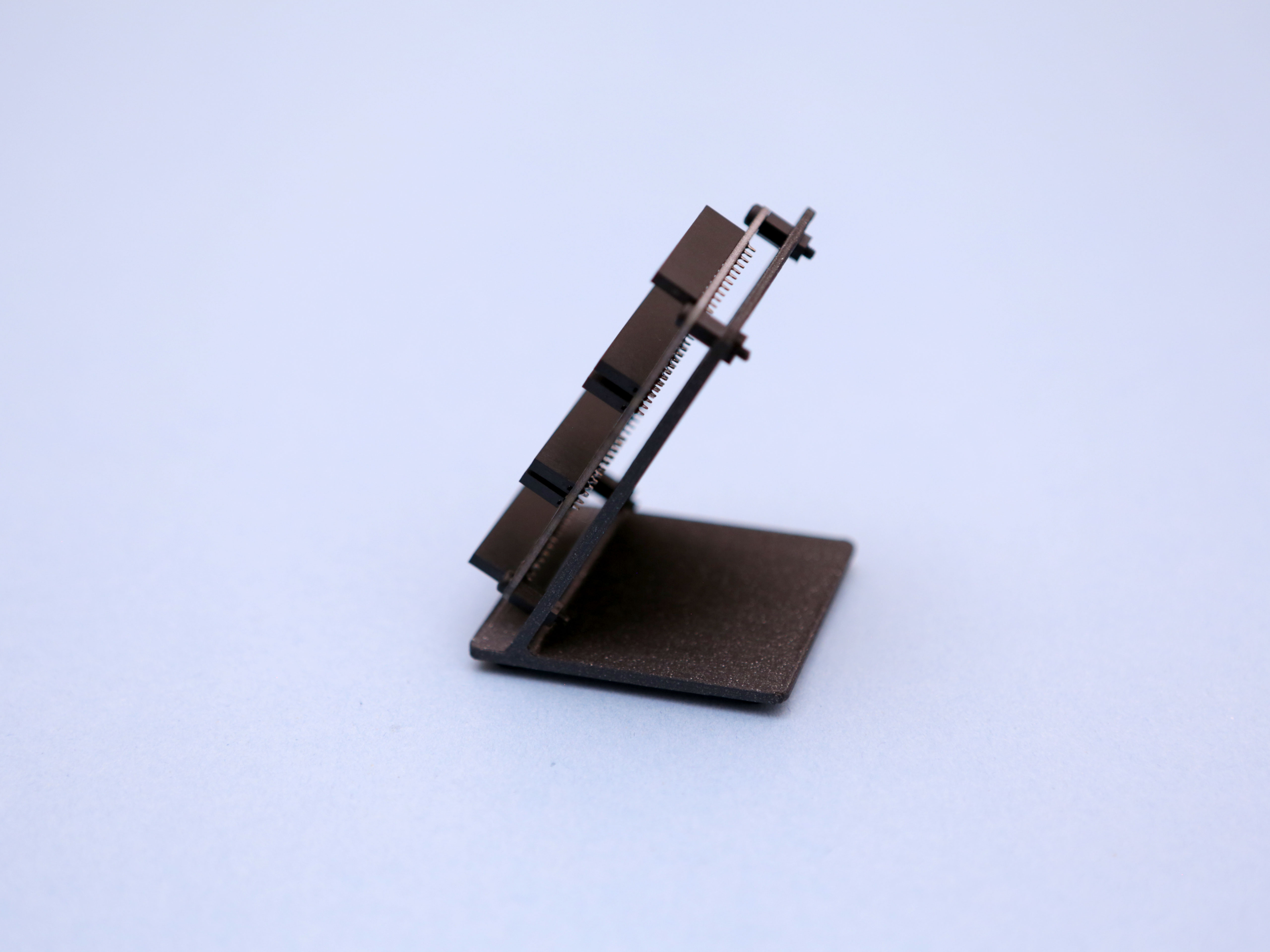

This is a stand for housing a Tripler FeatherWing. The PCB is secured with M2.5 nylon hardware. Useful for propping up and displaying Adafruit Feather boards. Tripler FeatherWing features three breakouts for each pin on a Feather, as well as a bunch of plain grid proto holes.
Assembly Tutorial:
https://learn.adafruit.com/circuitpython-oled-watch/clock-stand
Tripler FeatherWing
https://www.adafruit.com/product/3417
Feather M4 Express
https://www.adafruit.com/product/3857
RTC FeatherWing
https://www.adafruit.com/products/3028
OLED FeatherWing
https://www.adafruit.com/products/2900

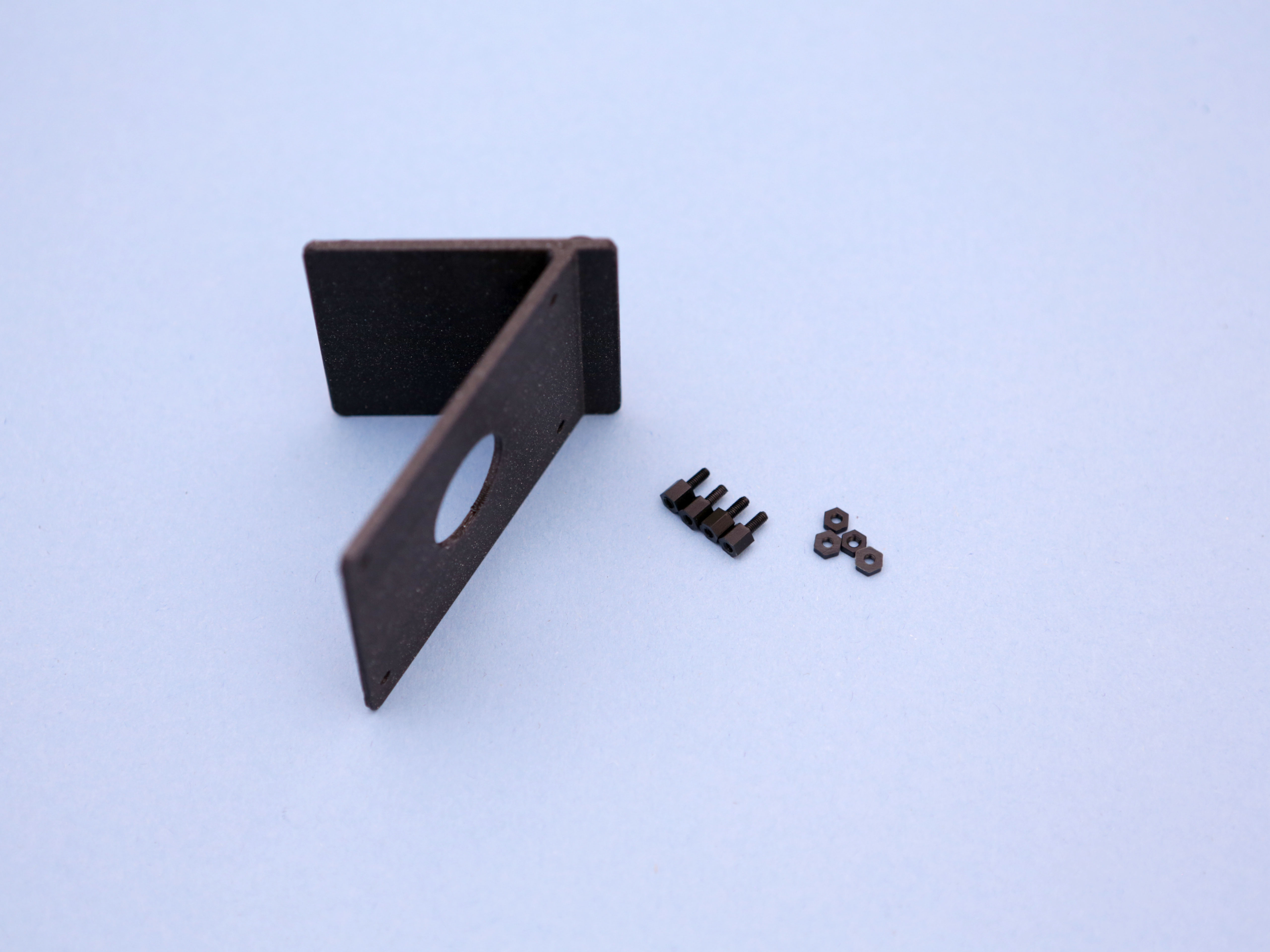

Use the following hardware to secure the Tripler FeatherWing PCB to the stand.
4x M2.5 x 6mm male-to-female standoffs
4x M2.5 hex nuts
4x M2.5 machine screws
You can optionally use tall/shorter standoffs. The black nylon standoff kit includes quite a few different sizes to choose from.
