2x2 ROP worklight mounts
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor & Garden
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

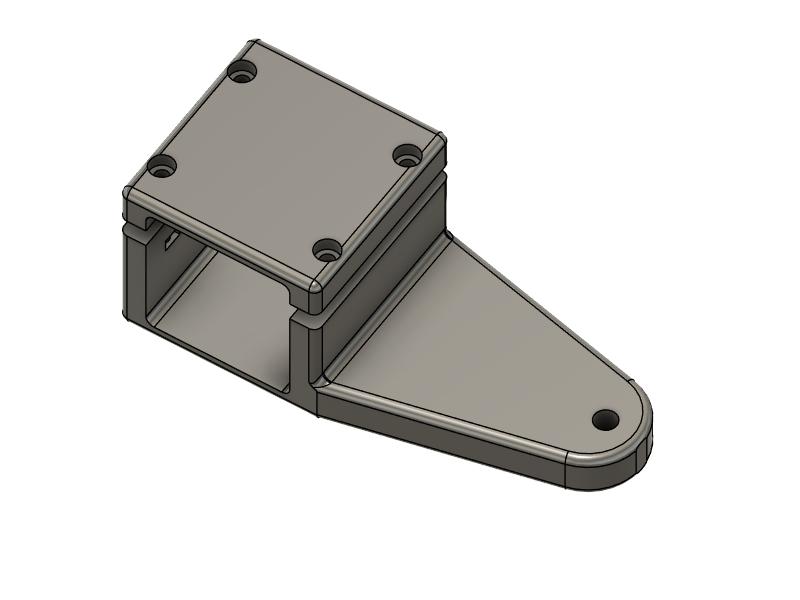

These are mounts that can be used to attach a work light or lightbar to a ROP (roll over protection) made of 2"x2" square tube steel. They use M5 cap head screws (30 - 40mm) and nuts for assembly. Nuts fit into recesses in the larger component. Different versions are provided to accomodate different mounting orientations. Mounting holes are approximately 8mm.
It is suggested you print with a UV & weather resistant material. I used ASA on mine. Use multiple perimeters and top/bottom layers for strength.
Do not overtighten when installing. There will still be a gap even after tightening sufficient for retension.
Fusion 360 and .STEP source files are included
