Sculpfun Limit Switch Mounts
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Mechanical Parts
- Licencja
- Creative Commons — Attribution — Share Alike
Details
- Use a PCB limit switch (I had these left over from my enders after switching to sensor-less homing)
- 1xM5 bolt and t-nut to attach to laser cutter extrusion
- 2xM3 bolts directly into plastic hold limit switch
- Tried to make these as small as possible to preserve workspace size.
Printing

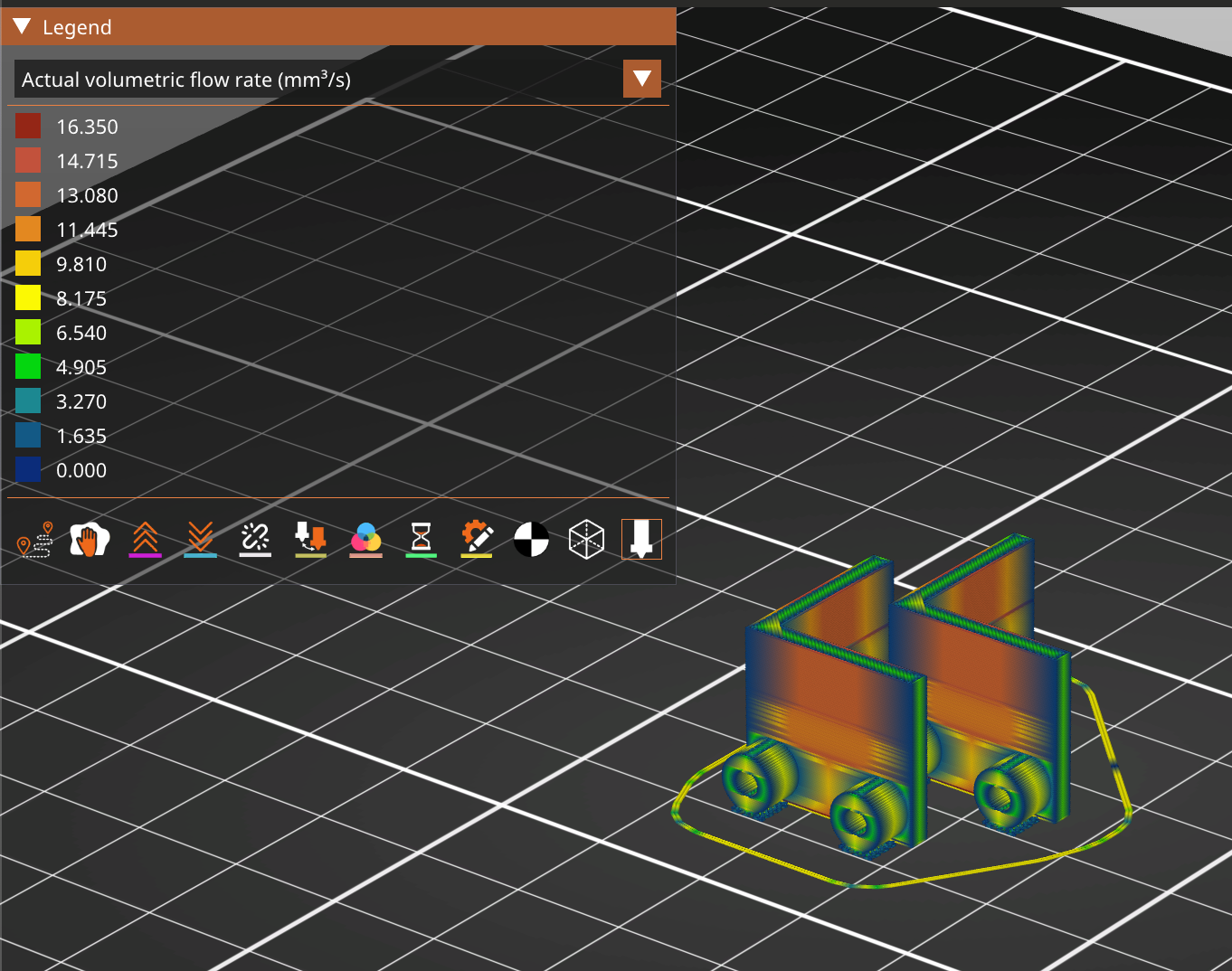

- I print in orientation shown, supports touching build plate.
- Depending on material and speed you might have use more cooling / slower layer times
- I use ASA but even then I had to use auto cooling
To-do / Improvements
- Top should be a little bit wider so that the wheel closes directly on the plunger
