Remote for Arduino Camera Shutter

This is case was designed to embed all the components needed in the making of a camera shutter by @jamesskelton.

Link to his github project page : https://github.com/hackaninstant/Servo-Shutter

The box embed :

• two 3,7v lithium battery for the arduino. Those battery are rechargeable via a TP4056 board and its miro USB port.
• 4x1.5v battery to power the servo.
• Arduino Nano, 16K or 32K version
• 4 momentary switches
• I2C SSD1306 128x64 display
• 9g servo
• TLP 127 Opto isolator with 330 Ohm resistor (Optional for flash sync)
• rotary encoder (optional)

Features :

• 100 x 71.5 x 36 cm when fully assembled
• 1 screen and 4 buttons (lid)
• Camera logo embossed (lid)
• 4x3M holes to screwed the front face to the case
• 2 holes for on/off switches (up)
• 1 hole for a rotary switch (up)
• One hole for the servo (left)
• One hole for the arduino USB (left)
• 2 holes on both sides to clip the case on its supports (see link below).
• 4 holes to put inserts (on case)
• Tiny things to support the PCB at the right height
• Rail male on box, rail female on lid so that it fits nicely.

Pieces :

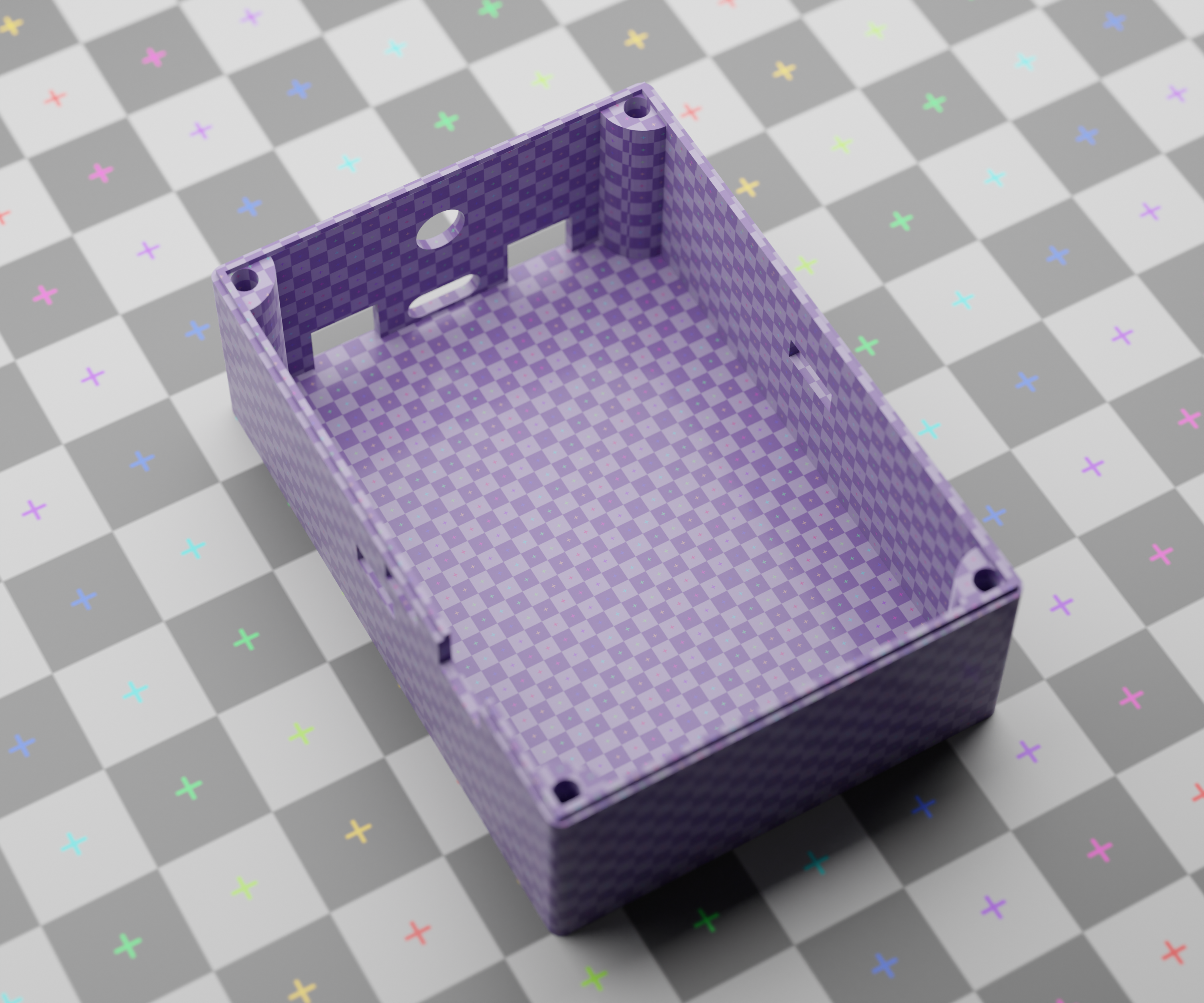

• Case
• Lid
• Annular joint (to hide the foot of the rotary encoder)

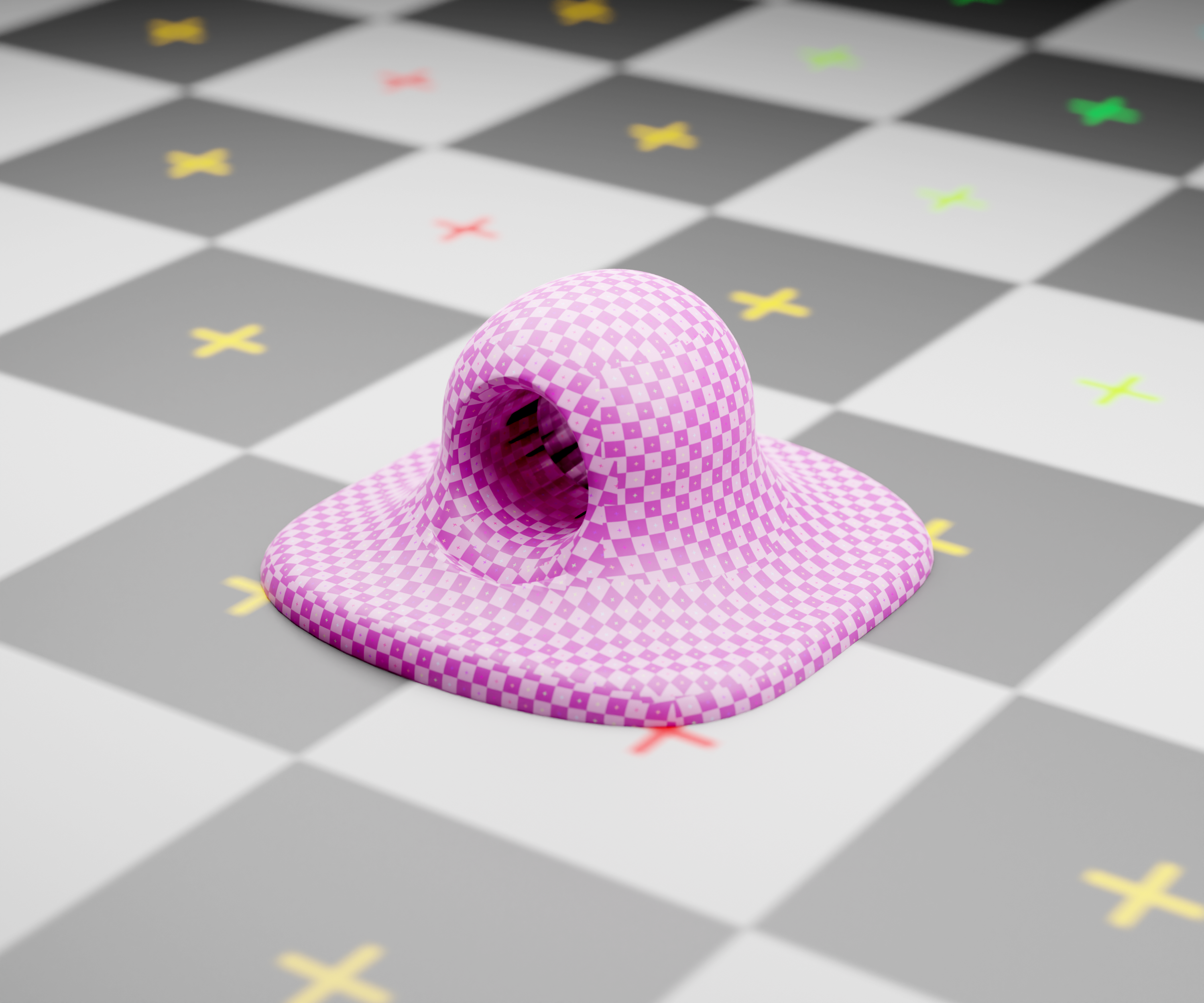

• Safety loop (Glu it on a side and attach a key ring, or some paracord to secure the case)

External ressources :

• Camera shutter (printables)

• Remote shutter holder (printables)
