Accessible Button for 12mm Switch
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Home Medical Tools
- Licencja
- Creative Commons — Attribution — Share Alike

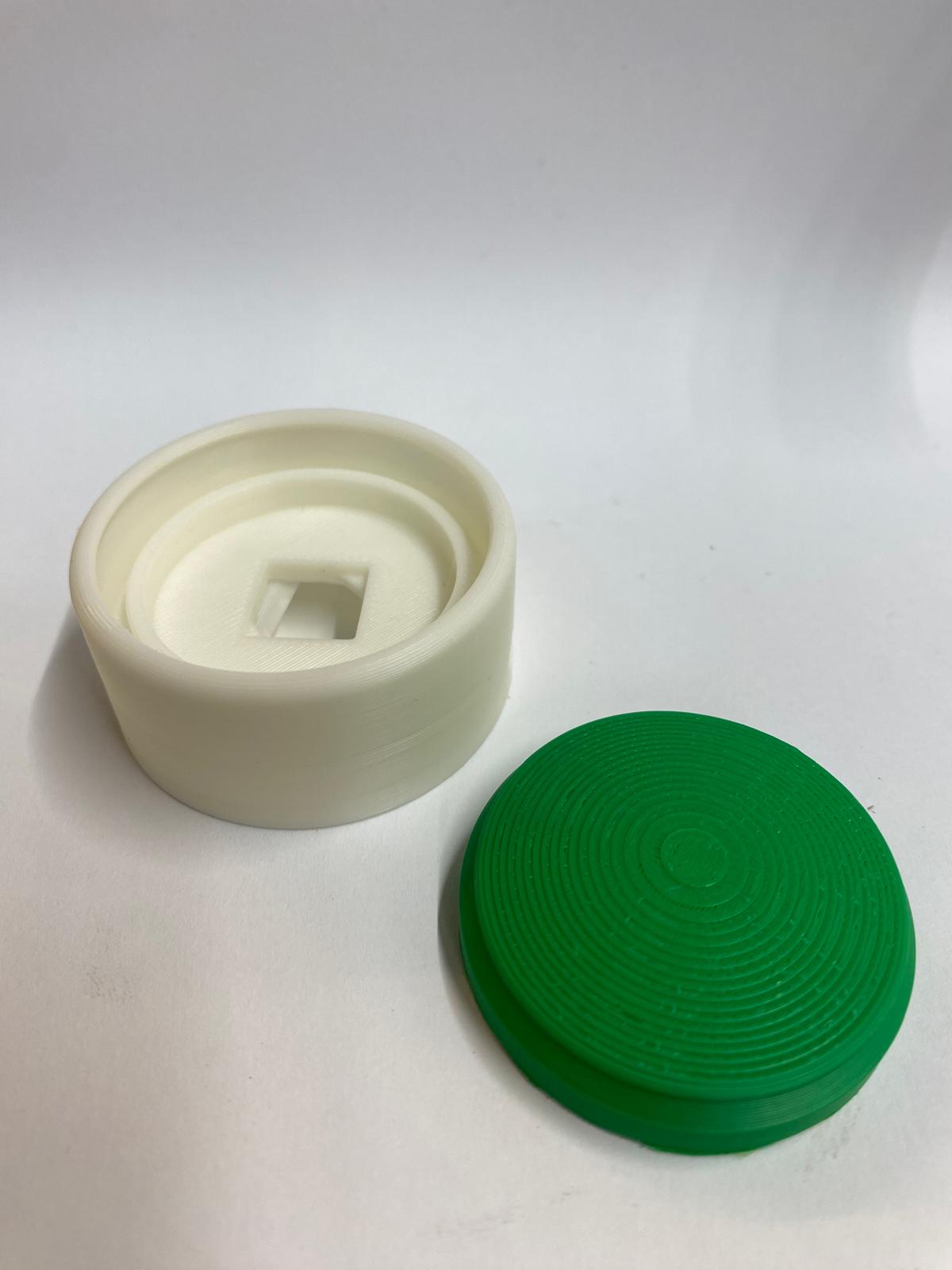

This design offers a larger, more accessible button interface for a standard 12mm tactile switch, making it ideal for users with limited dexterity. The button comes in two sizes to suit different needs:
- Standard Size: Button diameter: 40mm | Base diameter: 46mm
- Large Size: Button diameter: 72mm | Base diameter: 70mm
Assembly Instructions:
- Attach or hot glue the 12mm switch securely to the base.
- Solder the wiring to the button.
- Snap the button top onto the base. The flexible design of PETG ensures the snap mechanism holds securely without breaking.
Print Specifications:
- Printer: Prusa MK3S
- Material: PETG (recommended for durability) or PLA
- Nozzle Size: 0.4mm
Included Files: Fusion 360 (for customization) and STL files (ready for printing).
This accessible button is designed to make electronic controls more accessible for individuals with limited fine motor skills, improving ease of use.
