Four-Way Splitter Side Spool Mount

Description

I recently installed Mdesign's Side spool holder for P1S, X1C on the left side of my P1s only to realize that it left no room for jusutus' 4-in-1 PTFE Adapter, without running PTFE tubes like a madman behind the machine.

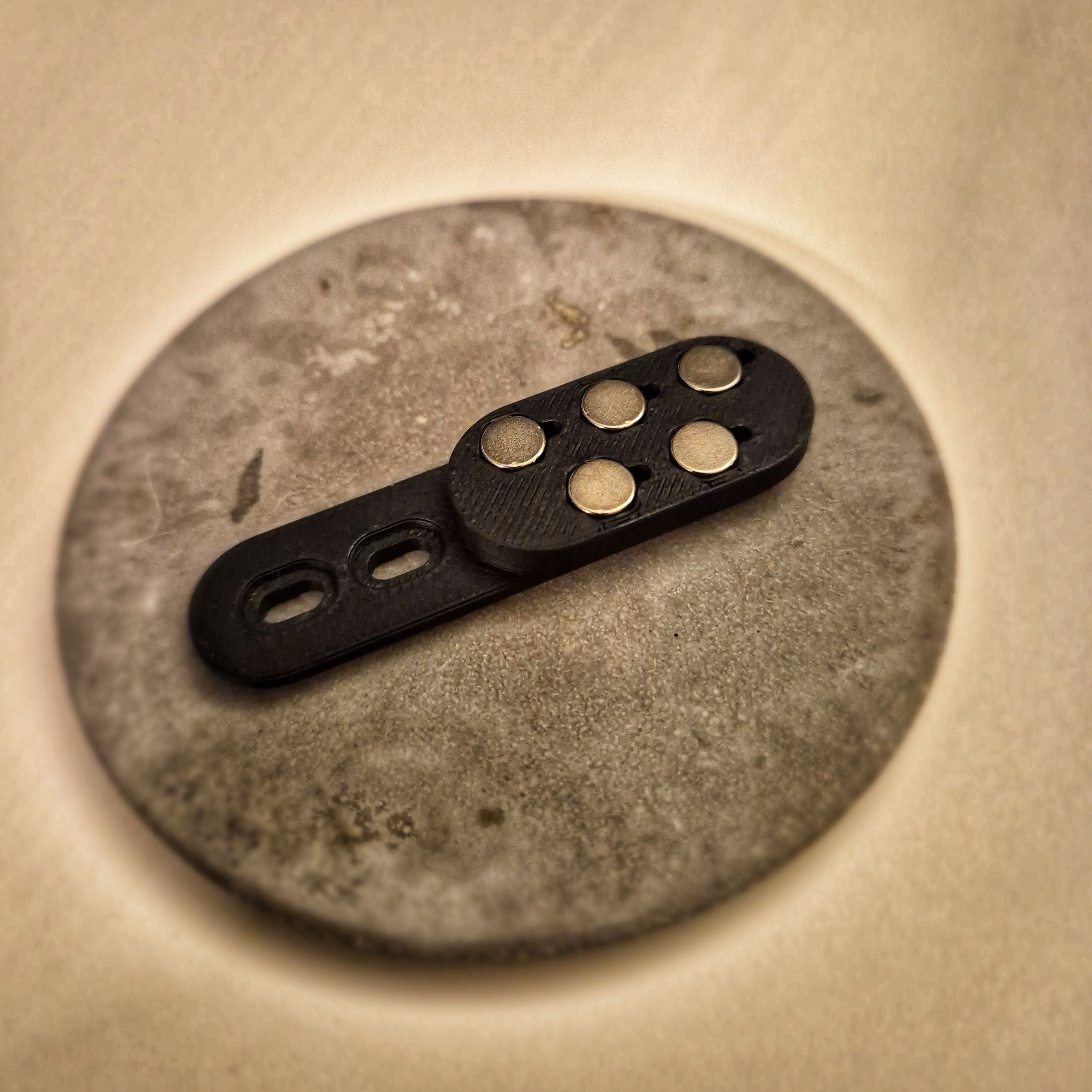

So I took a projection of the magnet pad of jusutus' 4-in-1 adapter and combined it with the footprint for the two top M3 screws on Mdesign's side spool holder, to create this mount, which provides a home for the 4-in-1 adapter.

BOM:

• Printed part
• 5pcs 6x2mm magnets (Let me know in the comments if you need a 6x3 mm version!)
• 2pcs M3x12 Socket Head Screws.

Assembly:

• Unhook the PTFE feeding from the AMS, and remove the and coupling from the tube.
• Press the magnets into the mount (use glue if you want). Note: Make sure the magnets match the orientation of the magnets in the 4-in-1 PTFE Adapter!
• Install the mount into the top back of the side spool holder and the X1*/P1s using the two M3 screws.
• Slide the 4-in-1 adapter into place onto the magnet pad on the mount and slide the PTFE tube from the printer into the single coupling.

Note:

• You will have to play around with which PTFE tube length you will need from the AMS buffer to the 4-in-1 Adapter, as well as from the side spool to the adapter, if you use the optional PTFE holder Mdesign offers.
