Problem
- my monitors use AC adapters whose cables are too short to reach the floor from the desk, so they hang in the air instead
- my monitors are Potalion & WasabI Mango branded
- it so happens that my AC adapters are both the same size although they are from different manufacturers
Design
AC adapter size
Hardware
- uses qty 2 M3 wood screws
- per design above, drill holes 154 mm apart as pilots
- I'm using screws from this kit
- ideally 10 mm long, given that the part is 5 mm thick by itself
- I don't know to what standard these are made; I assume the CSK angle is 90 deg
- Solidworks default CSK profiles aren't really for wood screws, but I hardcoded it as 5.6 mm CSK OD
- qty 2 velcro straps

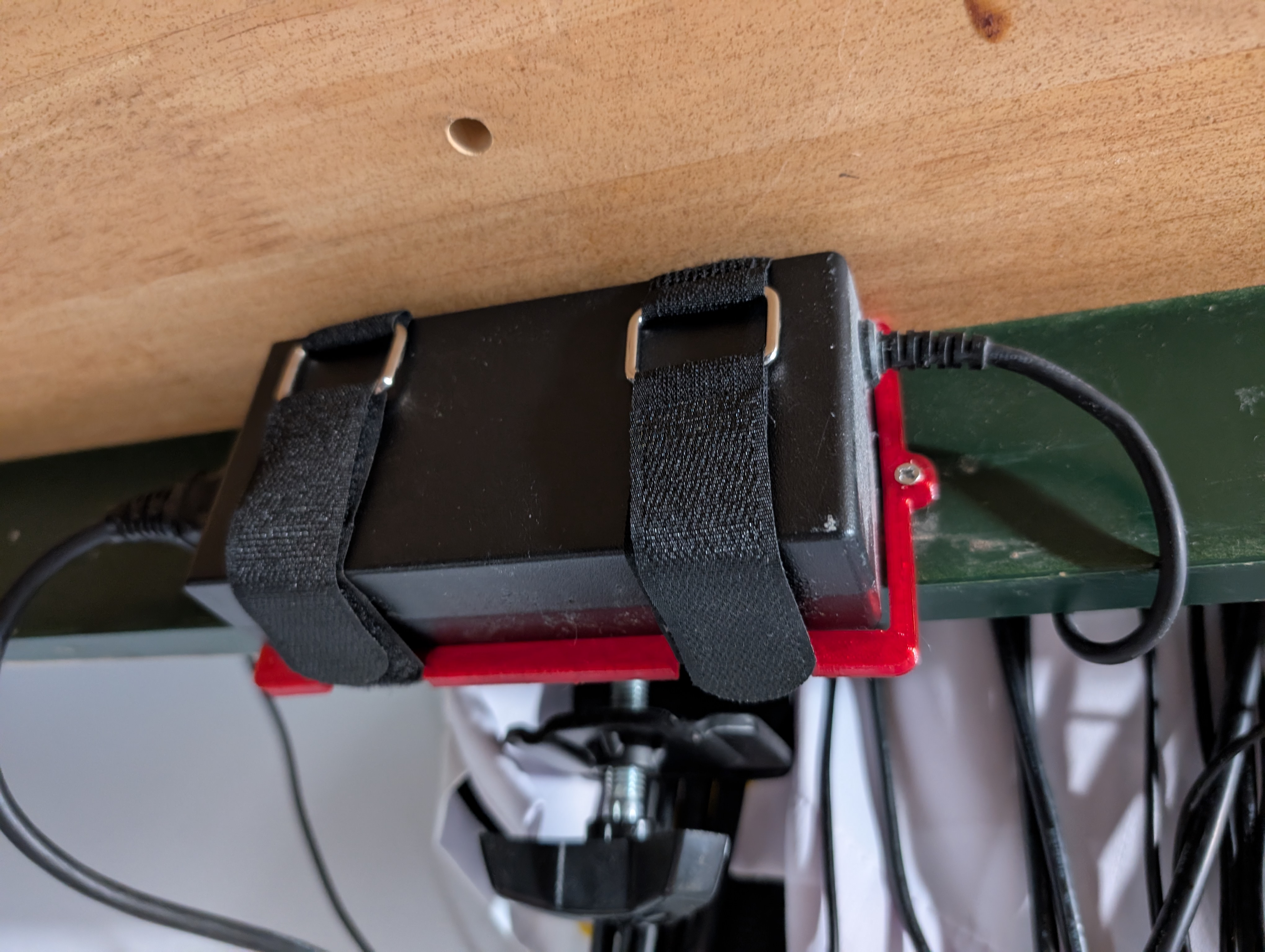

Rev 2 is only different in that
- 2 AC adapters are installed simultaneously, presenting the 83 mm combined into the frame
- this could make it easier to install the 2 – the frame will sort of hold them in place as the strap is tightened
