Wing Commander Medal Set

Wing Commander Medal Set!

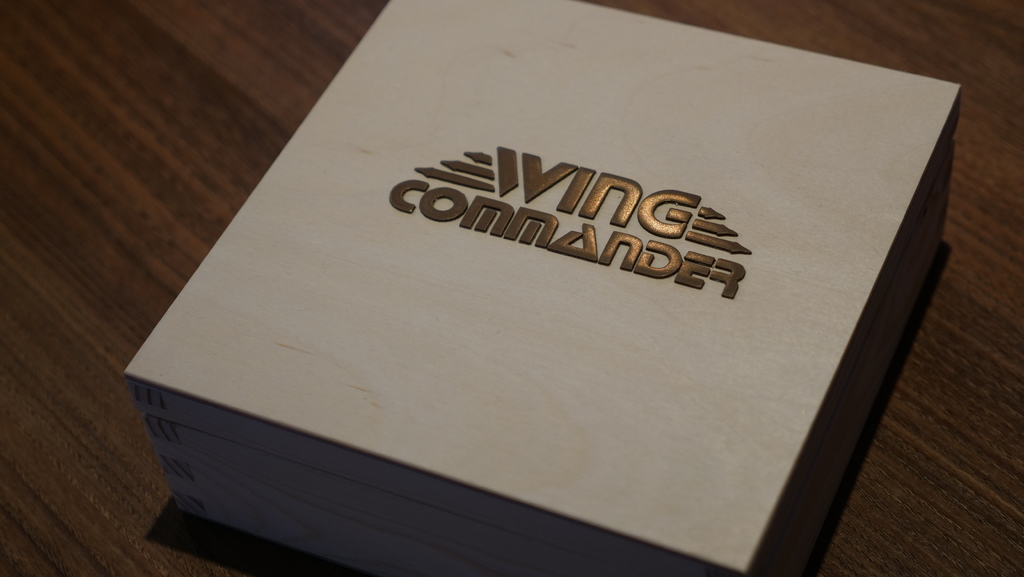

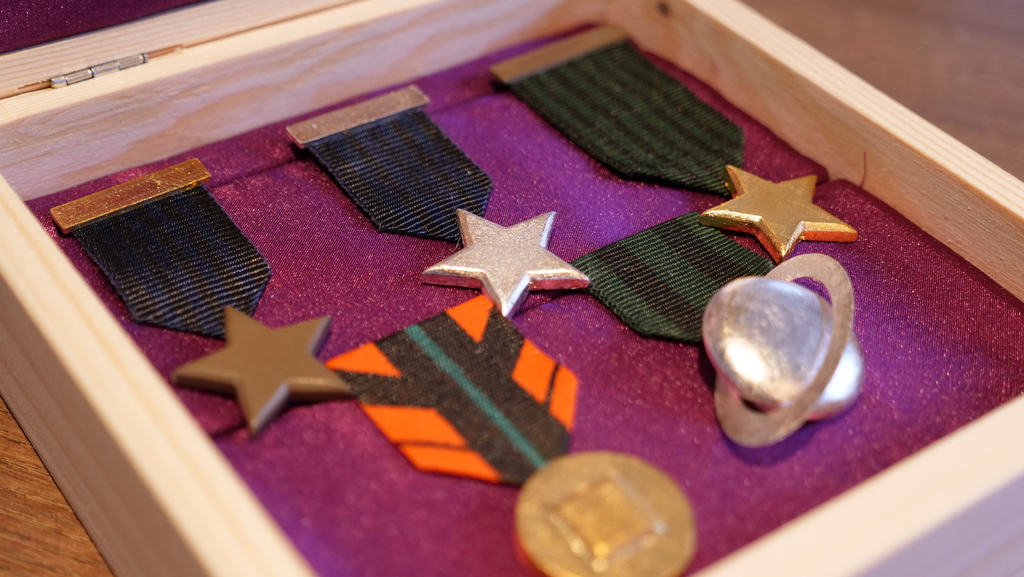

This is the complete medal collection from Wing Commander I. I have tried to be as accurate as possible. To create your own Wing Commander medal box just follow the steps below and take your time.

How to

Printing

For the Medals print

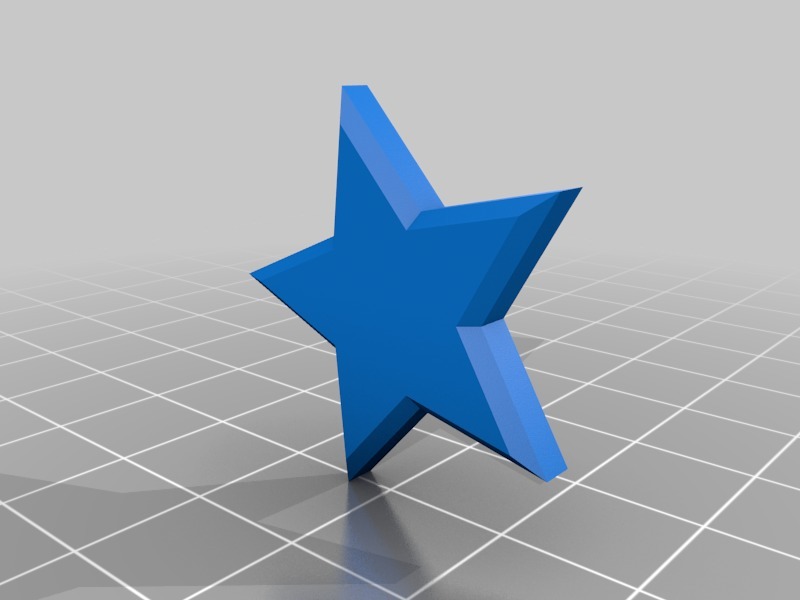

• 3x Bronze_Silver_Gold_Star.stl
• 2x BronzeSilverStarMount.stl
• 1x GoldStarMount.stl
• 1x Golden sun.stl
• 1x Medal_of_Honor_Base.stl

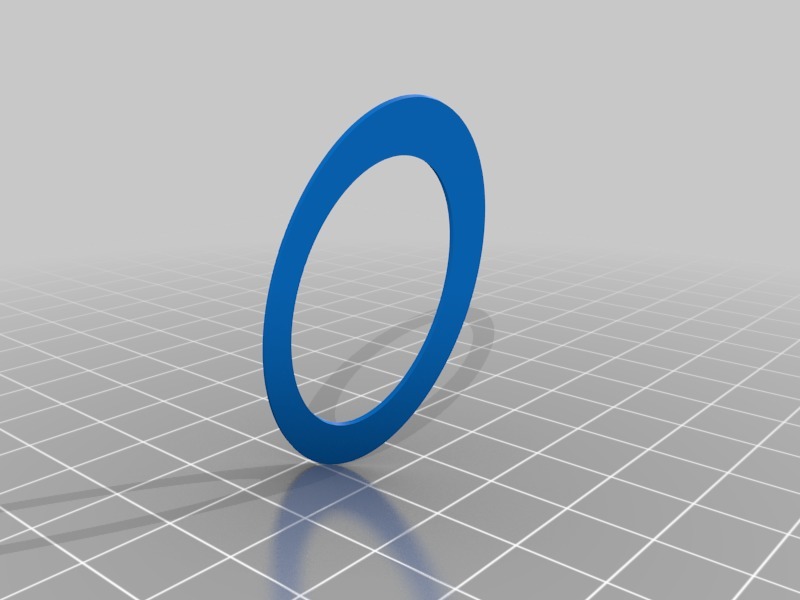

• 1x Medal_of_Honor_Ring.stl

• 2x MedalMount_Under.stl For the ribbons print

• 12x Ribbon.stl

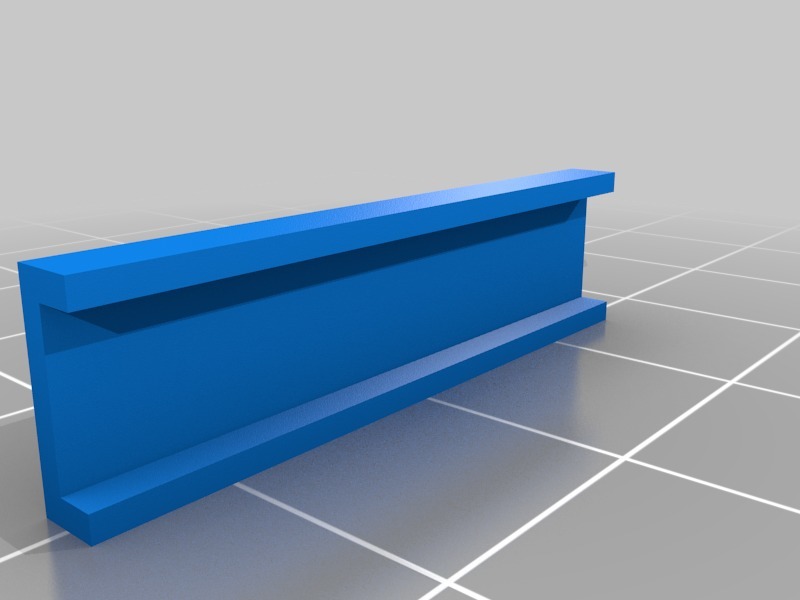

• 1x RibbonMount.stl

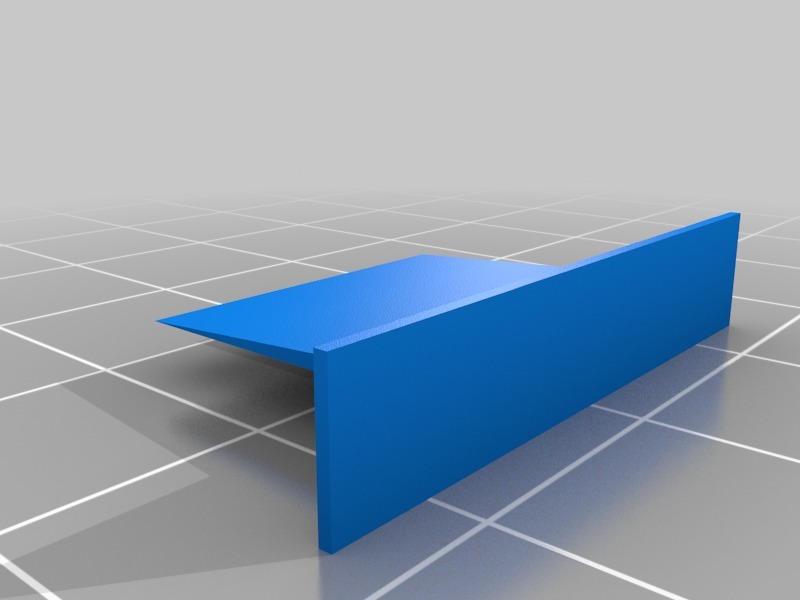

• 1x Ribbon_rail.stl (optional, as it's a tool) Various

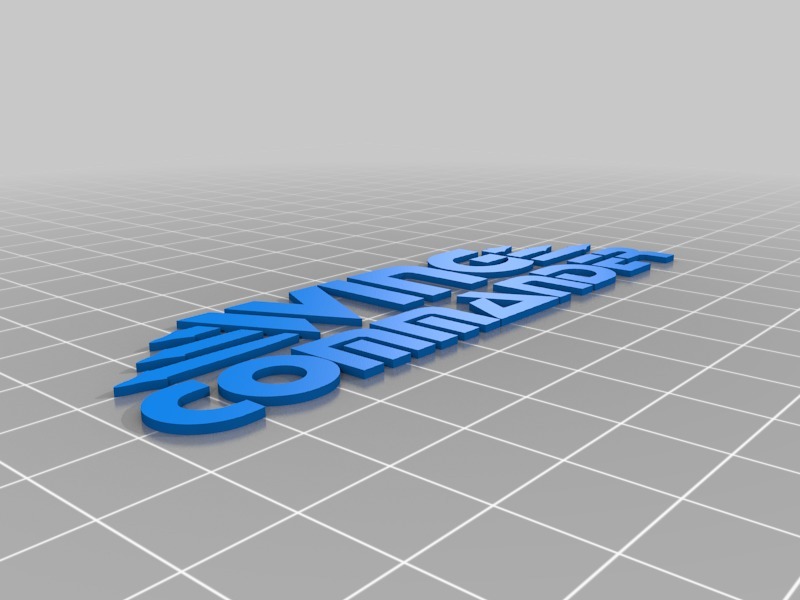

• 1x WCLogo.stl

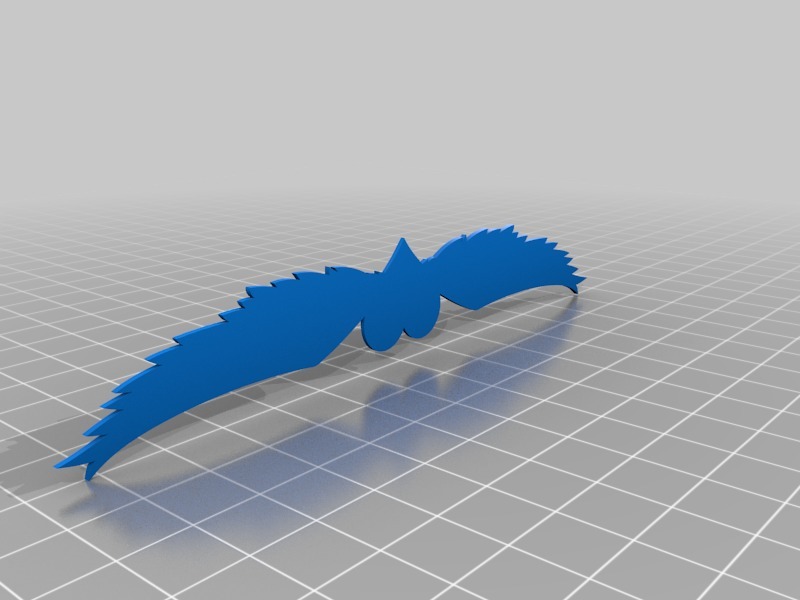

• 1x wingedHeart.stl ### Building

  #### Medals

  The best way to print out the individual orders is in Metal Filament. This makes them look very real just because of their weight. Afterwards they can be sanded and polished. To make the metals look real you can use either electroplating or gold leaf/silver leaf.

  Medals grosgrain ribbons

• Gold Star/Medal of Honor is 30mm green

• Bronze/Silver Star is 25mm blue

• Golden Sun is 30mm #### Ribons

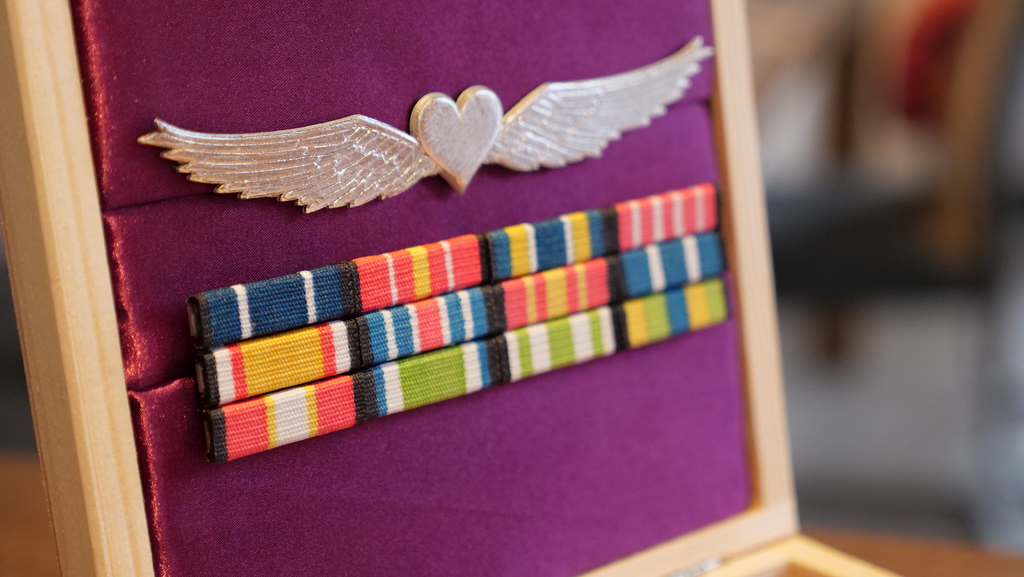

  I used and impregnated 30mm and wide grosgrain ribbon. Then I was able to colour the individual ribbons with green, blue, red and money. This takes a very long time and you must not soak the ribbon too much with paint, otherwise it underflows.

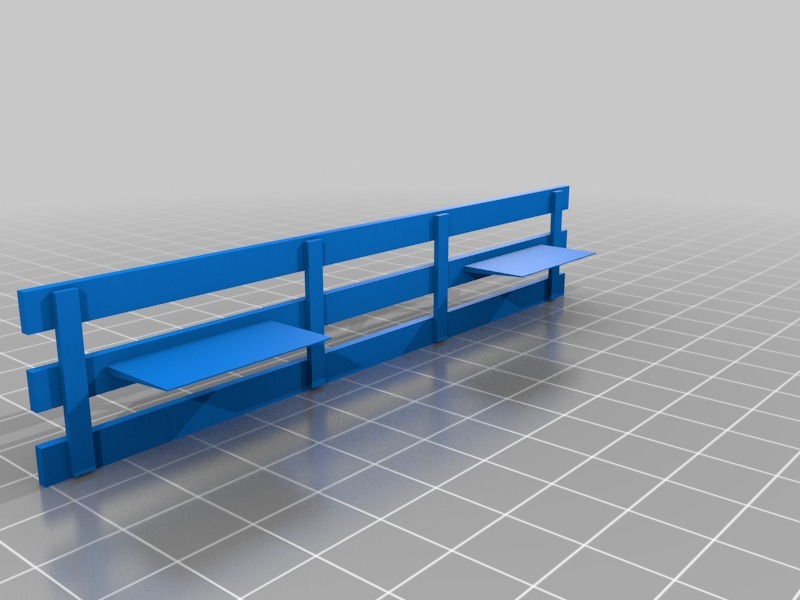

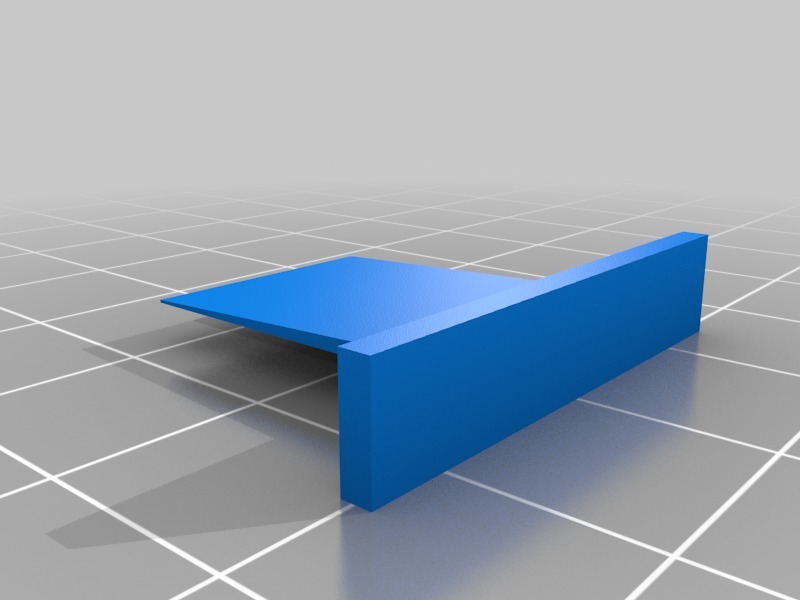

  Then the ribbon pieces are glued onto the ribbon.stl pieces. To fix the ribbon temporarily the part ribbon_rail.stl is included as a help.

  When everything is ready you can put the single pieces on the ribbonmount.stl.

  This is where you get all the information about what color the ribbons should be (WCNEWS.COM)

  Print Settings

Printer Brand:

Ultimaker

Printer:

Rafts:

No

Supports:

Infill:

Solid

Filament: Colorfabb Copperfill + PLA

Category: Props
