Hinged Lid Hex-Minimalist

I recommend downloading the .3mf file as it already has all the settings in it, including the modifier for the logo.

Settings:

• Layer height: 0.2mm (STRUCTURAL)
• Perimeters: 8
• Top Solid layers: 0
• Bottom Solid layers: 0
• Infill: 15%
• Fill pattern: Honeycomb
• Fill angle: 30degrees
• Support material (Optional)
  • Top Z contact distance: 0.1mm
  • pattern: Honeycomb
  • Interface pattern spacing: 0mm
  • Interface loops: check
  • XY separation: 50%

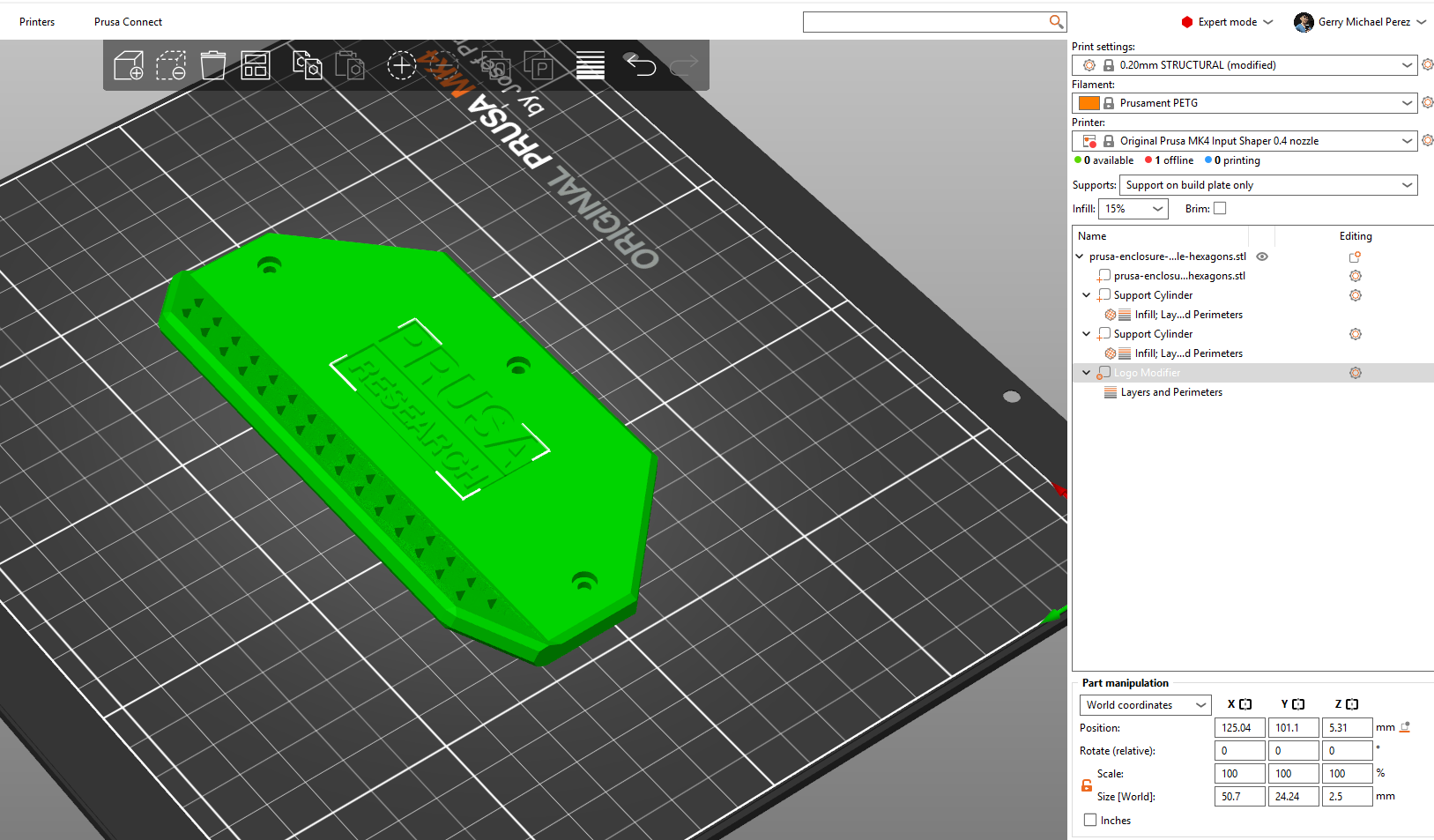

• Add a rectangular modifier that encompasses the logo (size and location in photo)
  • add layer and perimeter to this modifier
  • Bottom solid layers: 7
  • Perimeters: 4
  • Top Solid layers: 8
• (Optional) I did a filament color change at layer 5.00 to get the black background on the logo, then changed it back to orange at layer 5.20. I suggest doing at least two layers in black to get a deeper black color
