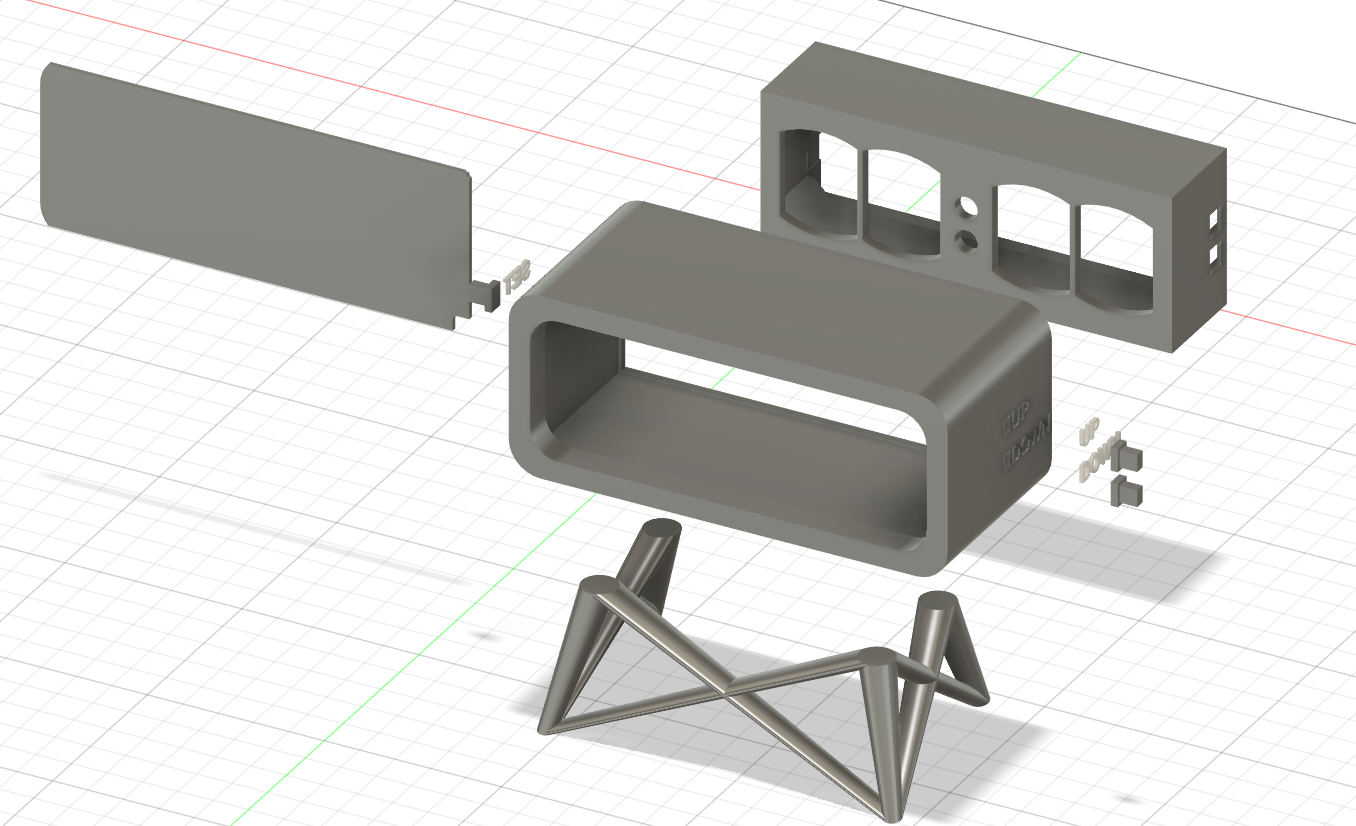

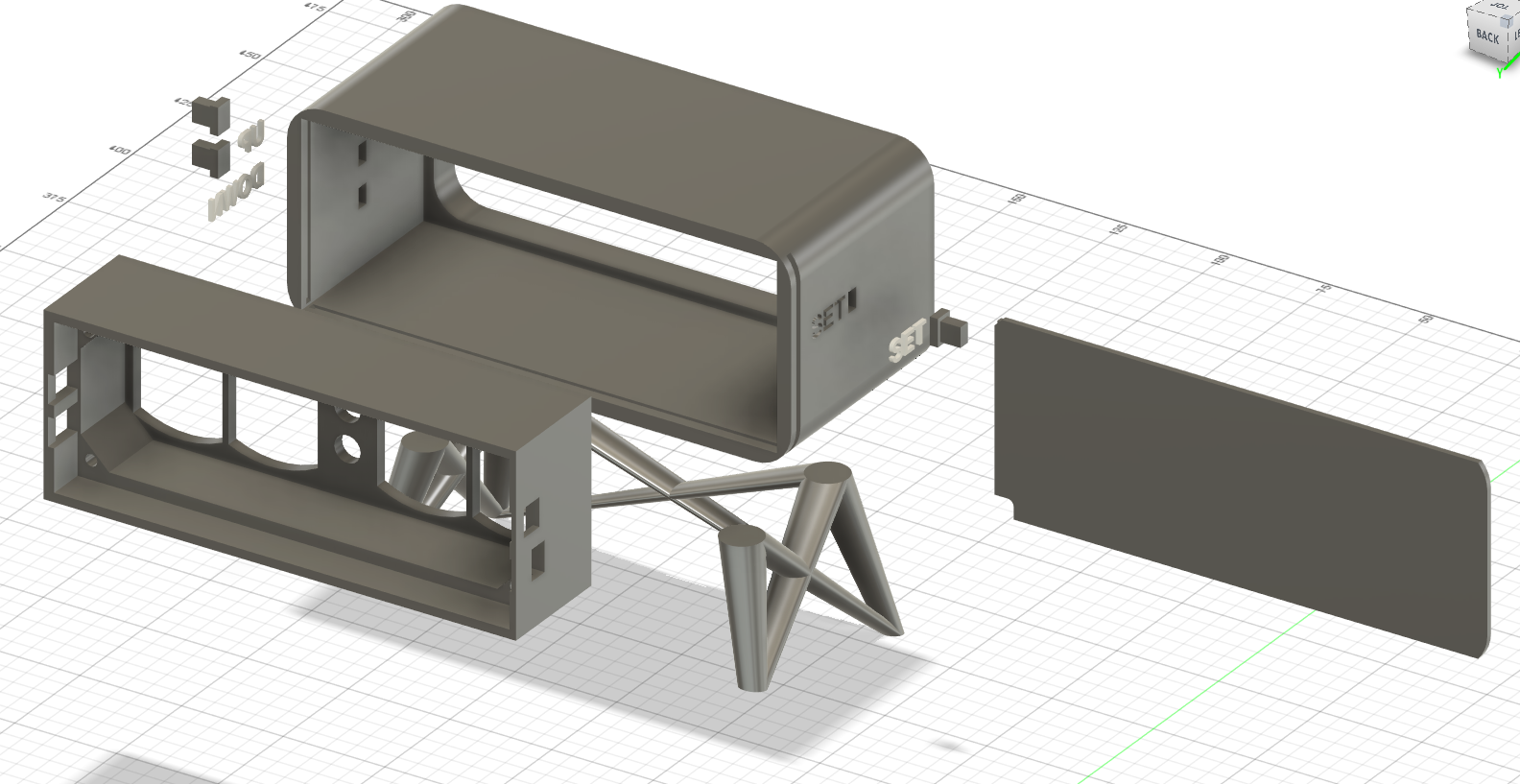

So firstly your dimensions will likely differ quite a lot, thats why I include editable fusion file. I had to reprint a few times to get it right.

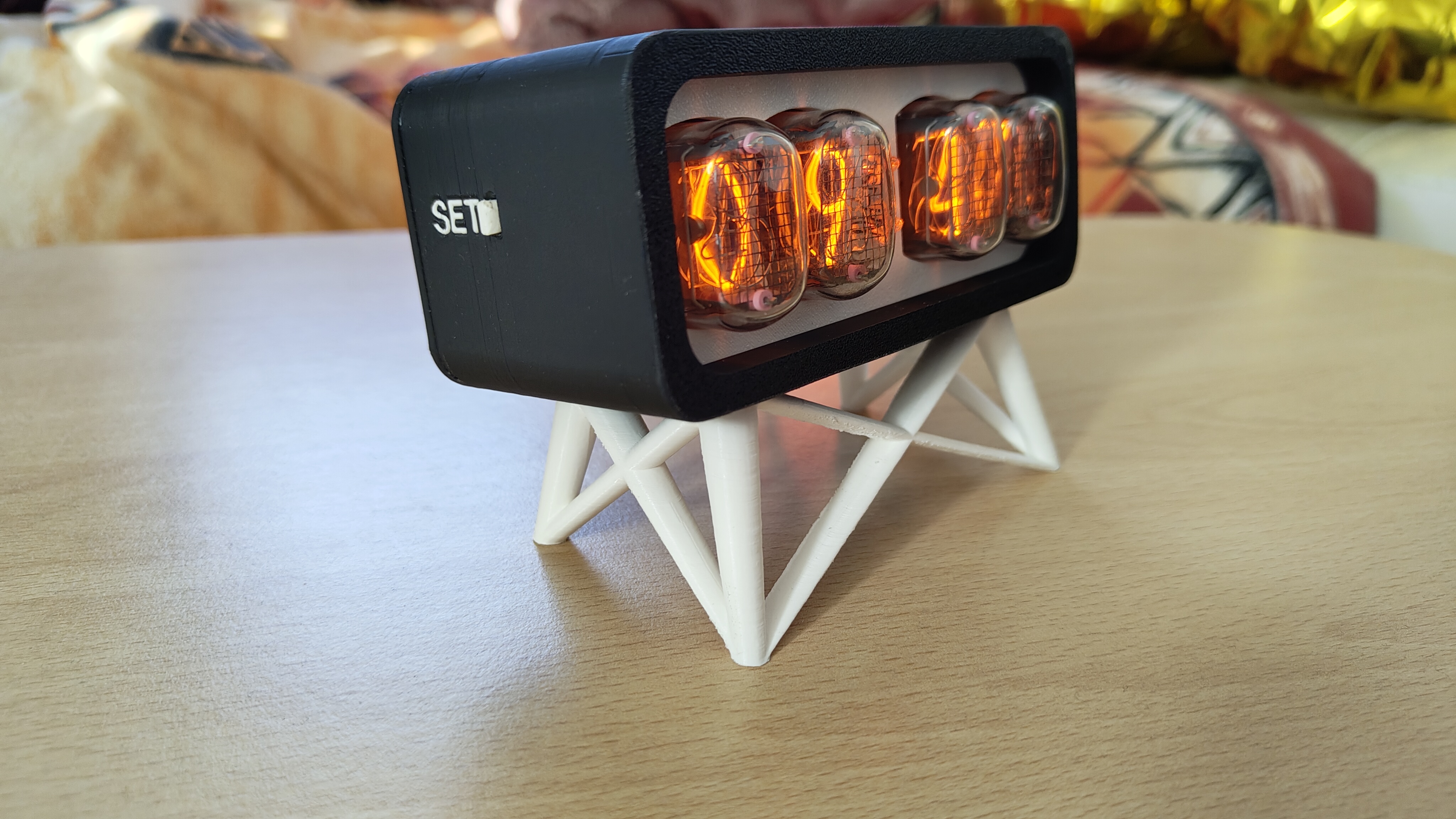

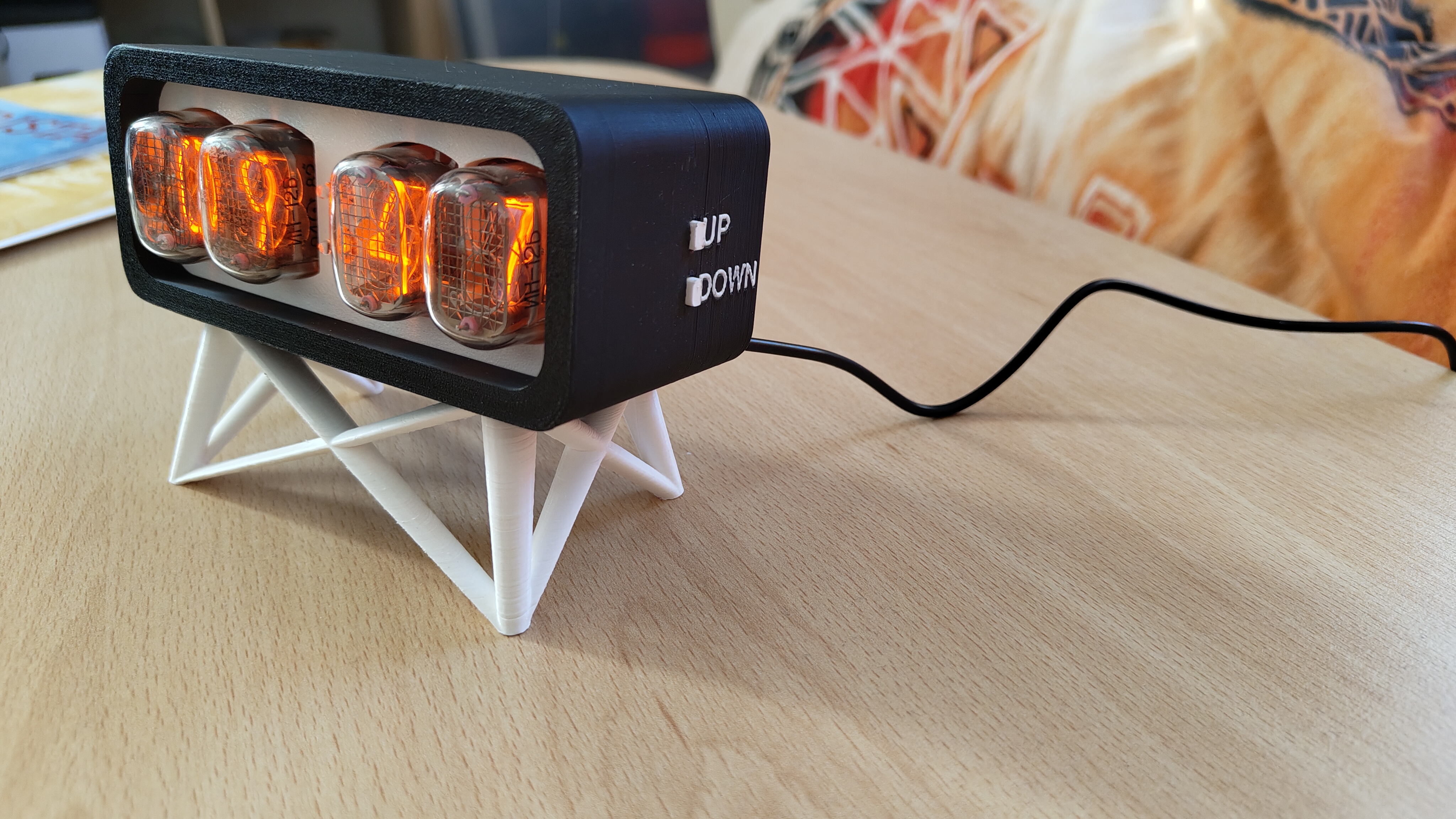

Body cover was designed with text for buttons to take advanage of MMU. But there is a version without text. Or you could engrave it.
Buttons might not fit well depends on your printer tolerances but it can be modified easily.

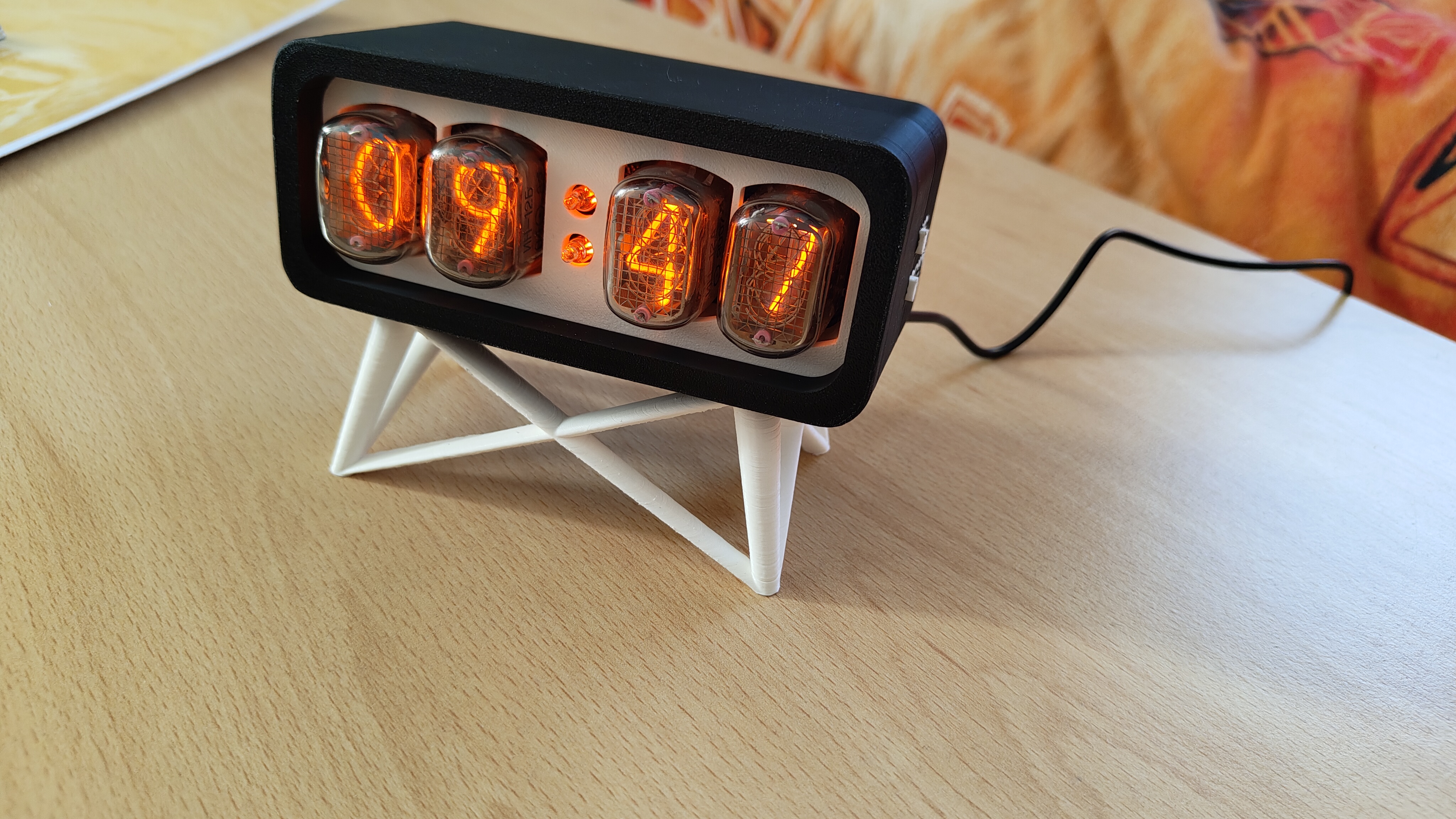

For the legs there was quite a few supports, especially the front X, but came out just fine and sturdy. To the cover they are rotated 10° for better readability.
Whole cover was designed to fit DIY kit from this site: https://pajenicko.cz/stavebnice-digitronove-hodiny-nixie-in12 So you might fine some information there.

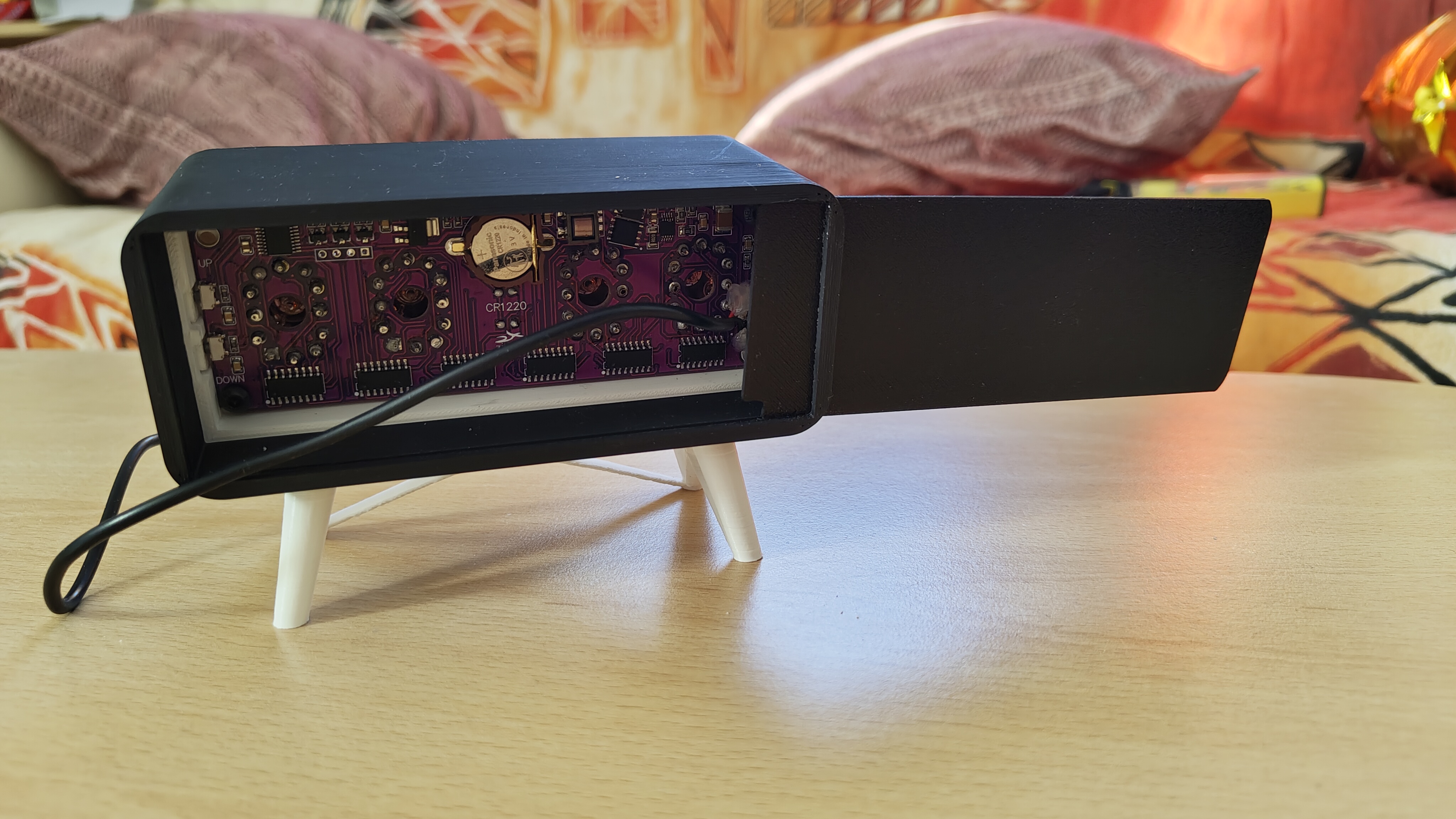

Printed 0,15 - 0,2 with PLA. Holes to fit PCB are 8mm deep and meant for M3 screw.
