T-Track Calibration End Stop

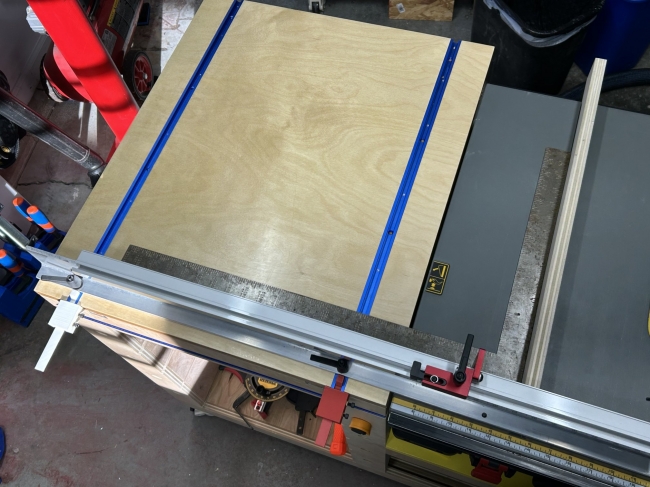

This allows repeated realignment of a T-Track fence or other jigs to a set position. This is useful for a sliding carriage fence such as the type used on Paoson's Mobile Workbench with Table Saw & Router.

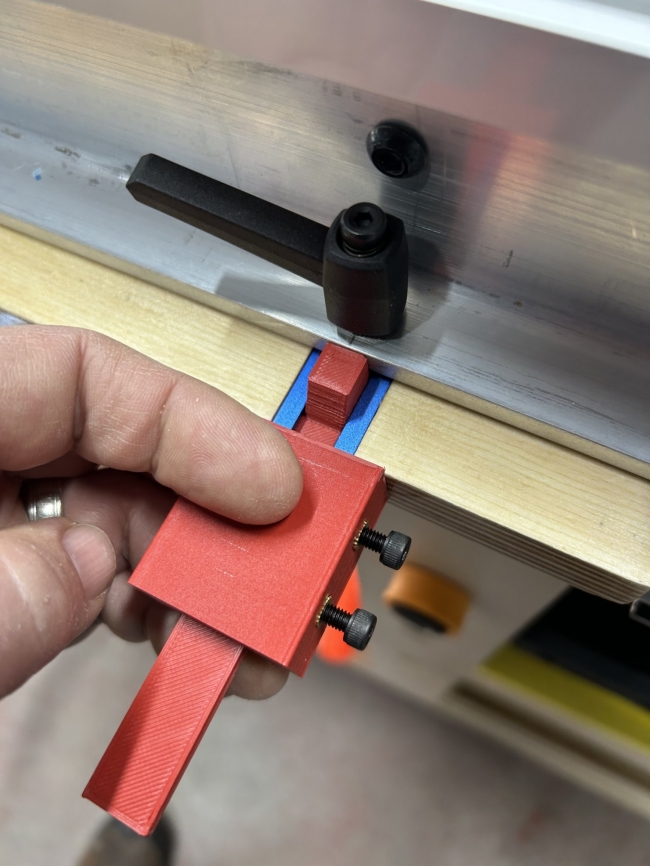

Use it much the same as a ruler stop. After setting the desired alignment of the fence or jig, insert the slide into the 19mm T-Track.  Hold the stop against the end of the track, and then position the slide against the fence or jig. Tighten the screws to hold the slide in place.

Supplies needed:

• M4 x 6mm Heat-Set Threaded Inserts (2)
  • Instructions and discussion for using these
• M4 bolt, 14mm or longer (2)

Note: if inserts get dislodged, use a bit of CA glue to reseat them.

Here's a thread on the Paoson Woodworking forum where this project is discussed.
