Drainage pipe jetter
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor & Garden
- Licencja
- Creative Commons — Attribution — Share Alike

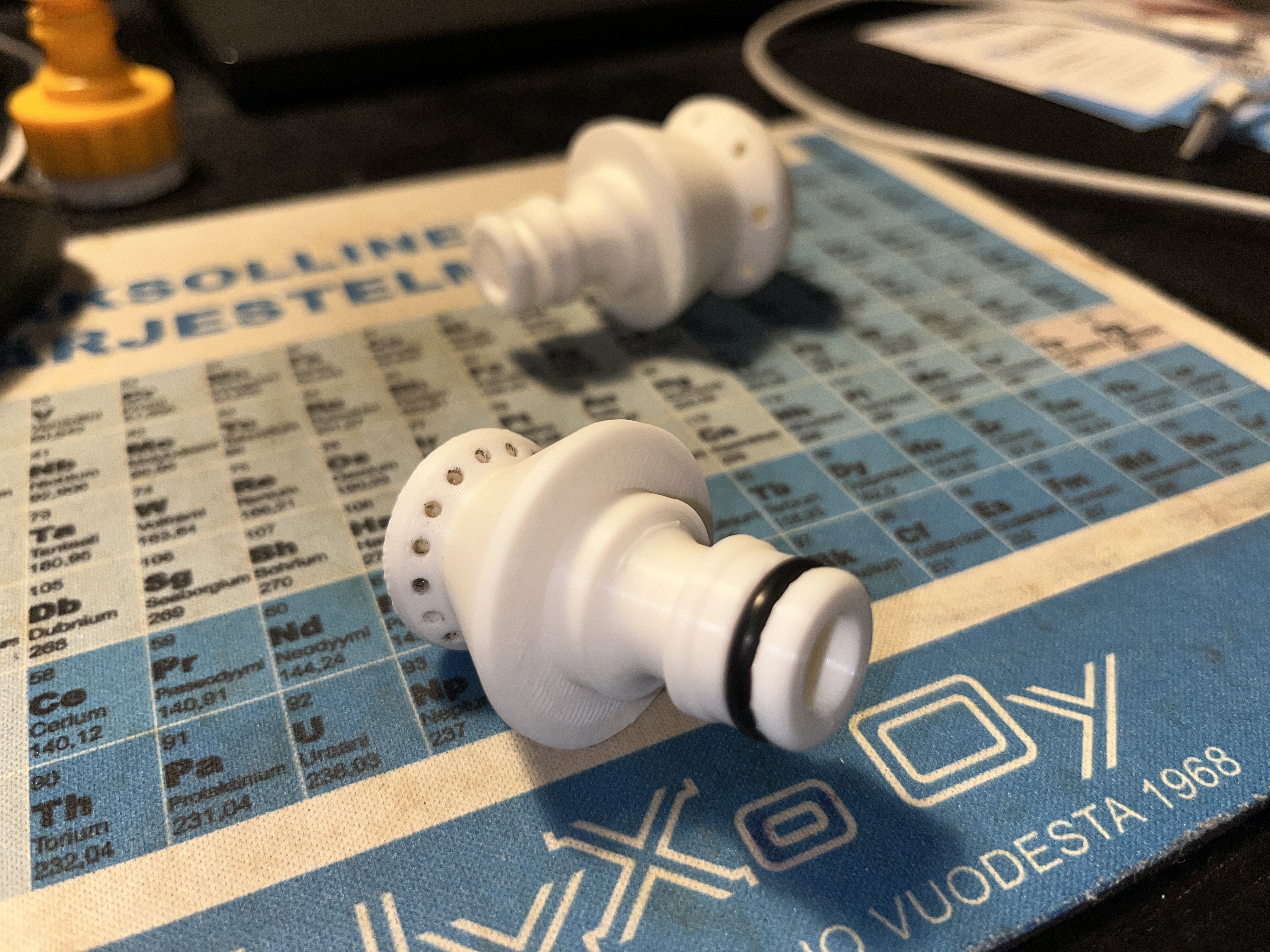

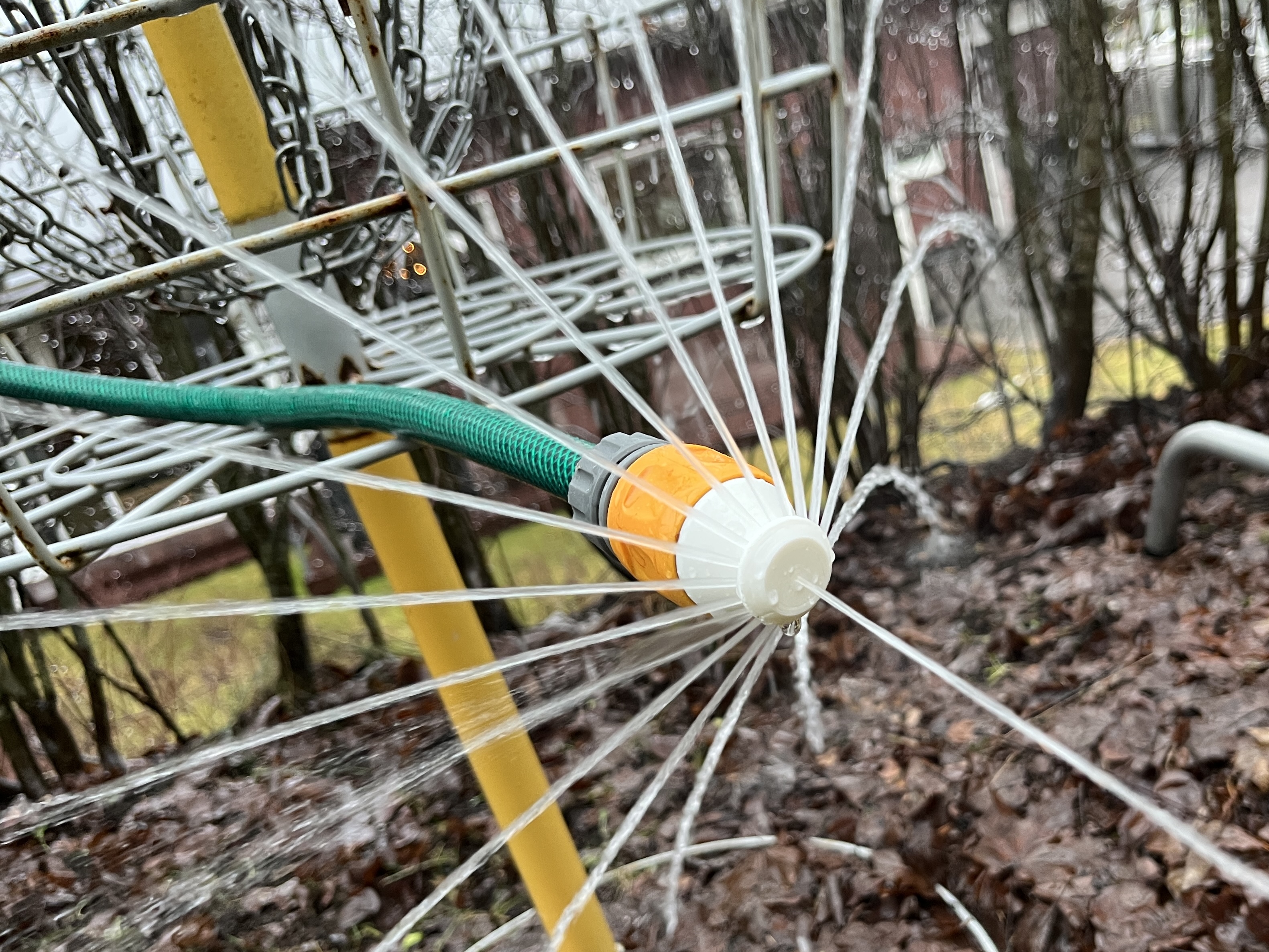

Nozzle for cleaning outdoor drainage pipes. Fits into garden hose connectors, e.g. Hozelock. 2mm outlets: 16 jet backwards in 45 degrees angle and one jets forwards.
I printed it upside down with 0.2 layers, 50% infill and bit thicker walls using supports only on the connector part. Connector part has groove for O-ring gasket.
I haven't yet tried it for real, but though to share already. I'll update when I've got some experience using it.
This is the 2nd iteration, the first one was with eight 3 mm outlets, but then the jets were too weak.
