Dust Cyclone Stabilizer

Object description:

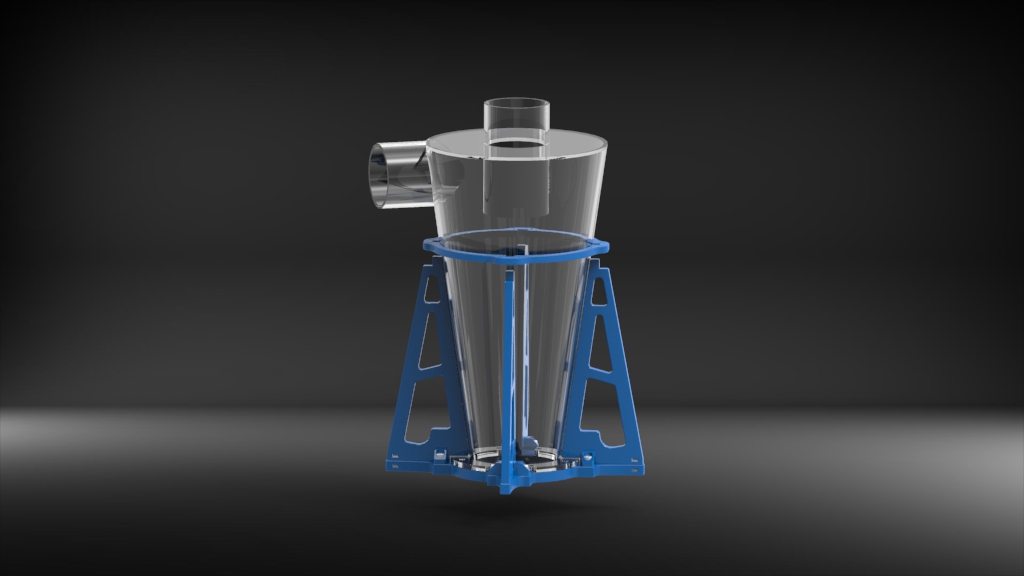

This assembly stabilizes a cyclone and protects it from breaking off from the collection container due to too much pull on the suction hose.

Comments:

• Don't be fooled by the attached photo. All the dust on the cyclone comes from outside. The photo was taken after a few days in hard use in a very dusty environment.
• The cyclone has an efficiency of almost 100%. This means that almost everything ends up in the dust container and the filter in the vacuum cleaner stays clean for a long time.

Assembly instruction:

• Melt the thread inserts into the base flange
• Screw the feets with the countersunk screws on the ribs
• Move the ring over the cyclone
• Apply silicone between base flange and the cyclone
• Put the cyclone on the base flange
• Screw the pre-assembled ribs with M4x12mm socket head screws on the base flange
• Move the ring down over the pins of the ribs
• Apply silicone between base flange and the dust collector
• Screw the stabilizer with M5x20mm,M5 washers and M5 Nuts on the cover of your dust collector
• In the base flange, rib and ring are slots that you can fix the parts together with zip ties, if you want. But this is not necessary.

Bought parts:

• 1x Cyclone to which the stabilizer fits (size 1): https://www.amazon.de/dp/B07RWTBDKS/ref=cm_sw_r_wa_api_glt_i_EC2E5YMM1WFNMVRSMHQ8?_encoding=UTF8&th=1
• 8x Thread insert M4 (e.g. https://www.amazon.de/dp/B07YSV66Y5/ref=emc_b_5_t?th=1)
• 8x Socket head screw M4x12mm
• 4x Countersunk screw 3x25mm
• 16x Washer for M5
• 8x Socket head screw M5x20mm
• 8x Nut M5
• Silicone or any other sealant to tighten the sealing surfaces
• My airtight dust container: https://www.amazon.de/dp/B00CHKS59E/ref=cm_sw_r_wa_apa_glt_i_YF9TQ0XKCD0NN0SBF1AD?_encoding=UTF8&psc=1
  • Any other airtight sealable container will work as well

Print settings:

Material: PLA, PETG or ABS/ASA

Layer height: 0,2mm

Infill: 25%

Perimeters: 3

Brim: no

Support: no
