Canopy for line of sight flying with the OddityRC toothpick.
- Ocena
- 0 / 5
- Polubienia
- 1
- Pobrania
- 11
- Wydruki
- 0
- Wyświetlenia
- 144
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

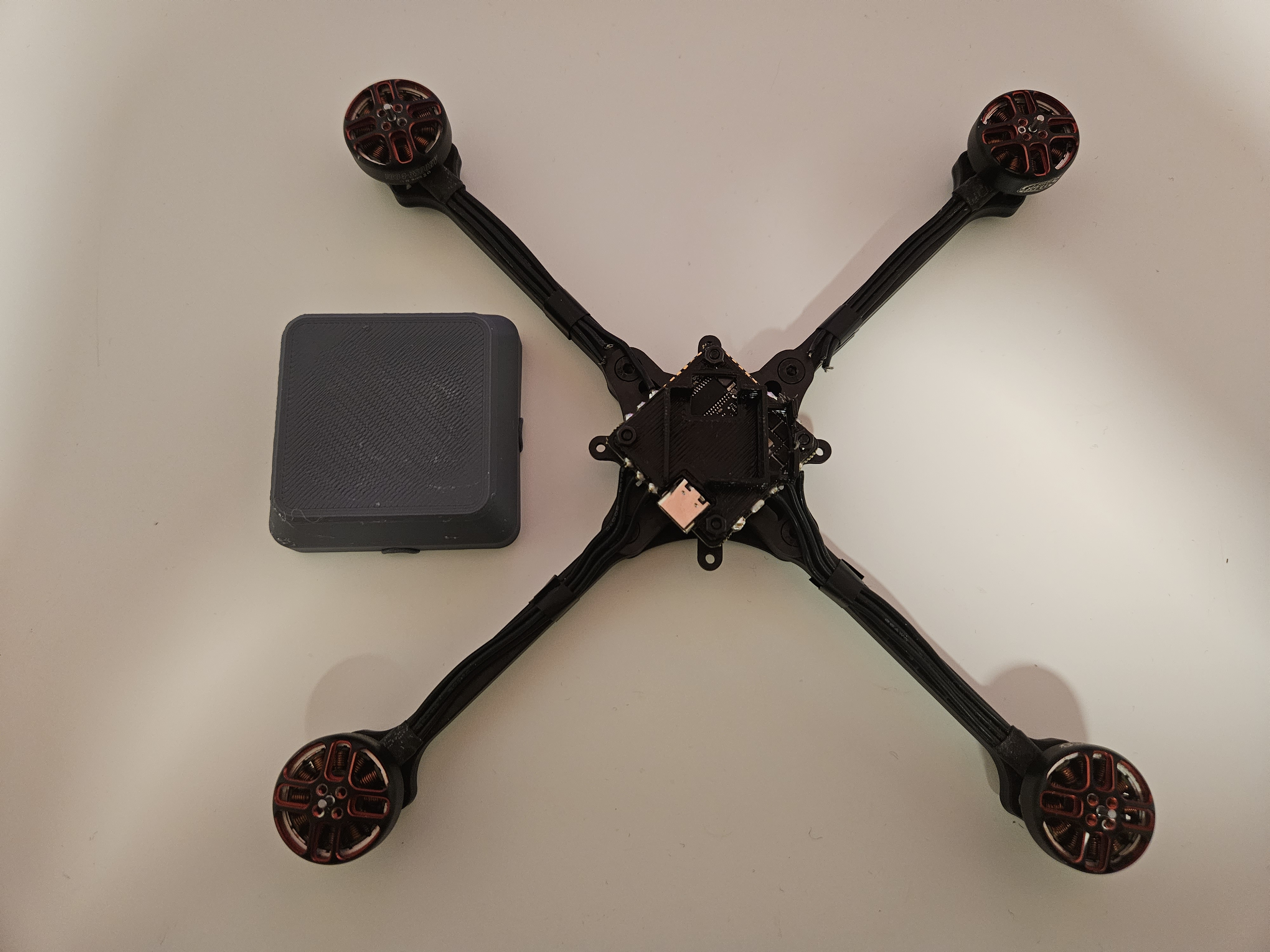

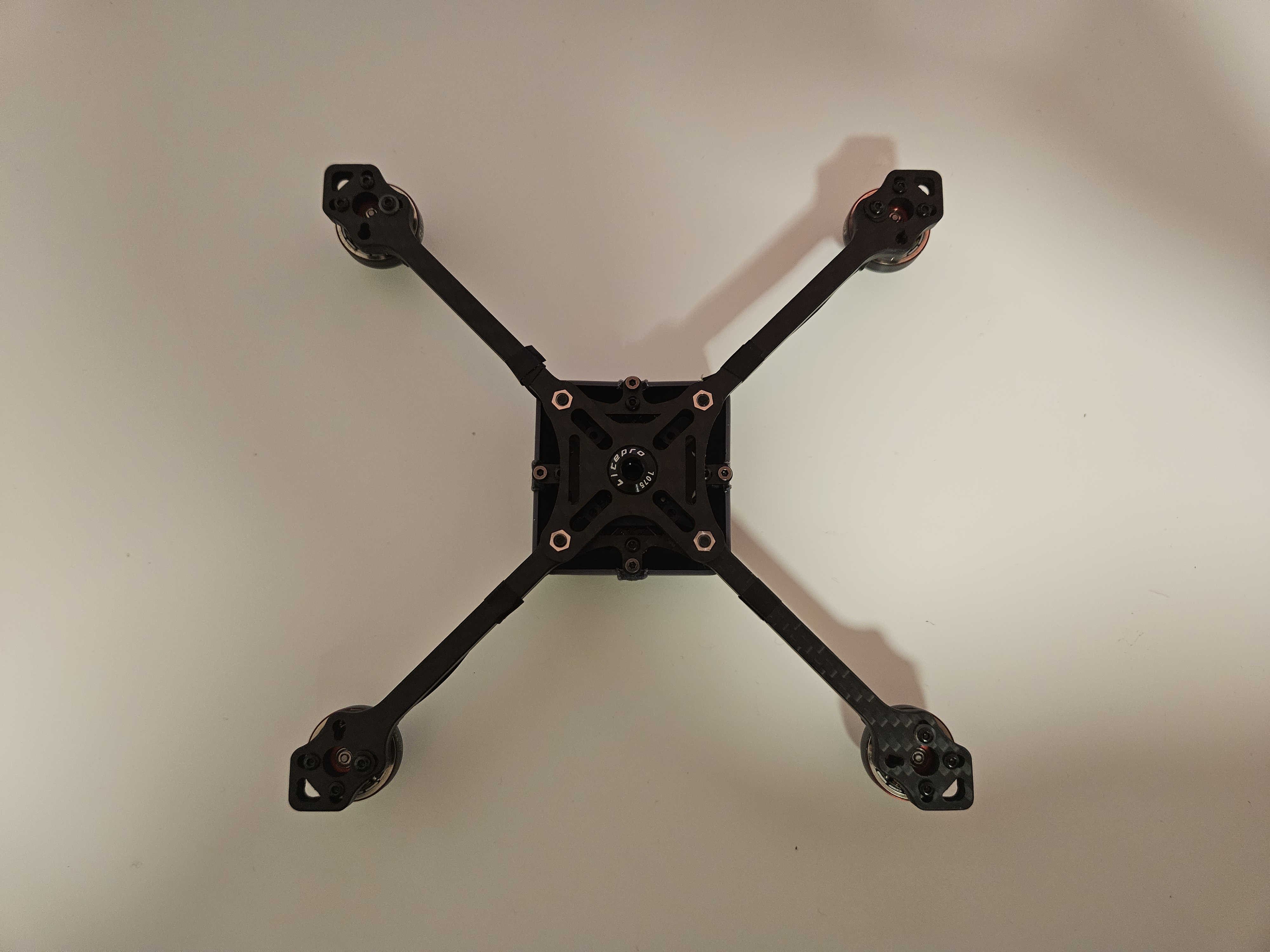

Compatability: It has only been tested on the 5-inch version; however, it should fit the 4-inch version as well. Check dimensions for compatability with other frames.
Dimensions:
Canopy outer dimenstions 51x51x19mm
Hole spacing 32,5x32,5mm
(Small version: 25x25mm spacing)
Hardware:
Insert dia: 2mm
Screws M2x10mm
(Small version: M2 Stack screws)
Support my work: All of my models are available for free. If you'd like to show your appreciation, consider Buying Me A Coffee.

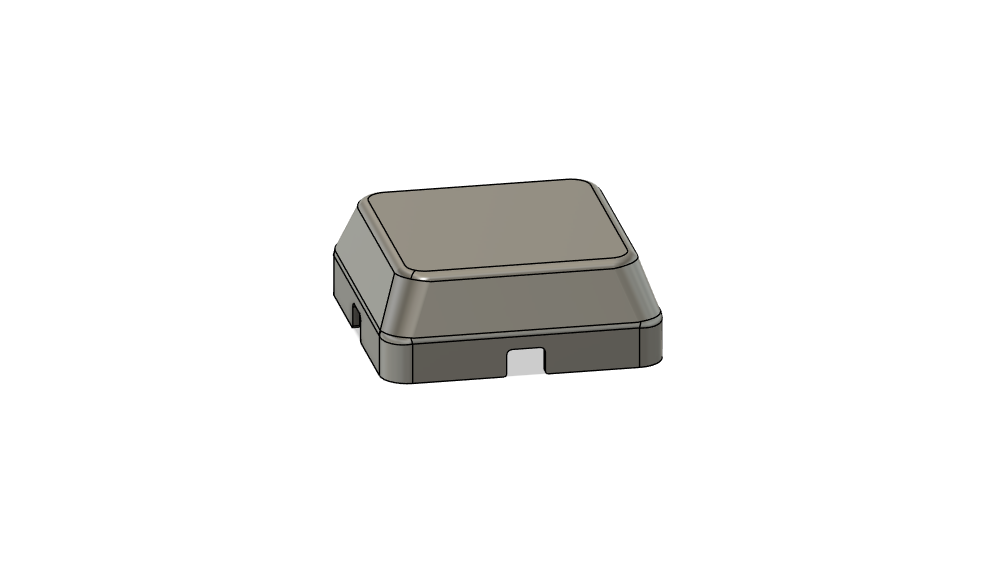

Design Features: The top of the canopy is thinner in the middle for better GPS satellite reception. I use a GPS on the LOS drone for rescue in case I lose the orientation of the quad.

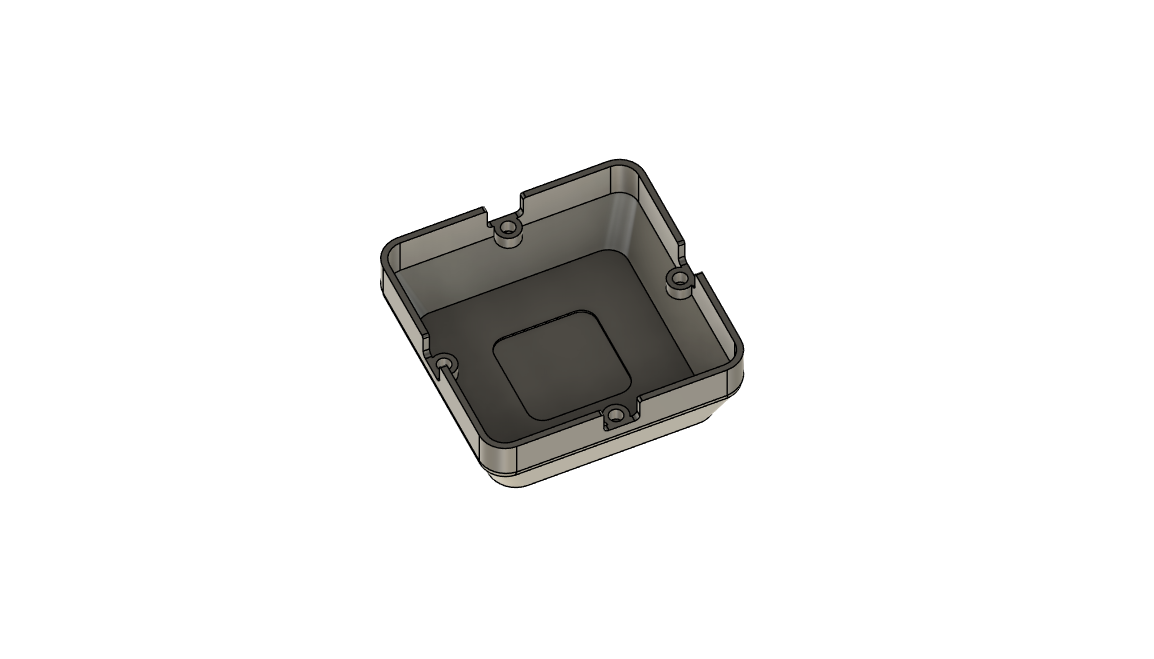

3 different looks:

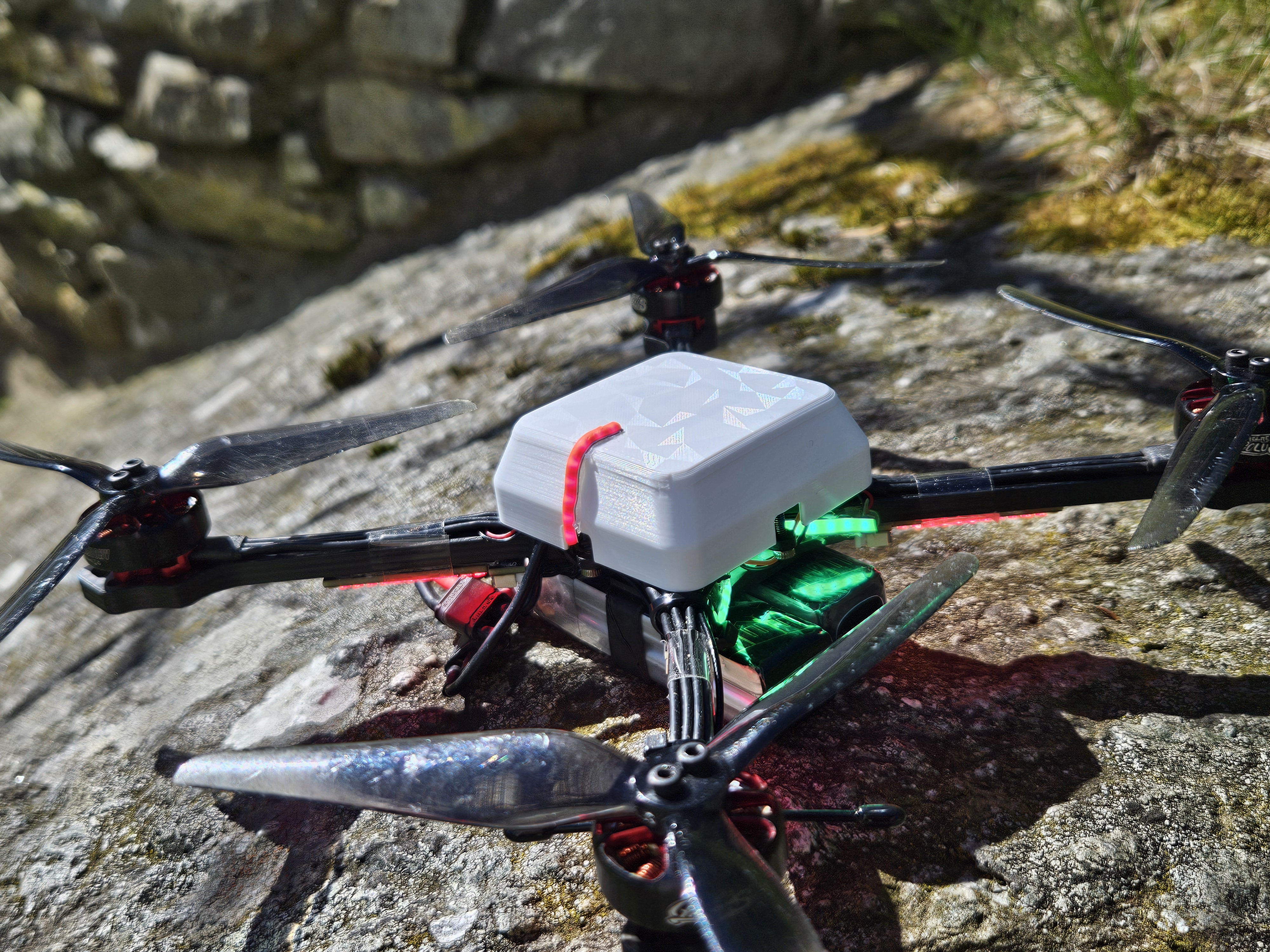

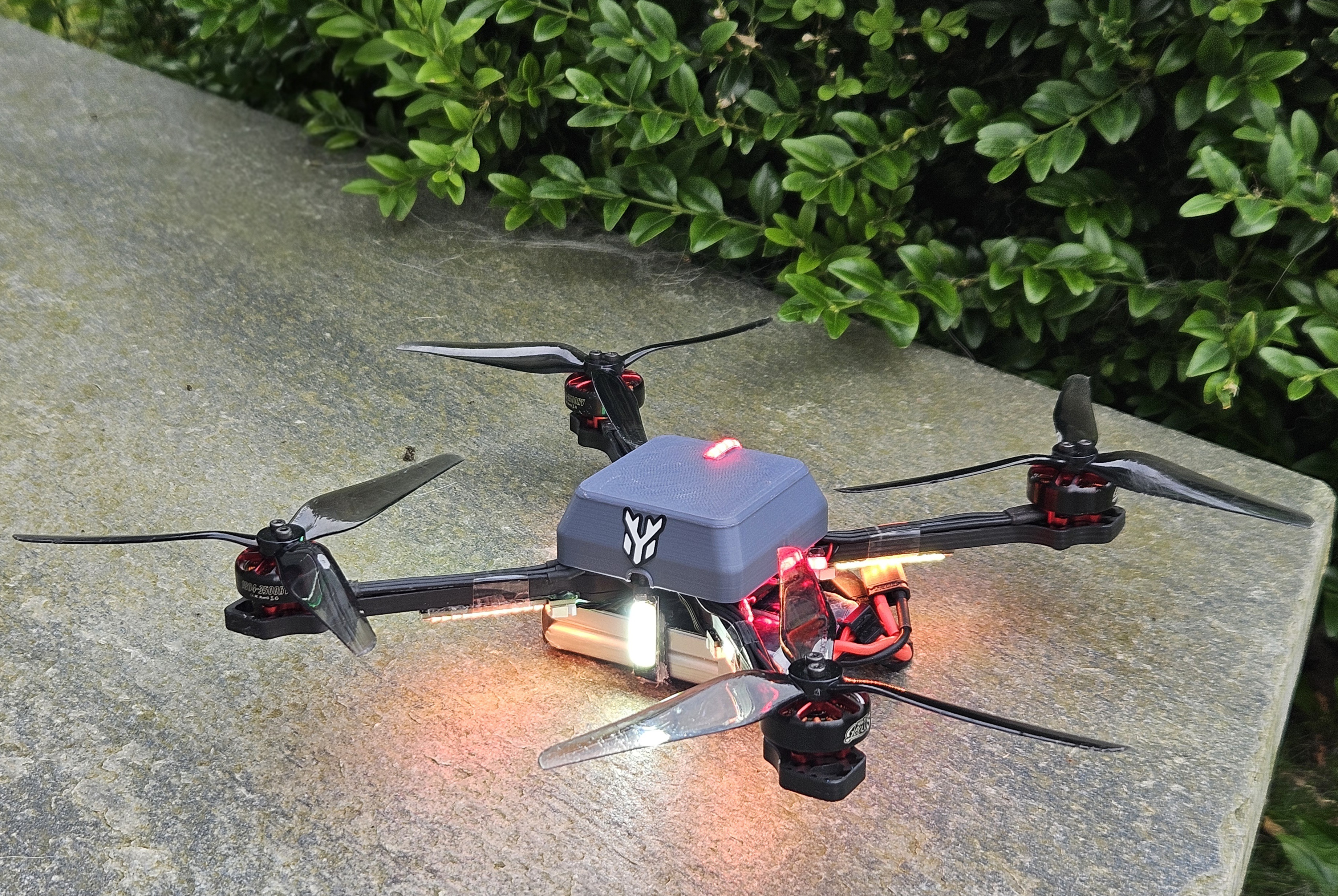

Shown in pictures
For sligtly more prop clearance

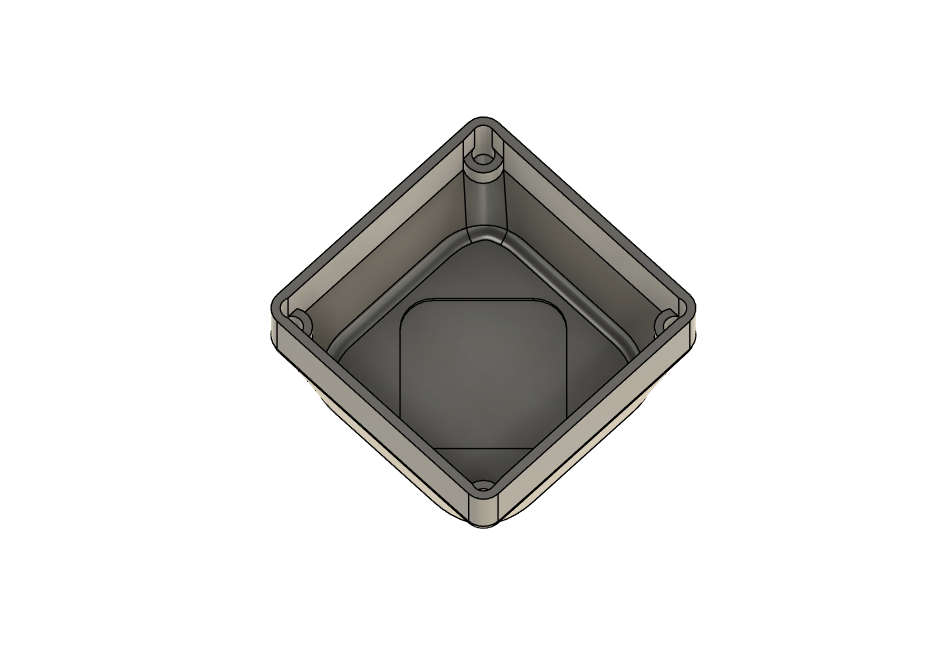

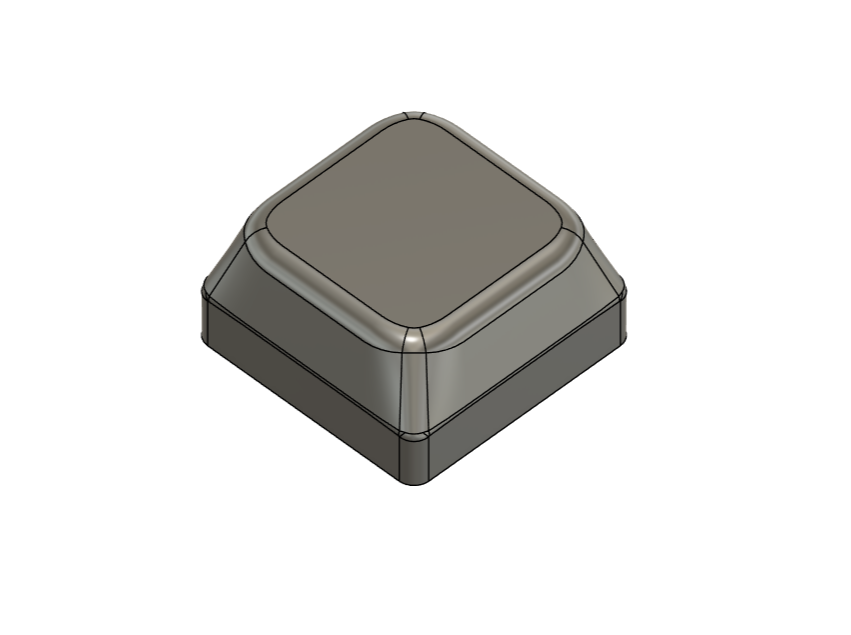

Smaller and mounts on top of the FC.
Filament: PLA
Change Log:

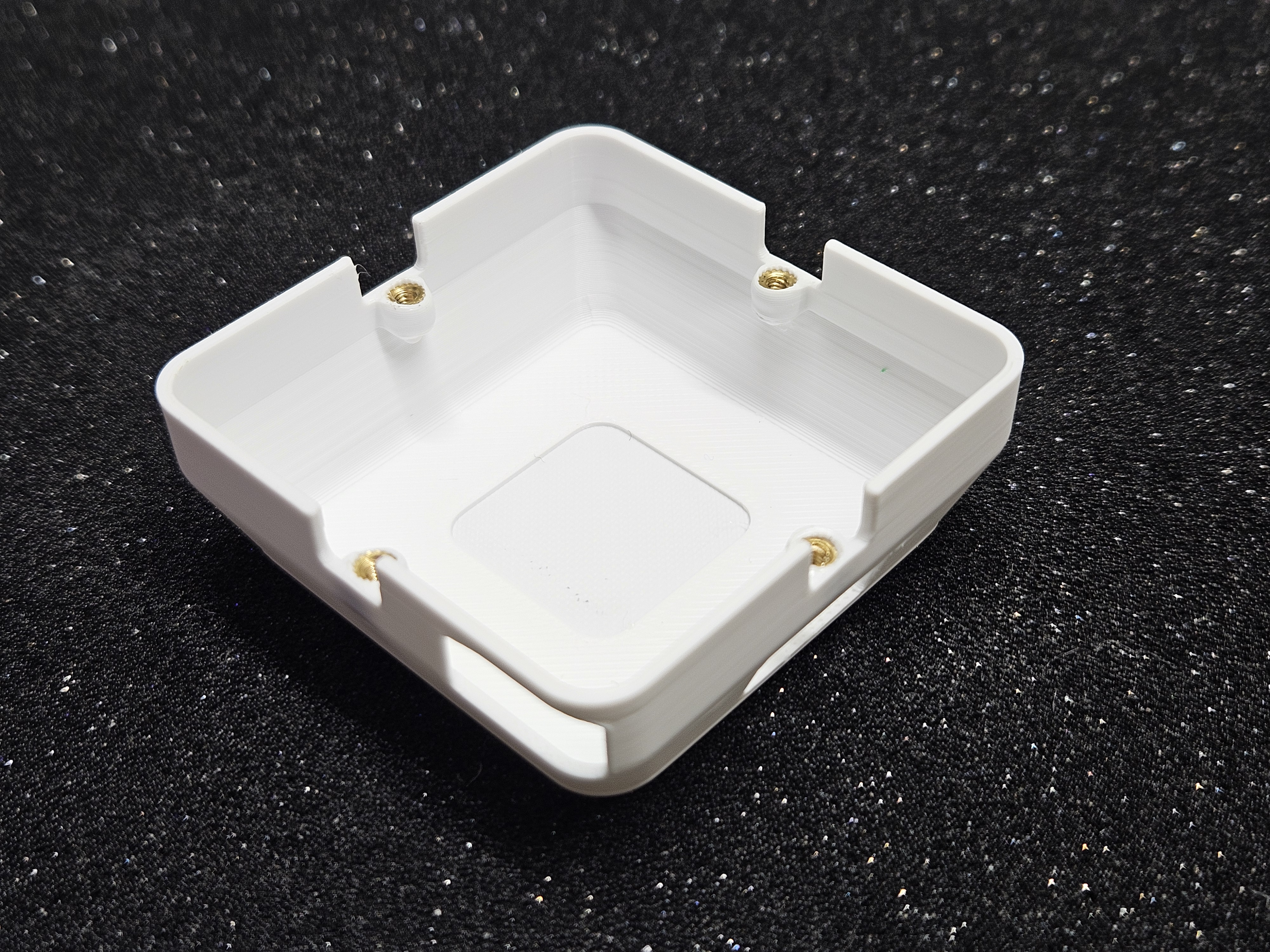

Rev 01 : Cutouts for mounting inserts - When installing the inserts in the original design, the PLA melted around the attachment holes, as seen in the pictures.

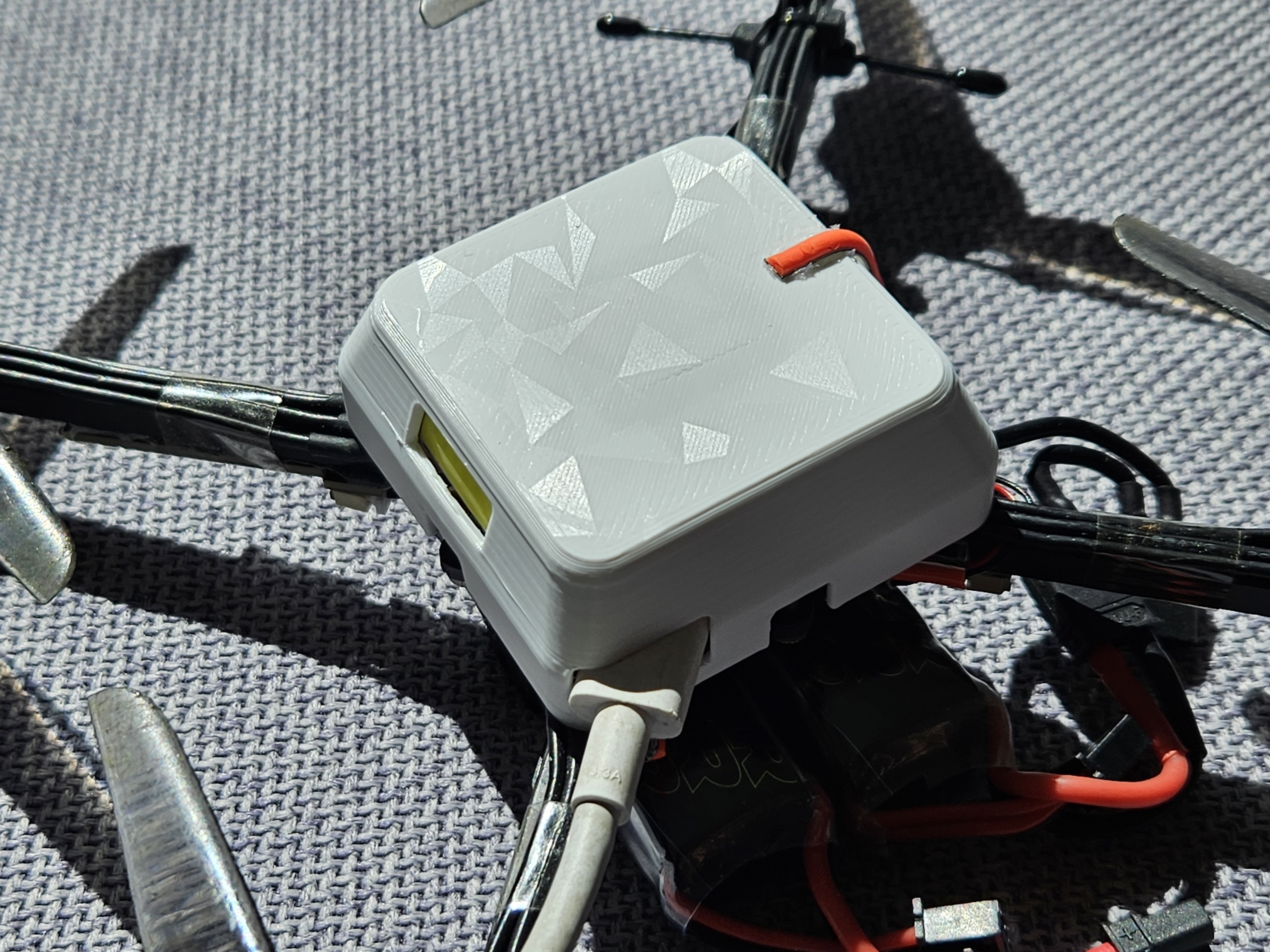

Rev 02 : Made a cutout for the USB-C port for easy access, and hole in the front for an LED.
