Motor direction disc - Indicate the correct propeller mounting position.
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
A simple way to determine the correct direction for mounting the props, after the props has been removed for transport.
- Ocena
- 0 / 5
- Polubienia
- 4
- Pobrania
- 27
- Wydruki
- 0
- Wyświetlenia
- 109
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

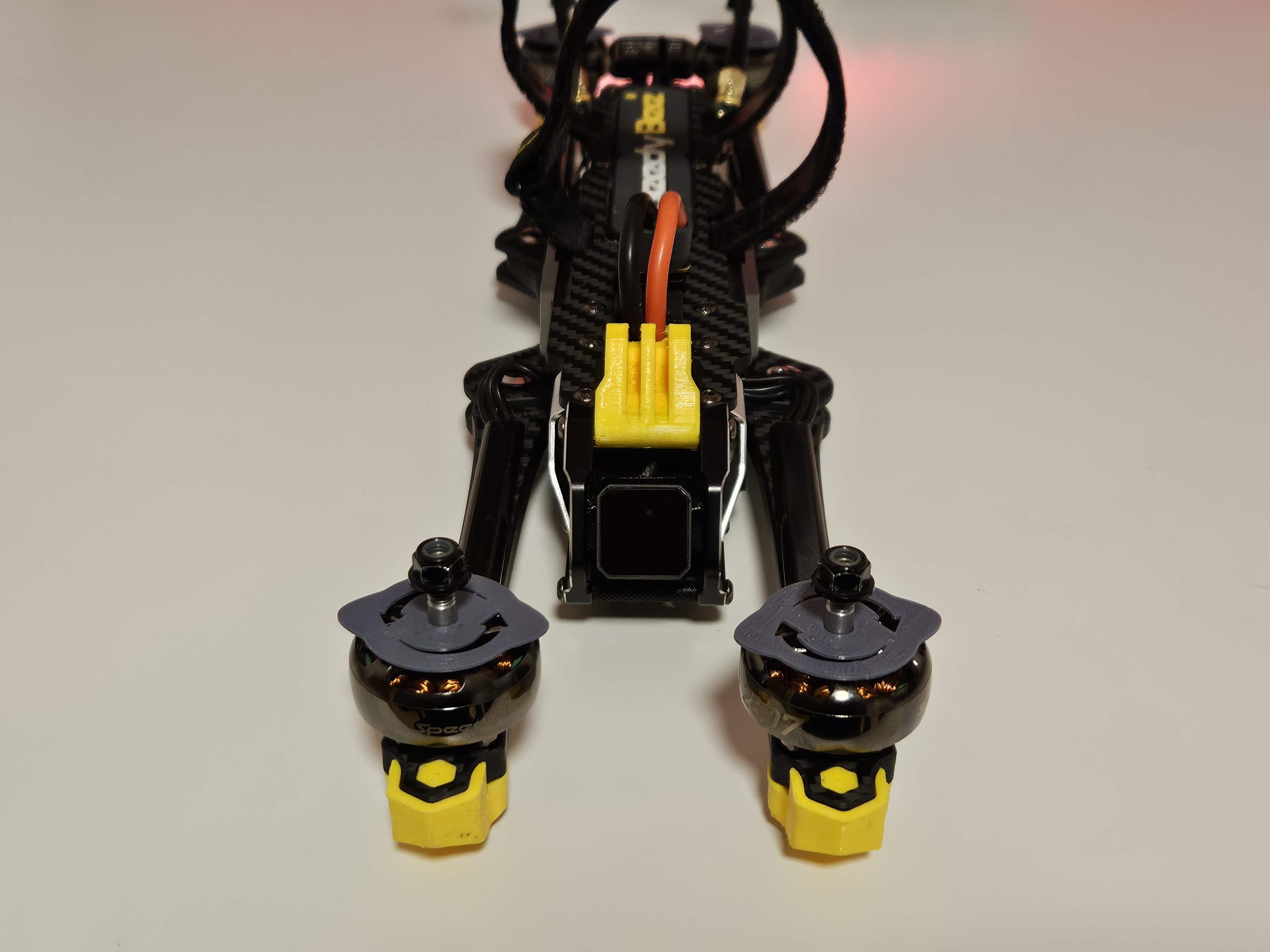

Install these direction-indicating discs on the motors when removing the props to ensure they are always mounted in the correct position.

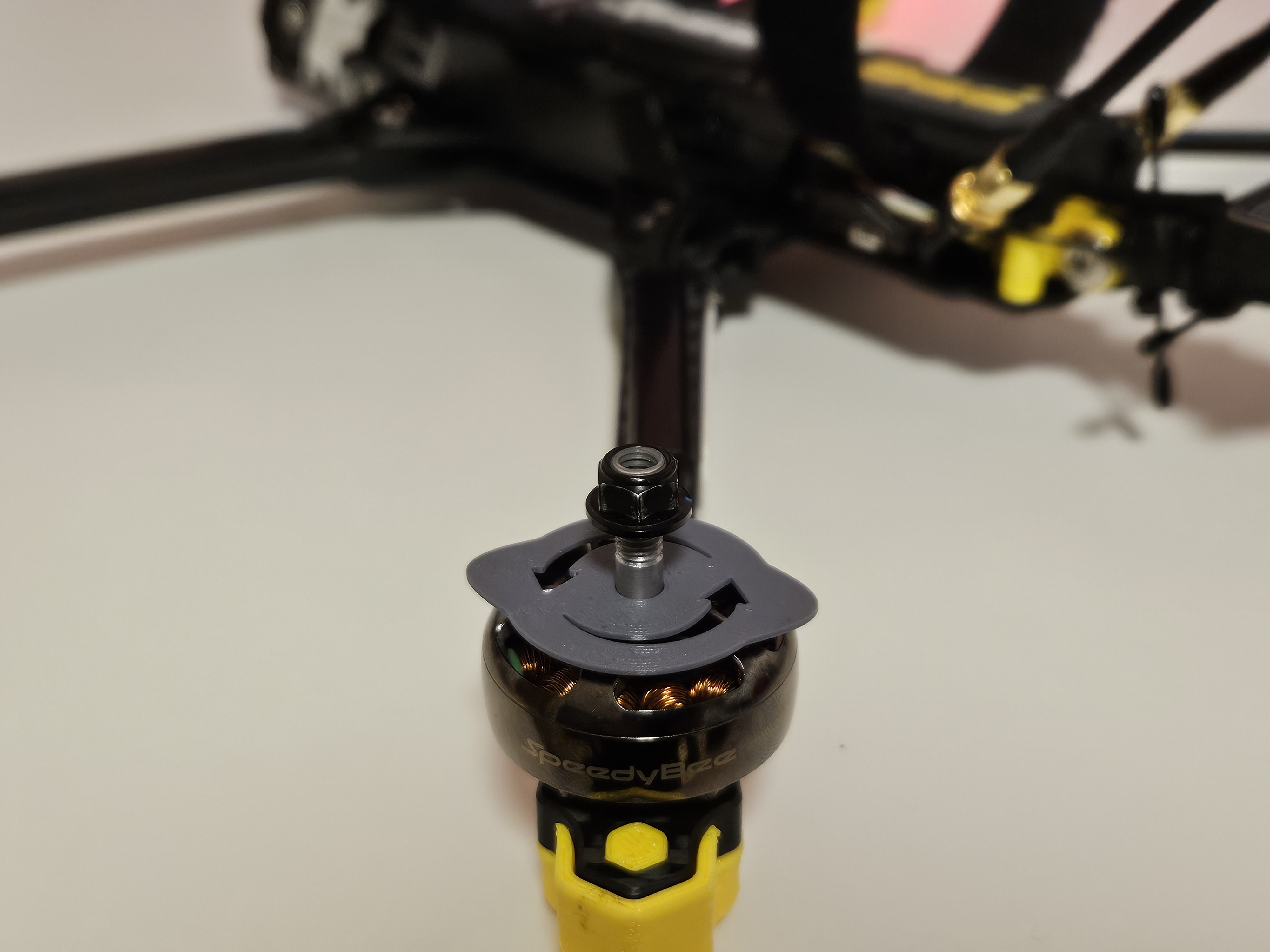

Note: Simply rotate the discs to select the desired CW or CCW direction.
Compatibility: Three sizes are available - one for 5-6" drones and one for 7-10" drones, both with a 5mm shaft diameter, and one for 10-13inch drones with 6mm motor shaft.
Quick Tip: You only need to print one disc for a quadcopter. Once you know the direction of one motor, you can easily determine the direction of the other three motors based on the fact that the motors mounted diagonal to each other spinn the same direction.
Support my work: All of my models are available for free. If you'd like to show your appreciation, consider Buying Me A Coffee.
Filament: PLA

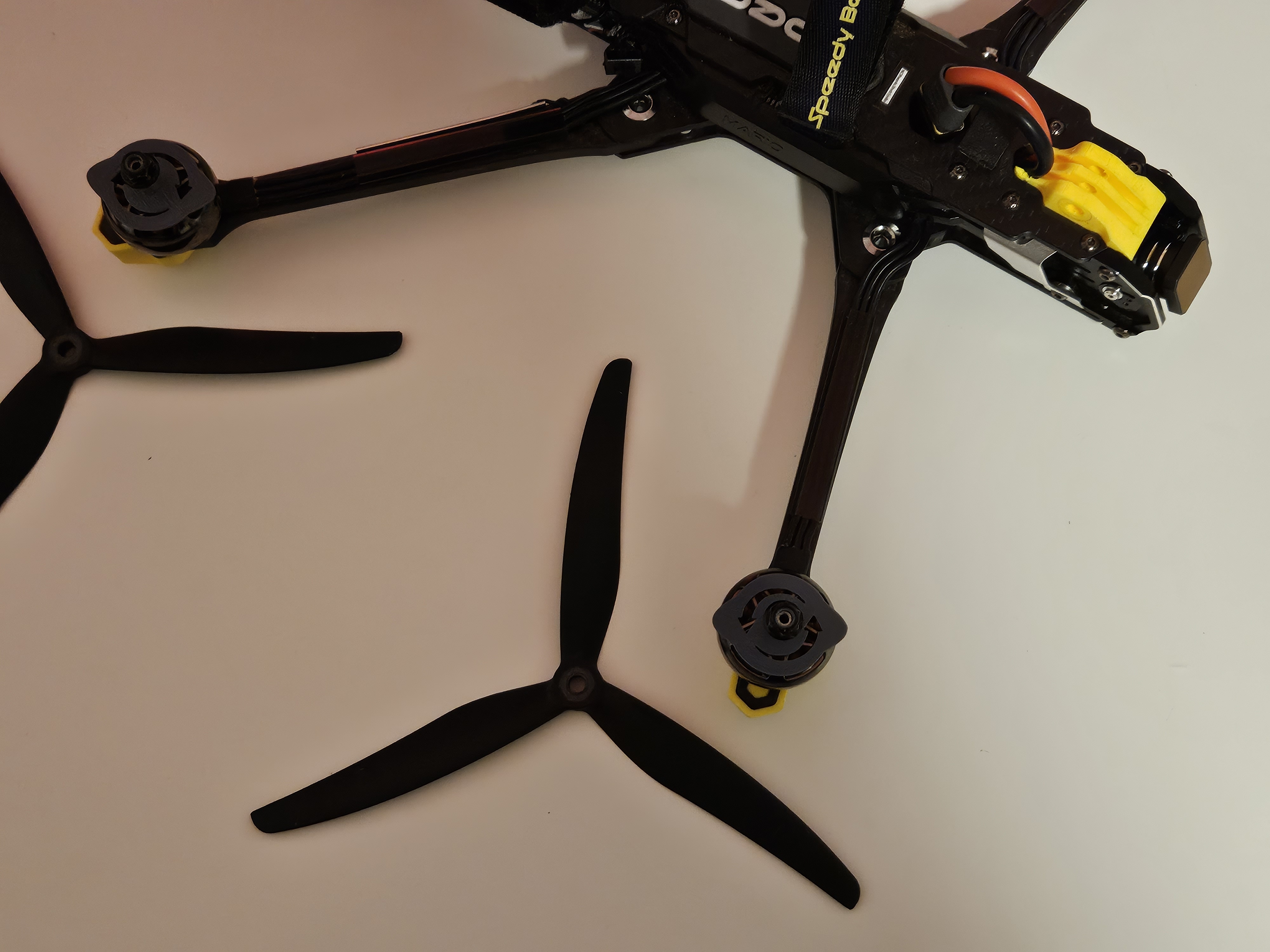

I use these on the Speedybee Mario Fold 8 when the drone is folded in its case when traveling. More Speedybee Mario Fold 8 parts are available here.
