This is a fully 3D-printable Bluetooth boombox designed for great sound and a modern aesthetic. With its pill-shaped body and well-thought-out internal structure, this speaker provides both powerful audio output and an eye-catching design.
🔊 Features:

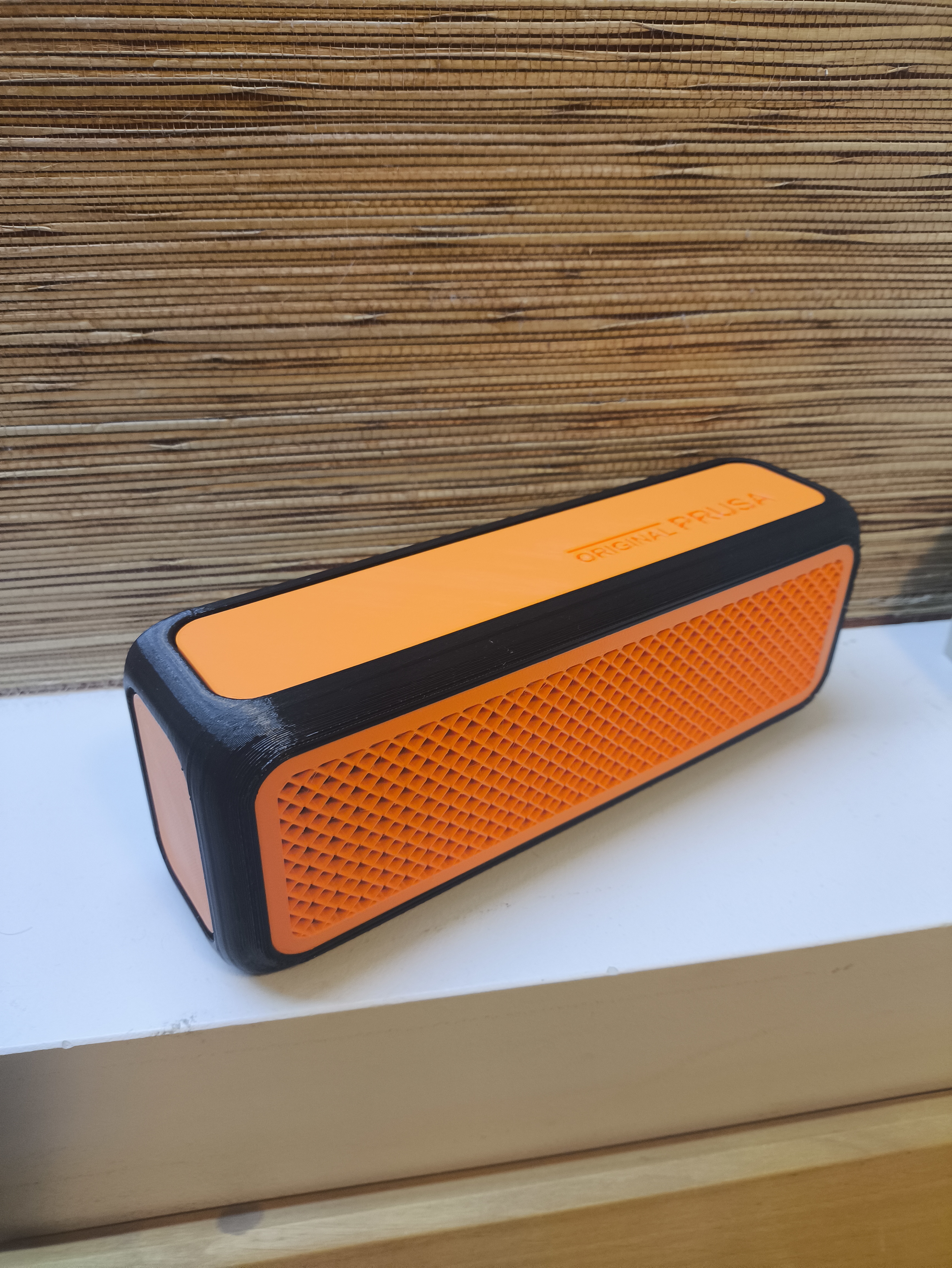

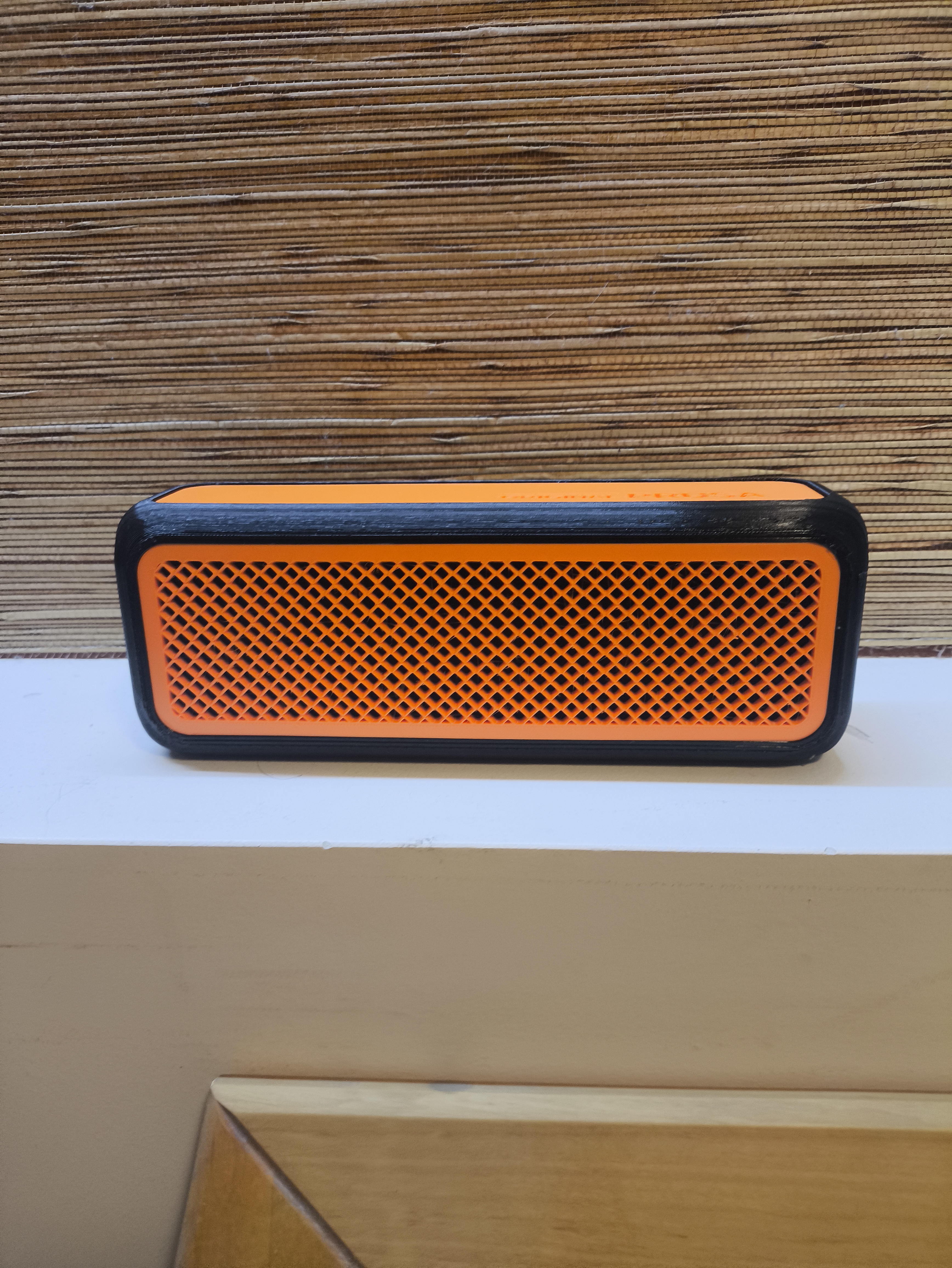

✅ Stylish Design – Pill-shaped with a flat front and back for a modern, clean look

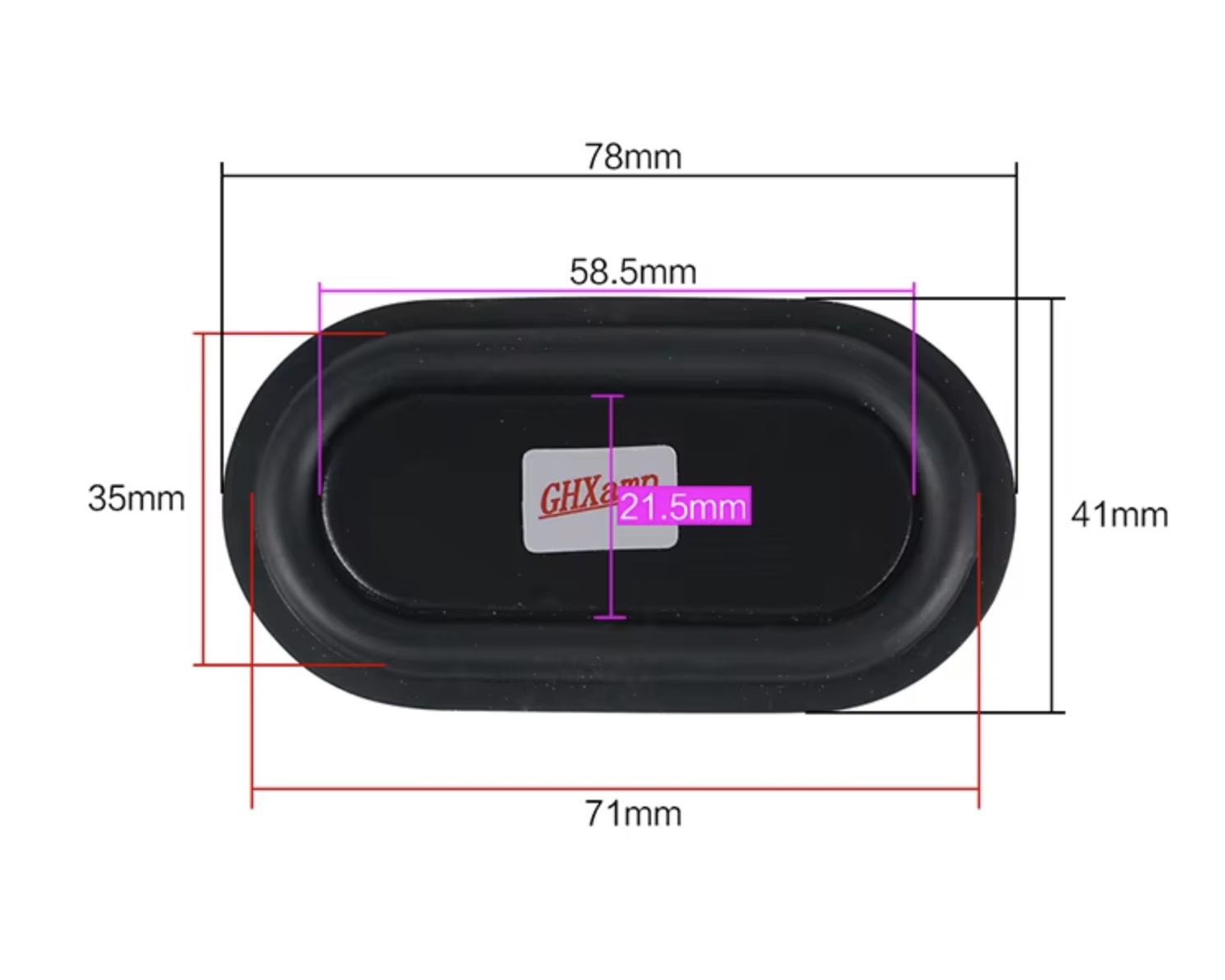

✅ Dual Speakers + Passive Radiators – Enhanced bass and high-quality audio performance. Uses two 40mm diameter full range speaker drivers. And two 40x78mm square passive radiators.
✅ Bluetooth Connectivity – Wireless music playback for convenience
✅ Optimized for 3D Printing – Designed for easy printing and assembly
✅ Compact & Portable – Perfect for home, workspaces, or on-the-go
🔧 Assembly & Printing Tips:
- Material: PLA recommended for easy printing and durability

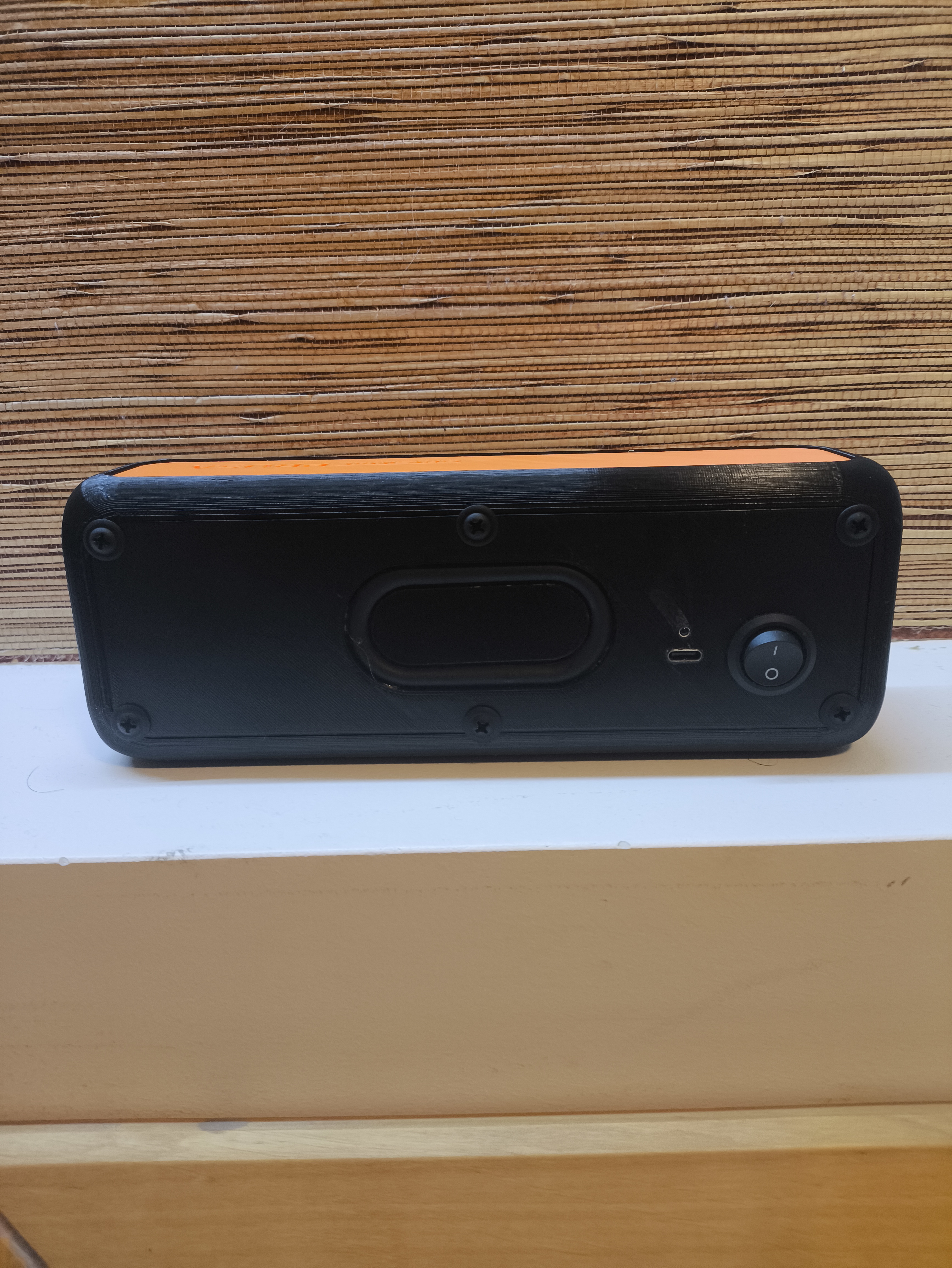

- Speaker Setup: Designed to accommodate two front-facing speaker drivers and passive radiators on both front and back for better bass response

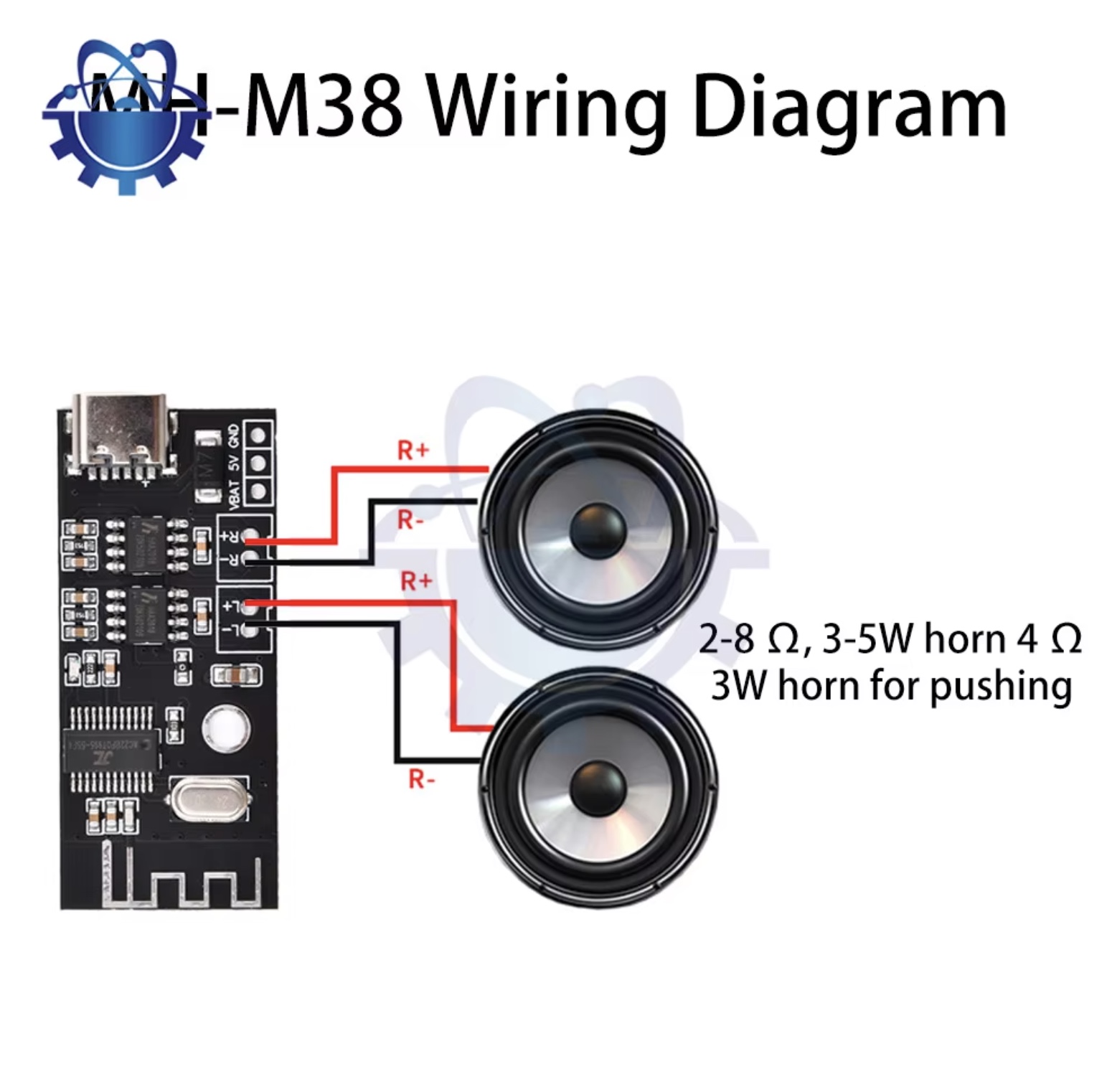

- Electronics: MH-MX38 bluetooth 5.0 2x3w amp with a BMS, a single 18650 lithium-ion cell, 2x 40mm full range speaker drivers (i reused mine from a broken JBL flip 4 speaker)
This is a perfect project for audio lovers, makers, and DIYers looking to build a unique, high-performance Bluetooth speaker. Print, assemble, and enjoy big sound from your own custom-built boombox!
