Modular kitchen knives holder
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Kitchen
- Licencja
- Creative Commons — Attribution

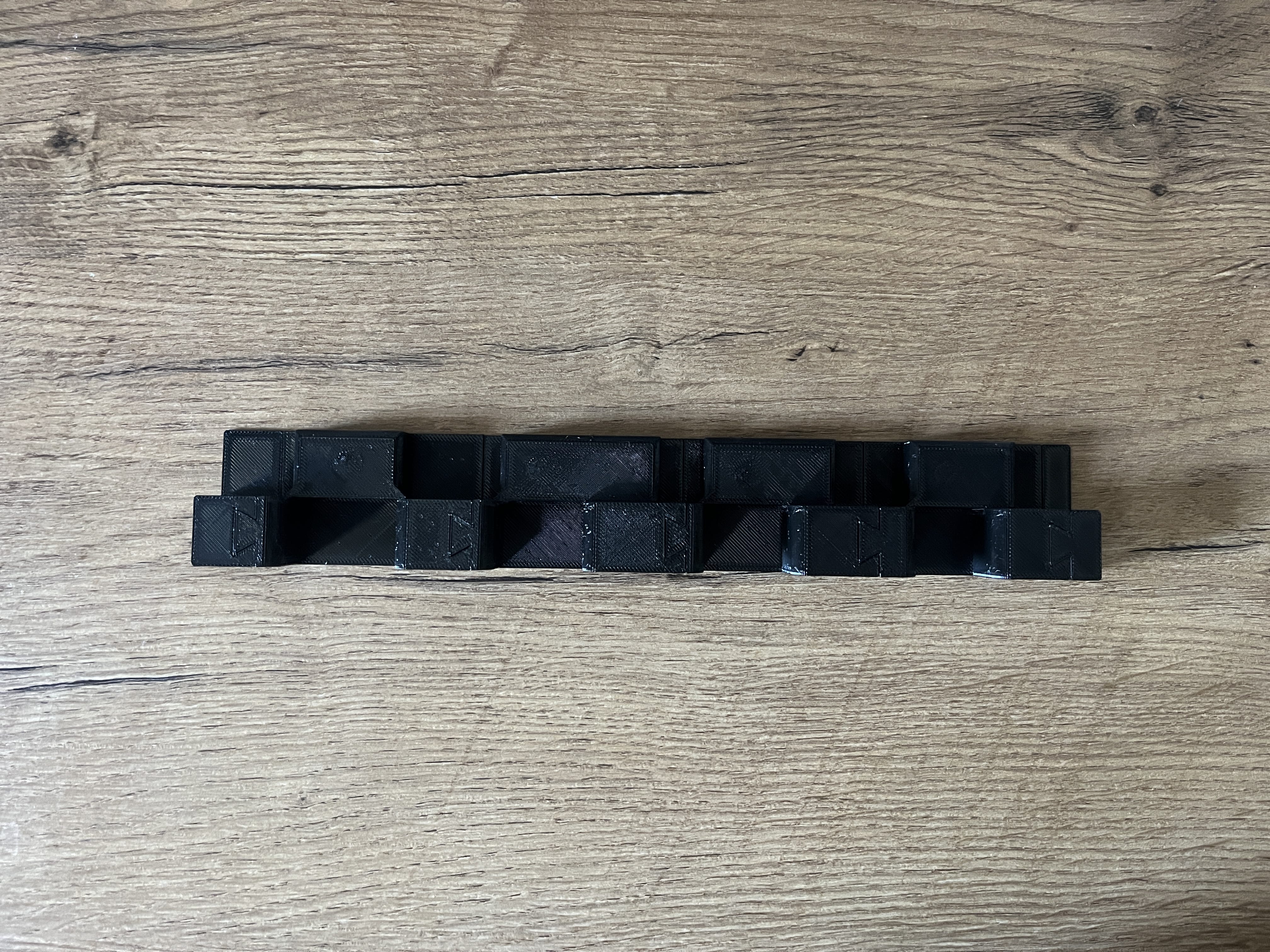

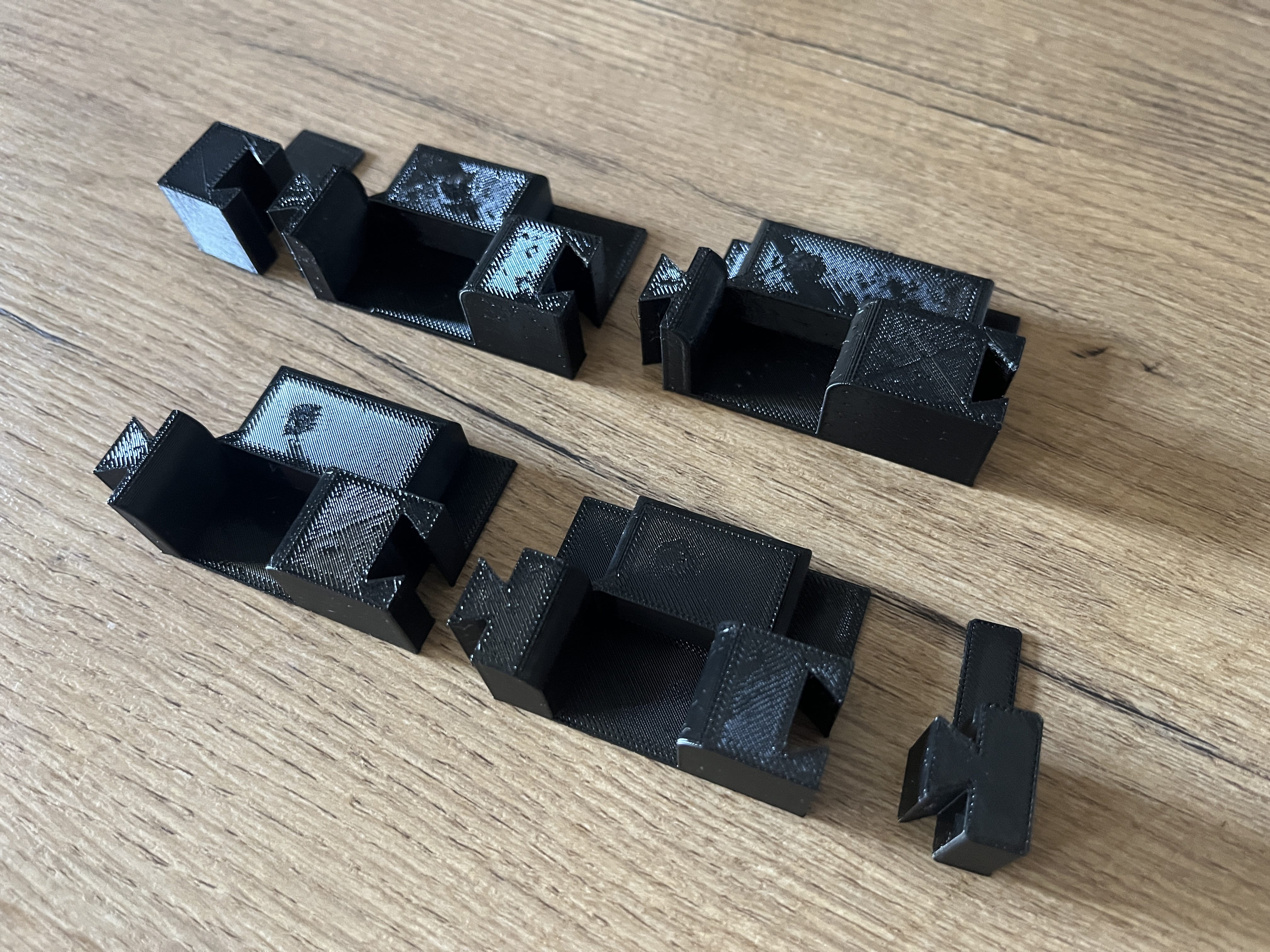

Modular kitchen knives holder with dovetail joints to easily swap, remove or add new.
Does have inset 6x2mm magnet in the blade plate to minimize rattle when opening/closing drawer.
There are models for different knife sizes:
- 21.5mm handle cutout and 31.5mm blade plate
- 24.5mm handle cutout and 39mm blade plate
- 25mm handle cutout and 47.5mm blade plate
- 32mm handle cutout and 32mm blade plate
- Plus Start and End pieces
I've printed it from TPU to even more eliminate the rattle and to avoid scratching the blades. Doesn't look good as PLA, but is softer and more gentle to the knives.
When printing from TPU, I highly recommend to set Print sequence to “By object” or to print each model separately, to avoid stringing when traveling between multiple parts. When printing from other materials, this shouldn't be the issue.

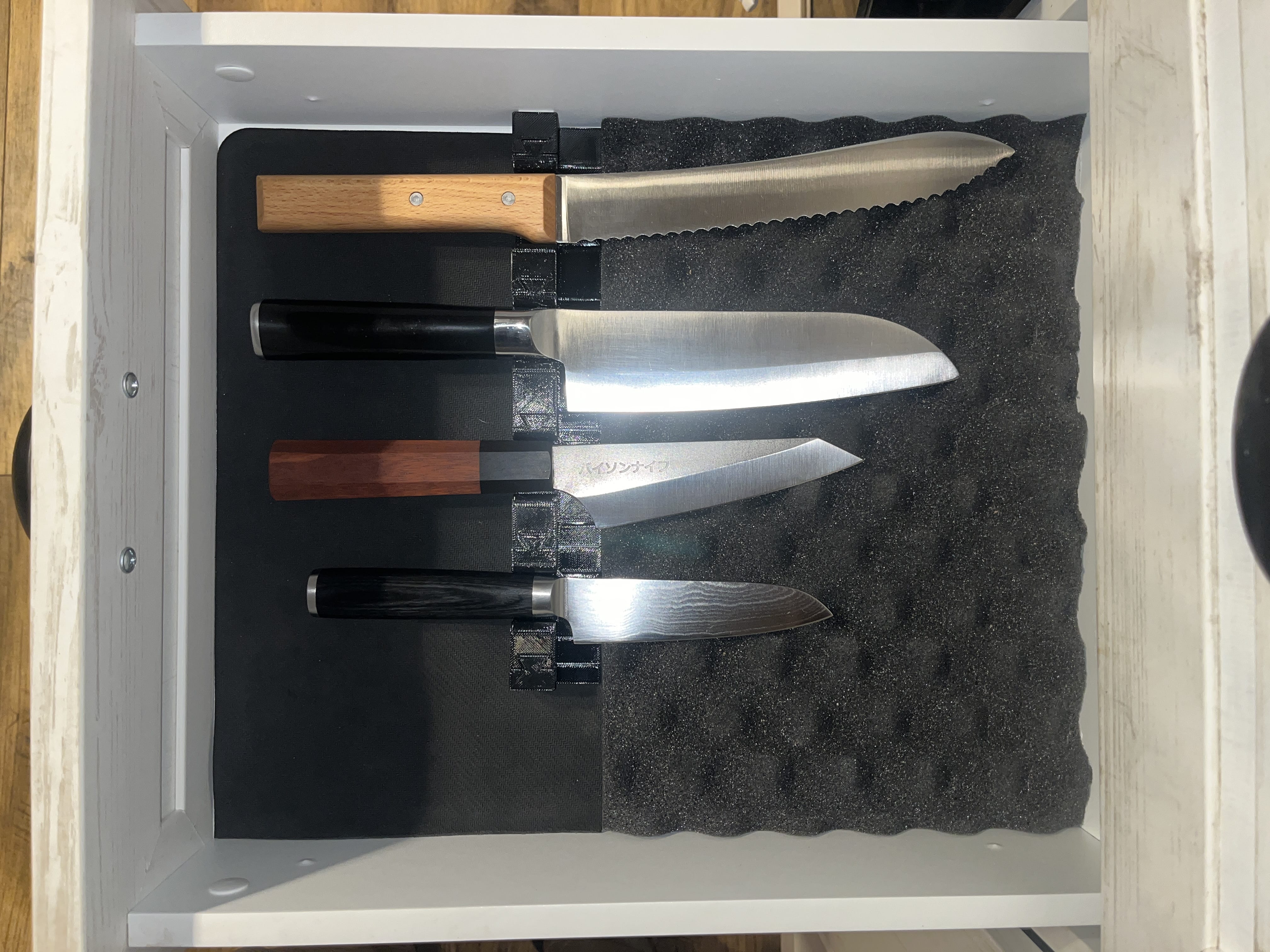

For mounting inside the drawer just used double sided tape.
