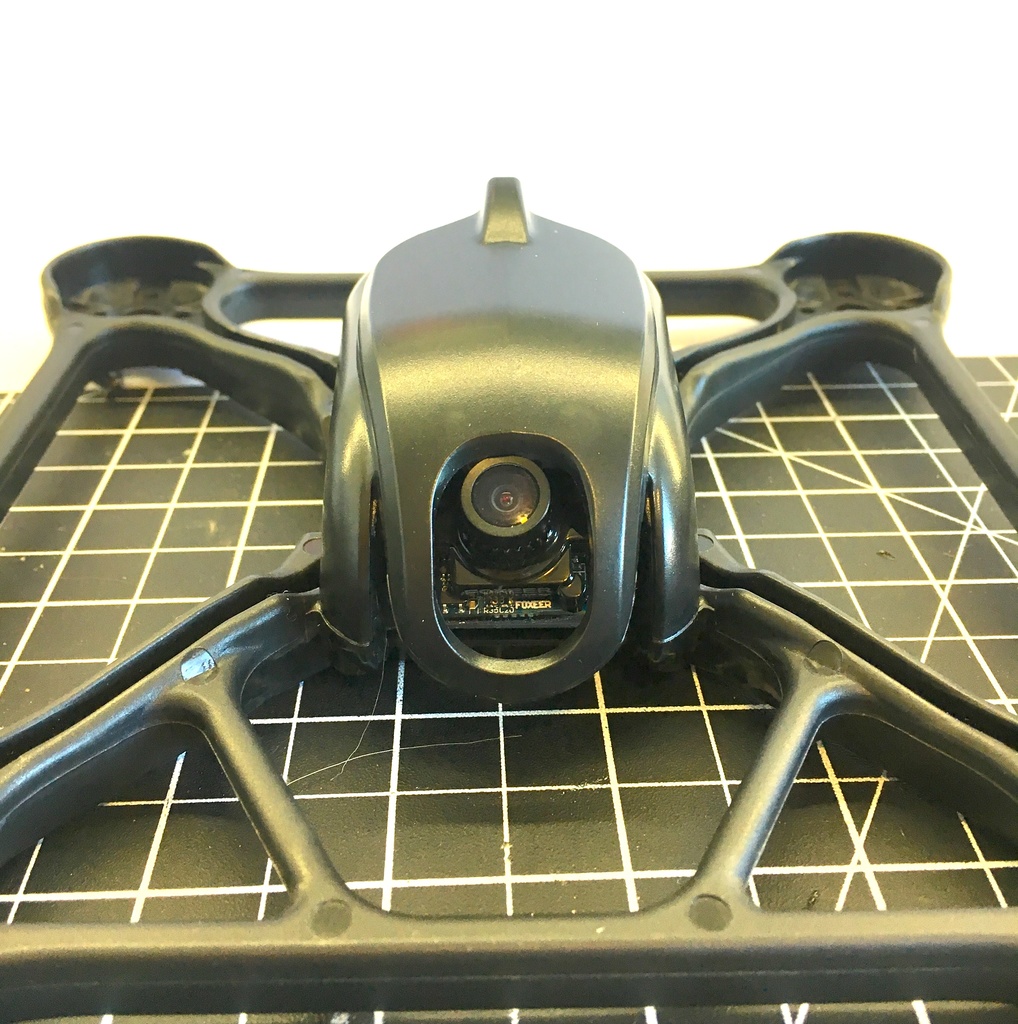

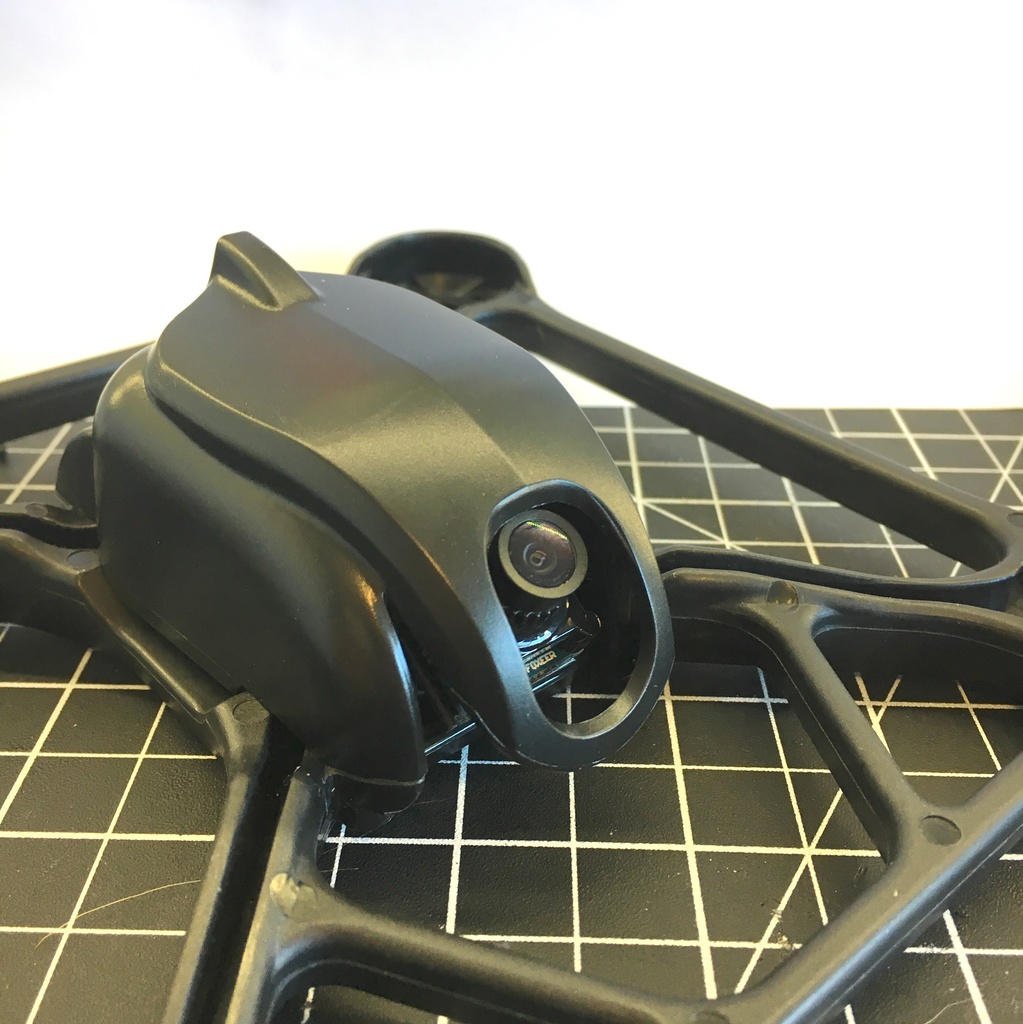

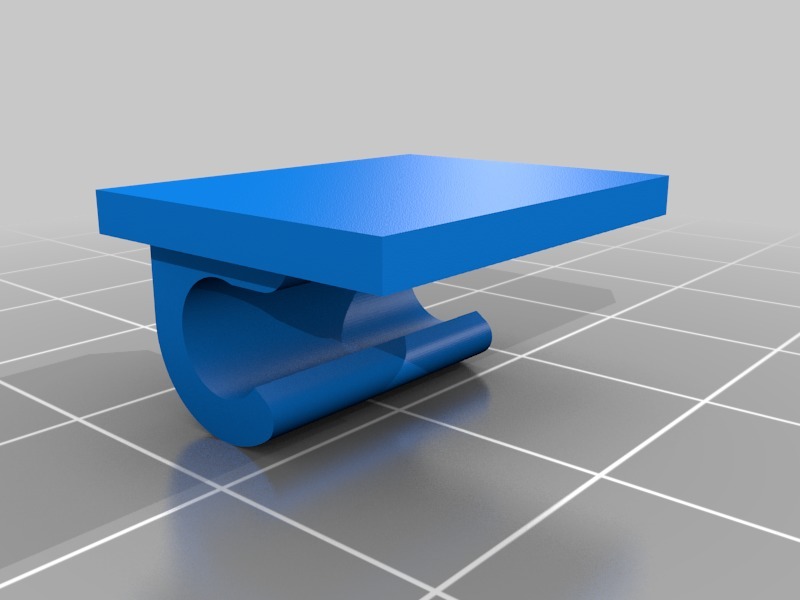

Micro Camera adapter for the TBS Oblivion

Models

There are 2 models

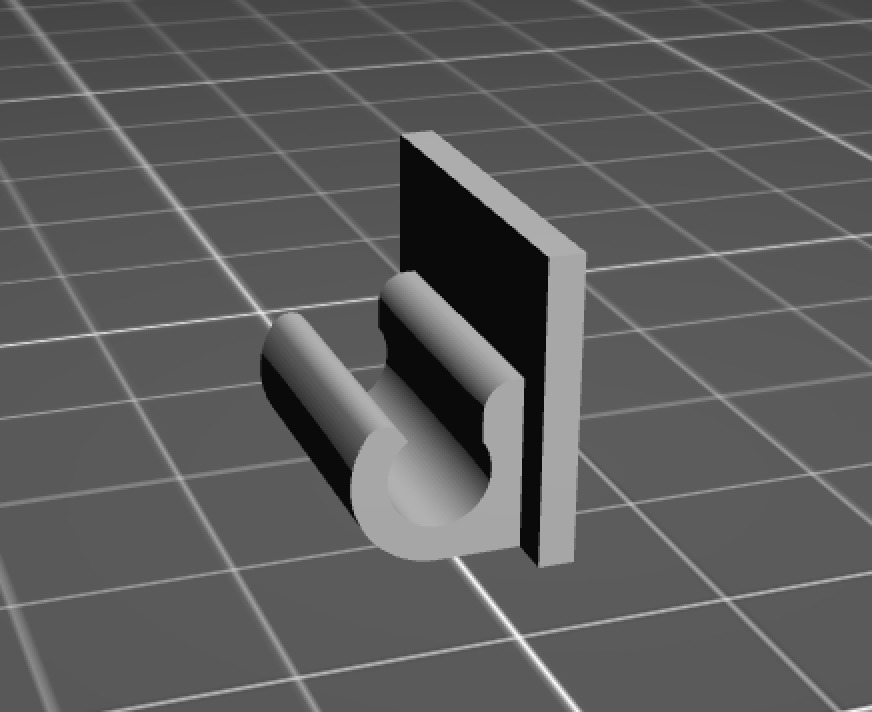

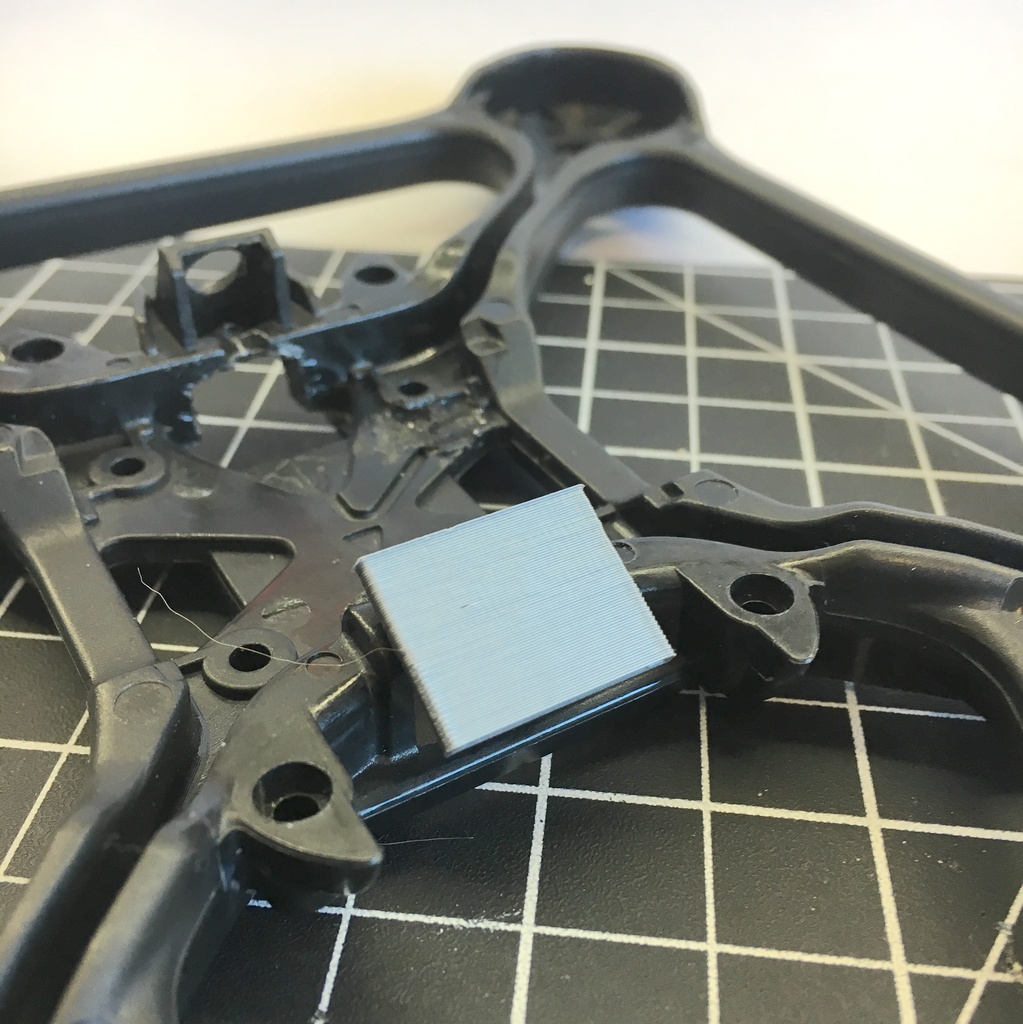

  • Simple: Use double sided sticky tape to attach

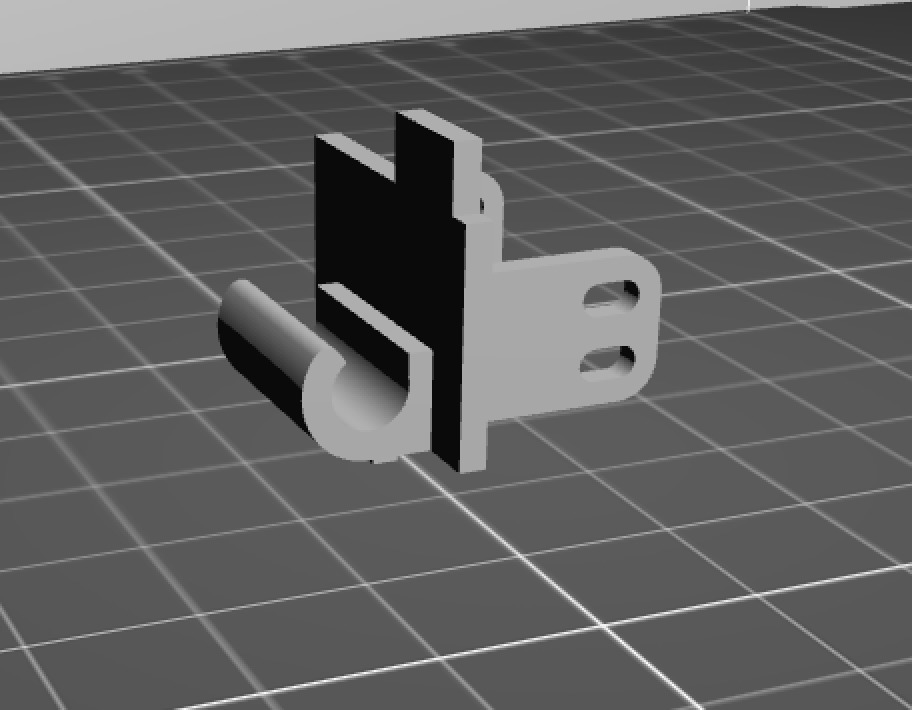

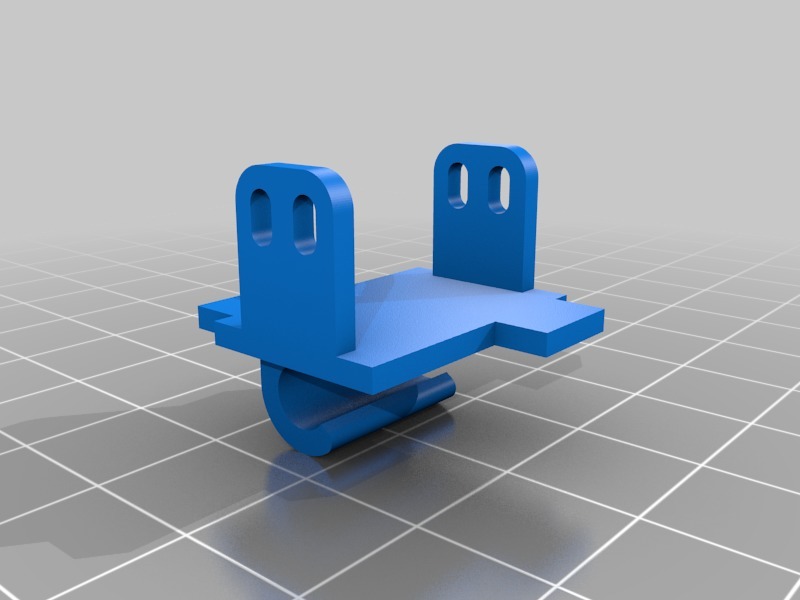

  • Full: Use screws to attach Both have been tested with the Foxeer Pro micro camera. I don't have any RunCam cameras to test with. If you encounter a camera that doesn't fit, please let me know.

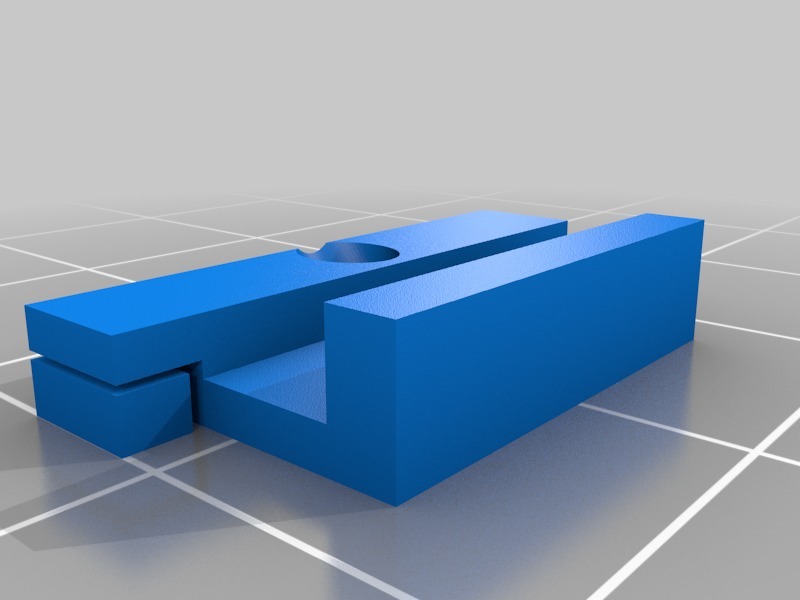

    ### Slide Down Protection

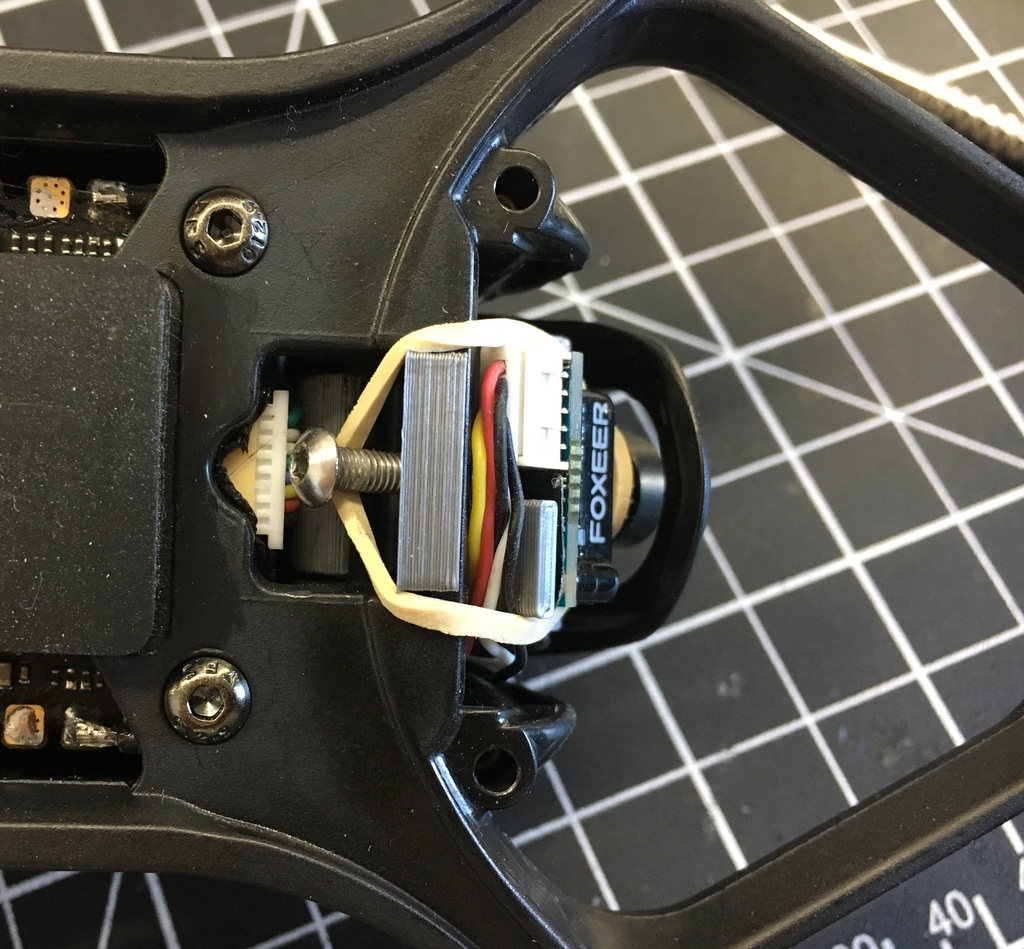

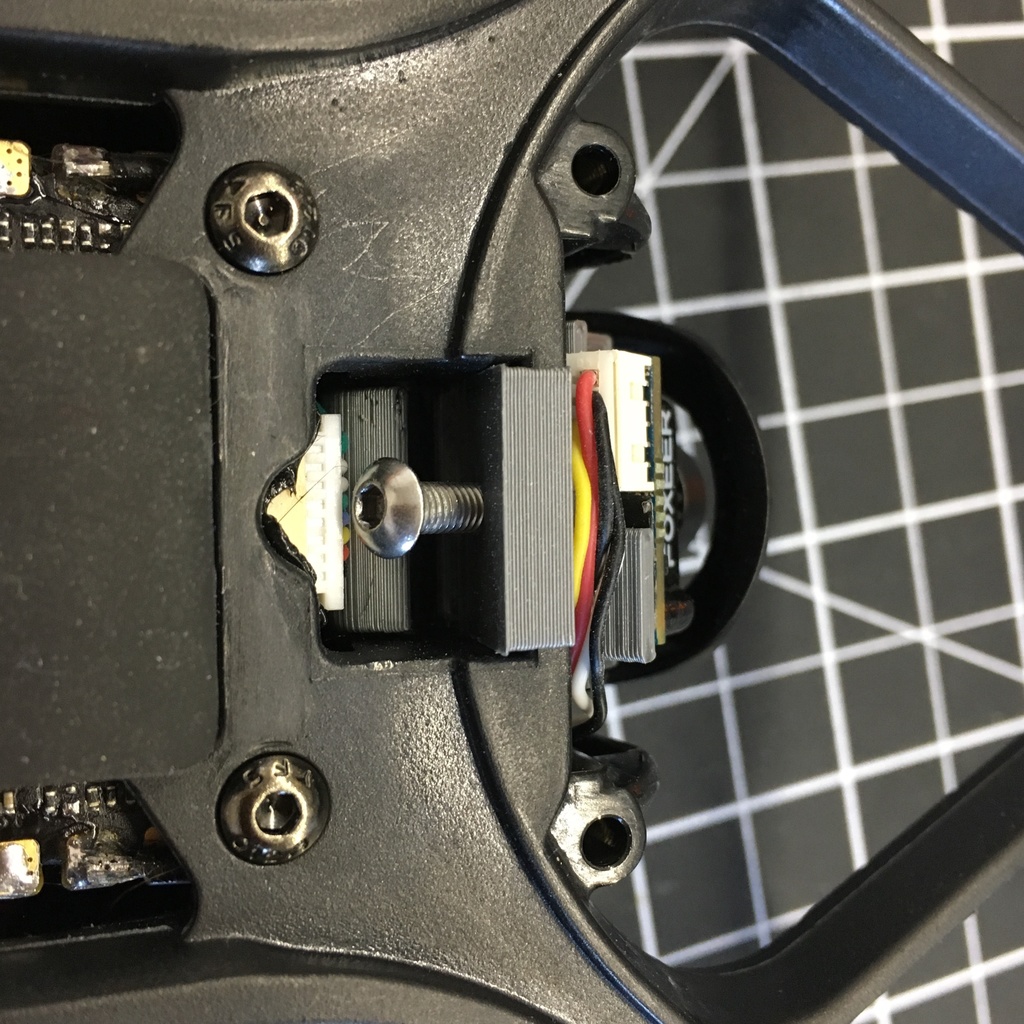

    There is an optional piece that mounts on the bottom. By threading a m3 x 10 screw through it you can get fine grained control of the camera angle, and prevent the camera from falling down in a crash.

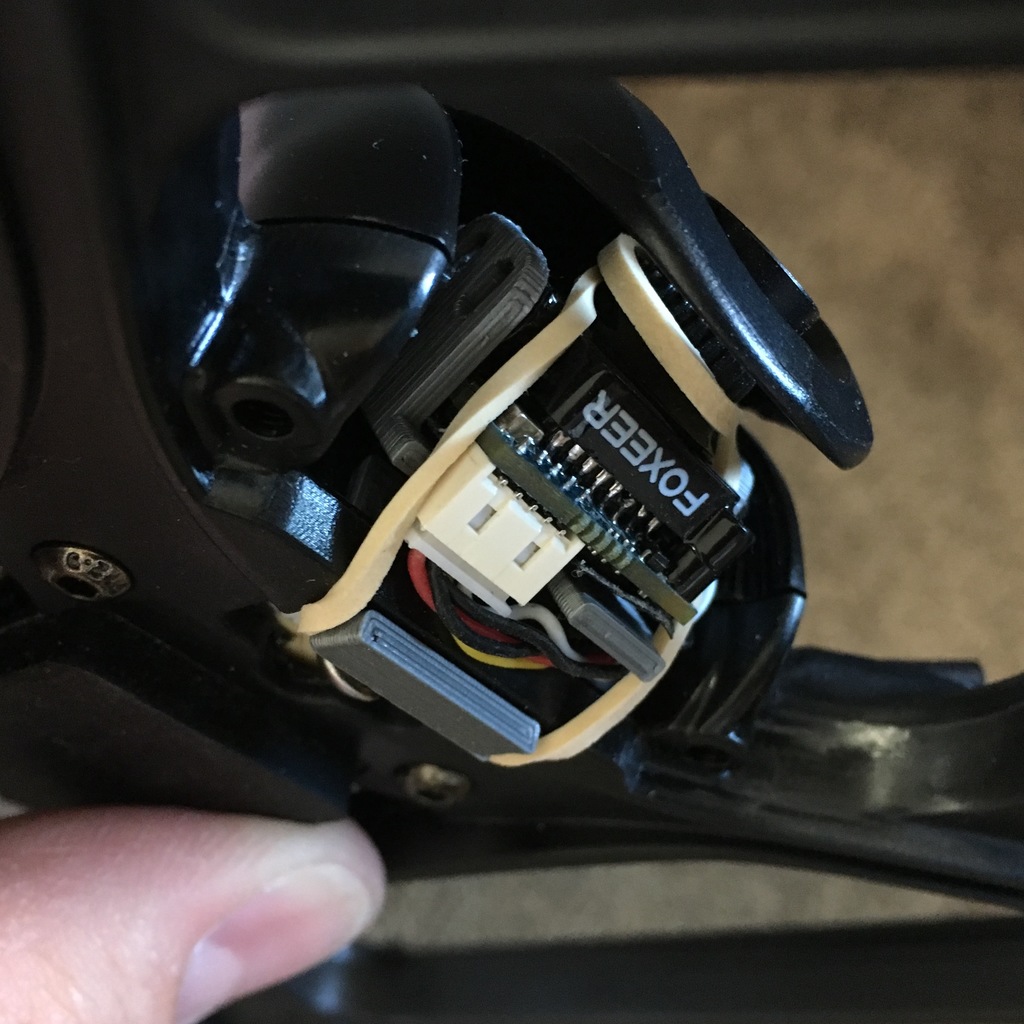

    For extra protection, add a rubber band to prevent the camera from sliding 'up' in a crash.

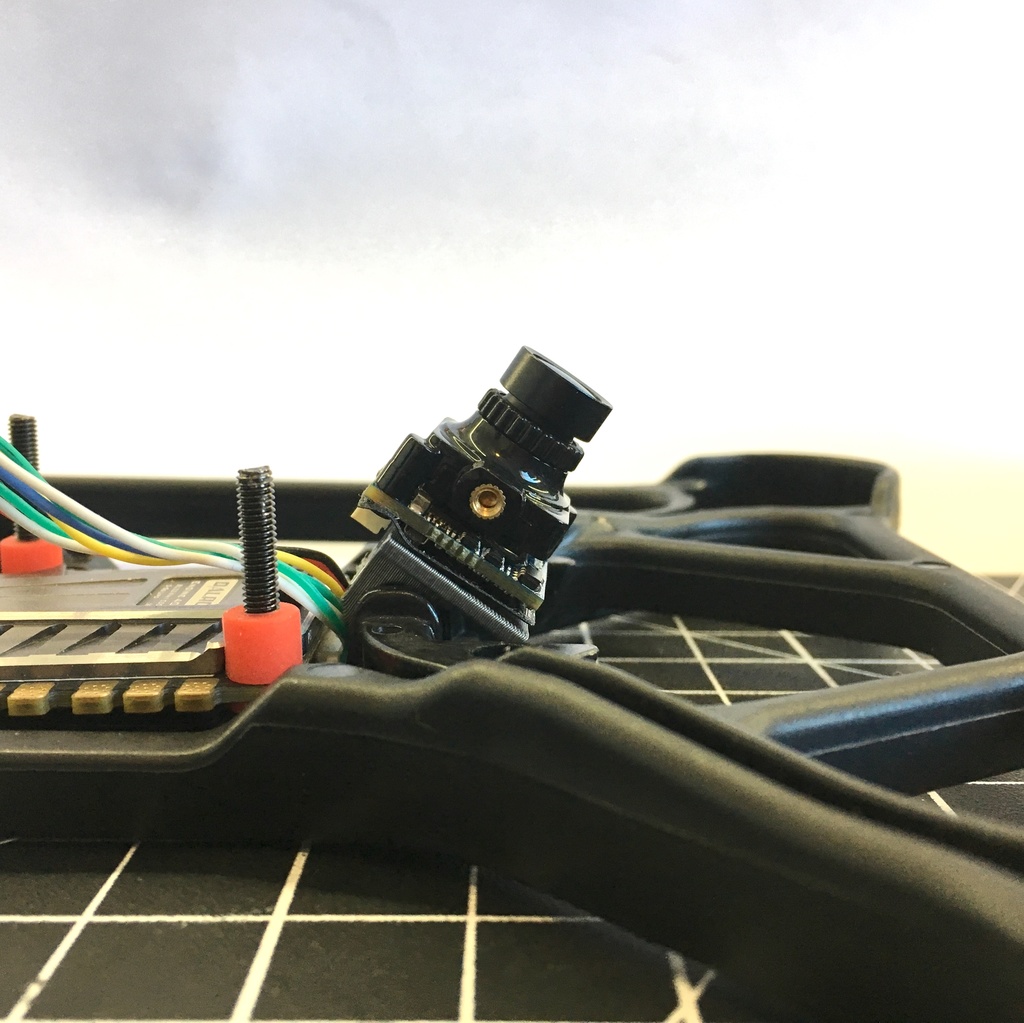

    ### Tilt

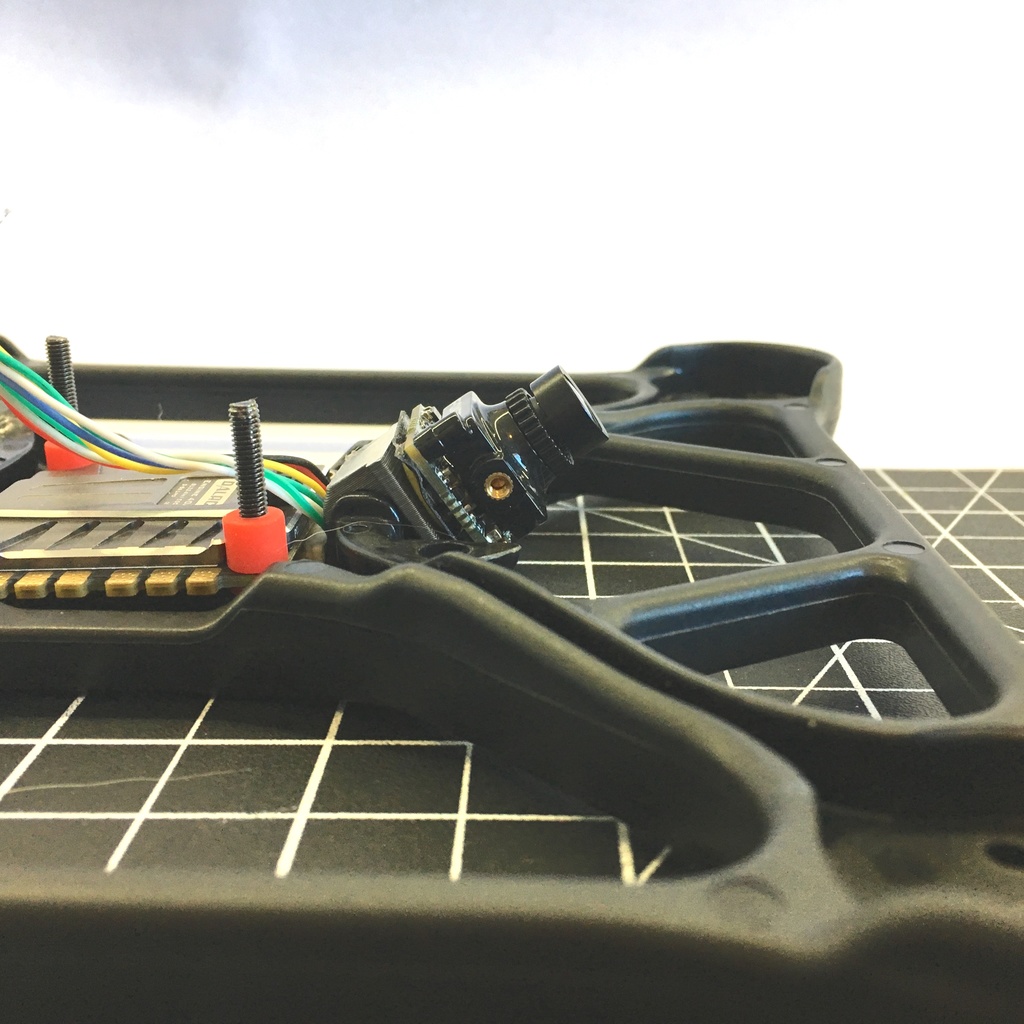

    Allows for about 20° to 50° tilt.
    Flip the camera upside down to get about 10° more tilt ( 30° to 60°). You will also need to flip the camera in the OSD.

    ### Printing

    Print is stronger when printed vertically on the bed.

Category: R/C Vehicles
