Gridfinity bin for Waveshare 1.29in Touch LCD Module

About

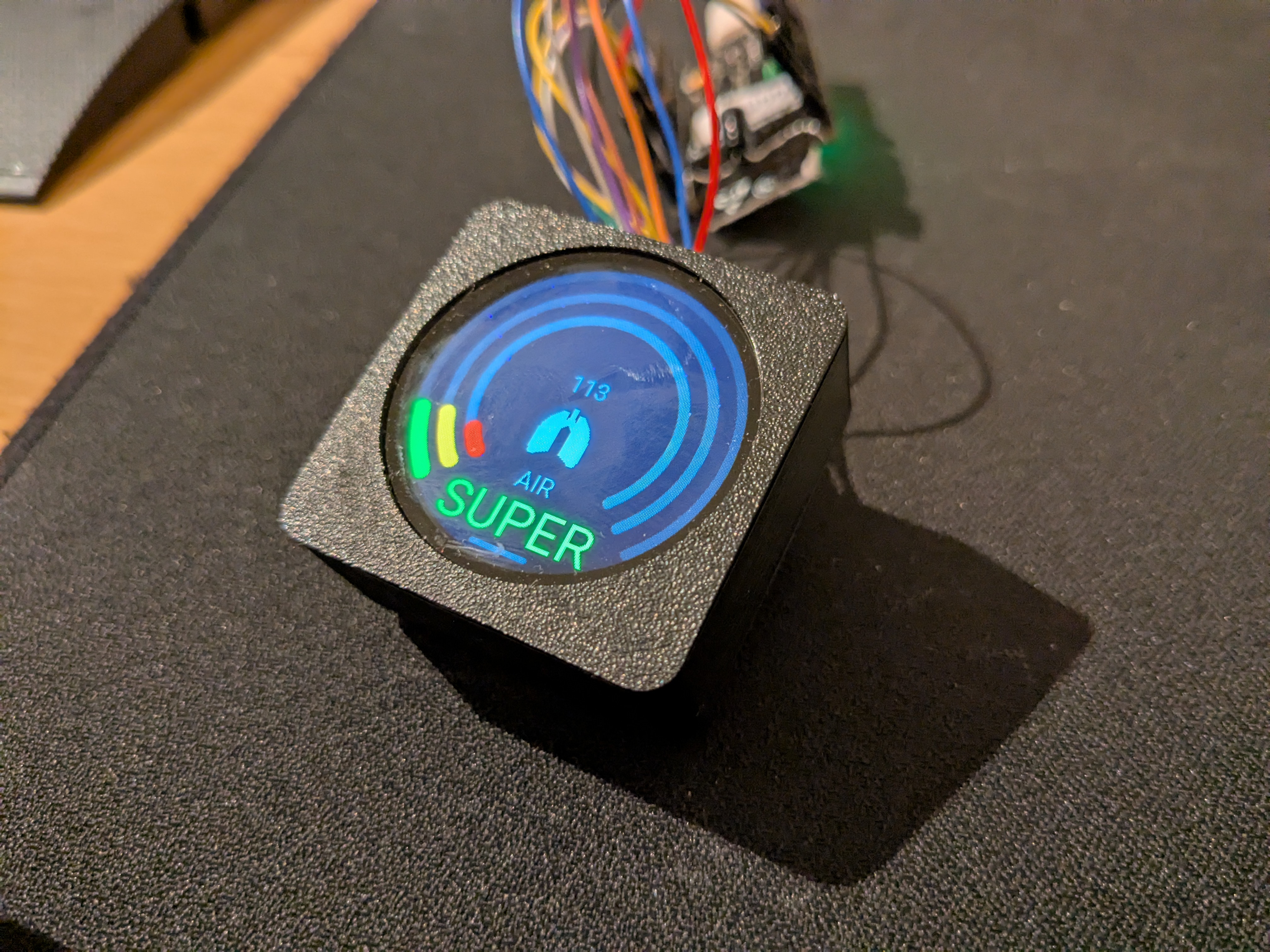

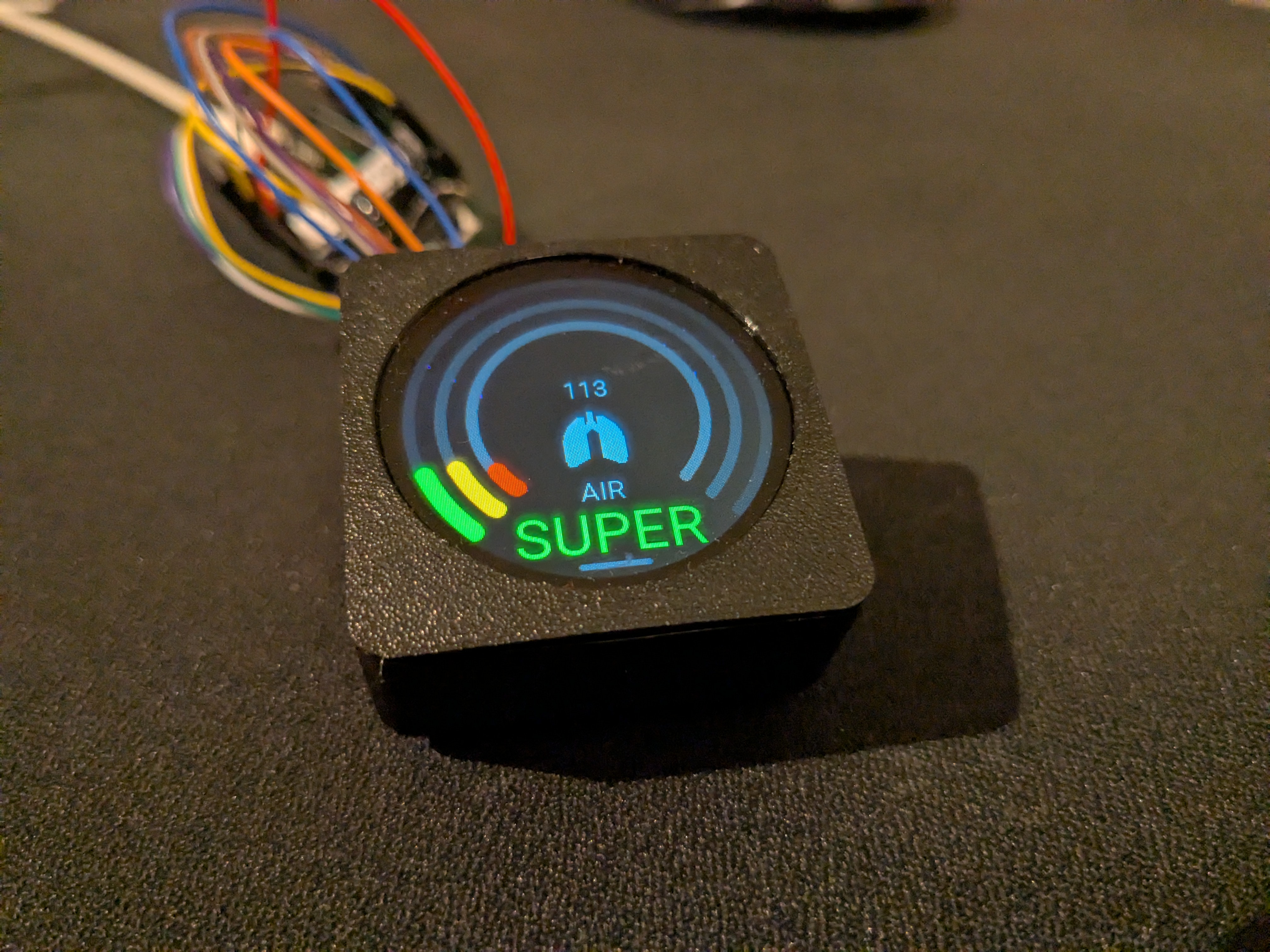

Gridfinity bin for Waveshare 1.28inch Round LCD Display Module with Touch (Waveshare 24155).
You will need at least 2x  M2x12 screws to screw it into place.
Used Bin - 1x1x3 - pmcquay.stl as a base model.

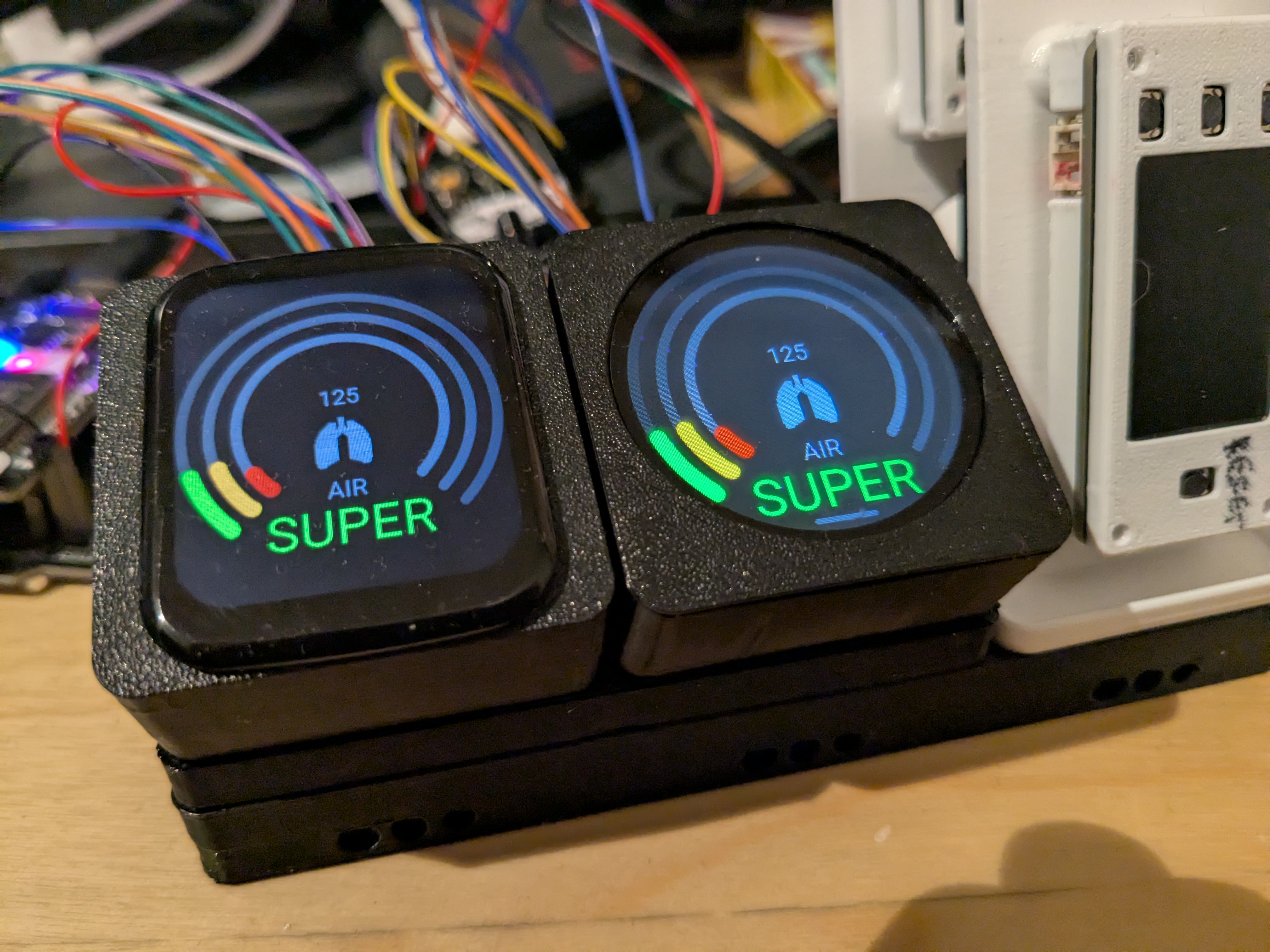

Part of my smart enclosure for 3D printer.

Please give a like and post makes and provide comments for further improvements.

Changelog
- 2025.01.24 initial release

Dimensions:

• width: 42mm (gridfinity)
• depth: 42mm (gridfinity)
• height 22mm (3u gridfinity)
• magnets 6x2mm, optional

Print

• I suggest 0.2mm layer height
• infill whatever you like but 20% is recommended
• supports are recommended
• no brim
• move the seam to the back of the print
• for nice finish of the top print it upside down, be careful when removing supports, though.

Assembly

• print it
• use 2mm drill to clean up the holes
• check if the display gets into the printed part properly without any obstructions, use a toothpick to push it from the bottom to disassemble the display and the printed base
• write down cable pinout on the back of the display (take a photo)
• push the cable through the hole, connect the cable to the display
• screw in two M2x12 screws to the plastic part so they stand out a bit
• put the display into the printed box, make sure cables are not tangled around the screws
• screw in the screws softly
• check if the display works

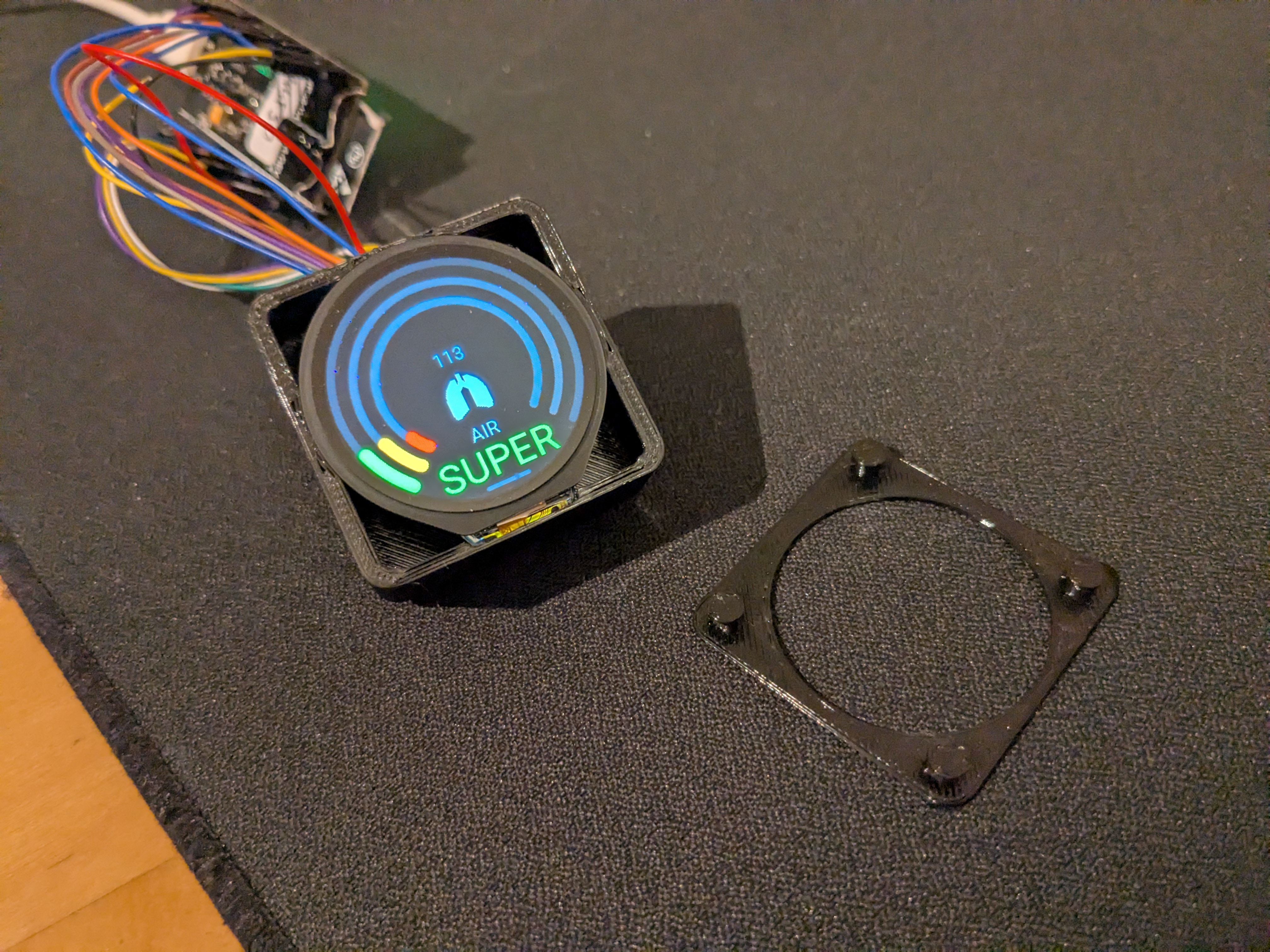

• push gently the top cover
  • notice that you may need to a filer to remove a bit of plastic on the round extruding attachments
  • notice that the cover is asymmetrical
  • start with putting bottom and then gently push in the top

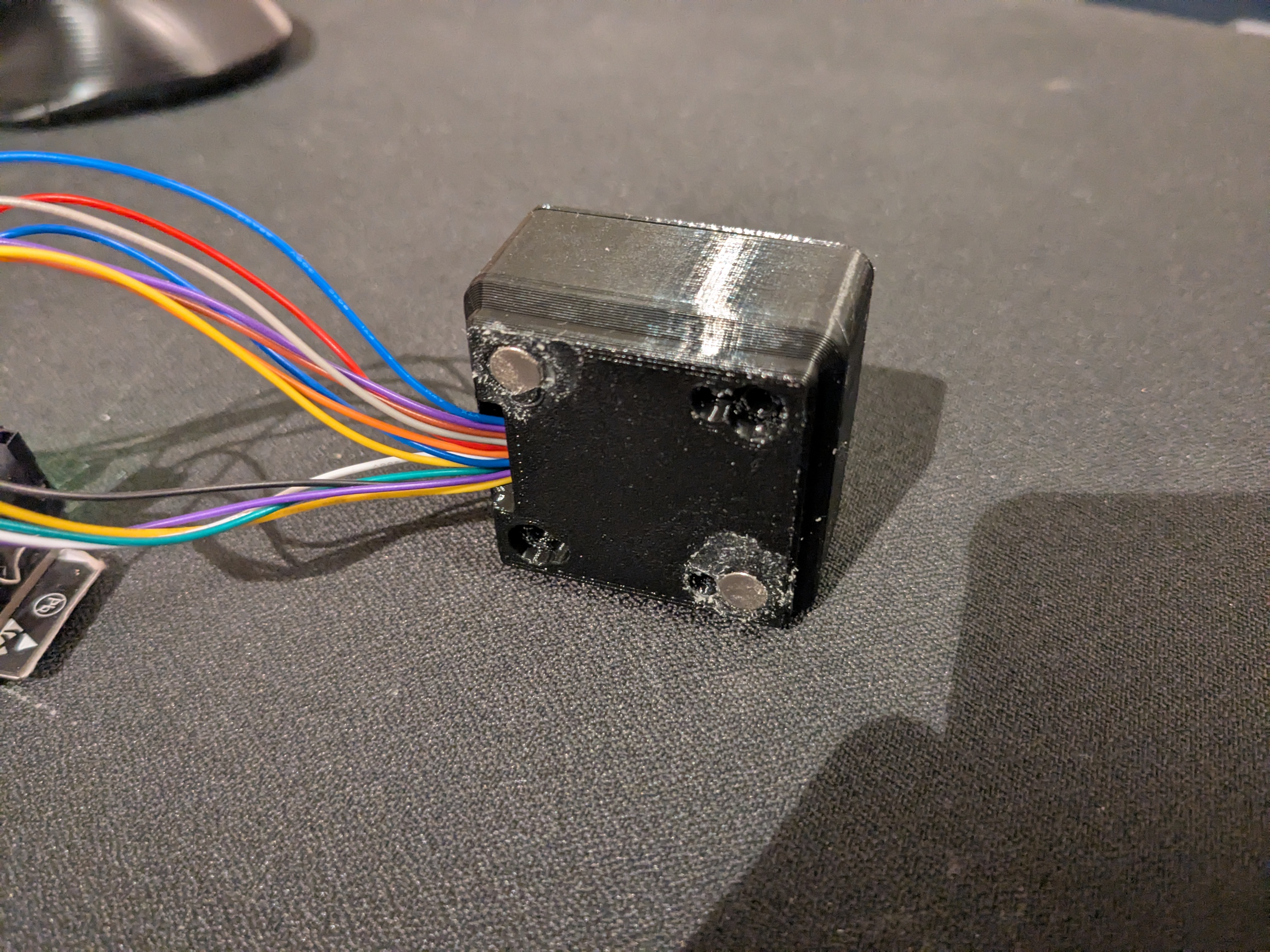

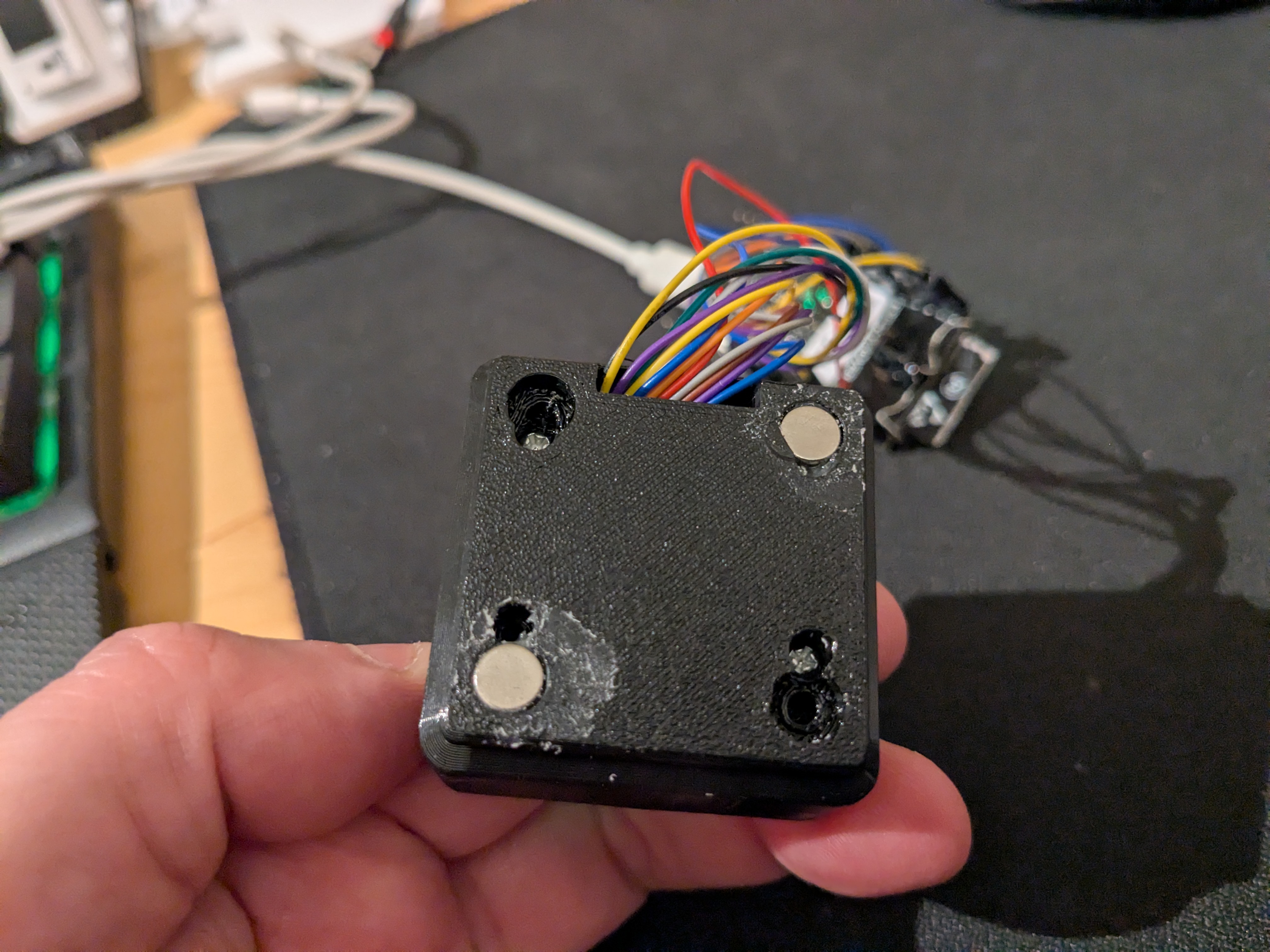

• optionally glue in magnets to the bottom of the box
